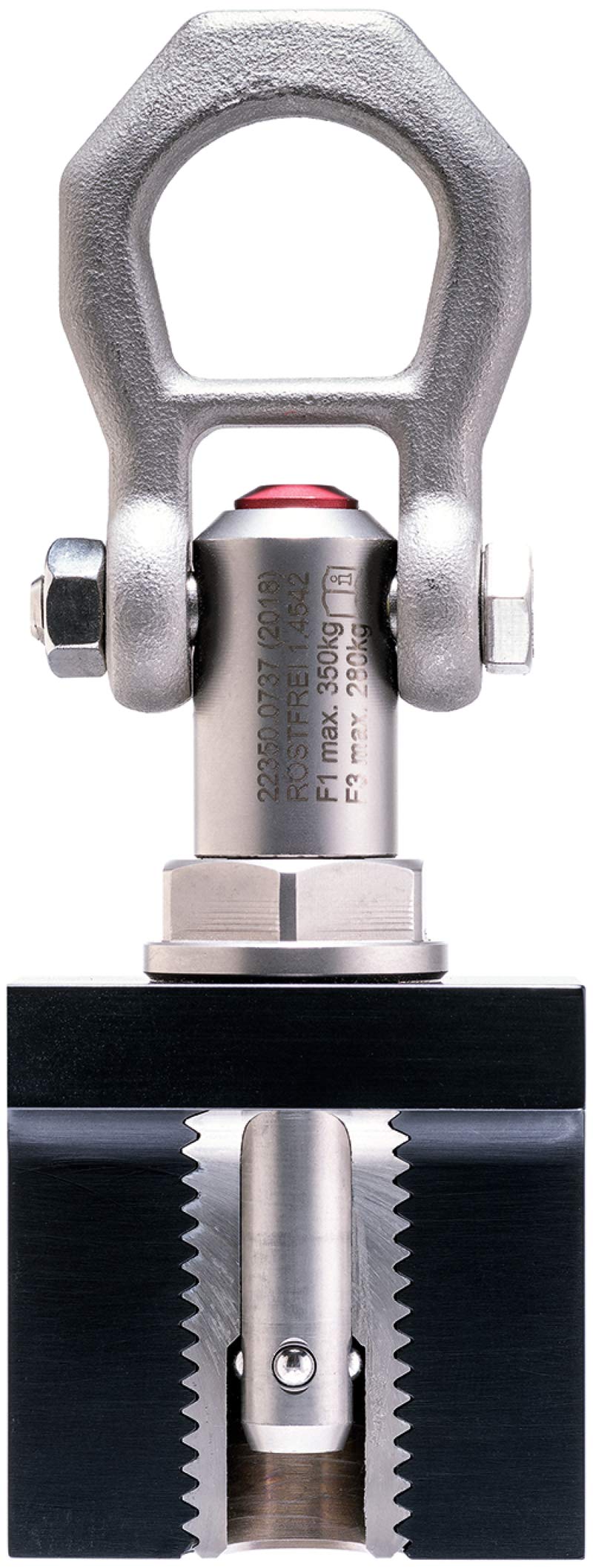

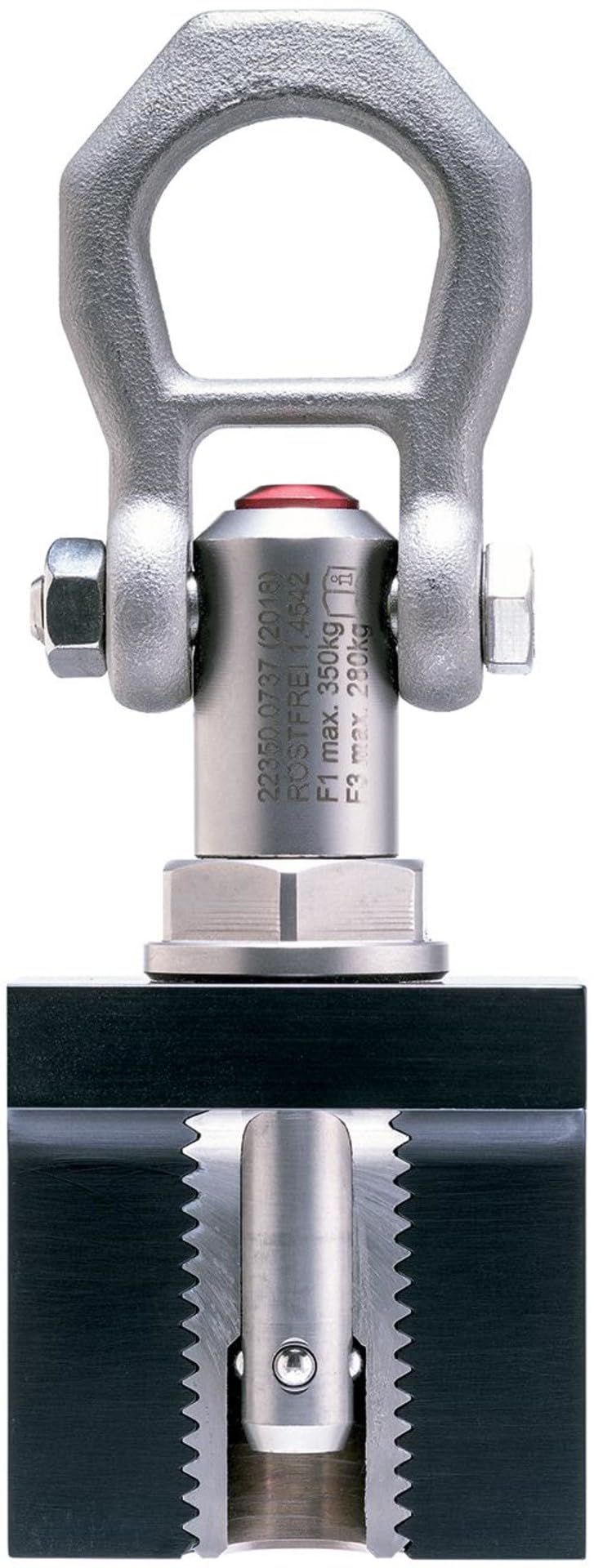

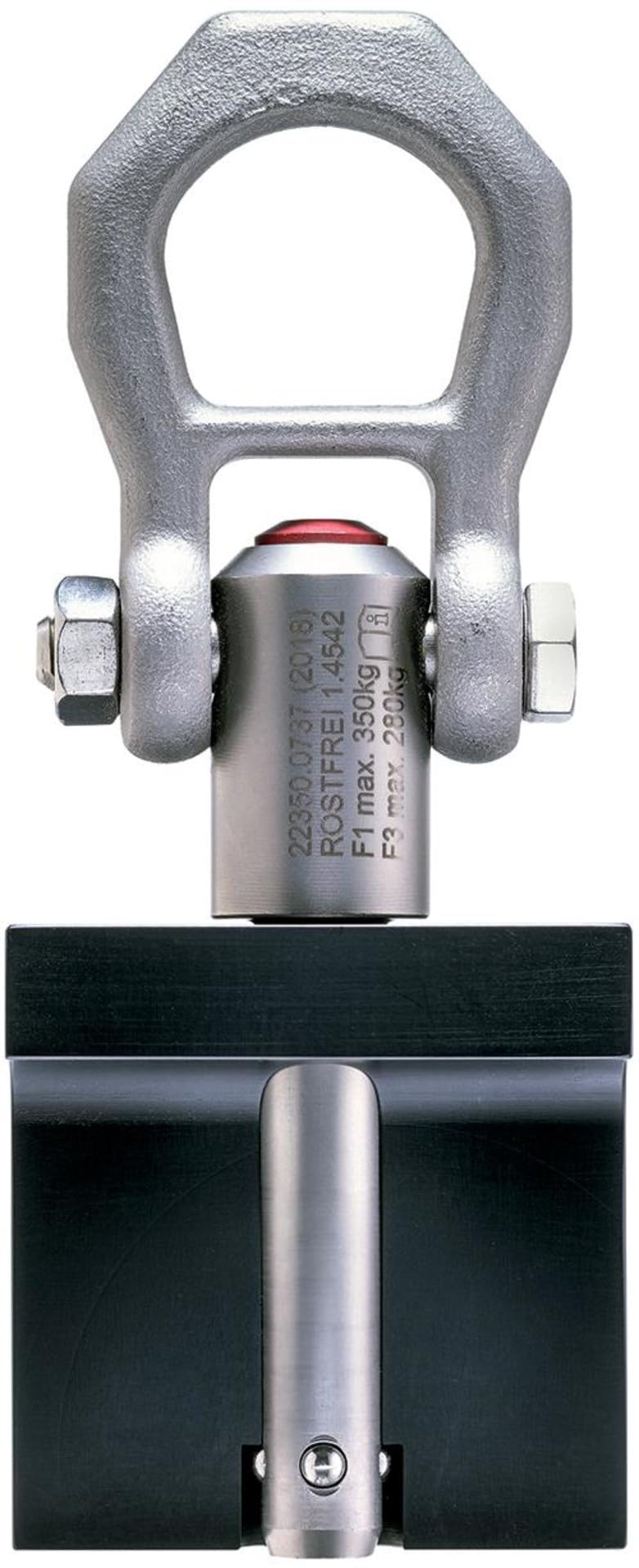

HALDER 22350.0614, self-locking ball bearing bolts, hardened and tempered steel, manganese phosphated.
About this item

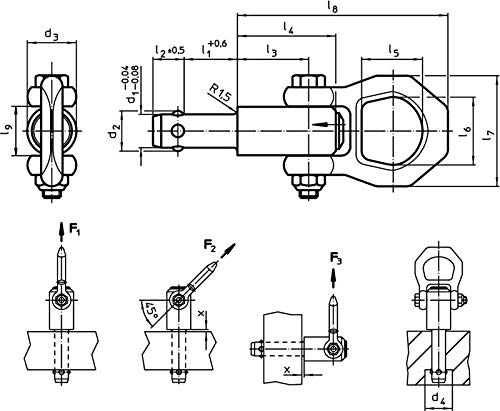

- Nominal dimensions: d1 = 8.3 mm / l1 = 25 mm
- TรV certified
- Temperature range max. 250 ยฐC
- Up to 1,000 kg load capacity
- Made in Germany
Product description

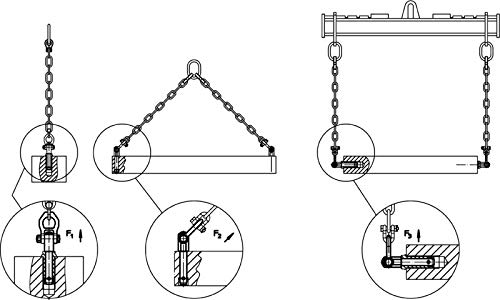

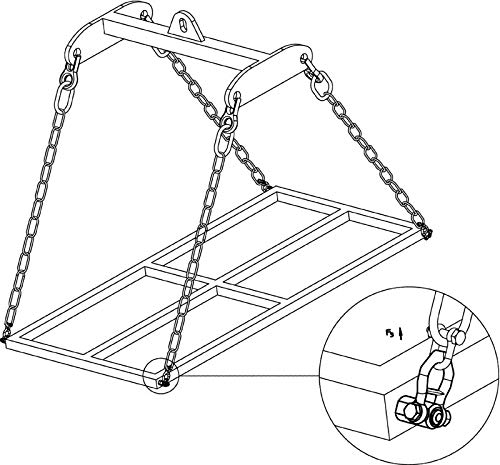

Quick and easy to use, robust carrying element with movable shackle and safety bar to prevent unintentional release. Special carrying aids on the workpiece, e.g. thread for ring bolts, are no longer required. All designs are corrosion protected. Material bolt part coated steel, hardened, manganese-phosphated push button aluminium, red anodised. Shackle coated steel, hardened, manganese phosphated spring. Stainless steel. Mounting holes H11 are sufficient for use. Each ball bearing bolt is an operating instructions with EC declaration of conformity. Operated by pressing of the button, the balls are unlocked. Accessories: as an accessory, we offer matching receptacles for d1 = 8, 10, 12, 16 and 20.
Product details
