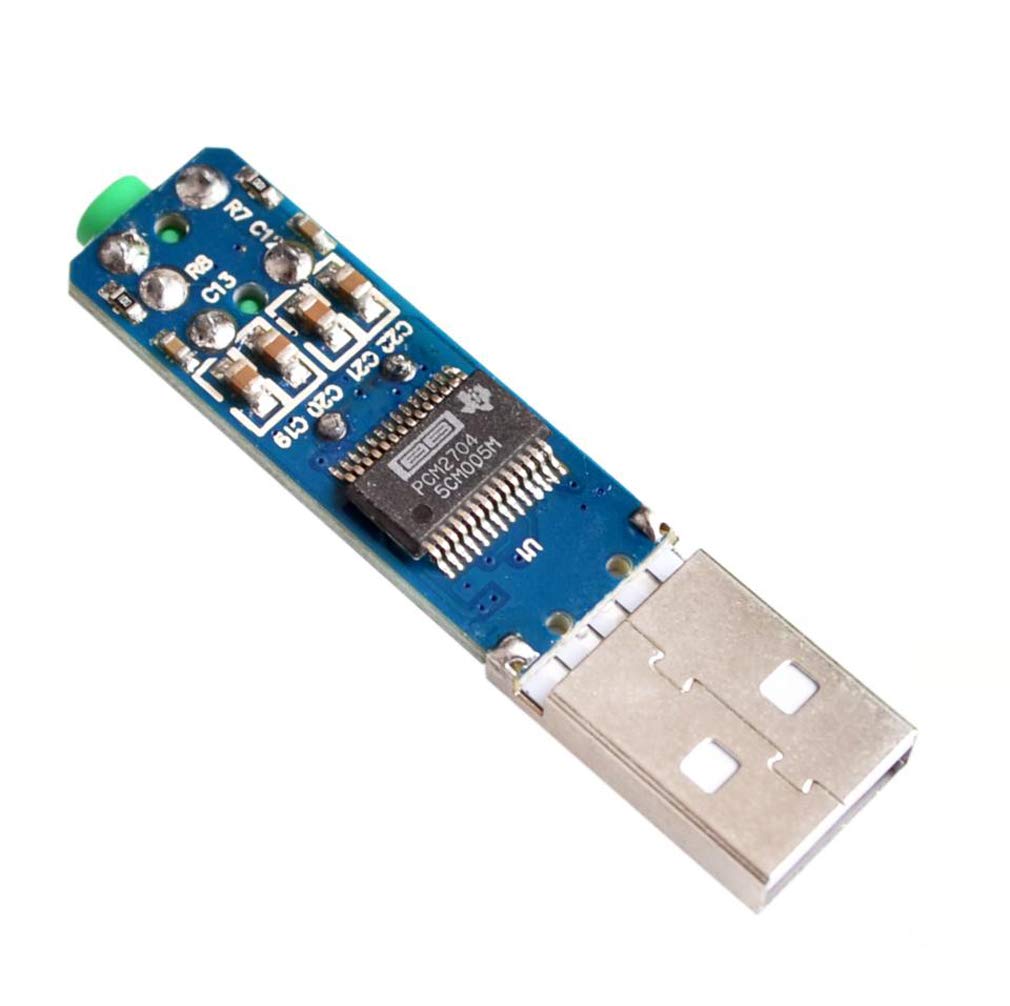

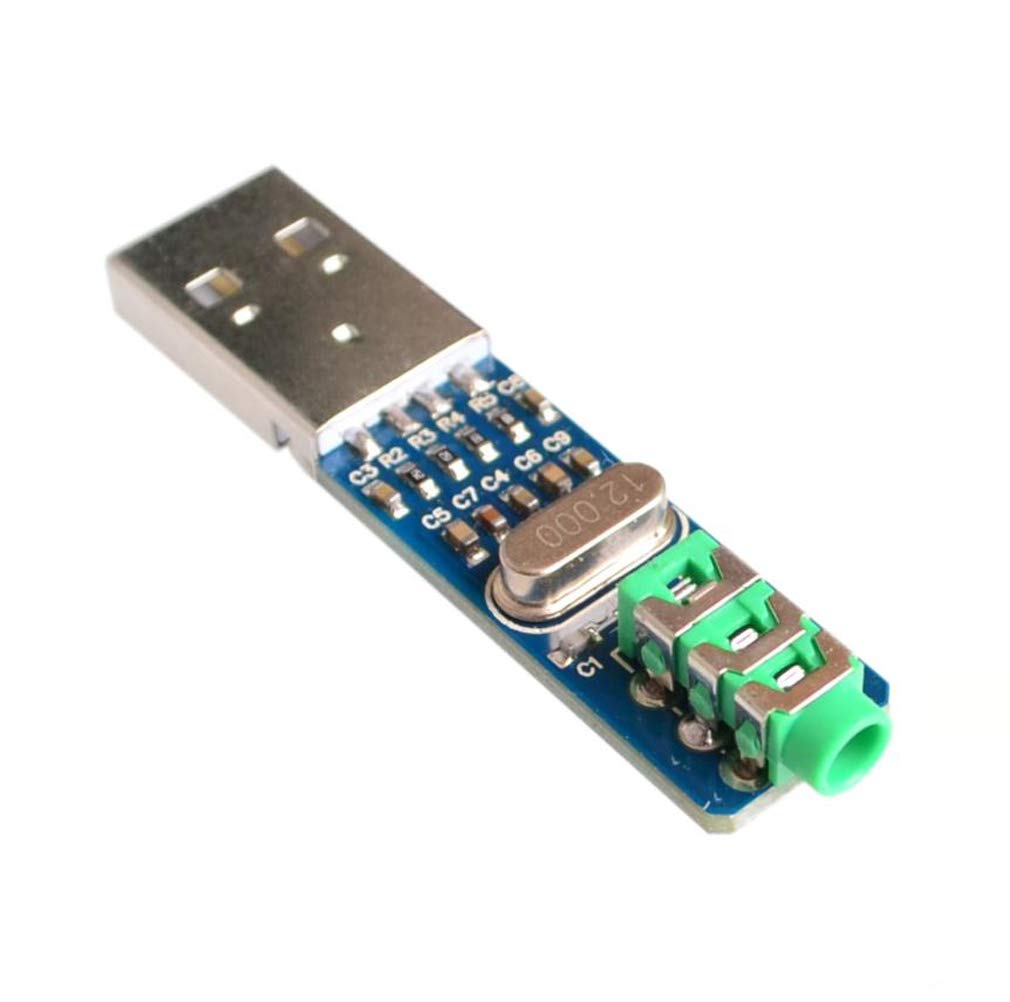

Hailege 2pcs 5V PCM2704 Sound Card Decoding Module DAC Decoder Board for PC Computer USB Powered

• PCM2704 Sound Card Decoding Module
• DAC Decoder Board USB Powered
• PCM2704 is a monolithic digital-analog converter chip. It has two output channels and digital-analog converter with an integrated USB interface controller.

Description: USB powered, analog output directly plugged into the computer's USB port, eliminating the need for connection Main chip PCM2704 USB decoder chip HIFI level, the most commonly used chip CM102S series, the output can be directly connected to the headset, but also do pre- Digital outputs can be the DAC more advanced decoder provides SPDIF digital signals to obtain better sound quality due to the external sound card, within the enclosure to avoid serious electromagnetic interference, SNR and sound quality can be improved PCM2704 is a monolithic digital-analog converter chip. It has two output channels and digital-analog converter with an integrated USB interface controller. Interface complies with USB1.1 standard. PCM2704 can receive 48KHz, 44KHz and 32KHz sampling rate, 16-bit stereo or mono audio data integration software chip volume and mute functions, can be synchronized adjust the volume and mute the computer Specifications: Supply Voltage: 5V (USB to take power) Distortion: THD + N: 0.006% (RL>10k) Distortion: THD + N: 0.025% (RL=32) SNR: 98 dB Dynamic Range: 98 dB Earphone Output Power: 12mW (RL=32) Supported Sample Rate: 16Bit 32k, 44.1k, 48k Package Included: 2* PCM2704 USB Sound Card DAC Decoder Board
