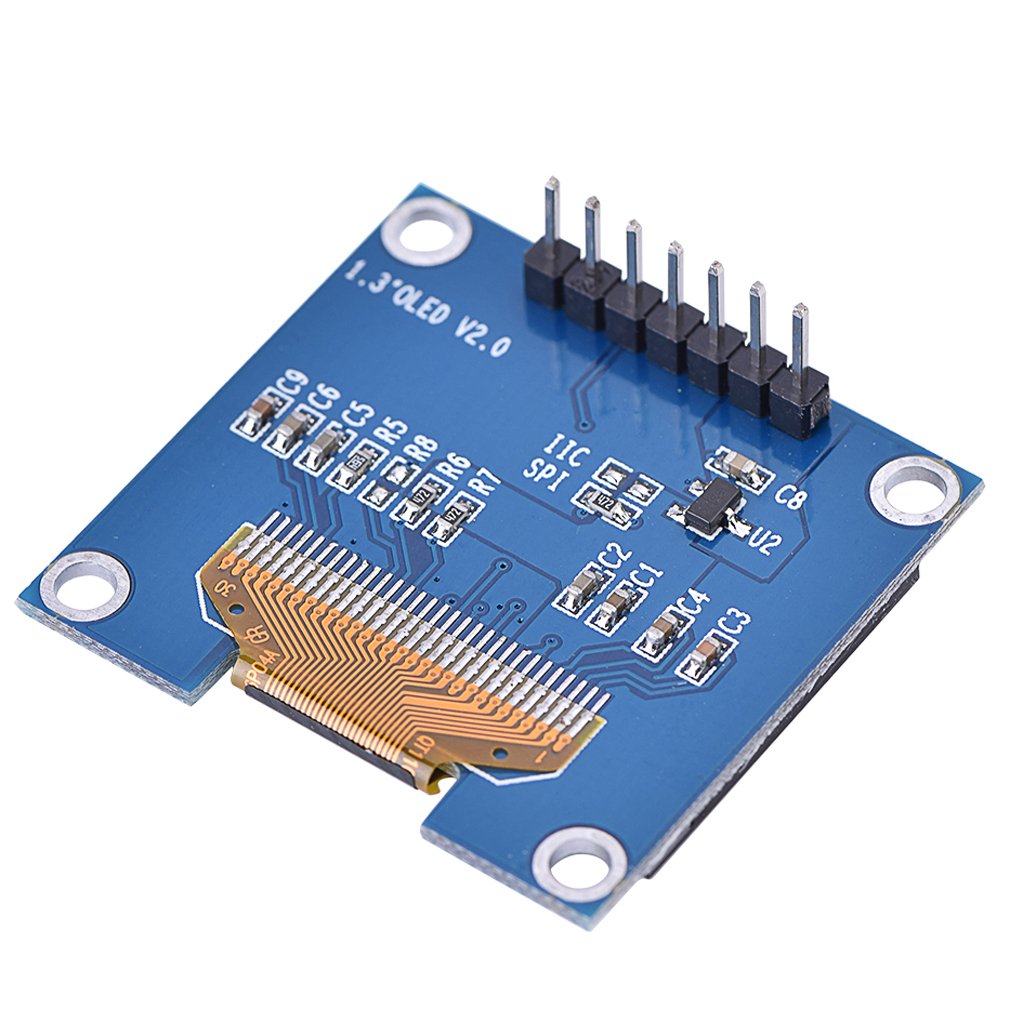

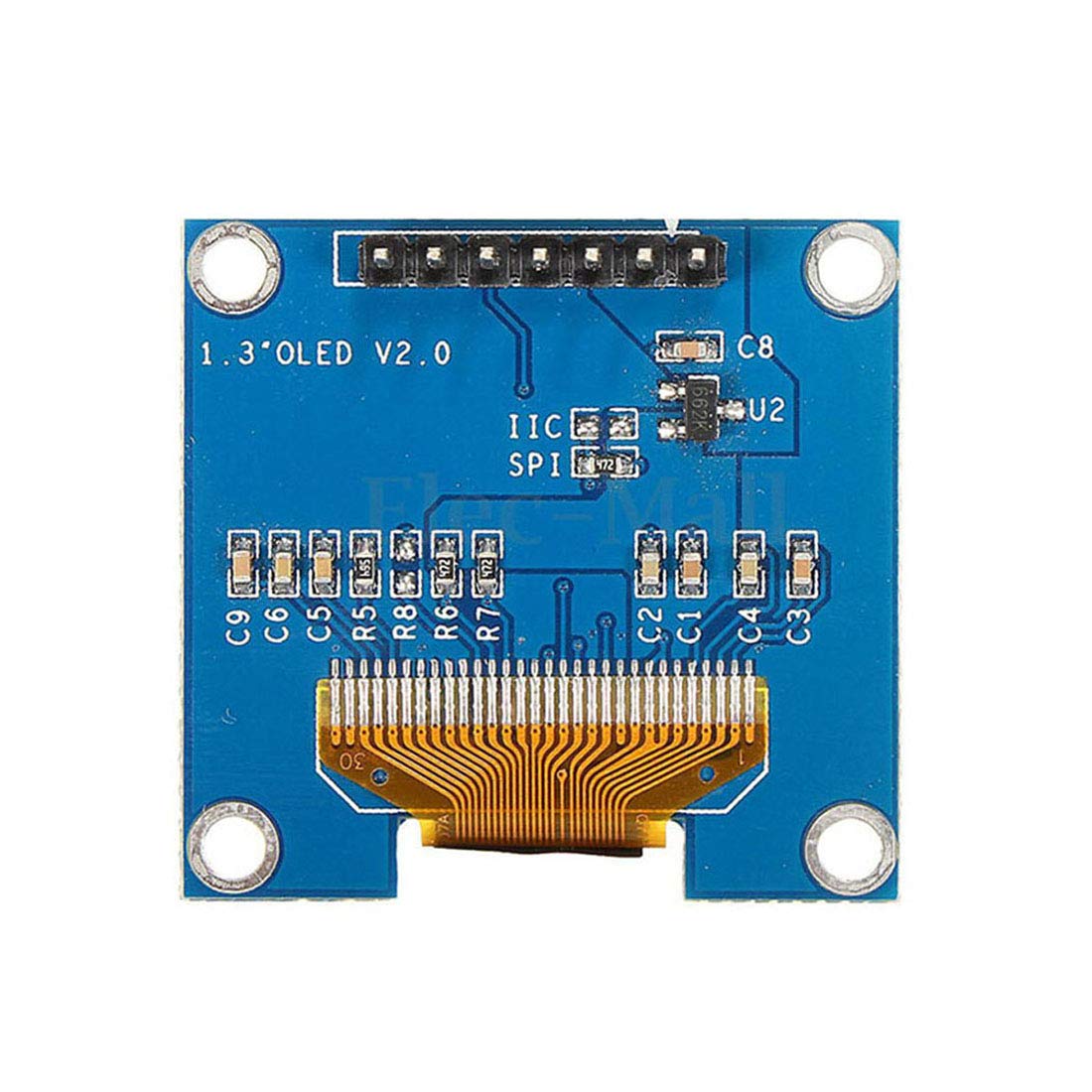

Hailege 1.3" SSH1106 SPI OLED LCD Display 128x64 OLED Display Module for AVR PIC STM32 51
★★★★★
$16.08
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
Product description
Specifications: 1. Driver IC: SSH1106 2. Resolution: 128*64 3. Viewing angle: >160 4. OLED screens inside the driver chips: SSH1106 5. Supports many control chip : fully compatible with 51 series,msp430 series , stm32/2 CSR IC , ETC 6. Ultra-low power consumption: full screen lit 0.08w 7. Voltage: DC 3V-5V 8. Work temp : -30c-70c 9. Interface: SPI 10. Font Color: White IIC Pin definition: GND: Power Ground. VCC: Power + (DC 3.3 ~5v). SCL: Clock Line. SDA: Data Line. SPI Pin definition: GND: Power ground VCC: Power CLK: Clock line MOSI: Data cable RES: Reset line DC: Data/commands CS: Chip select (when not use can be grounded directly) Package included: 1* 1.3" SSH1106 SPI OLED LCD Display Module
Product details
