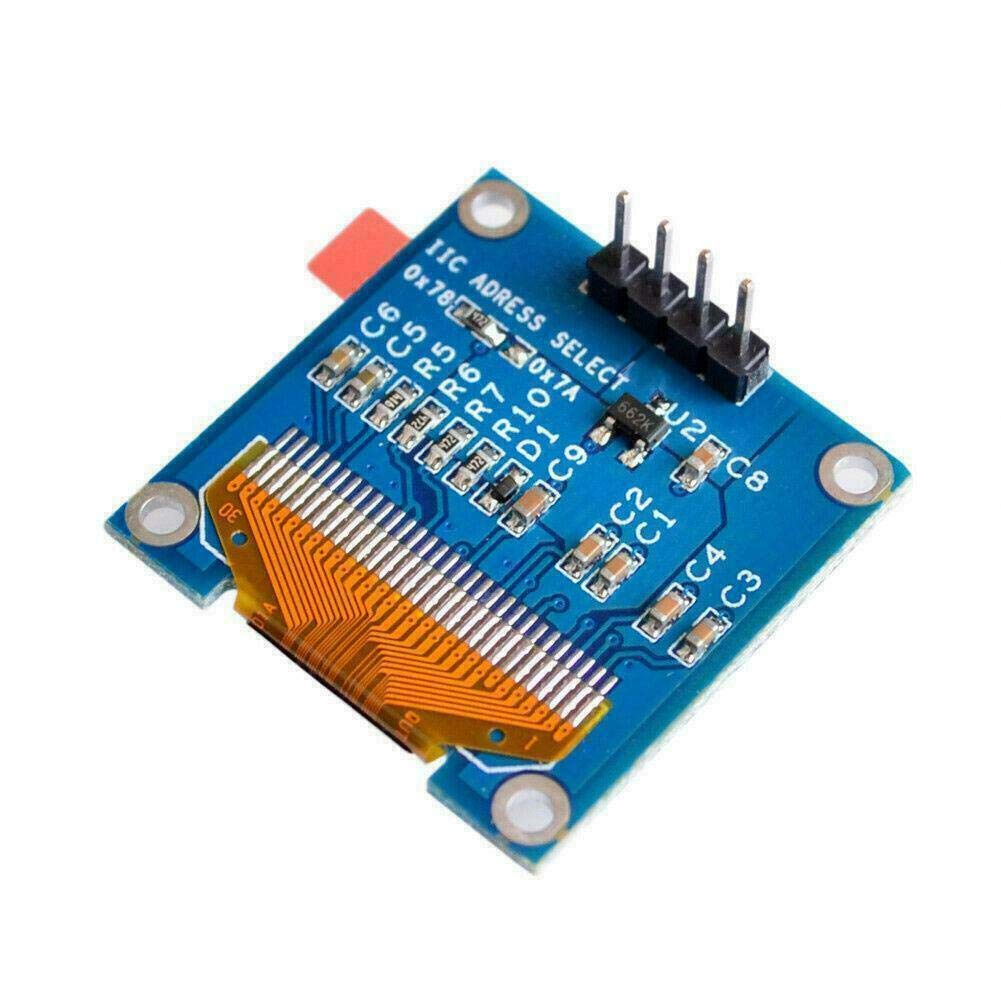

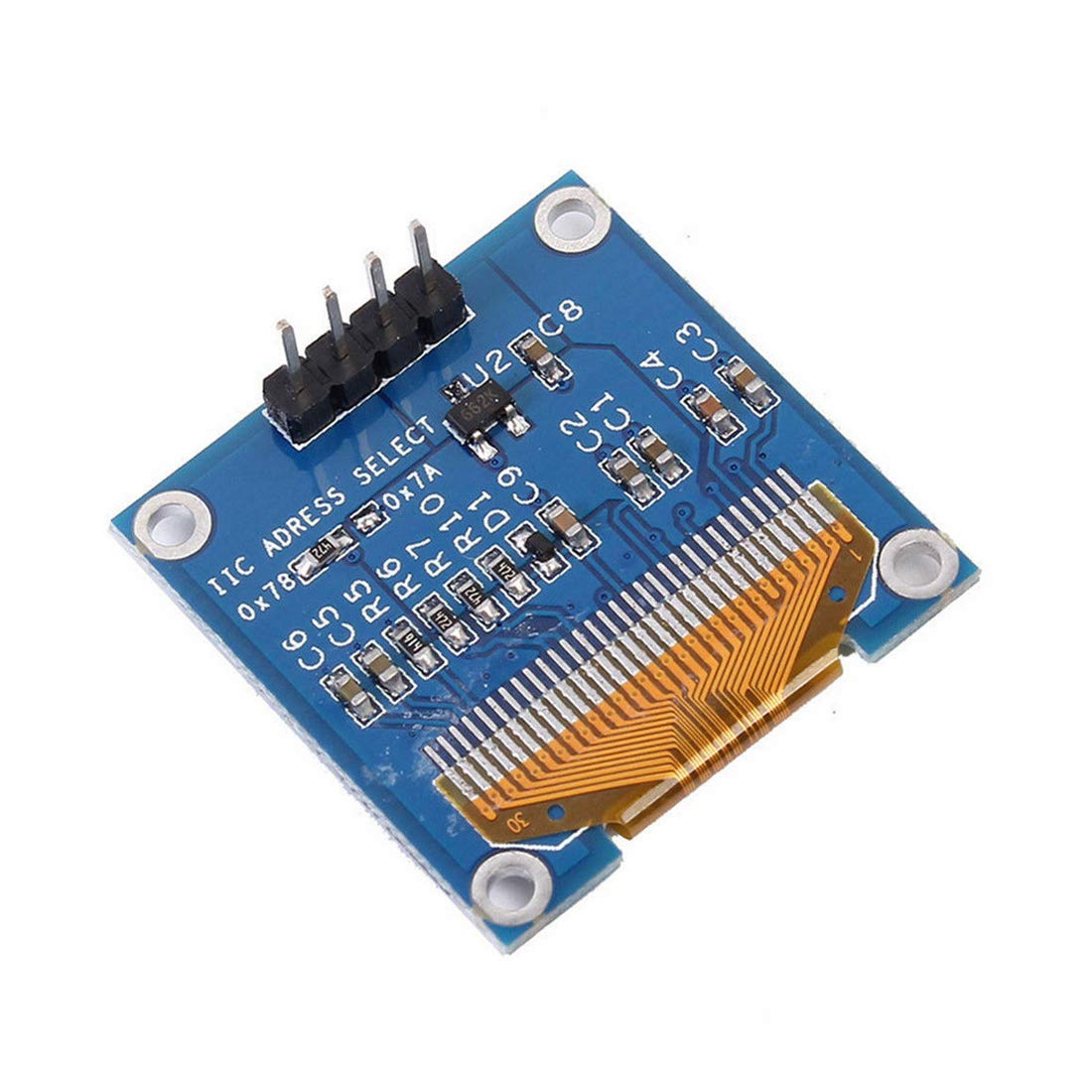

Hailege 0.96" I2C IIC OLED LCD Display 128X64 OLED for 51 STM33 White Font
About this item
- 0.96" SSD1306 128X64 OLED LCD Display, I2C IIC or SPI Optional
- Driver IC: SSD1306; Drive Duty: 1/64 Duty; Voltage: DC3V ~ 5V; High Resolution: 128 * 64
- Ultra-low power consumption, Super High Brightness, Super High Contrast
- Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Product description

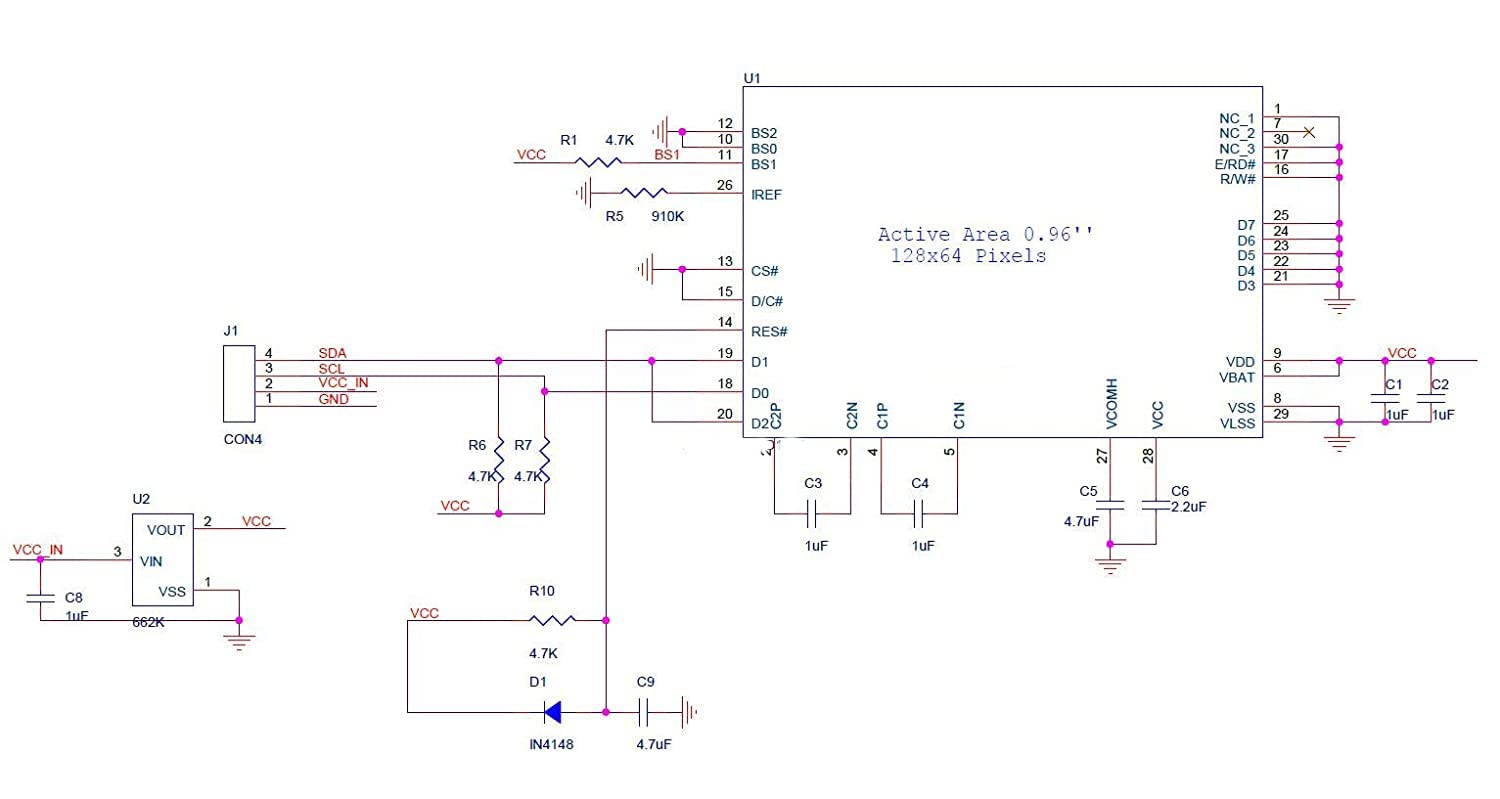

Description: Needn't backlight, the display unit can self-luminous High resolution: 128 * 64 Viewing angle:> 160 ?br> Supports many control chip: Fully compatible with , 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08W Voltage: 3V ~ 5V DC Working Temperature: -30 ? ~ 70 ? Module Size: 27.0MM * 27.0MM * 4.1MM I2C/IIC Interface, need 2 IO only. Driver IC: Features: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Colors: White/Blue/Blue Yellow Drive Duty: 1/64 Duty Pixels: 128x64 Panel Size: 26.70mm x 19.26mm x 1.85mm Active Area: 21.74mm x 11.2mm Pixel Size: 0.15mm x 0.15mm Package included: 1* 0.96" I2C IIC/SPI 128X64 OLED LCD Display Note: Please contact us if you need the Schematic/Program code/User Manual etc.
Product details
