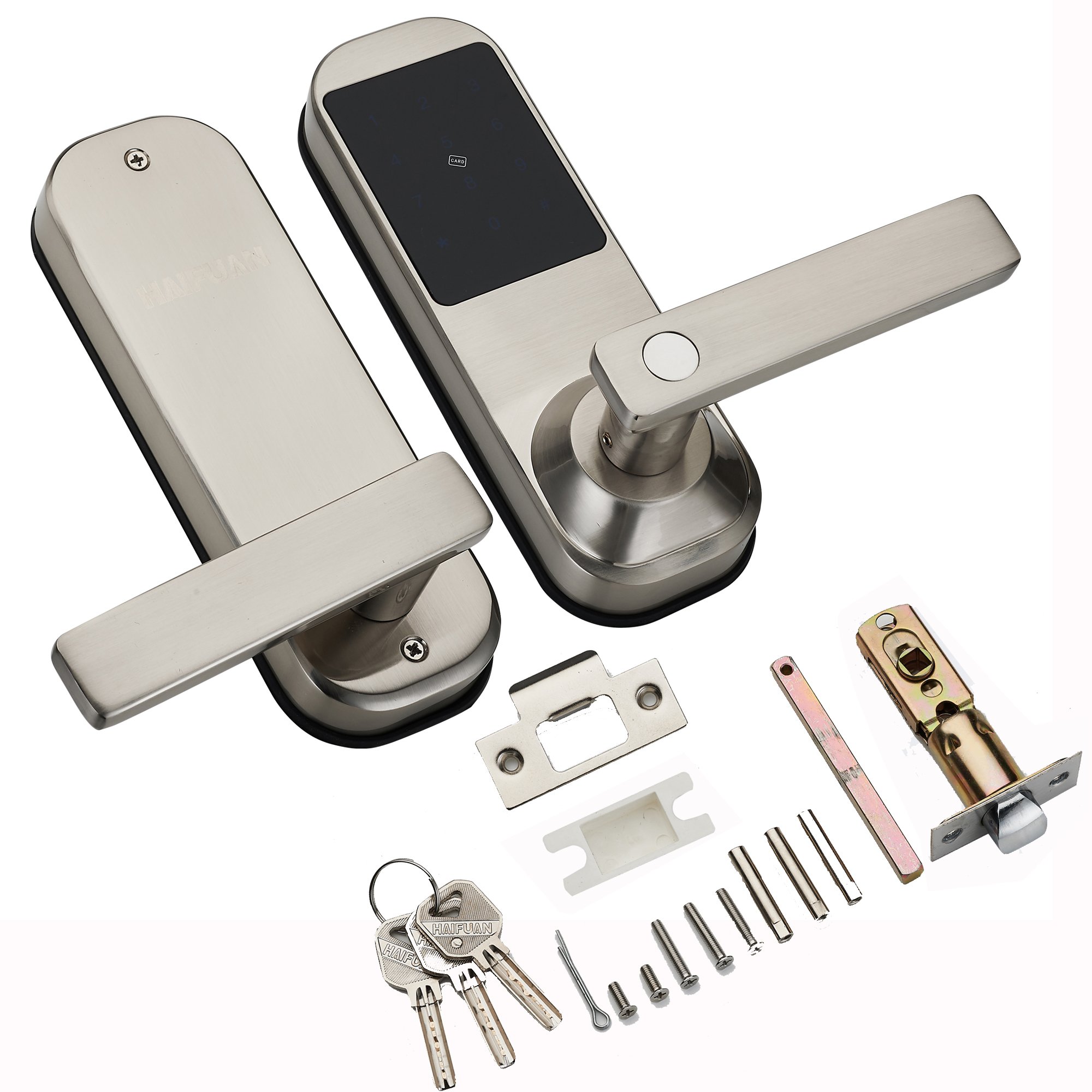

HAIFUAN Security Digital Keyless Code Door Lock, Unlock with Code Card and Key(HFAM10) (NB)

• NB color, Unlock with M1 Card, Pass Code or Mechanical Key,Voice Navigation While Operating
• 1000 Total Users and Quickly Add or Delete User Passcode, Keyfob Individually.
• Touch Screen, Waterproof, Excellent for Exterior Use and Interior Doors,keys, Hidden keyhole, Easy Right or Left Handle Switching,

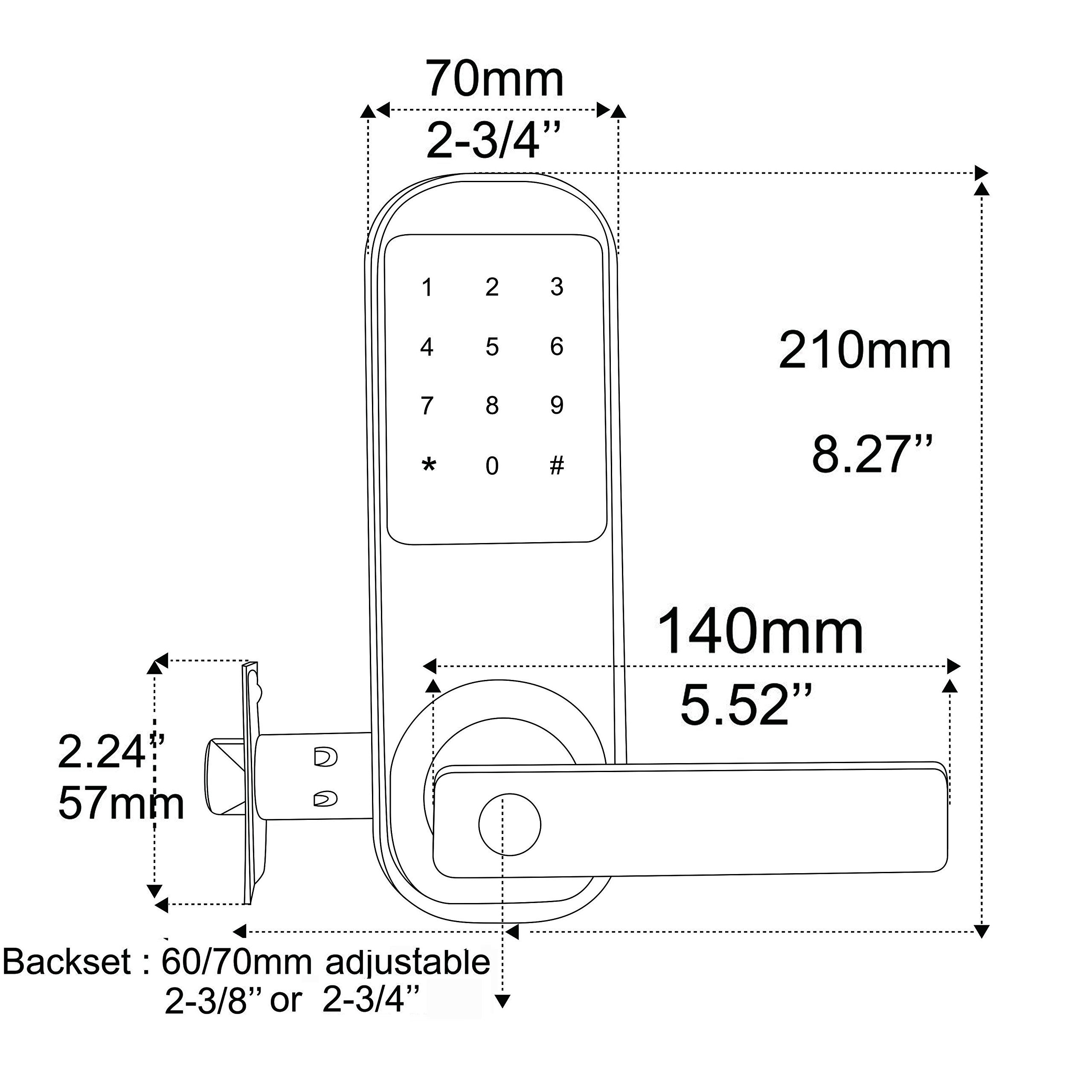

• Stay Unlocked Mode Available. Keypad illumination, Standard Latch(2 3/8" 60mm and 2 3/4" 70mm adjustable)
• 4 AA (not included) Batteries Required. For door Thickness Between 30-70MM

Intruduction: This digital lock is NB finish color, perfect lock for residential or commercial units that need access for multiple people. Function: It has 3 unlock options: M1 card, Pass code or Mechanical Key. Max of 1000 Codes + Cards users.Touch Screen Keypad, illuminate when touched. Pass word protect funtion, you can input many digits before and after your code to open the door, for example, your code is 666666, you can input 12352+666666+98658 to open the door, total length must be less than 20 digits Passage mode available when enter into this mode, the lock won't automatically lock after open once, no need to input code every time for a busy door Handle Orientation for this lock is easily Reversible, handle direction default for Right. Use the allen key in screw bag to remove the screw on handle, pull it out, turn 180 degree, install it back to change handle direction. Standard Single Latch,backset reverisible for 2-3/8"(60mm) and 2-3/4"(70mm); In case of dead battery The lock will alarm when the battery voltage is lower than 4.8V, You can use keys to open the door in case of dead battery, you need to move away the key hole cover first. There is a small magnet in the key, use this key(or other magenet) to remove the key hole cover to insert keys Video Guide Available Problem shooting steps: 1.Can't program code: please reset the lock by press the reset button for 6 seconds (the reset button in near the battery cover), then program it again. 2.Fail to work within a short time: reset the lock first and reprogram it, if still fails to work, please contact seller for a replacement
