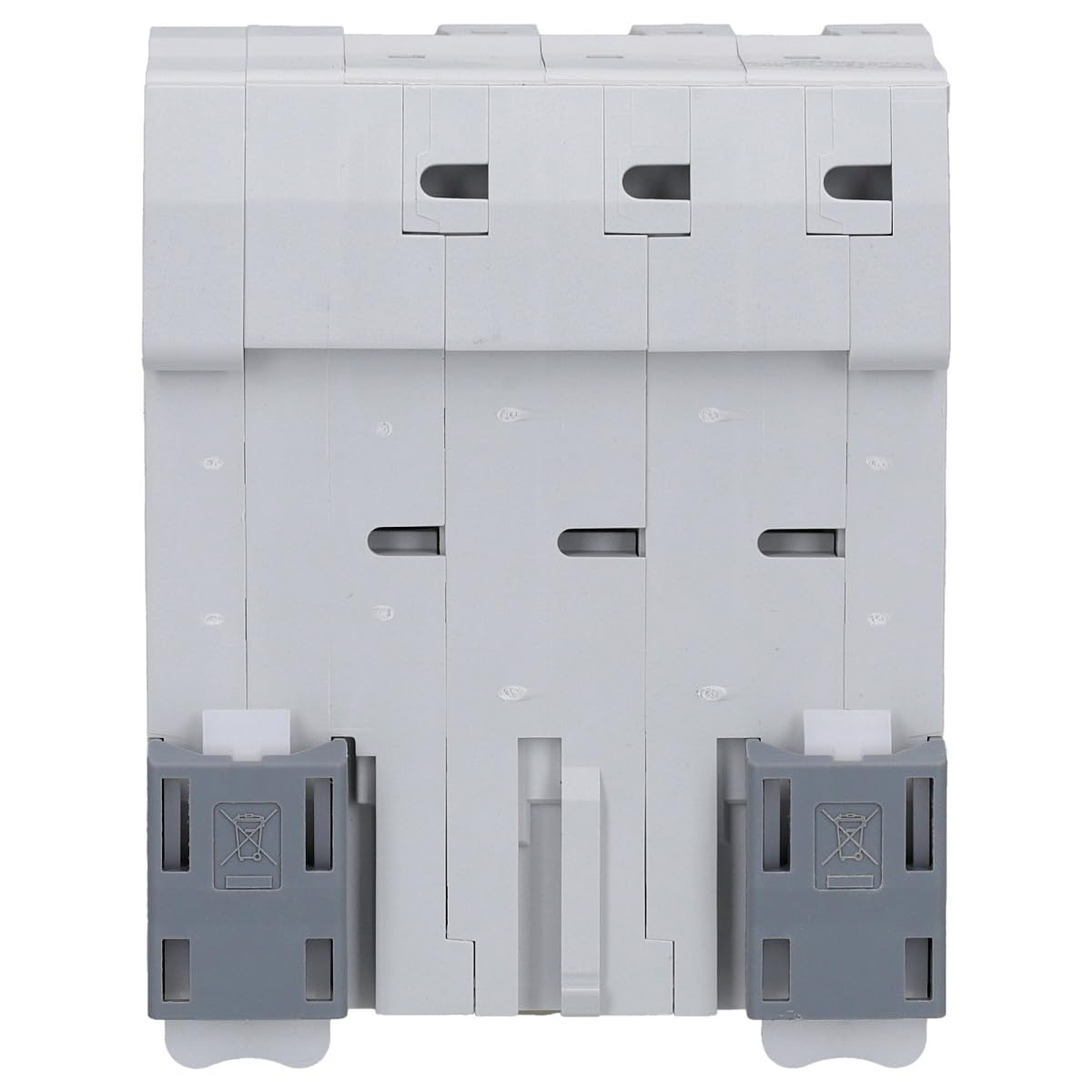

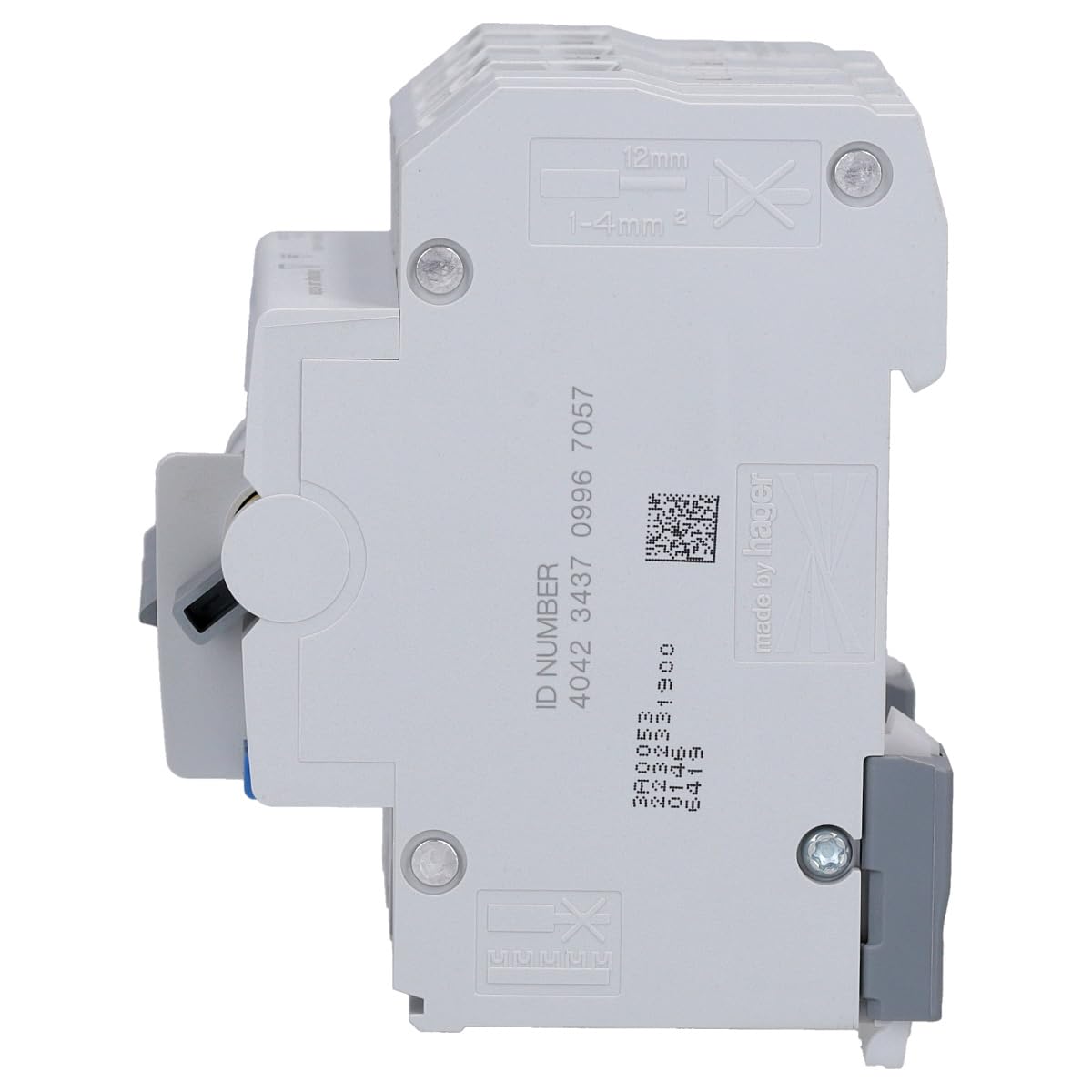

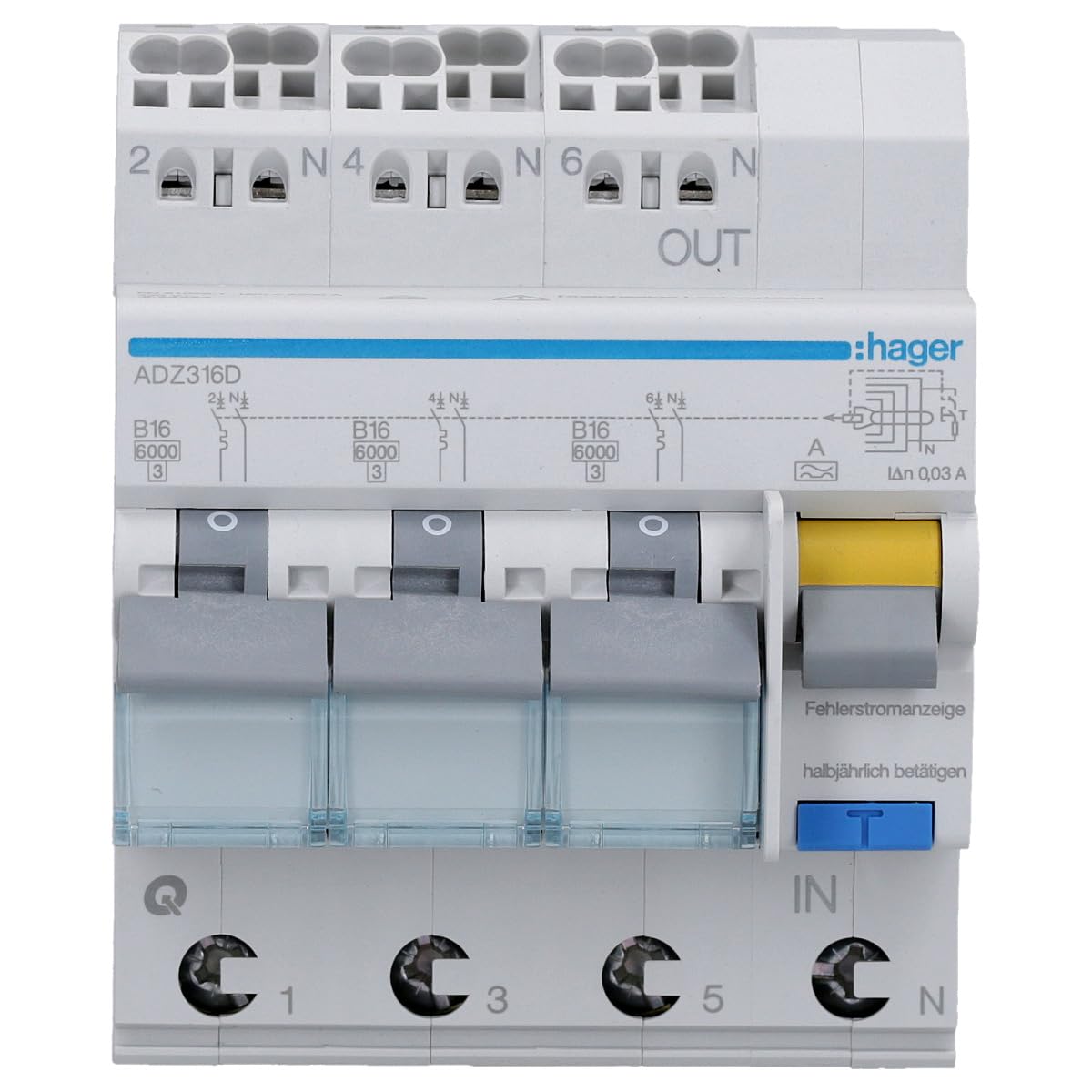

Hager – Fi/LS Switch 3 x 1P + N 6 KA adz316d

• polzahl (total) = 4
• The secure pole number = 3
• Rated voltage = 230 V
• Rated current = 16 A
• Nominal Error Current = 0.03 a

Residual current circuit breaker 3x 1P + N 6kA B Charakt. 16 A 30mA Type A QC. Residual current circuit breaker in accordance with DIN VDE (German electrical engineering Association) 0664/EN61009 1 with 3 x 1 Pin Cable Protection Switch for 230 V AC circuits and a residual current protection switch in compact housing. Quickcon clamp in accordance with DIN EN 60898 – 1, VDE 0641 – 11 on the outlet connect up to 16 A and at the entrance to up to 63 A, Touch protection according to IP2X DIN VDE 0106 part 100, blue test button and fault current display. Easy to individual removal from the bus bars fiber composite. With German electrical engineering Association logo. Suitable for retro-fitting of ancillary equipment. Labelling option on the unit directly. Number of Terminals (Total) is 4th Number of Abgesicherten pole is 3rd rated voltage is 230 V Rated current is 16 A. Rated residual current is 0.03 including residual current product has A. Energy limitation Class is 3 rated Horse Delay Fuses) according to EN 60898 has 6 KA. Frequency: 50 Hz. Release characteristics is as Mitschalt, neutral wire is Yes. Overvoltage Category: is
