HAFELE Duo Standard Flap Lid Stay Lift Support System for Kitchen Wardrobe Cupboard Cabinet Door Open Upward and Downward Self Closing Hinges Germany Brand Silver Pack of 1

• Easy to open and stop at any opening position; Dual Functions, Self closing
• Light version - minimum installation depth 135 mm

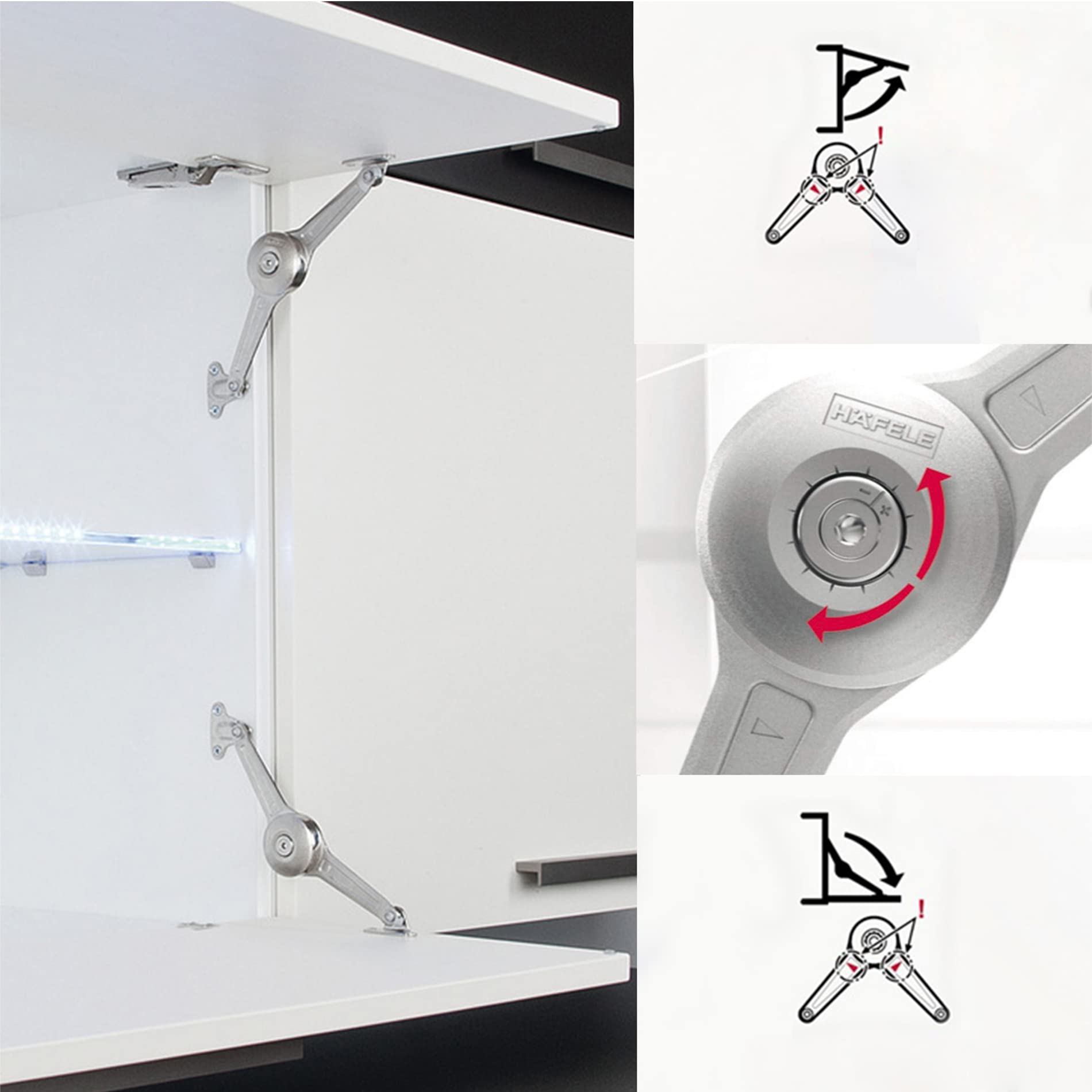

• Adjusting the arm power turns the Lid Stay into a Flap Stay
• Wear-resistant friction coupling with large adjusting range
• With braking and locking mechanisms; Less space required inside the cabinet

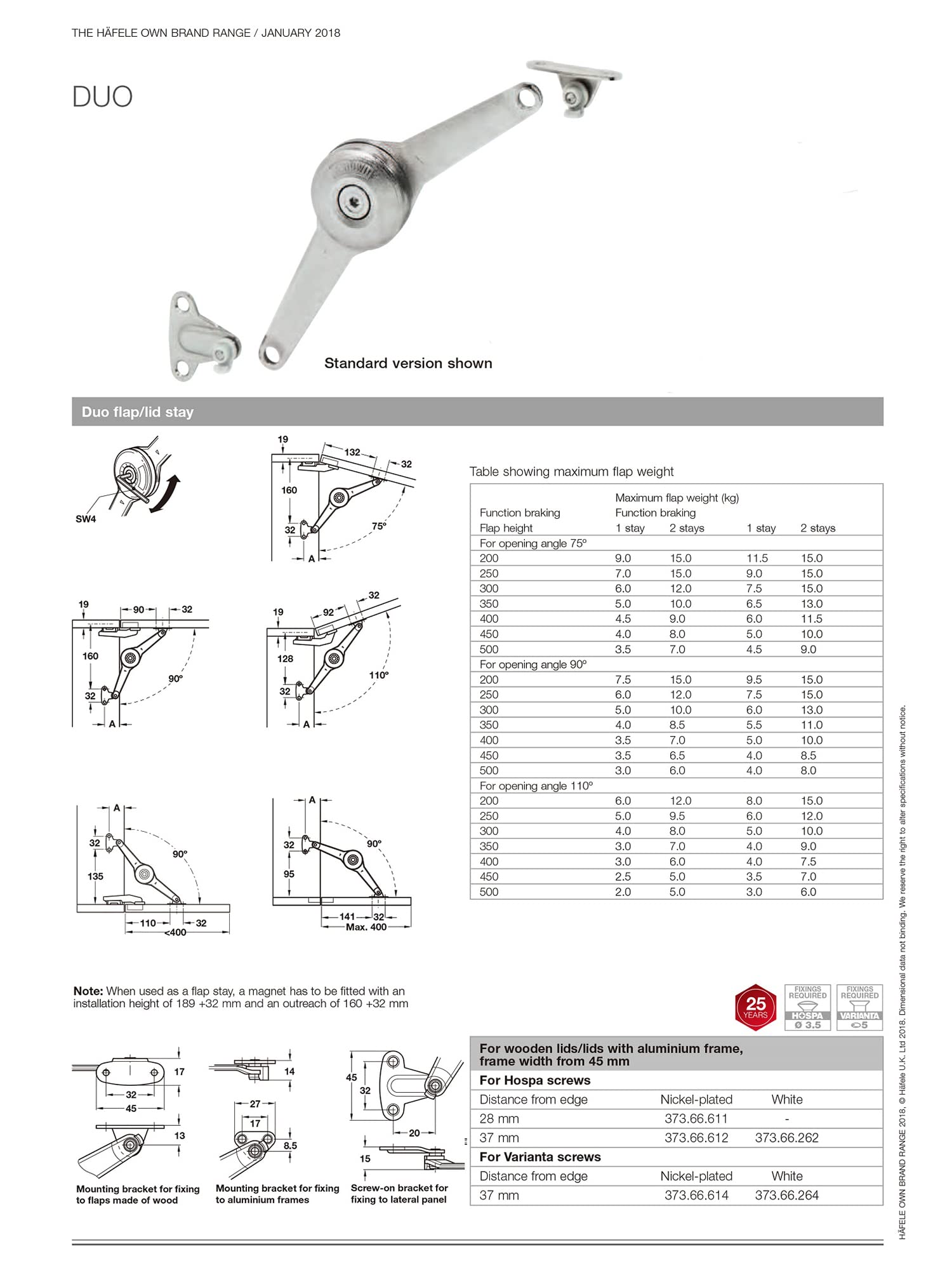

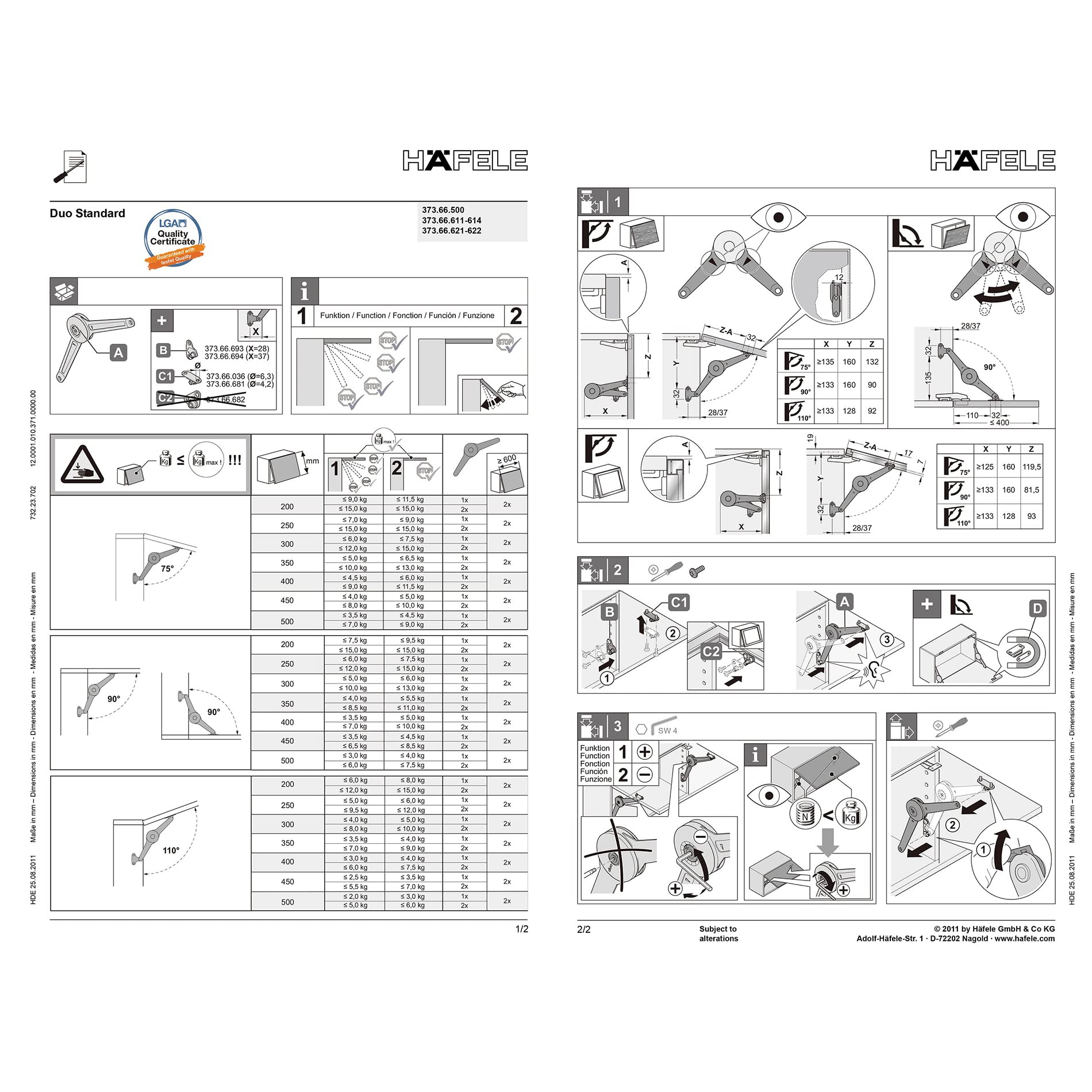

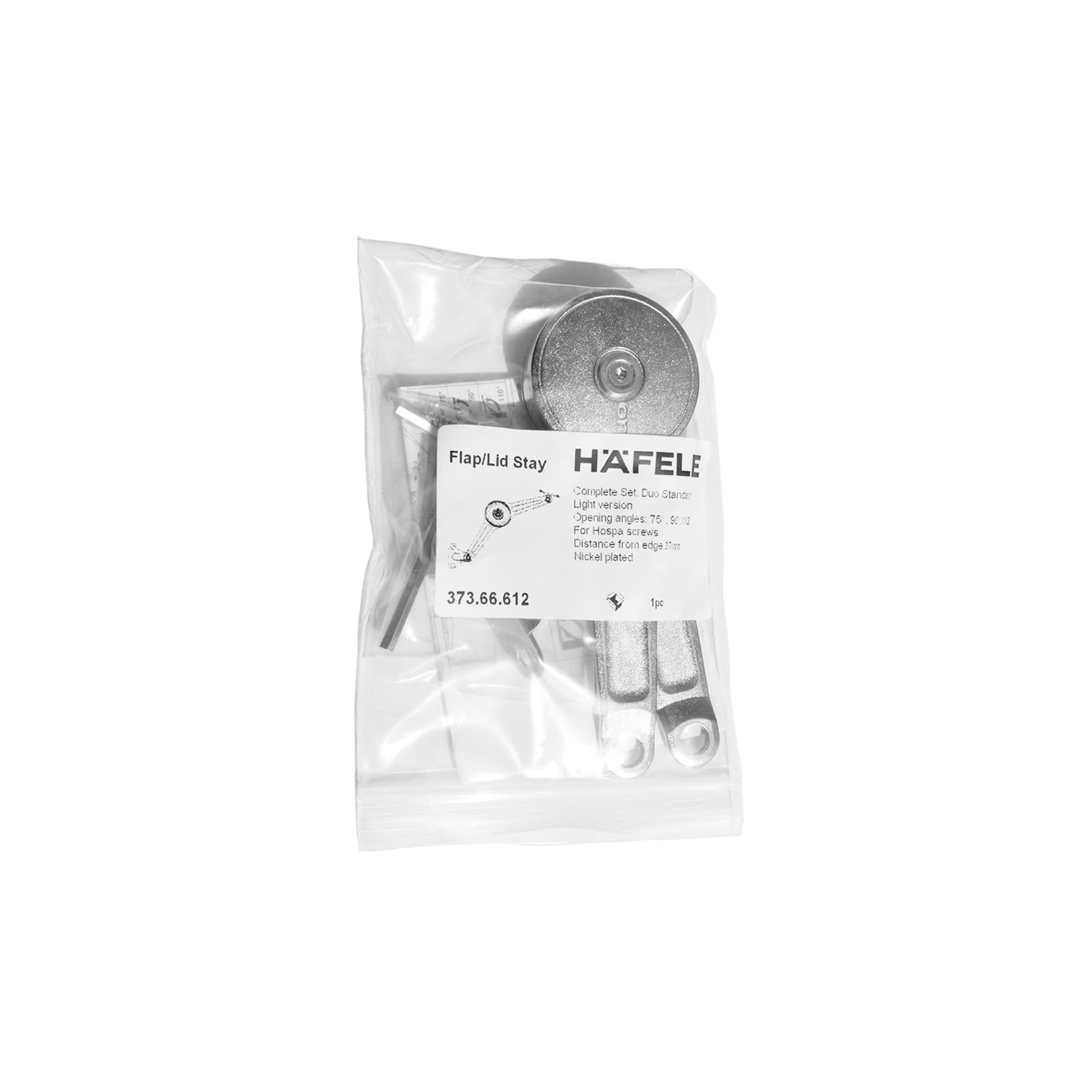

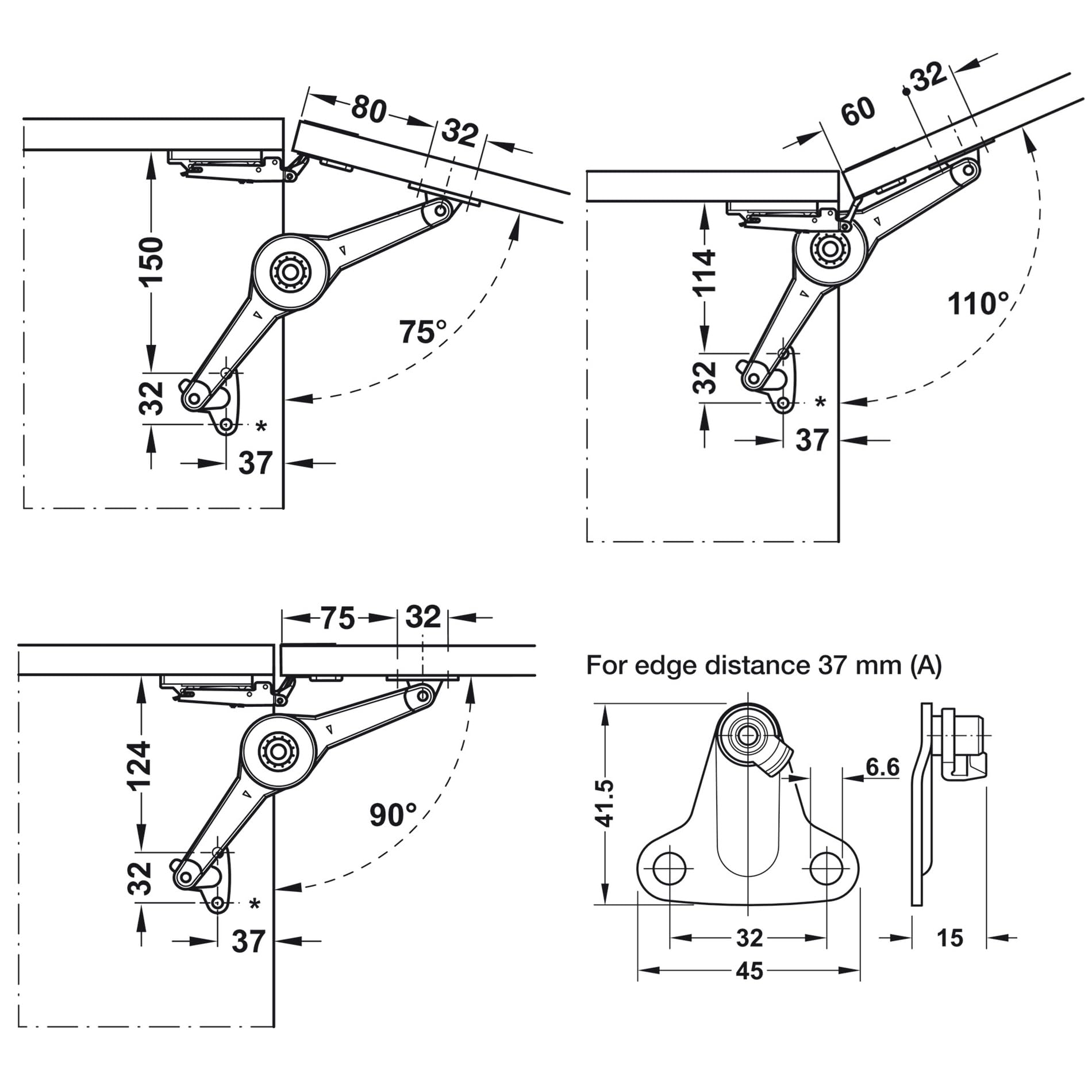

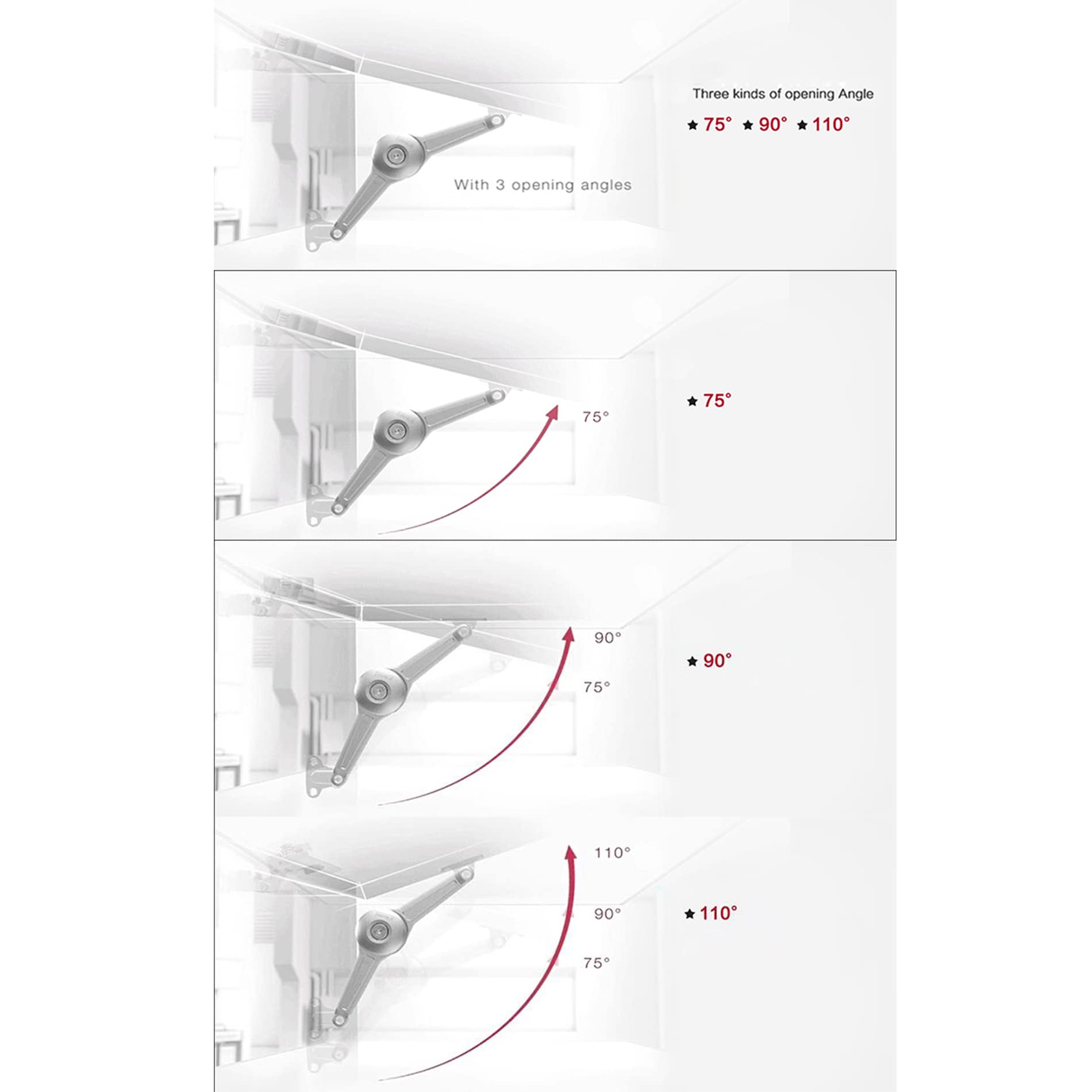

Product Details >Distance from edge: 37 mm >Steel bracket, Zinc alloy lid stay in Nickel-plated colour >Symmetrical lift mechanism, can be used on one or both sides >Opening angles: 75º, 90º, 110º (For hinges with smaller opening angles, Lift stays are limited by the hinges) >Unhanded design >For use with wooden lids or lids with aluminium frames, also suitable for use as flap stay >For flaps with aluminium frame width from 45mm >With braking and locking mechanisms, can be adjusted using an SW4 hex key >Self closing function >Clip-mounting on pre-mounted screw fixing brackets, no tools required >Height ±2 mm, side +3/-1 mm, tilt ±1.5 mm and pull adjustment facility >Perfect motion with a variable STOP Package Contents >Stay mechanism: X 1 >Steel brackets: X 2 >SW4 Adjusting key: X 1 >Fixing screws and Installation instructions included Important Note >When used as a flap stay, a Magnet has to be fitted with an installation height of 189 +32 mm and an outreach of 160 +32 mm
