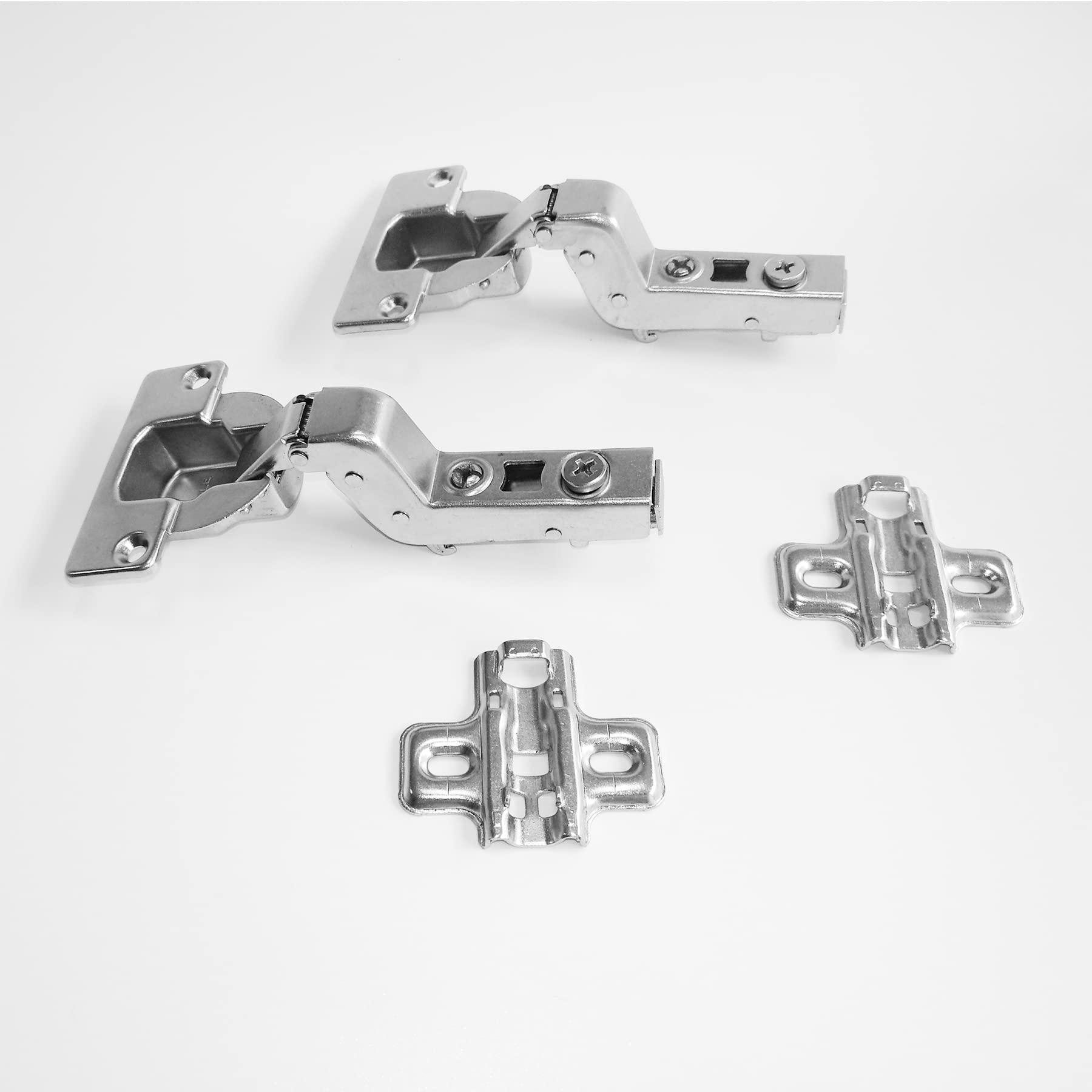

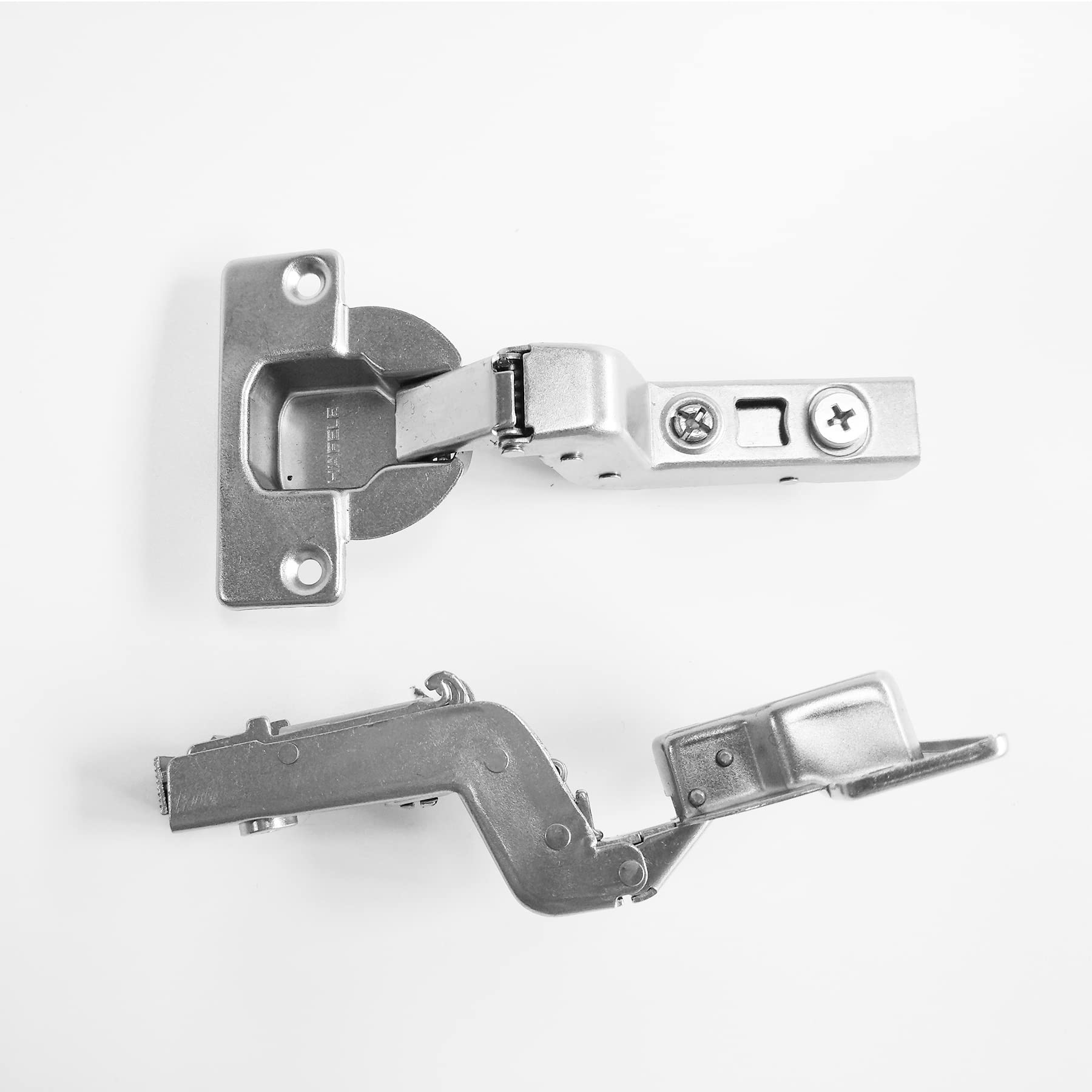

HAFELE 95 Degree Inset Hinges 40mm with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Heavy Thick Door Soft Closing Hinge Cushioning Buffering Germany Brand Pack of 2

• Quick clip on installation and integrated soft close system
• Heavy and strong steel concealed cup hinges with higher load-bearing capacity
• For door thickness 18 - 25 mm; Cup diameter: Ø40mm (NOT standard size 35mm); Cup depth 12.8 mm
• Quick release mechanism, for easy removal of doors at the press of a button
• These silent hinges are an essential for constructing cabinets or replacement solution the worn out ones

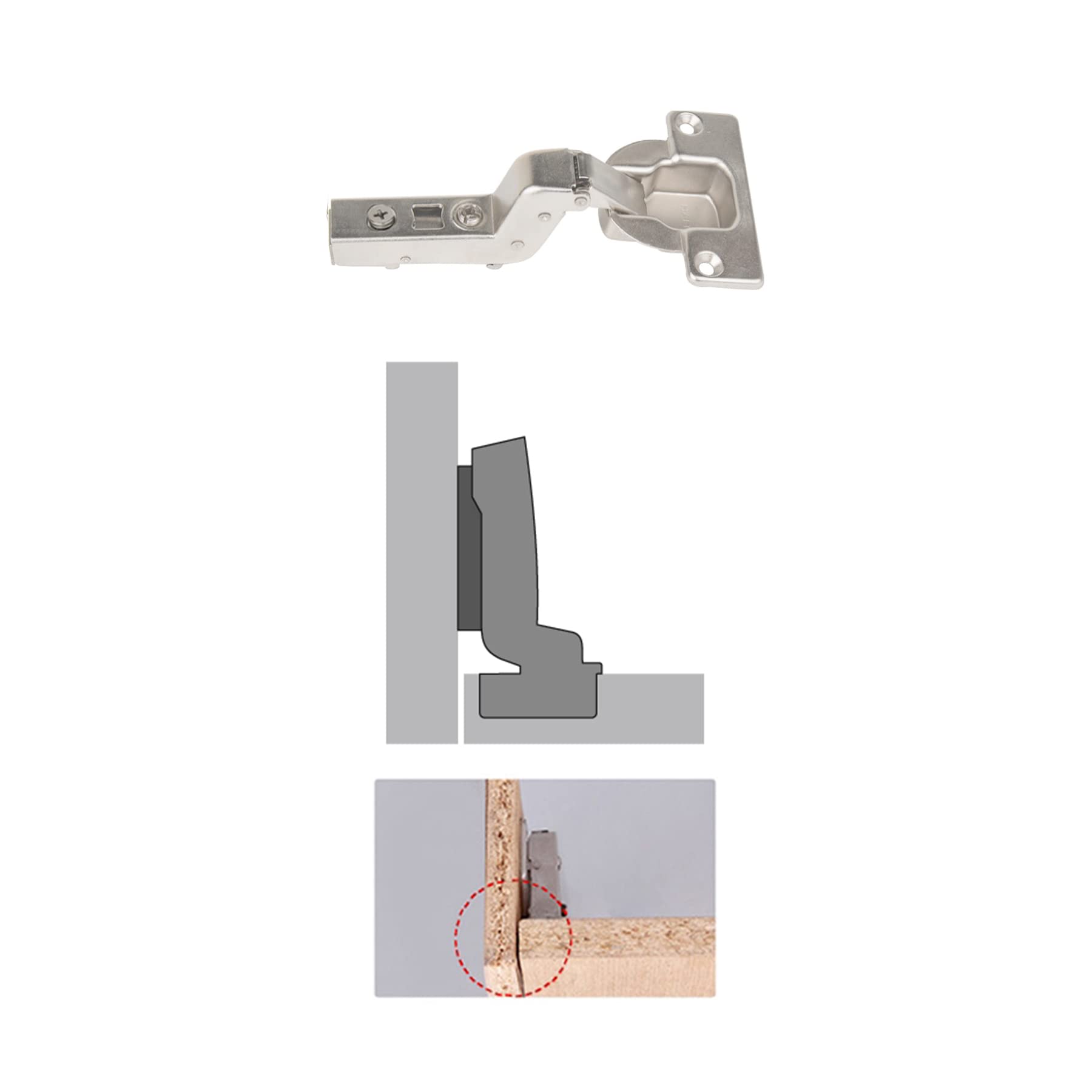

Product Details >Order Reference: 31510802 >Type: Häfele inset mounting, Automatic soft closing hinges, Metalla >Opening angle: 95 degree >Cup diameter: Ø40mm (NOT standard size 35mm) >Drilling Depth Hinge cup min.: 12.8 mm >Drilling dimensions for cup fixing : Drilling pattern (52mm / 7.5mm) >For door thickness: 18 mm (min) - 25 mm (max) >Hinge Cranking: 23 mm >Cup mounting: For screw fixing >Hinge arm, Smuso Quick fixing >Material: Steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Inset Application >Cover cap for carcass: No >Adjustment: Side adjustment ± 2 mm, Height adjustment ± 2 mm, Depth adjustment 0.6 mm to + 3 mm Package Contents >Cabinet hinges: Pack of 2 >with countersunk fixing screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
