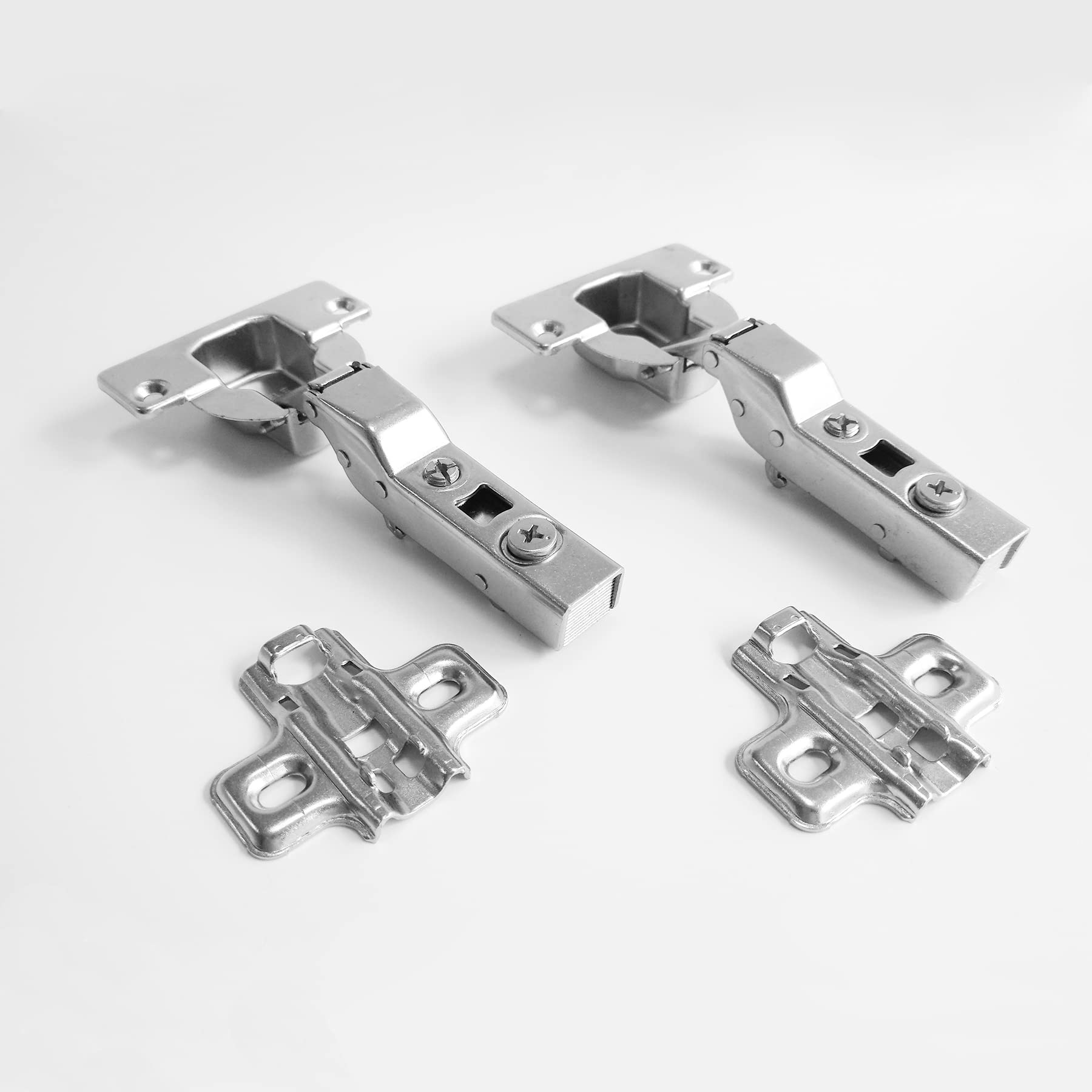

HAFELE 95 Degree Half Overlay Hydraulic Damper Hinge 40mm for Kitchen Cabinet Cupboard Wardrobe Heavy Thick Door Soft Close Hinges Cushioning Buffering Germany Brand Pack of 2

• Quick clip on installation and integrated soft close system
• Heavy and strong steel concealed cup hinges with higher load-bearing capacity

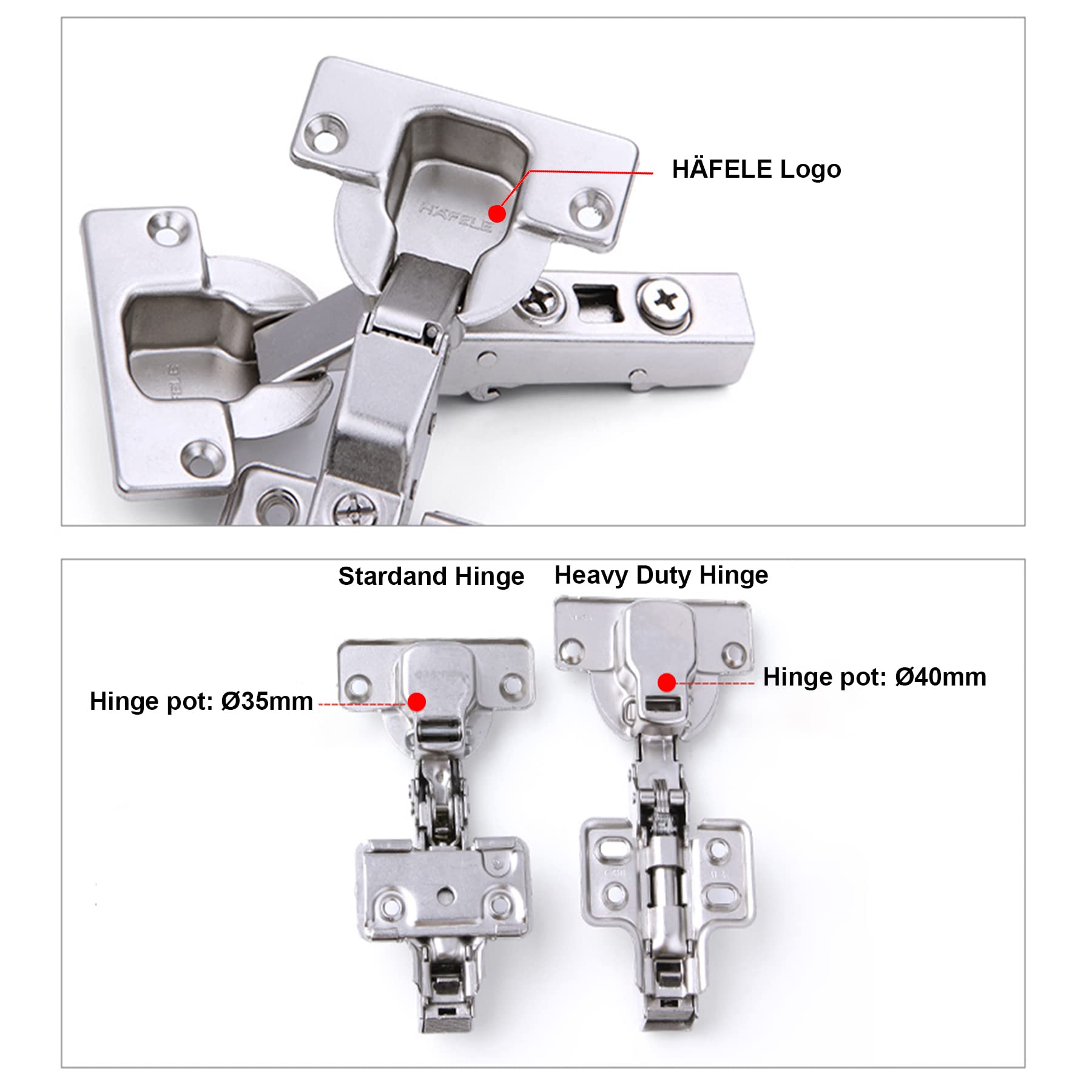

• For door thickness 18 - 25 mm; Only compatible with 25 mm thick side panels; Cup diameter Ø40mm (NOT standard size 35mm); Cup depth 12.8 mm
• Quick release mechanism, for easy removal of doors at the press of a button
• These silent hinges are an essential for constructing cabinets or replacement solution the worn out ones

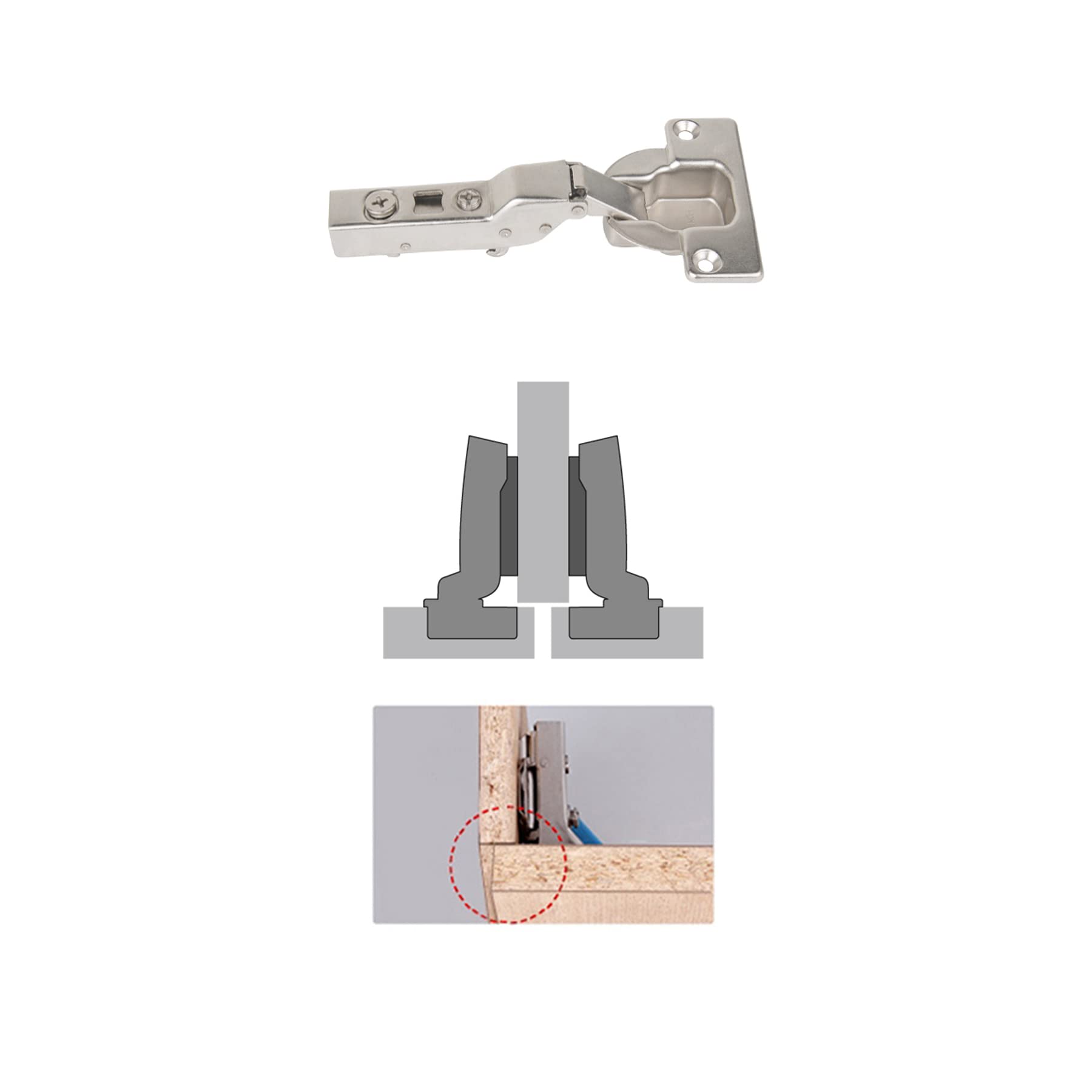

Product Details -Order Reference: 31510801 -Type: Häfele dual overlay mounting, Automatic soft closing hinges, Metalla -Opening angle: 95 degree -Cup diameter: Ø40mm (NOT standard size 35mm) -Drilling Depth Hinge cup min.: 12.8 mm -Drilling dimensions for cup fixing : Drilling pattern (52mm / 7.5mm) -Only compatible with 25 mm thick side panels -Hinge Cranking: 9 mm -Cup mounting: For screw fixing -Hinge arm, Smuso Quick fixing -Material: Steel -Finish: Nickel plated pressed steel cup and arm -Door mounting option: Half Overlay -Cover cap for carcass: No -Adjustment: Side adjustment ± 2 mm, Height adjustment ± 2 mm, Depth adjustment -0.6 mm to + 3 mm Package Contents -Cabinet hinges: Pack of 2 -with countersunk fixing screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
