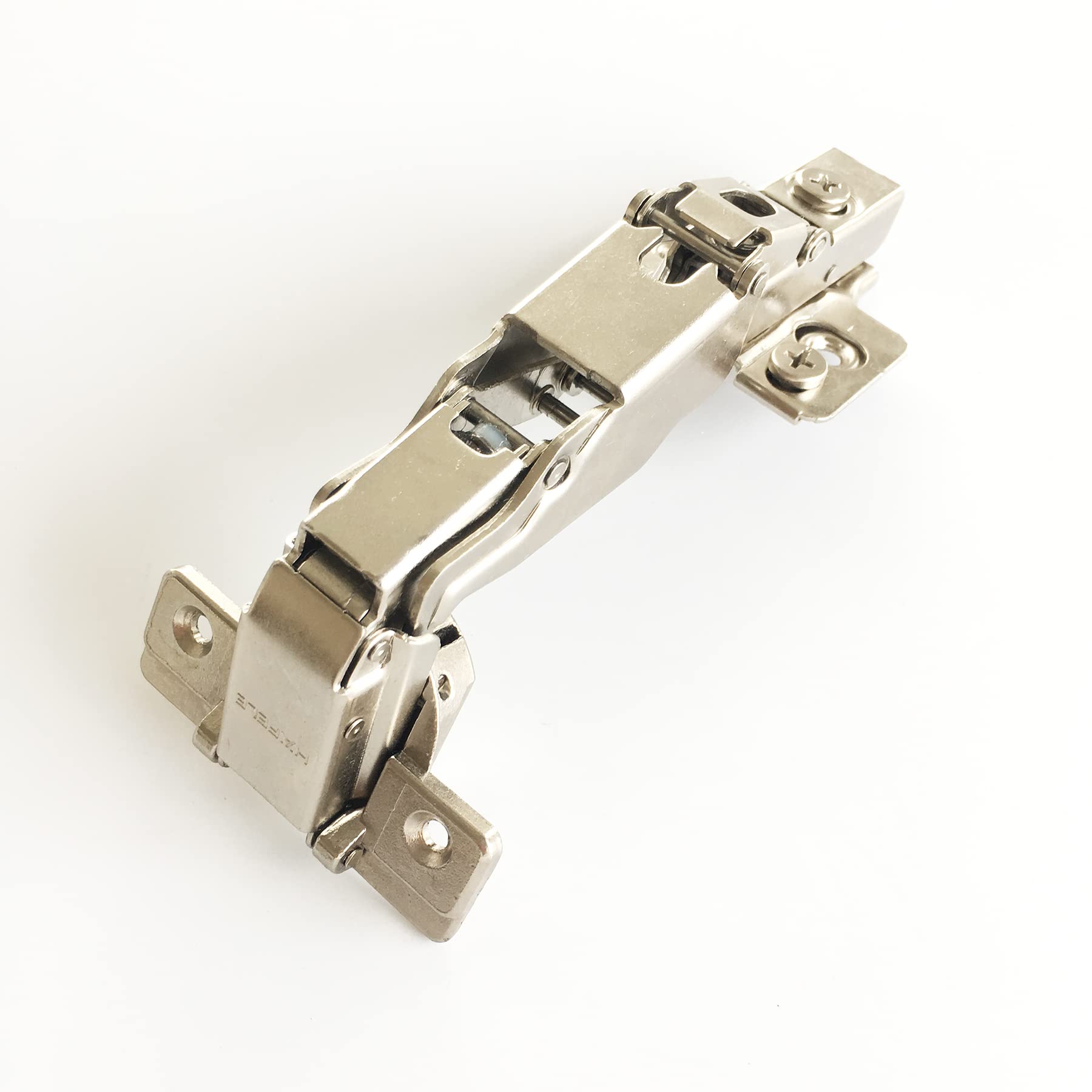

HAFELE 165 Degree Hinges with Integrated Cushioning Kitchen Cabinet Cupboard Wardrobe Door Steel Hinge Soft Closing Spring Full Overlay Straight Angular Germany Brand Pack of 2

• For door thickness 14 - 20 mm; Cup diameter Ø 35 mm (Standard Size); Cup depth 11.5 mm
• Very smooth opening of doors and cupboards
• Sturdy steel concealed cup hinges with Clip on 3D mounting plate assembly
• These hinges are an essential for constructing cabinets or replacement solution the worn out ones

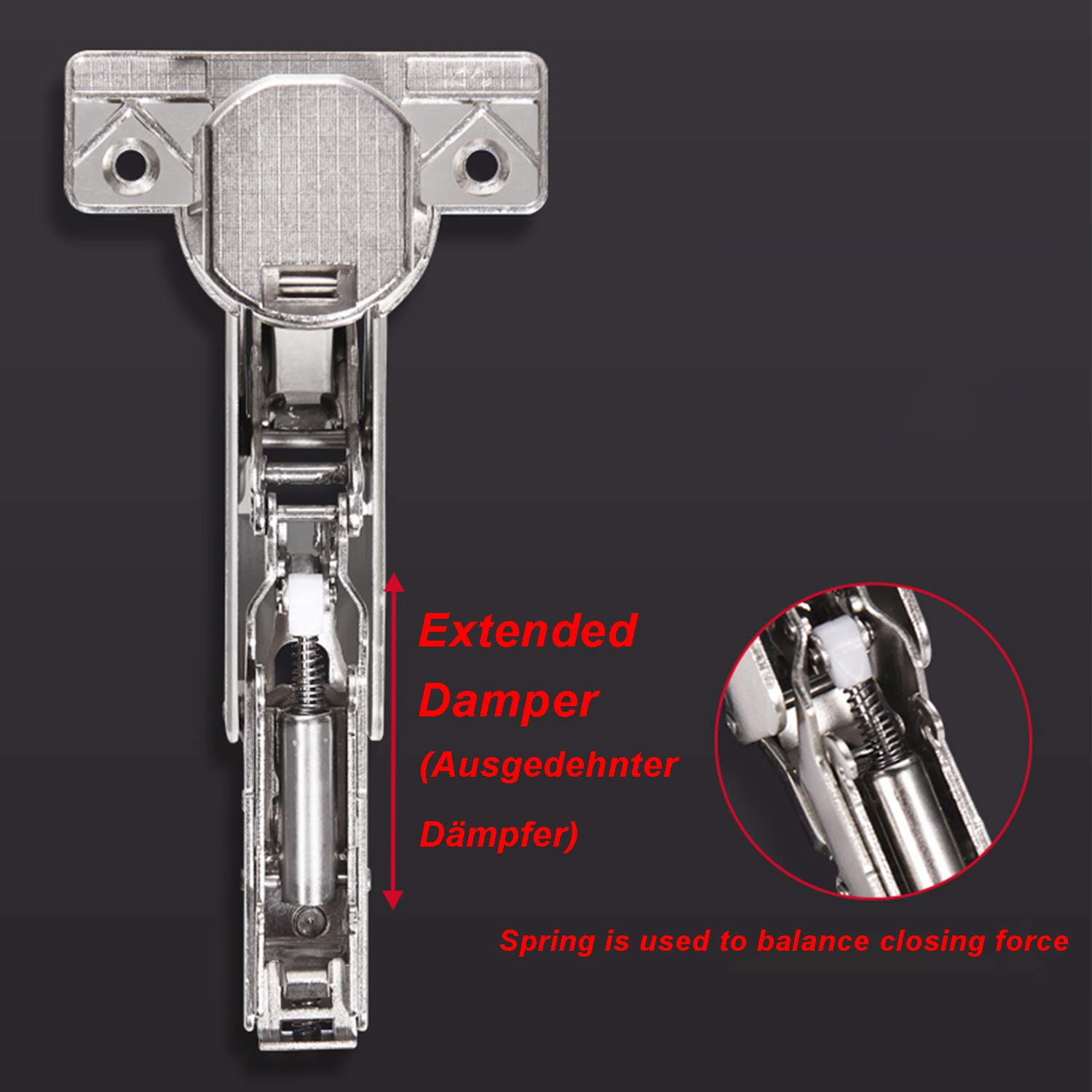

• New version Hinge with integrated shock absorber; Door mounting option: Full Overlay Application

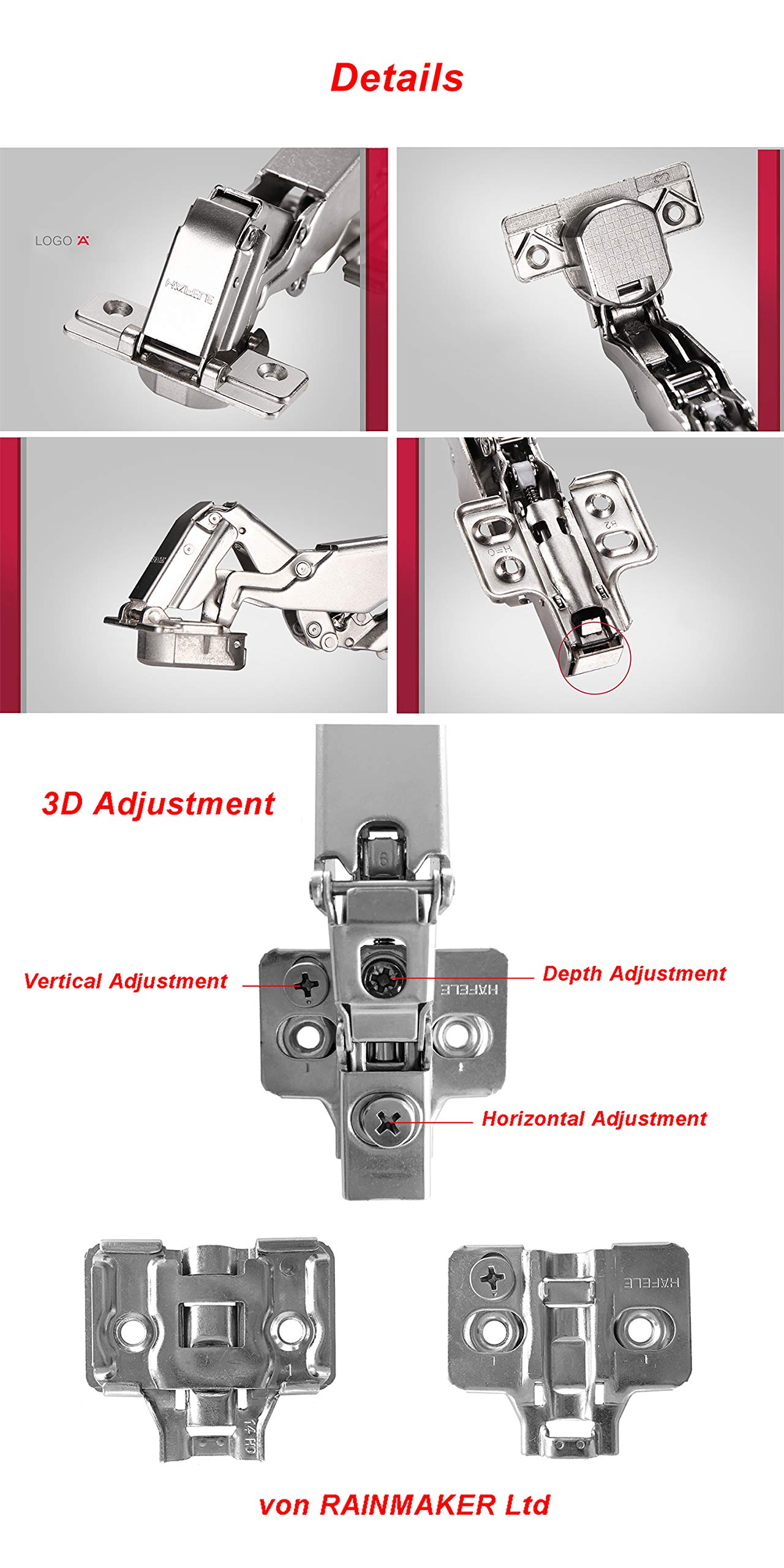

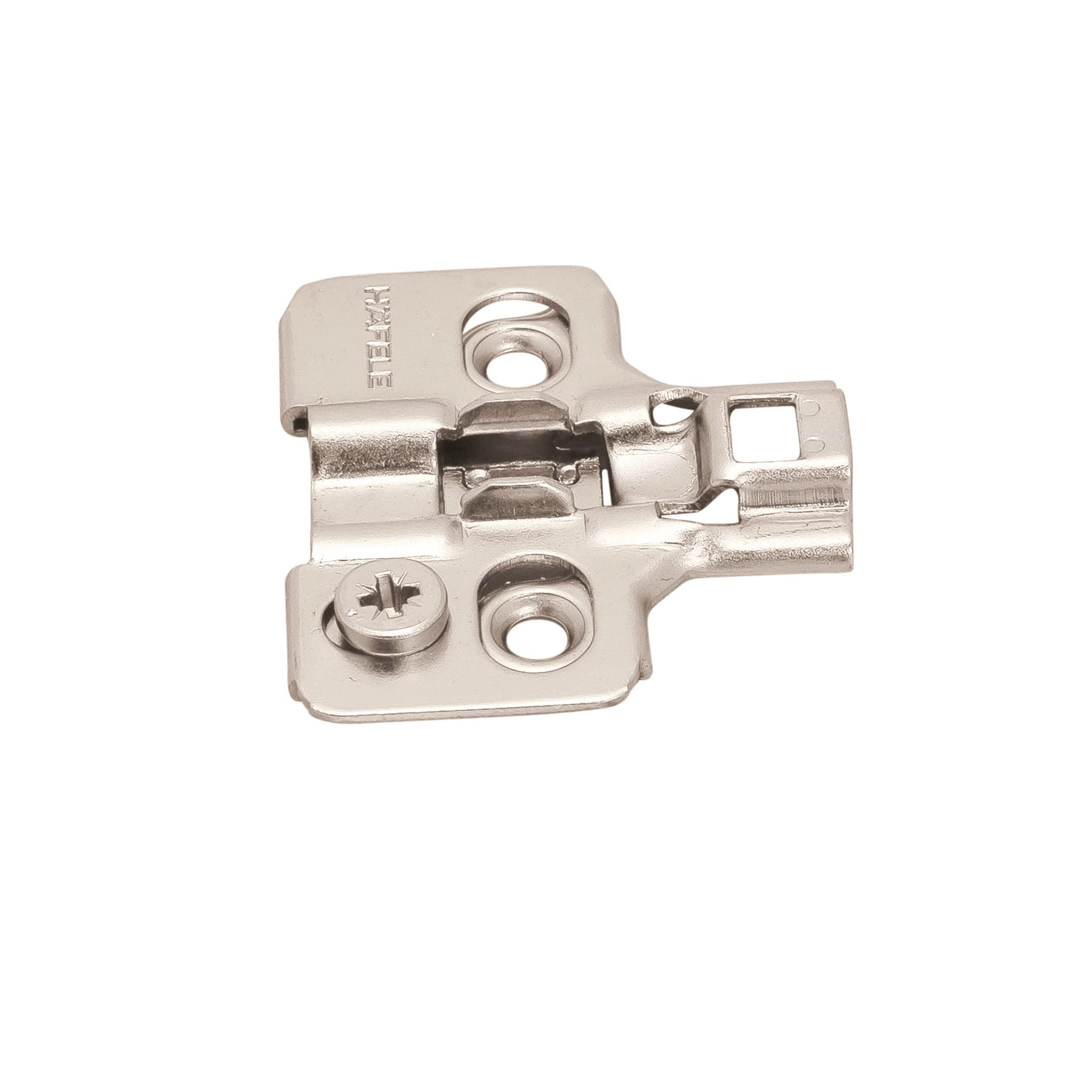

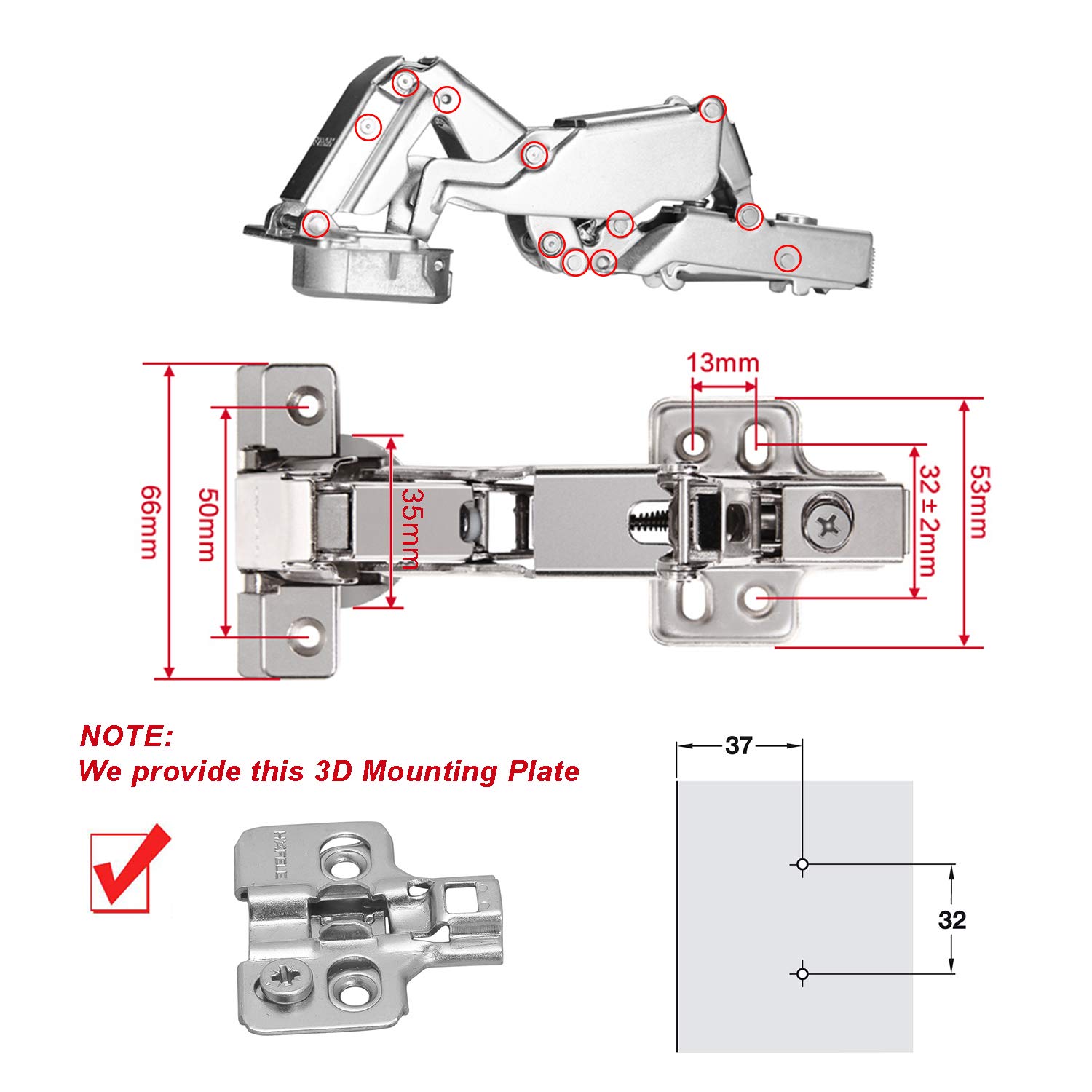

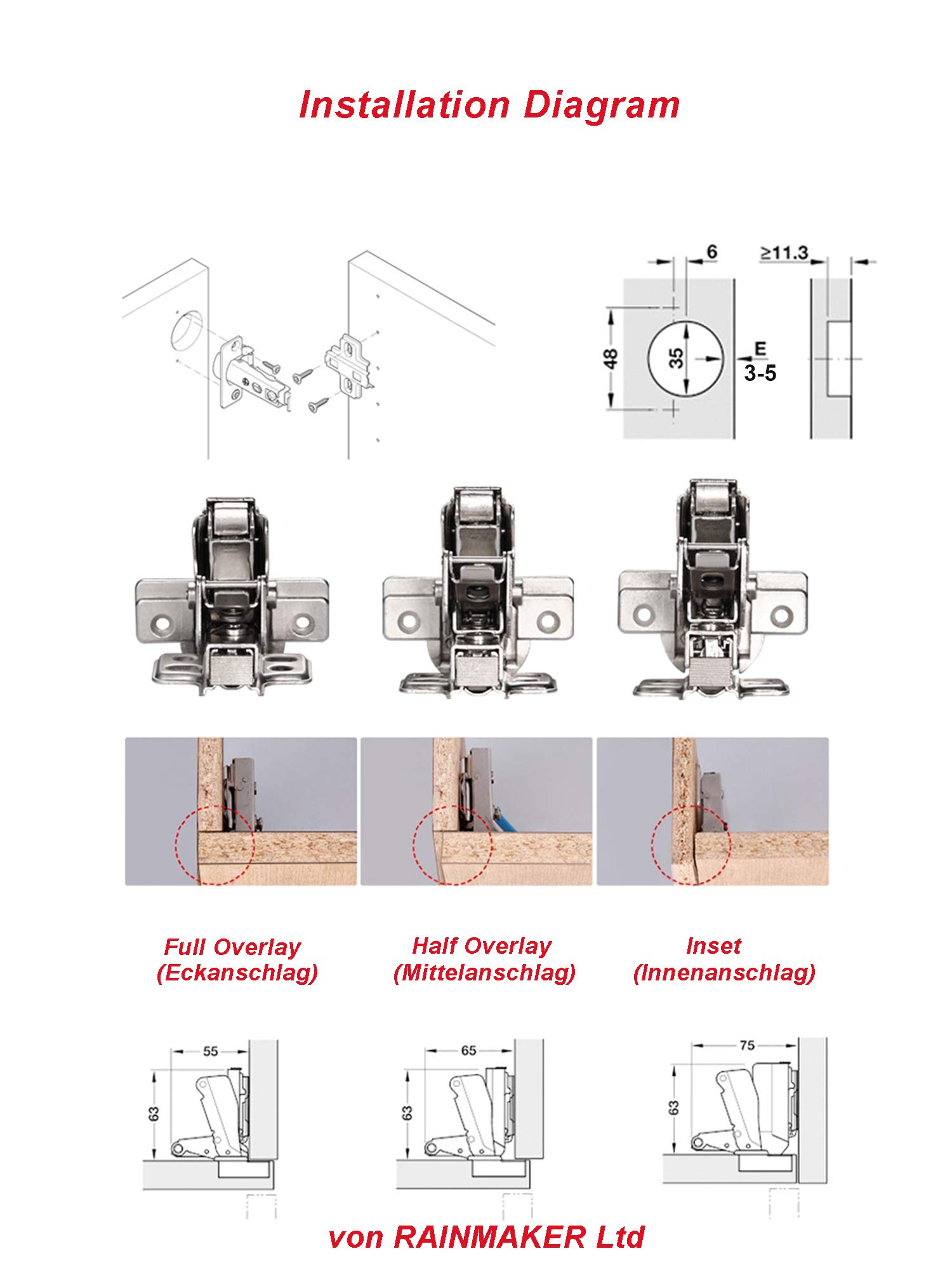

Product Details -Order Reference: 315.02.750 -Type: Häfele Full overlay mounting, automatic soft closing /damping hinges, Metalla -Opening angle: 165 - 170 degree -Cup diameter: Ø 35mm -Drilling Depth Hinge cup min.: 11.5 -Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) -For side panel thickness: 16 mm (min) -For door thickness: 14 mm (min) - 26 mm (max) -Hinge Cranking: 0 mm -Cup mounting: For screw fixing -Hinge arm straight, quick fixing -Material: Steel -Finish: Nickel plated pressed steel cup and arm -Door mounting option: Full Overlay -Cover cap for carcass: No -Adjustment: Side adjustment -4mm to +1mm, Height adjustment ±1 mm, Depth adjustment -0.5mm to +2mm Mounting Plate >3-dimensional adjustment of the cabinet doors in depth, width, and height with pre-mounted special screws >Screw spacing: 32mm Package Contents -Cabinet hinges: Pack of 2 Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
