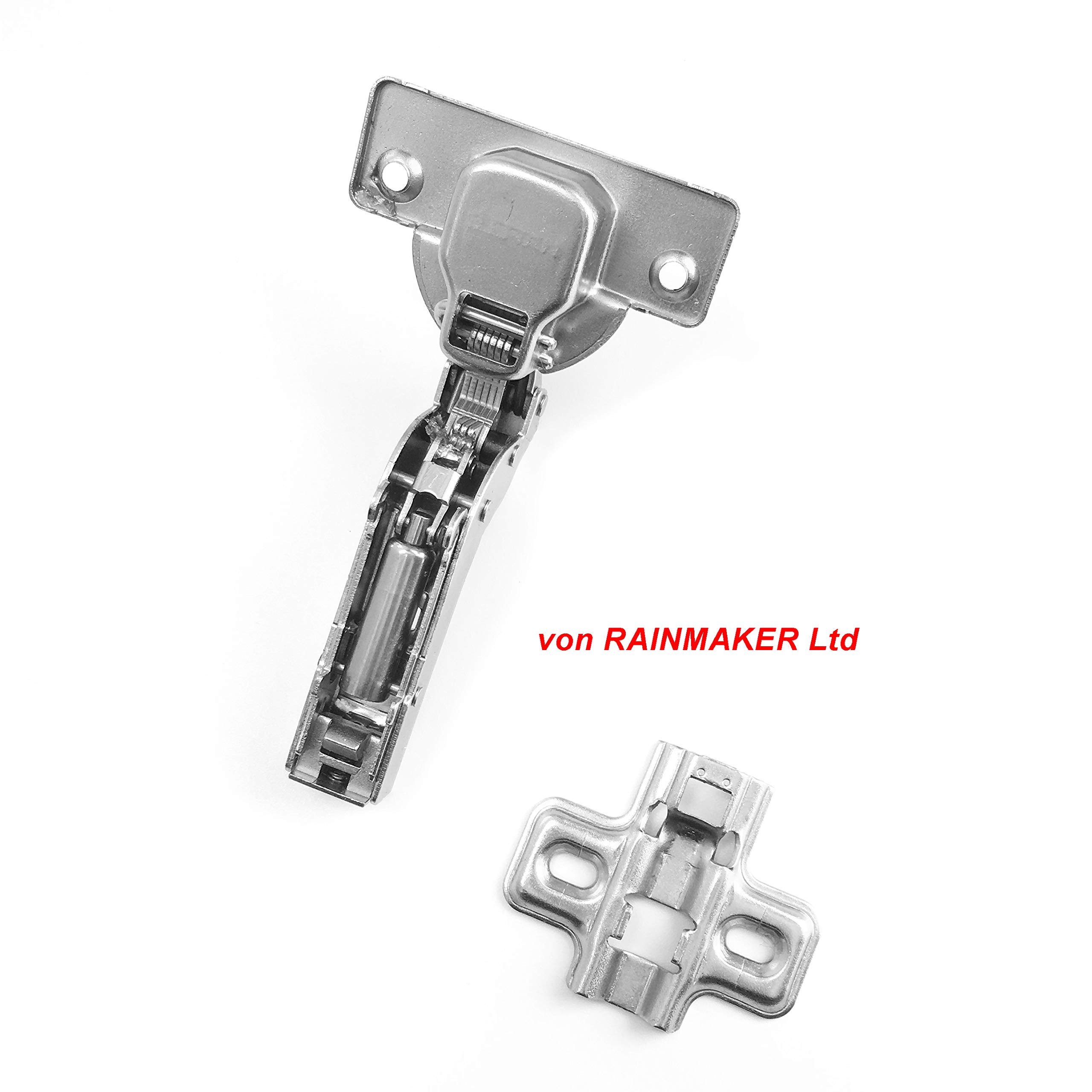

HÄFELE 110 Degree Inner Stop Pot Hinge Standard Hinges with Automatic Closing Soft Close Integrated Damping Hinges Kitchen Cabinet Wardrobe Cabinet Door Furniture Set of 2

• For Returning Application

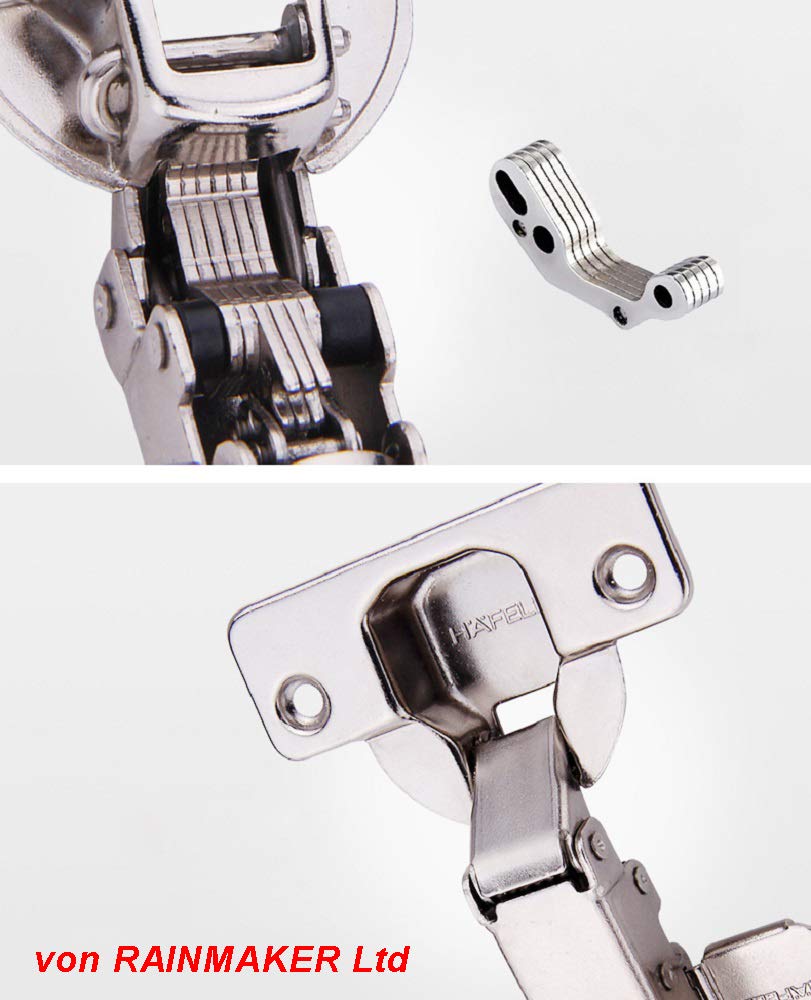

• Soft Closing hinges - automatic with clipping technique and integrated damper
• Automatic and almost complete soft closing of the door after the resort shrinkage
• For door thickness from 14 to 22 mm; Case diameter Ø 35 mm (standard size); Case depth 11.5 mm
• These silent hinges are suitable for cabinet construction or replacement for old hinges

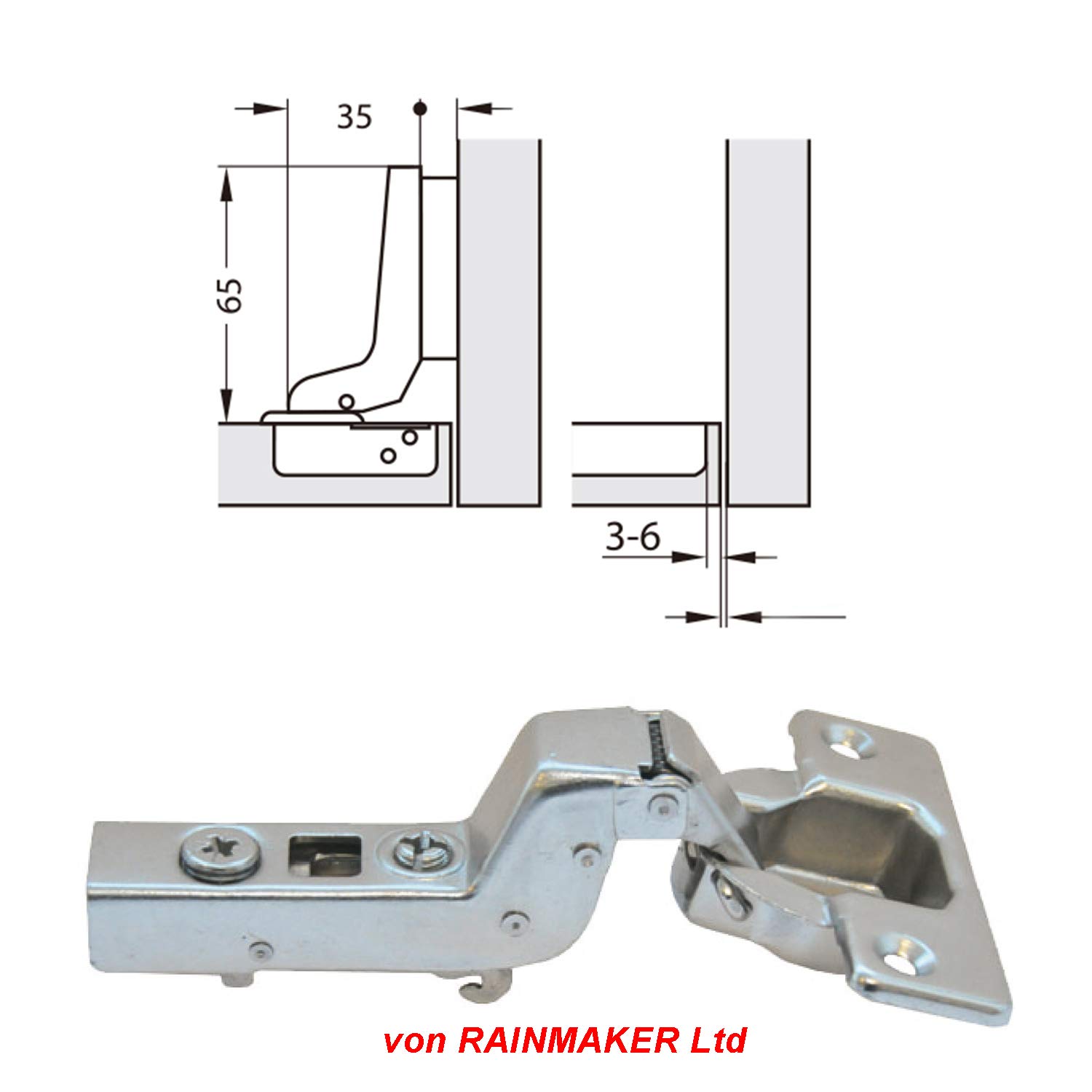

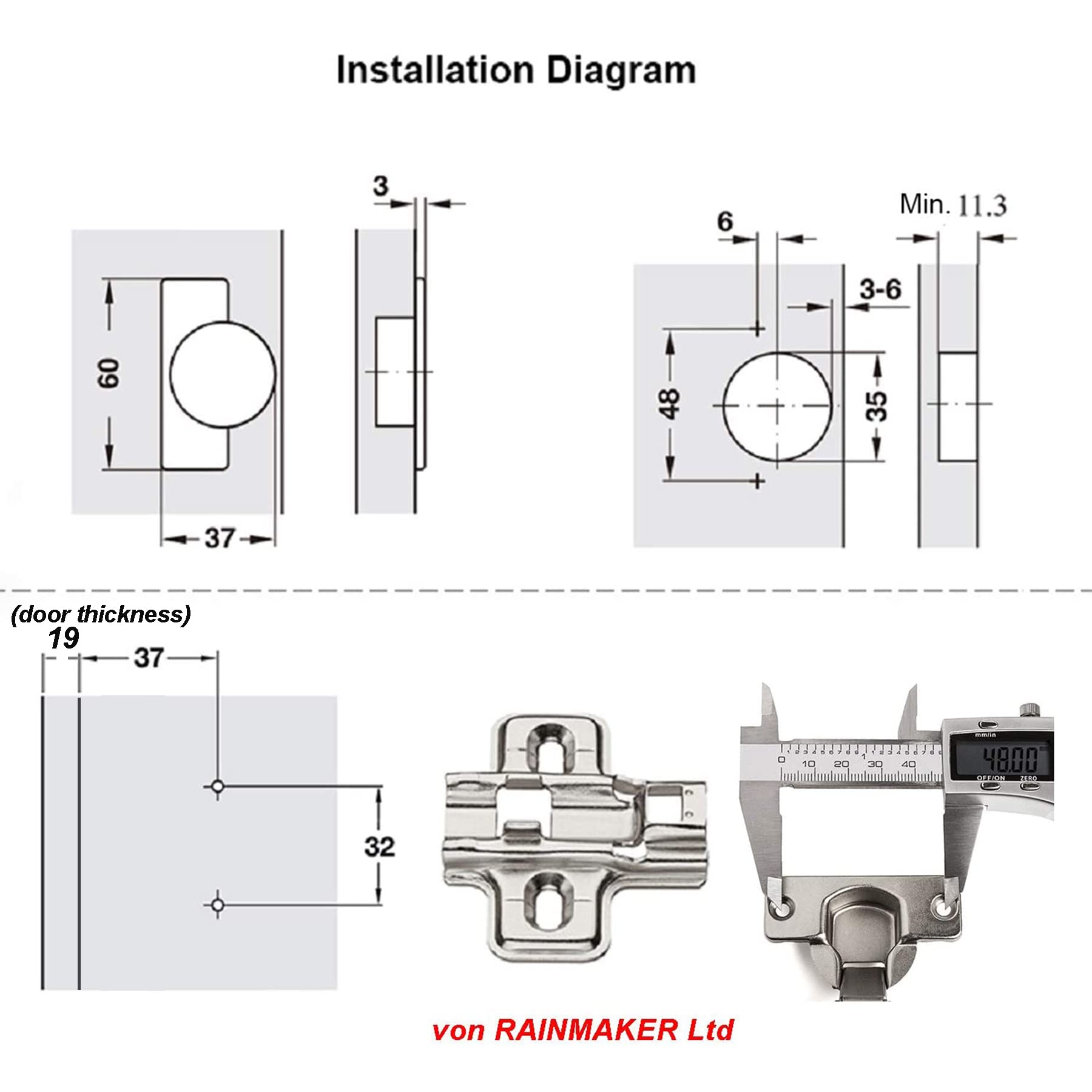

Product Details >Reference: 31500752 >Type: Häfele Self-closing hinges, Metalla >Opening angle(°): 110 Degree >Case diameter: Ø 35 mm >Case depth: 11.5 mm >Drilling dimensions for housing: Drilling diagram (48 mm / 6 mm). >For side panel thickness: 12mm(min) - 19mm(max) >For door thickness: 14mm(min) - 22mm(max) >Hinge bend: 16 mm >Assembly: Door on body without tools (clip technique) >Material: Steel articulated body and arm >Material: Steel >Finish: Nickel-plated >Fitting Type: Recentrant Application >Hinge arm cover: No >Adjustment: Side adjustment ± 2.5 mm, Depth adjustment ± 2 mm, Height adjustment from -1 mm up to +3 mm Package Contents >Hinge with Integrated Shock Absorber: Set of 2 >with mounting screws Note Dimensions and space specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0.01 mm
