HAFELE 110 Degree Kitchen Cabinet Cupboard Soft Close Door Hinge Full Overlay with Straight Hydraulic Cushioning, Pack of 2 Silver

• Quick clip on installation and integrated soft close system
• Heavy and sturdy steel concealed cup hinge
• For door thickness 14 - 22 mm; Cup diameter Ø 35 mm (standard size); Cup depth 11.5 mm
• Quick release mechanism, for easy removal of doors at the press of a button
• These silent hinges are an essential for constructing cabinets or replacement solution for the old ones

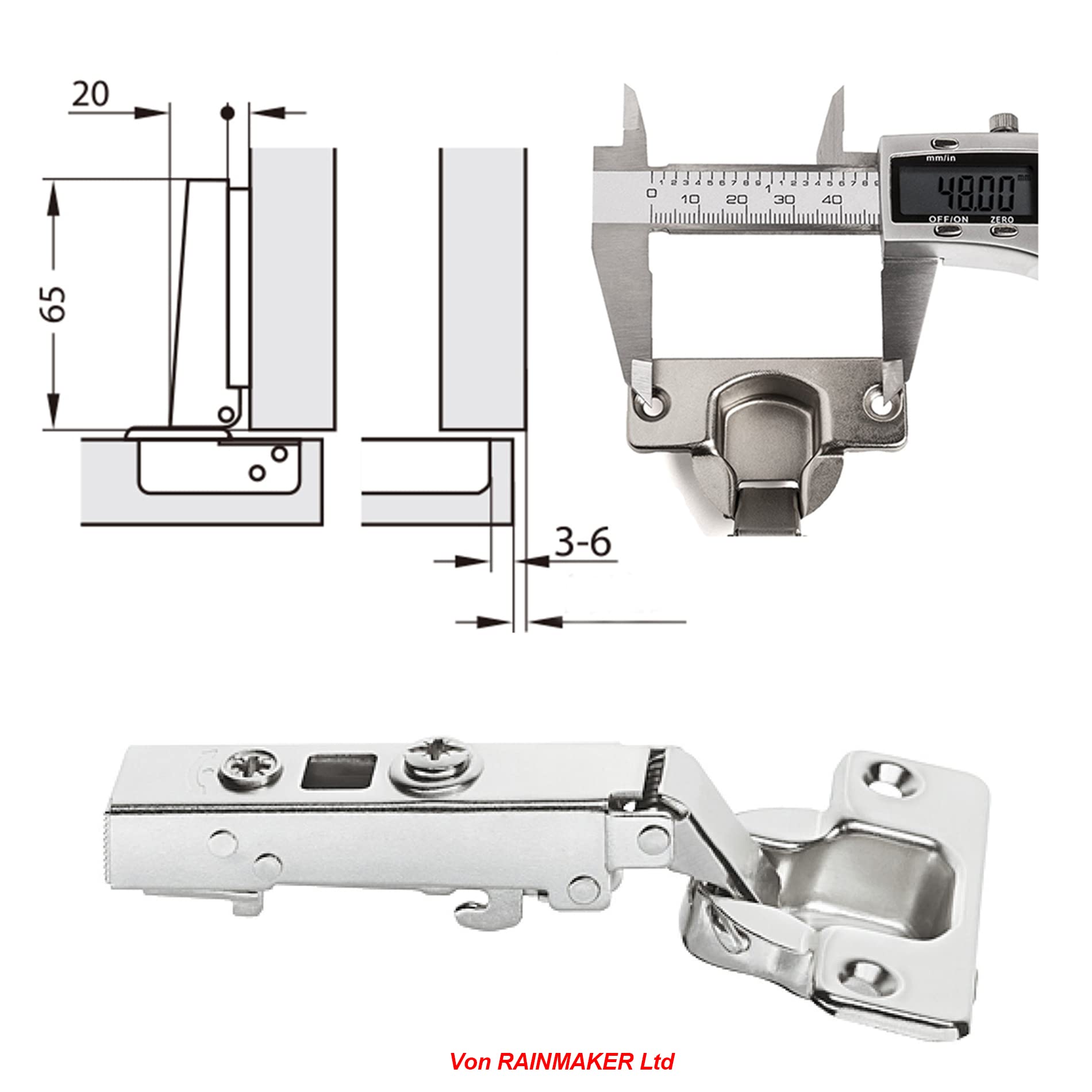

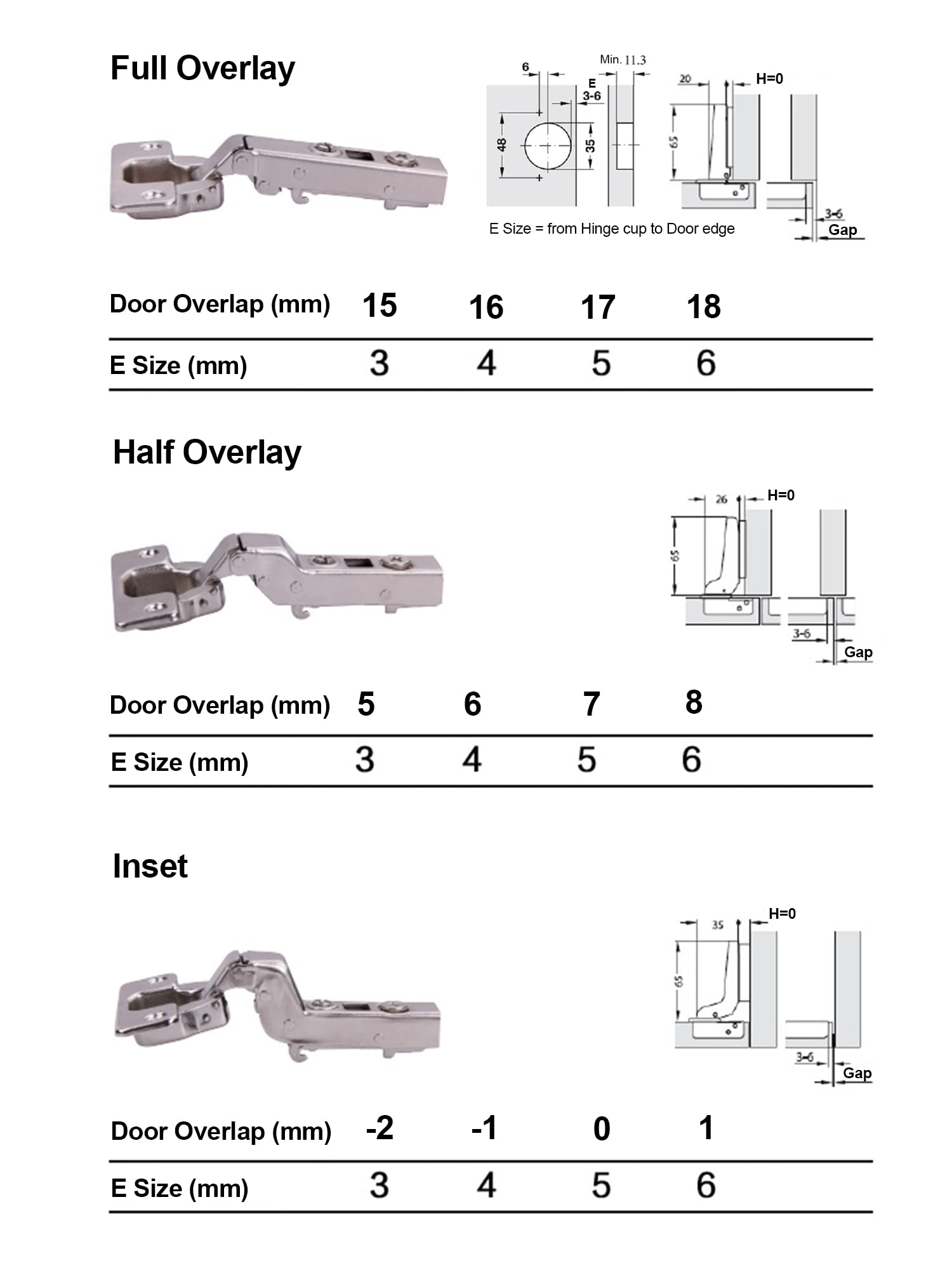

Product Details >Order Reference: 31500750 >Type: Häfele Full overlay mounting, Automatic soft closing hinges, Metalla >Opening angle: 110 degree >Cup diameter: Ø 35mm >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) >For side panel thickness: 12 mm (min) - 19 mm (max) >For door thickness: 14 mm (min) - 22 mm (max) >Hinge Cranking: 0 mm >Cup mounting: For screw fixing >Hinge arm Straight, Smuso Quick fixing >Material: Steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Full Overlay >Cover cap for carcass: No >Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment -1 mm to + 3 mm Package Contents >Cabinet hinges: Pack of 2 >with countersunk fixing screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
