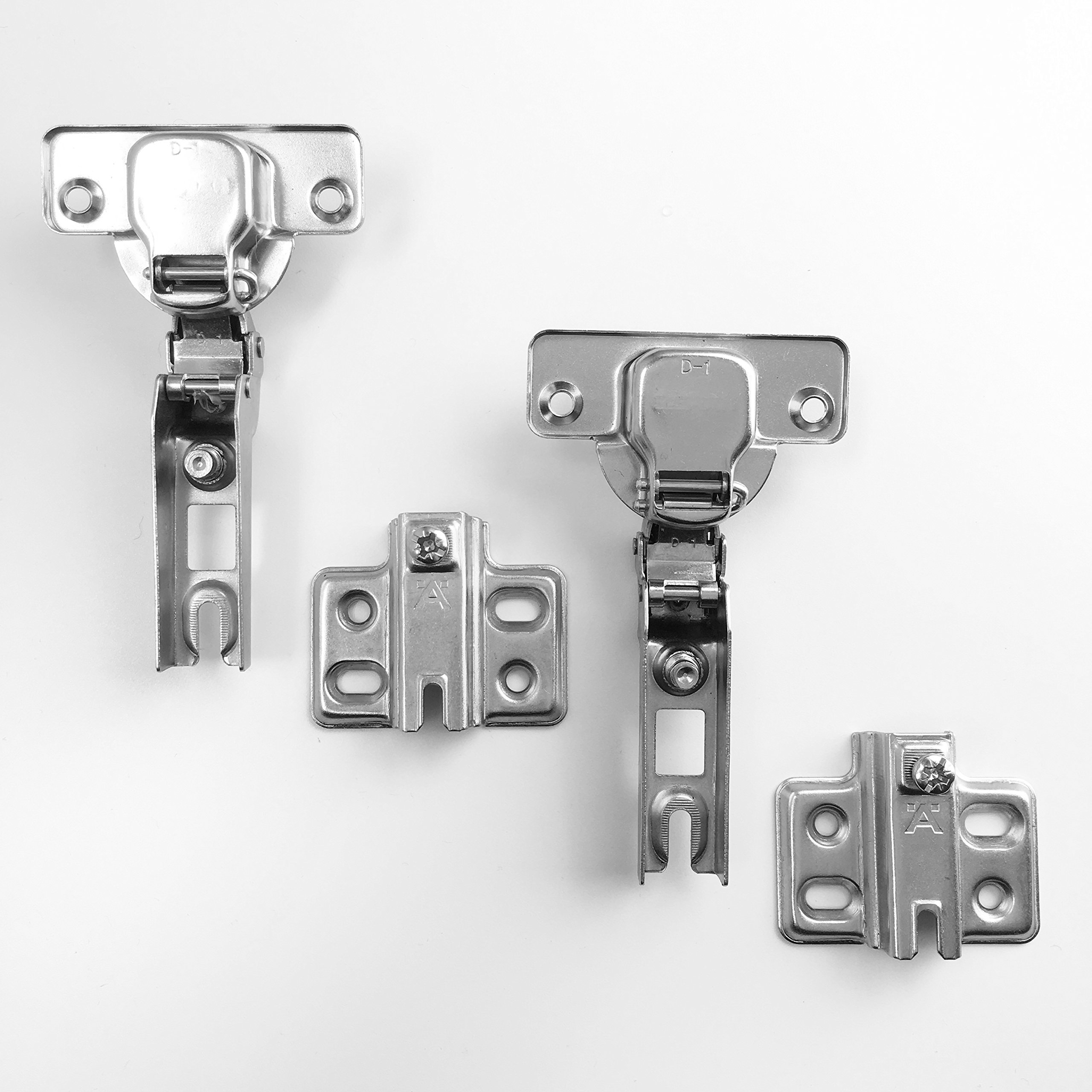

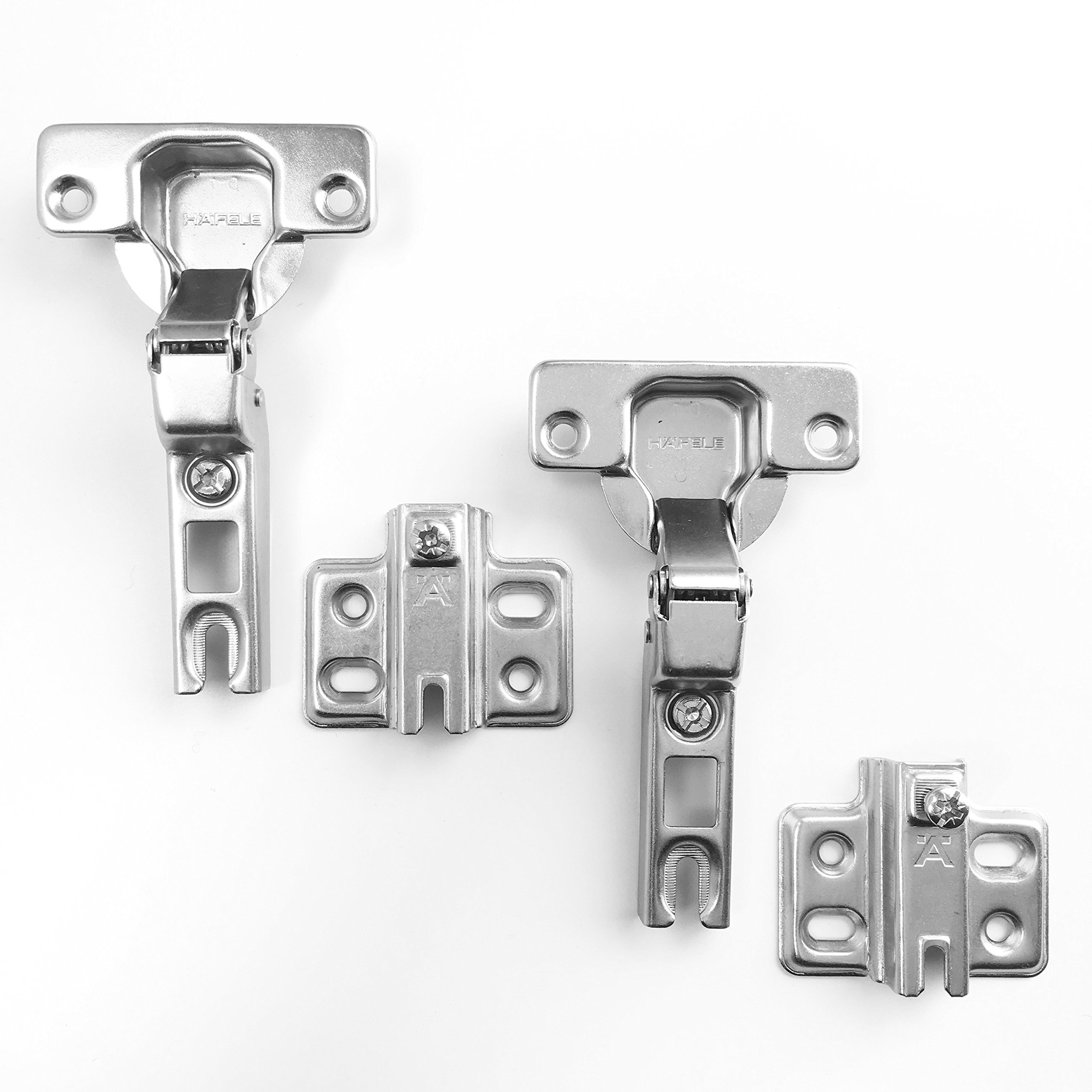

HAFELE 110 Degree Kitchen Cabinet Cupboard Door Hinge Half Overlay with Slide on Arms Automatic Closing Spring Without Soft Close Cushioning, Pack of 2

• Door mounting option: Dual Overlay Application
• For door thickness 15 - 23 mm; Cup diameter Ø 35 mm (standard size); Cup depth 11.5 mm
• Very smooth opening of doors and cupboards
• Sturdy steel concealed cup hinges with slide on mounting plate assembly
• These hinges are an essential for constructing cabinets or replacement solution the worn out ones

Product Details -Order Reference: 31190604 -Type: Häfele Half overlay mounting, automatic closing spring hinges, Metalla -Opening angle: 110 degree -Cup diameter: Ø 35mm -Drilling Depth Hinge cup min.: 11.5 mm -Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) -For door thickness: 15 mm (min) - 23 mm (max) -Hinge Cranking: 7 mm -Plate Mounting: For sliding on -Hinge arm Straight, quick fixing -Material: Steel -Finish: Nickel plated pressed steel cup and arm -Door mounting option: Half Overlay -Cover cap for carcass: No -Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment -1 mm to + 3 mm Package Contents -Cabinet hinges: Pack of 2 -with countersunk fixing screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
