HAAMNING7 6 Pairs MT60 Connector RC ESC to Motor Plug 3 Pole 3.5MM Bullet Male Female with Sheath Housing Heat Shrink Tubing for RC Battery Lipo Lithium Batteries Electric Car Motor DIY

• High-current Connection: The MT60 connector supports a maximum continuous current of 30A and a maximum peak current of 60A, meeting the needs of most high-power motors and ESCs
• Anti-sparking: The plug integrates a pre-charge resistor to protect the metal contacts from electrolytic corrosion, extending lifespan and enhancing safety

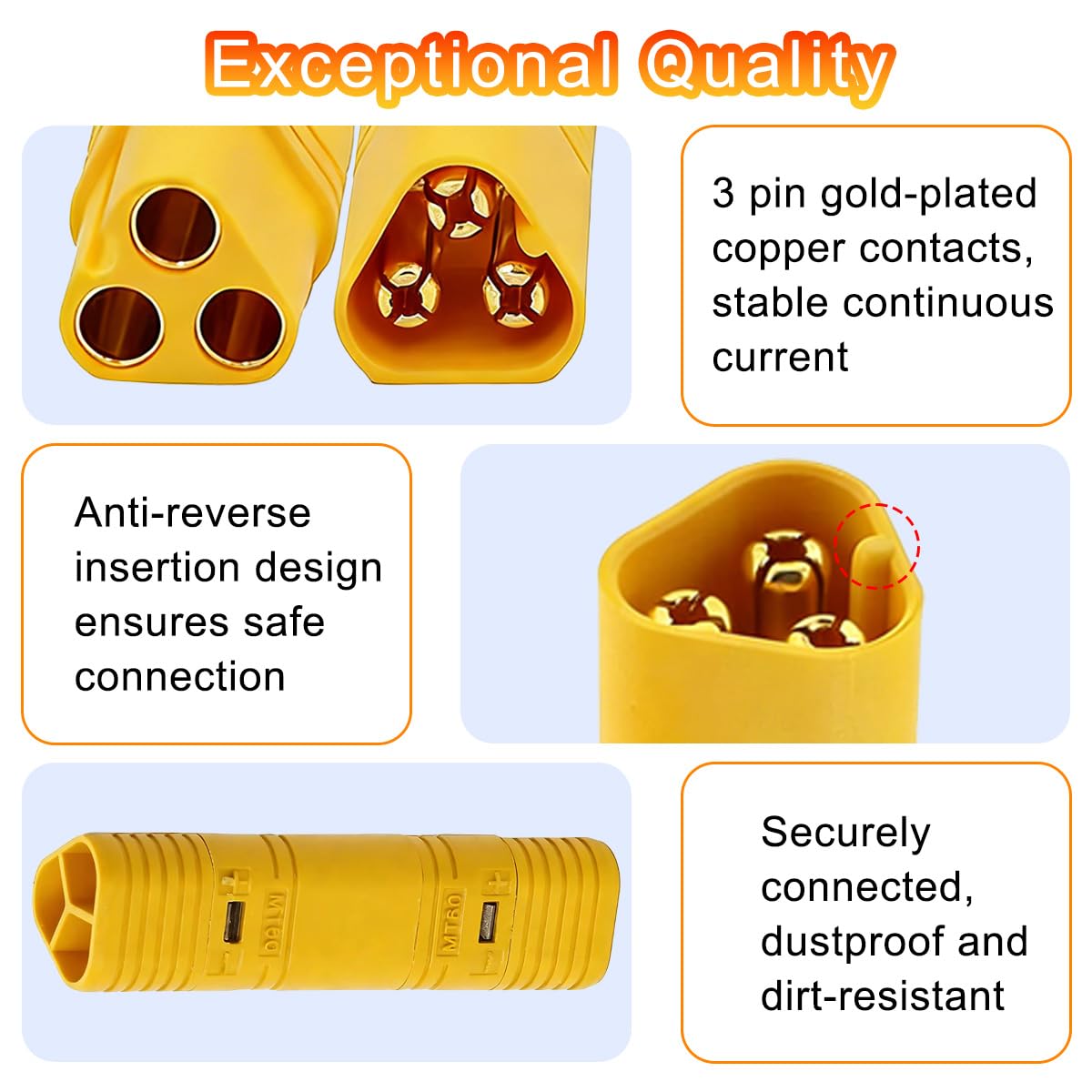

• Reverse Insertion Protection: The plug and socket have a unique keyway structure, allowing insertion in only one direction, effectively preventing damage to equipment due to reverse connection
• Sealed Protection: Equipped with a protective sleeve and heat shrink tubing (1 meter long and 8mm wide) to protect metal contacts from dust, moisture, salt spray, and other corrosive substances, ensuring stable electrical performance.
• High Material: Brass with gold plated, pure copper banana head, high strength insulated and flame-retardant plastic housing is made from plastic PA

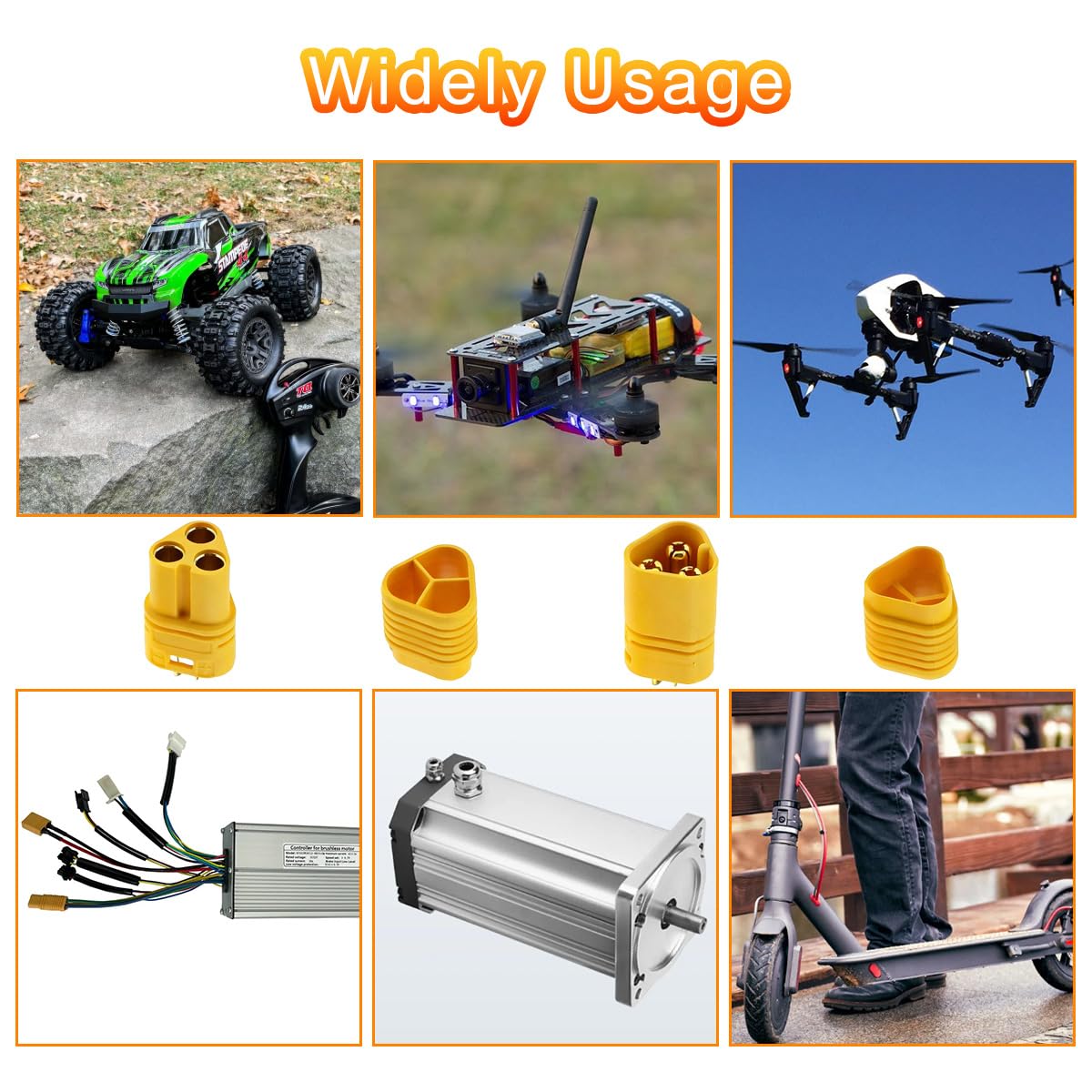

• Widely Used: Widely used in connecting speed controllers and motors, such vehicles, ebike electric scooter and RC motor controller, compatible for RC multicopter quadcopter airplane
• Package Includes: 6 pairs of 3-pole MT60 male and female connector; 12pcs of sheath housing, 2 pcs heat shrink tubing

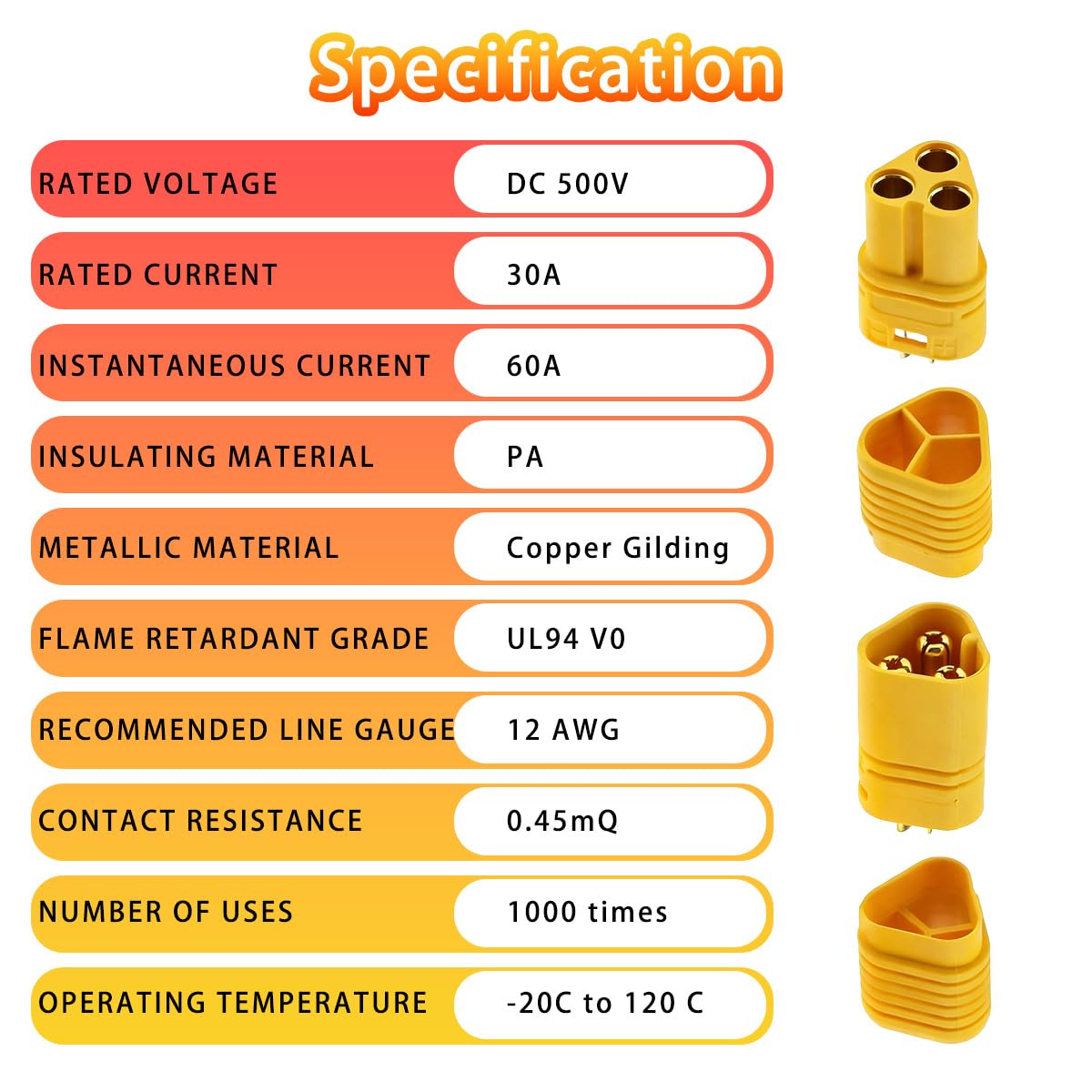

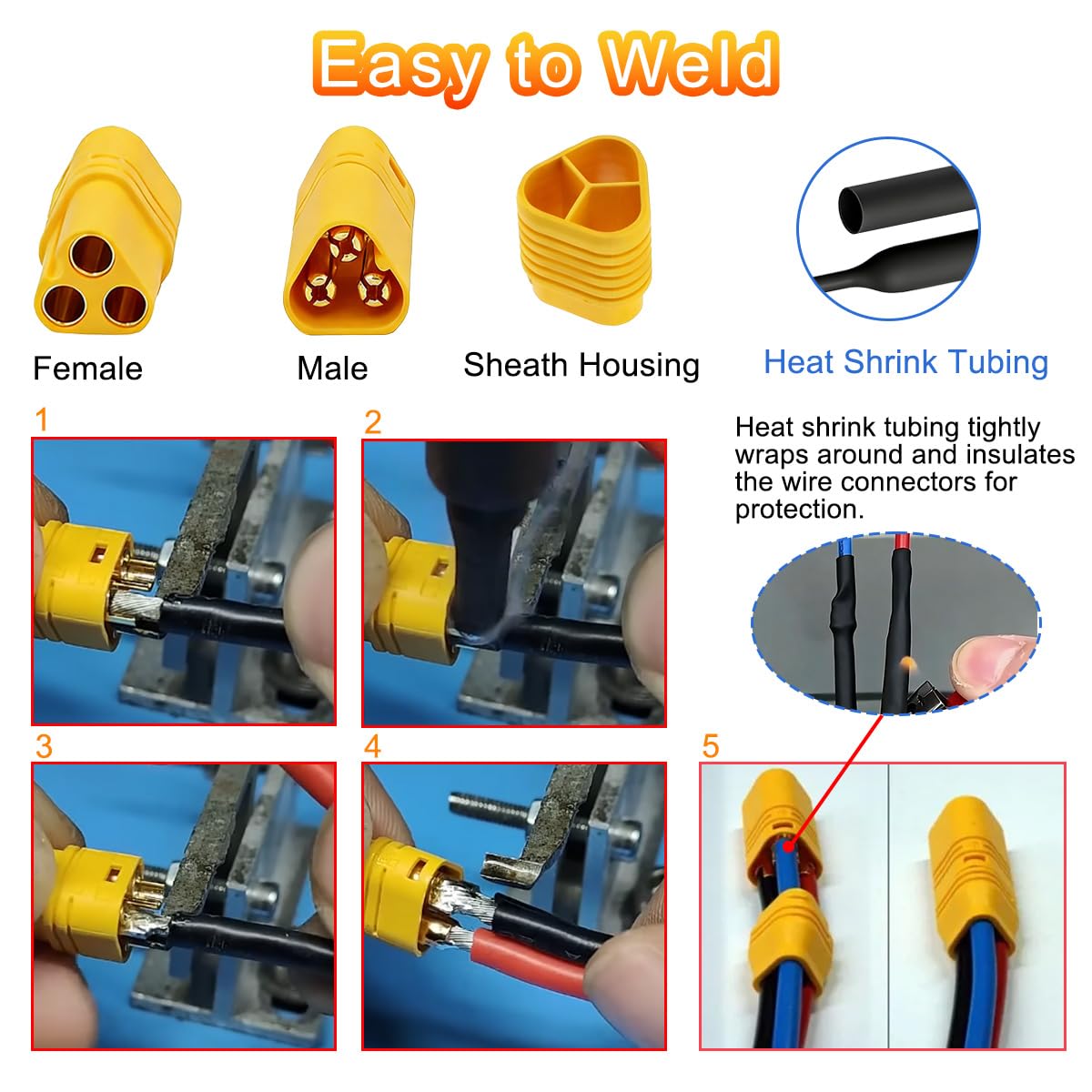

Features: 1. Clear Postitive & Negative Signal indicated. 2. Non-slip deisgn to make easier in removing and connecting plugs. 3. High stiffness spring structure on plug, very tight connection between plug and socket. Usage life time can reach 1,000 times Plug-in and Pull-out 4. Low Contact Resistance, 0.45mΩ, well designed spring structure on plug assures large contact surface and big contact force with socket Note: Make sure you route the wires through the wire guiding sleeves prior to soldering to the connectors. Specification: Rated Voltage: DC 500V Max. Continuous Current: 30A Max. Peak Current: 60A Insulating Material: PA Metallic material: Copper Gilding Flame Retardant Drade: UL94 V0 Recommended Cable Gauge: 12AWG Contact Resistance: 0.45mΩ Number Of Uses: 1000 times Operation Temperature: -20℃ to 120℃ Package Including: 6 × MT60 Connector male 6 × MT60 Connector female 12 × MT60 Sheath 2 × Heat Shrink Tubing
