HAAMNING7 12 Pcs T8 Fluorescent Light Holder G13 Base Tombstone Lamp Socket with 6 Pcs Wire Connectors Non-Shunted Single Head AC 250V 2A Bi-Pin Base Replacements for LED Fluorescent Tube

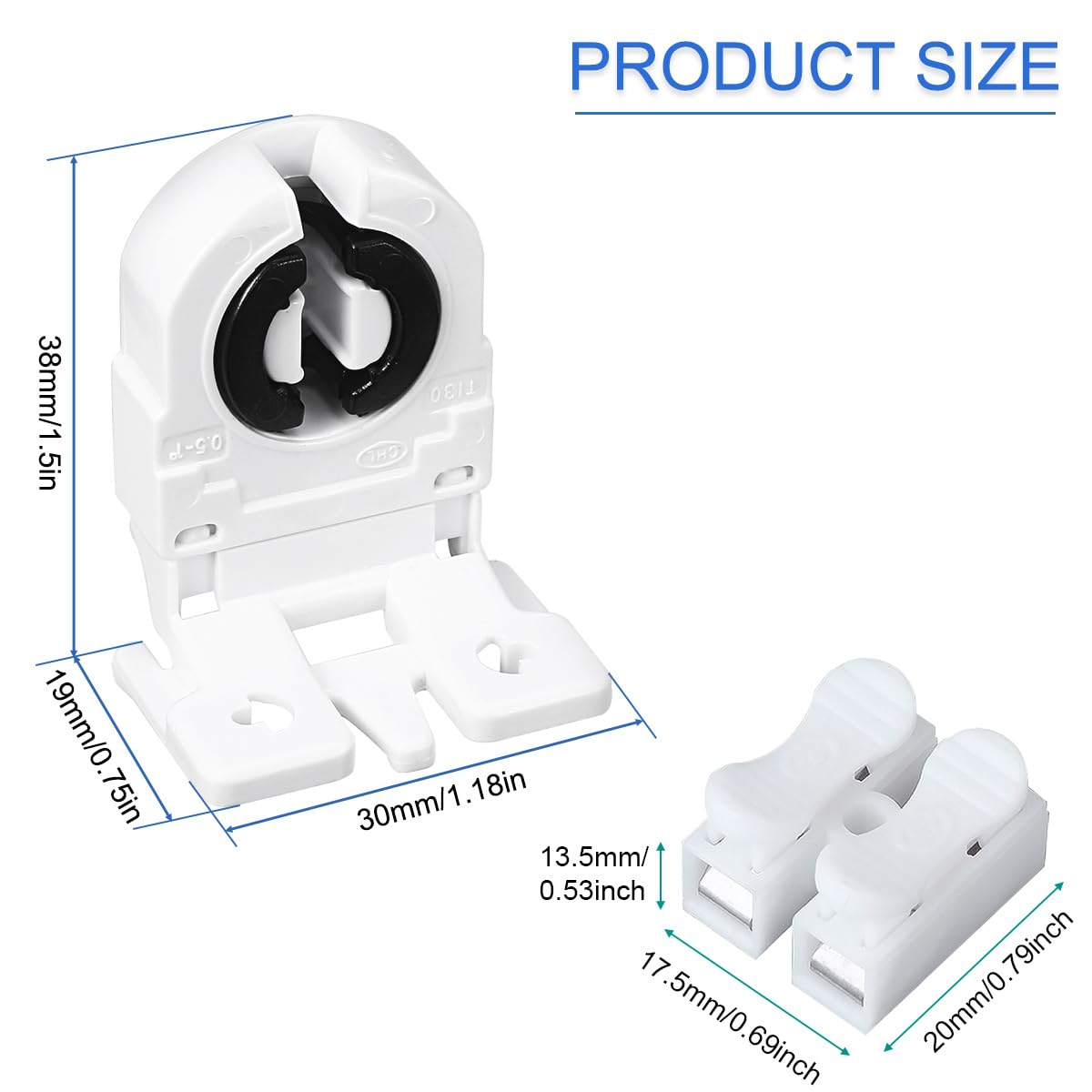

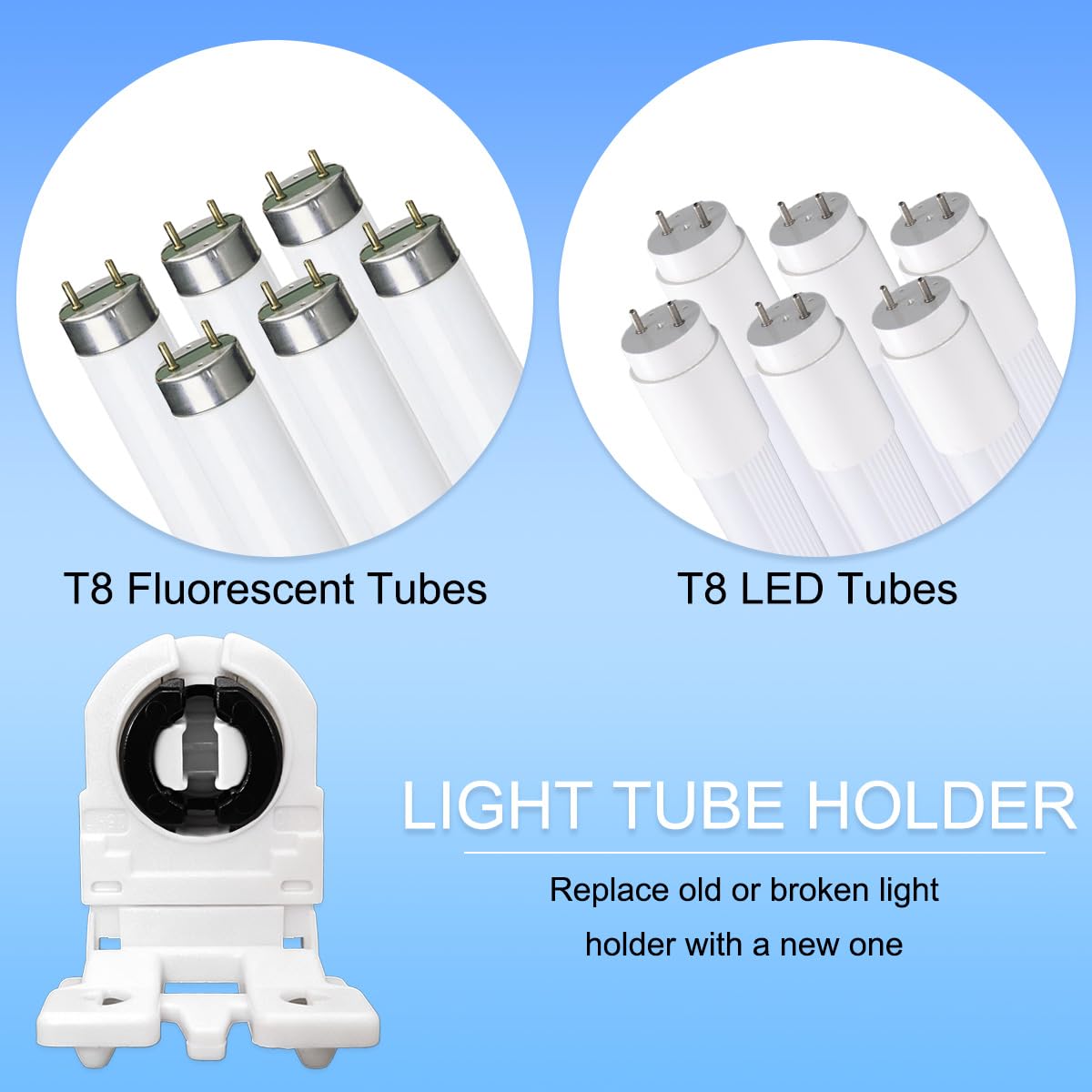

• Standardized Interface: The T8 lamp holder uses a G13 base, meaning the distance between the two pins is approximately 13mm. This ensures physical compatibility with T8 lamps (including fluorescent and LED tubes)
• High Electrical Load Capacity: The high-quality T8 lamp holder has a rated power of 660W and a withstand voltage of 250V, safely carrying the current load of various lamp types

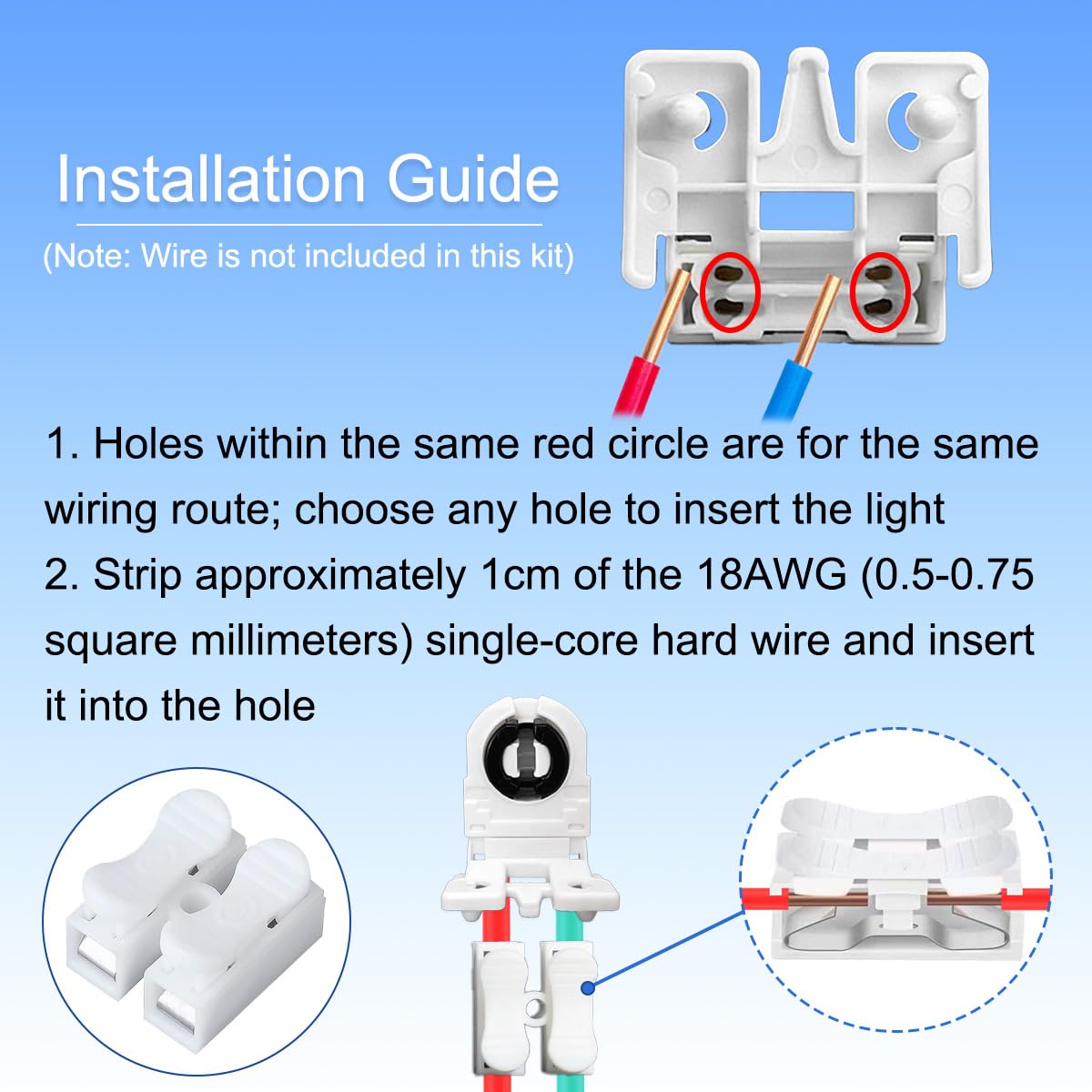

• Easy Wiring: The lamp holder uses a push-wire terminal block at the bottom. Simply cut the wire of the old strip about half an inch and push it into the new end plug. Snap it into the holes for it and your ready for bulbs. No screwdriver is needed, greatly improving installation efficiency

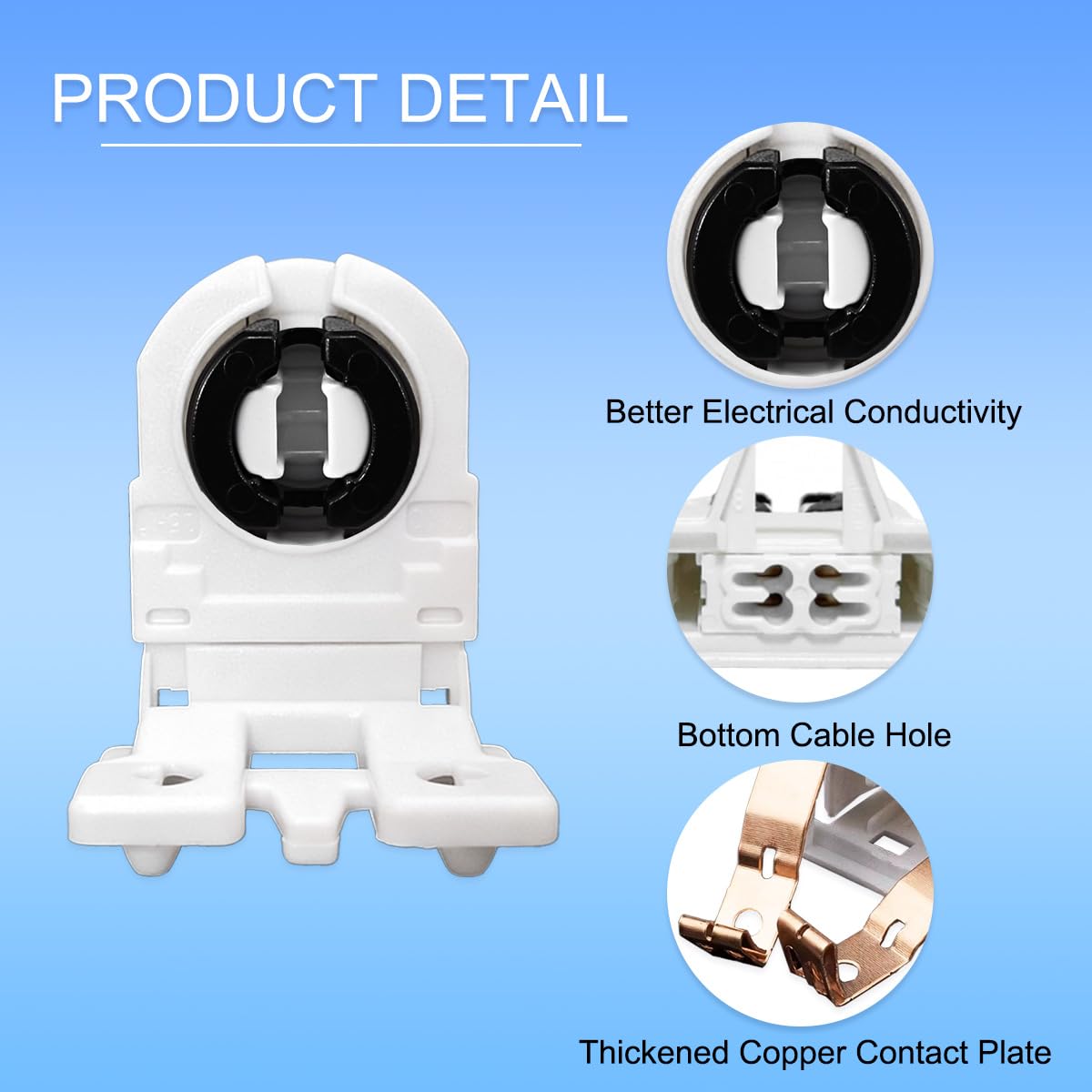

• Safe and Durable: The T8 lamp holder is made of high-quality PC material, possessing excellent corrosion resistance, high temperature resistance, and flame retardant properties. The plastic housing also effectively reduces the risk of accidental electric shock
• Applicable Cables: For solid conductors of 18 AWG or 0.5-1.0 mm²

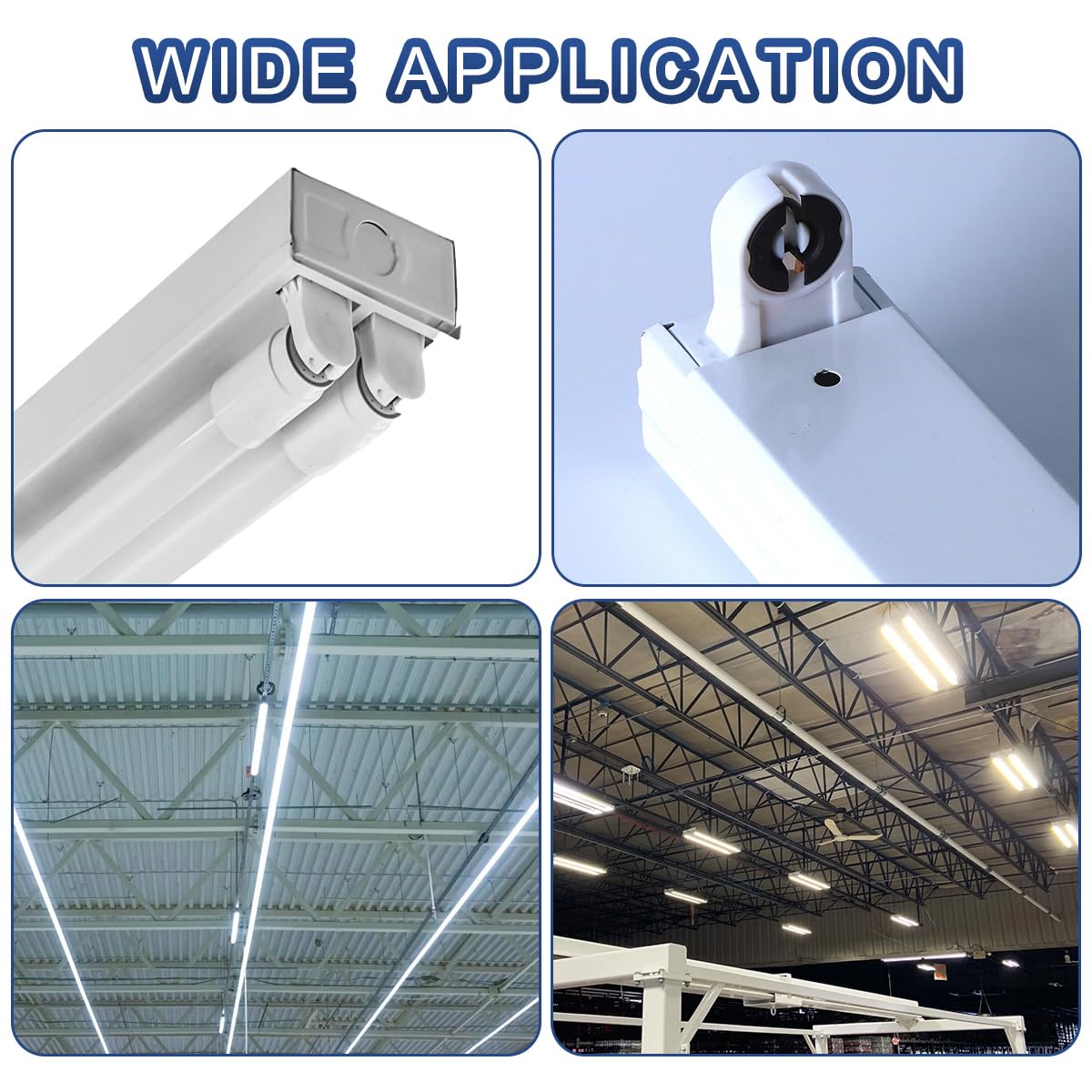

• Wide Applications: Perfect for fluorescent lamps or LED tube lamps in your home or office, garage, basement, closet, studio, shop, and so on
• Package Include: 12 Pcs T8 Fluorescent Light Holder; 6 Pcs Wire Connectors

Features: A perfect choice to replace old and damaged lamp holder The spring contracts hold the wires firmly that once it clamps the wires, they can hardly loose NOTE: Before installation, always ensure that the power supply is turned off to prevent any electrical risks. Please ask for help from a professional electrician if you are not sure about the installation process Steps to Replace a Tombstone Light Holder in a Light Fixture: Step 1: Turn off the circuit breaker and the wall switch that operates the fluorescent fixture Step 2: Remove the cover from the fixture and twist the fluorescent/LED tubes to release them from the light holder and carefully set the tubes aside Step 3: Make sure that there is completely no electrical current in the fixture by holding a noncontact voltage detector Step 4: Remove the screw or pull the damaged tombstone from the end of the fixture Step 5: Pull out the wires from the tension spring contracts. You can insert a straightened paper clip or a screwdriver into the wire hole to open the spring contracts Step 6: Connect the new tombstone light holders to the end of the light fixture Specifications: Maximum Voltage: AC 250V Type: Tombstone, Single Head Fit Fluorescent or LED Tube Size: T8 Package Contents: 12 Pcs T8 Fluorescent Light Holder 6 Pcs Wire Connectors
