Gaocinys Metal Electric Magnetic Lock Electronic Door Lock 180KG/350lbs Holding Force DC12V Fail Safe Mode Normal Closed Type with Z&L Bracket for Framed Glass/Wooden Door, Single Door

• Security mode: fail-safe type. That means the door will be opened when power off.
• Working Voltage: DC 12V +/- 10%.
• Holding force: 180kg / 350lbs.

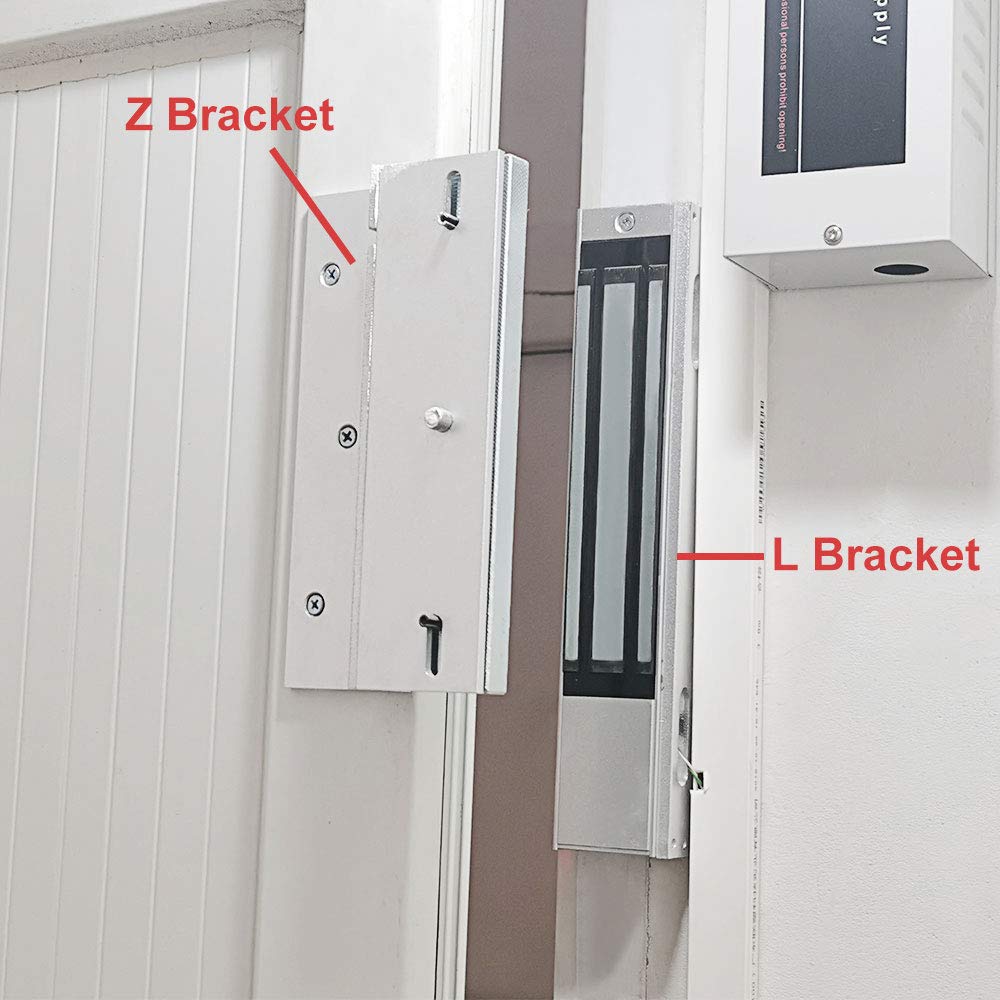

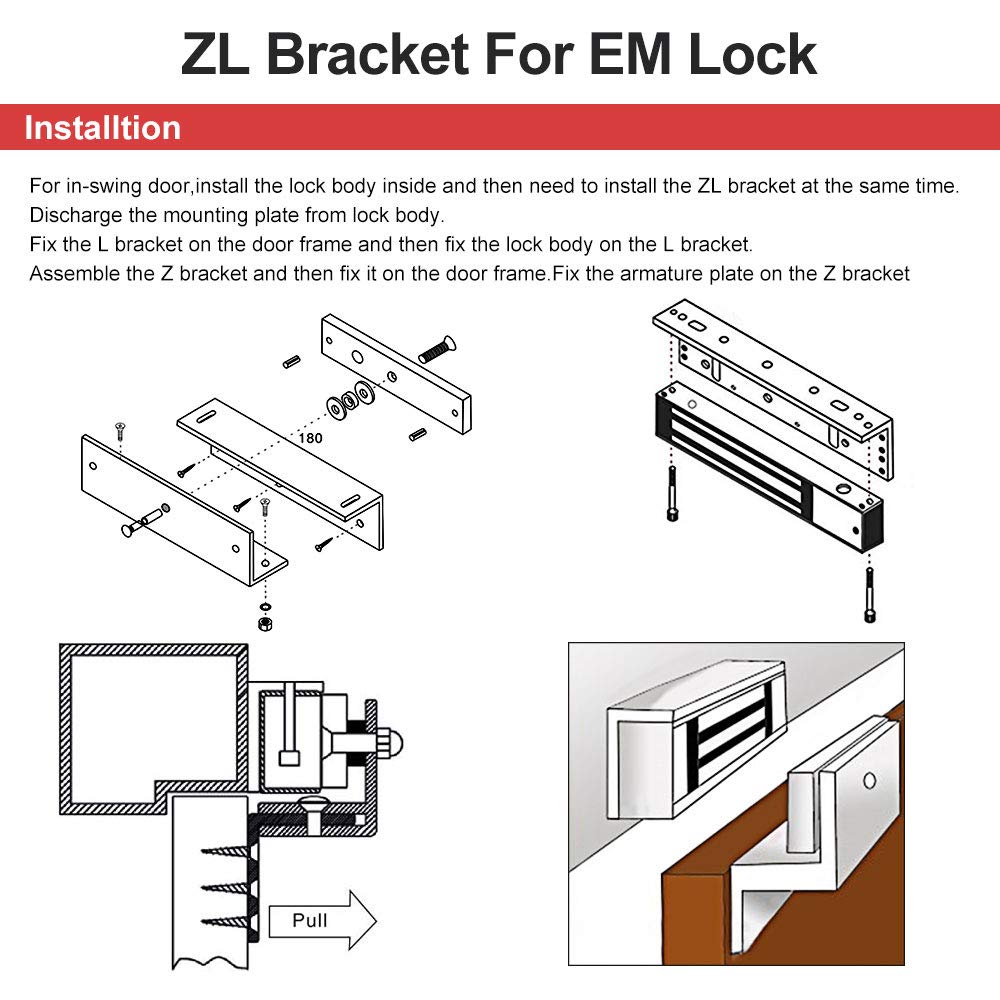

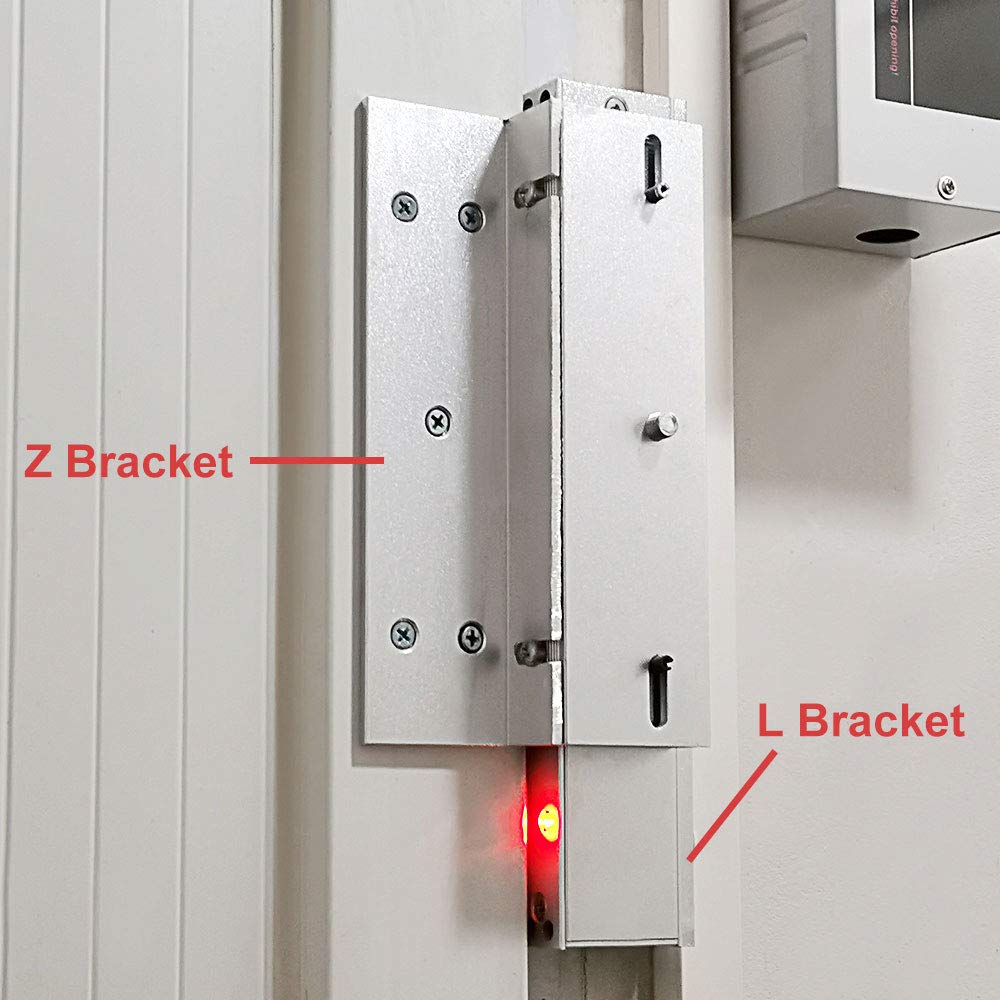

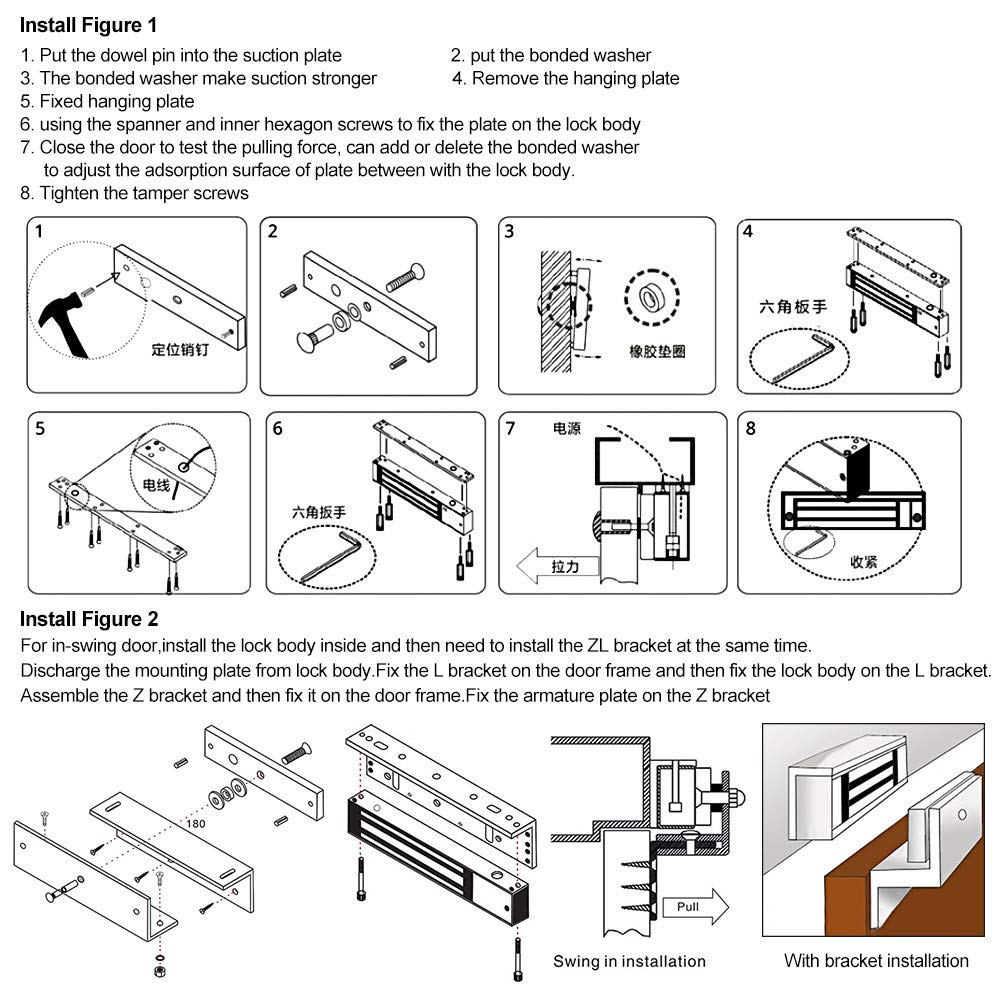

• Installation: Flat installation, no need to punch. Equipped with Z&L bracket, suitable for framed glass doors or wooden doors that open inward, but only for single doors.

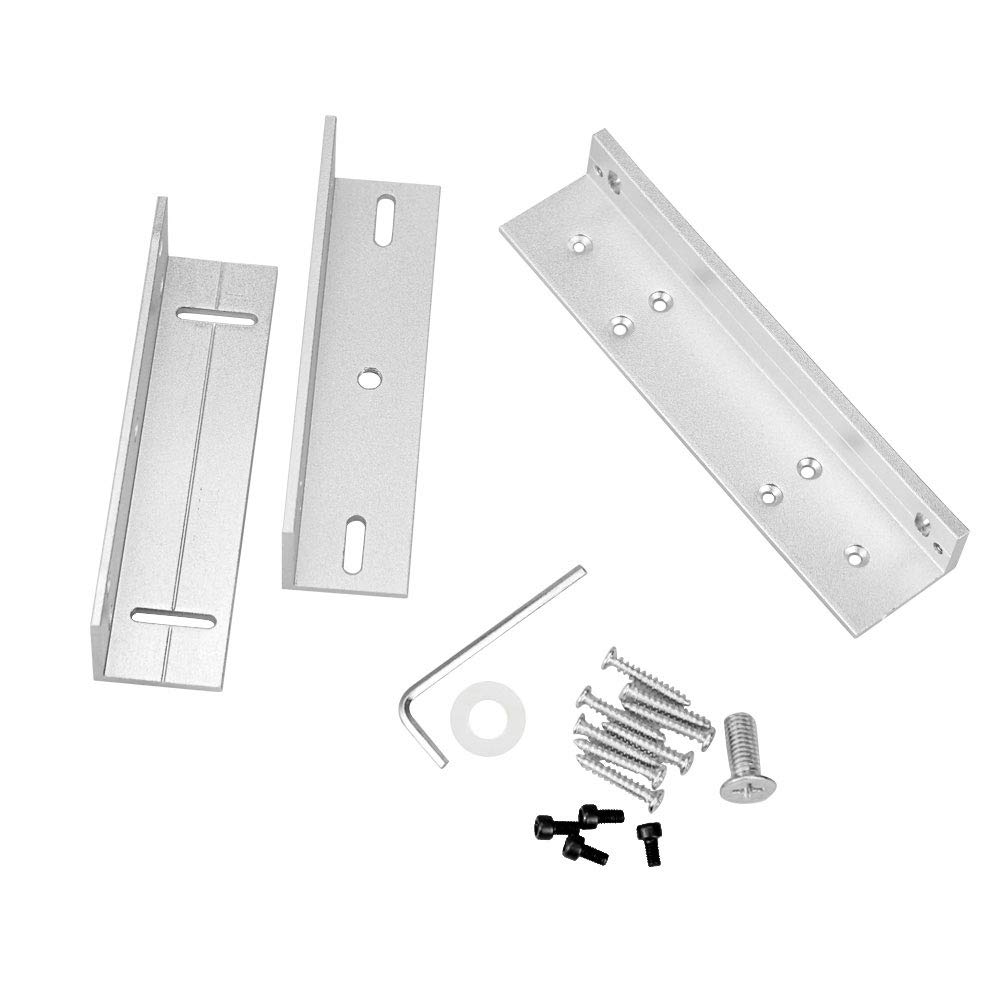

• PAKING LIST: 1 * 180KG force magnetic lock; 1 * Z&L Bracket; 1 * Bag of screws, 1 * Installation instruction.

Product Introduction This is a electric magnetic lock equipped with a Z&L bracket. Suitable for single door that open inward. Suitable for framed glass door, wooden door, etc. Product Specifications Material: Aluminum alloy Working Voltage: DC 12V +/- 10%, Working Current: 380-500mA Holding Force: 180KG/350lbs Security mode: Fail-safe type. That means the door will be opened when power off. Wiring: red wire - +12V, black wire - GND Working Indicator: None Waterproof: Yes Signal Feedback: Not support Time Delay of Door Open: Without Function: can be used with building intercom, door access control system. Installation: unfold install mode (Don't need to punch a hole.) Size of The Magnetic Lock: Lock body: about 172 * 40 * 21mm; Metal plate: about 130 * 32 * 11mm Size of The Z&L Bracket: Z bracket: about 139 * 36 * 36mm, thickness: about 3mm L bracket: about 168 * 39 * 24mm, thickness: about 5mm Packing List: 1 * Magnetic lock 1 * Z&L bracket 1 * Bag of screws 1 * Installation instruction Please Pay Attention:If you want to test the lock before installation, you should connect the red wire of the lock to "+12V", and connect the black wire to "GND" of a 12V DC power supply. But if you need to connect this lock to a completed access control system, you should connect red wire to "NC", black wire to "COM" of the power supply.
