GUUZI 30 cm Adjustable M18 Diffuse photoelectric Switch Sensor Optical Three Lines NPN NO (Normally Open) Proximity Switch 6-36VDC E3F-DS30C4

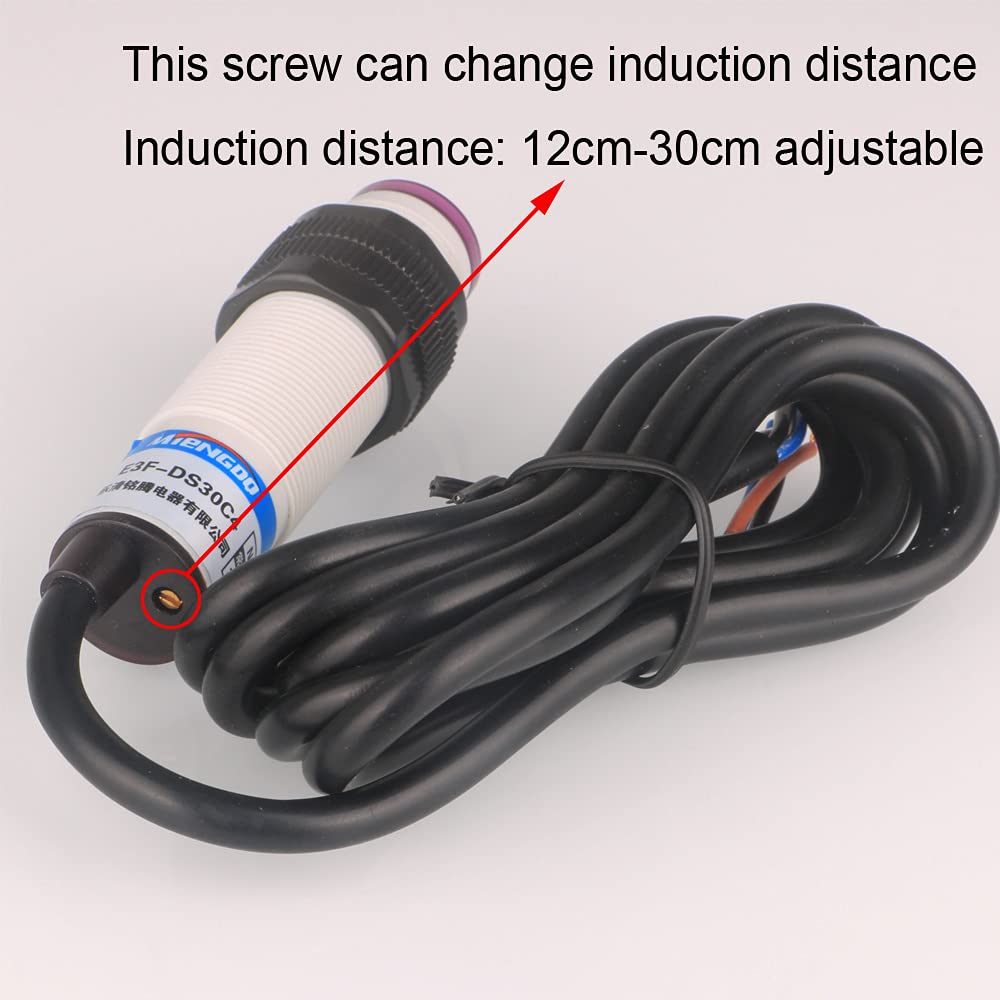

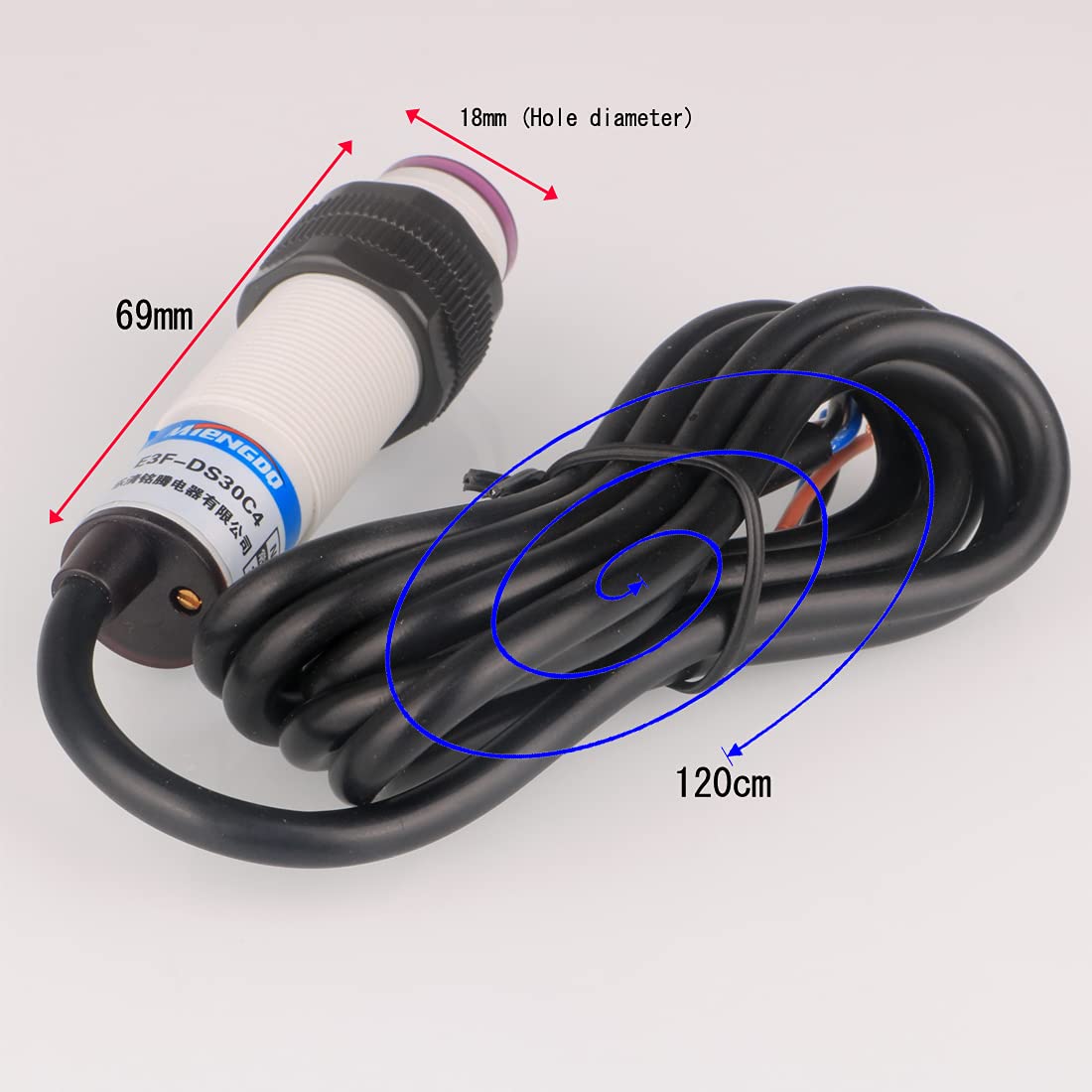

• 【Parameters】- Static:NO ; Detection distance: 30cm; Whether the detection distance is adjustable: adjustable; Detection object: opaque object; Model: E3F-DS30C4; Detection method: Diffuse reflection type; Structure type: built-in relay; Appearance shape: cylindrical type; Working voltage: DC 6-36V; Output control: 300mA; Installation method: 3 lines;Thread diameter:M18.
• 【Advanced Technology】- The photoelectric switch with integrated circuit technology and SMT surface mount technology, a new generation of optical switch sensor devices are manufactured with external synchronization, anti-interference, high reliability,working for regional stability and self-diagnosis.
• 【Precise Detecting】- Photoelectric switch sensor is the use of the test object to blocked or reflected beam, by the synchronization loop gating circuit to detect the presence or absence of the object. All objects can reflect light can be detected.
• 【Application】- The current sensor switch is Widely used in mechanical automation,3D Printer Probe Bed Leveling,paper making,light industry for limiting station,orientation taking count,speeding trial etc.

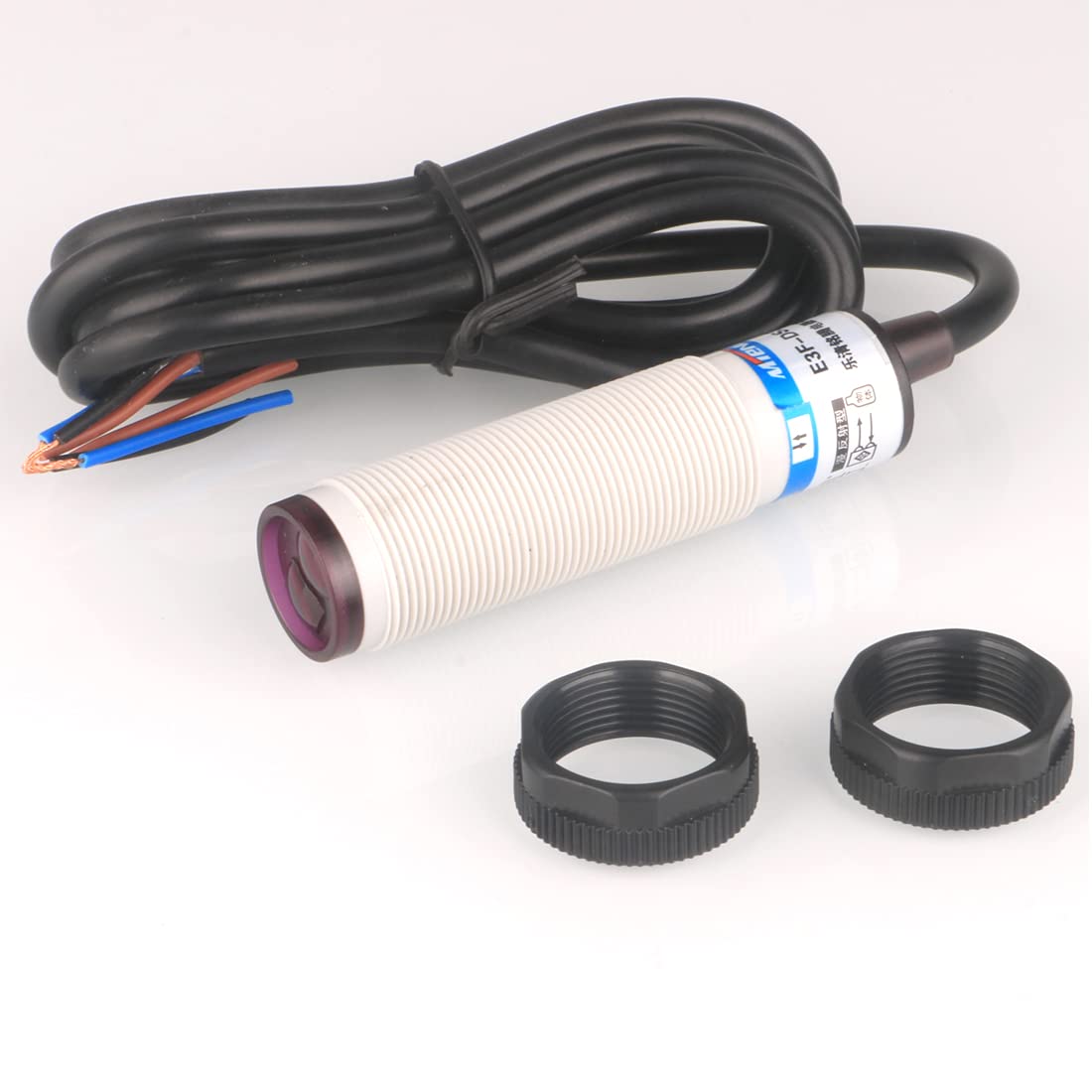

• 【Package Contents】- 1 x Photoelectric Sensors.

Specifications: Static: NO Detection Distance: 30cm If the detection distance is adjustable: adjustable Detection Object: Opaque Object Model: E3F-DS30C4 Detection method: Diffuse reflection type Structure Type: Integrated Relay Appearance shape: cylindrical type Working Voltage: DC 6-36V Output control: 300mA Installation method: 3 lines Thread diameter: M18 Package includes: 1 x Photoelectric Sensor Features: 1. Infrared optical switch control as a proximity sensor comprising a transmitter and a receiver. 2. A retro-reflective device places the transmitter and receiver in the same location and uses a reflector to return the light beam from the transmitter to the receiver. An object is detected when the beam is interrupted and does not reach the receiver. 3. Can be applied in security system, manufacturing industry, etc.
