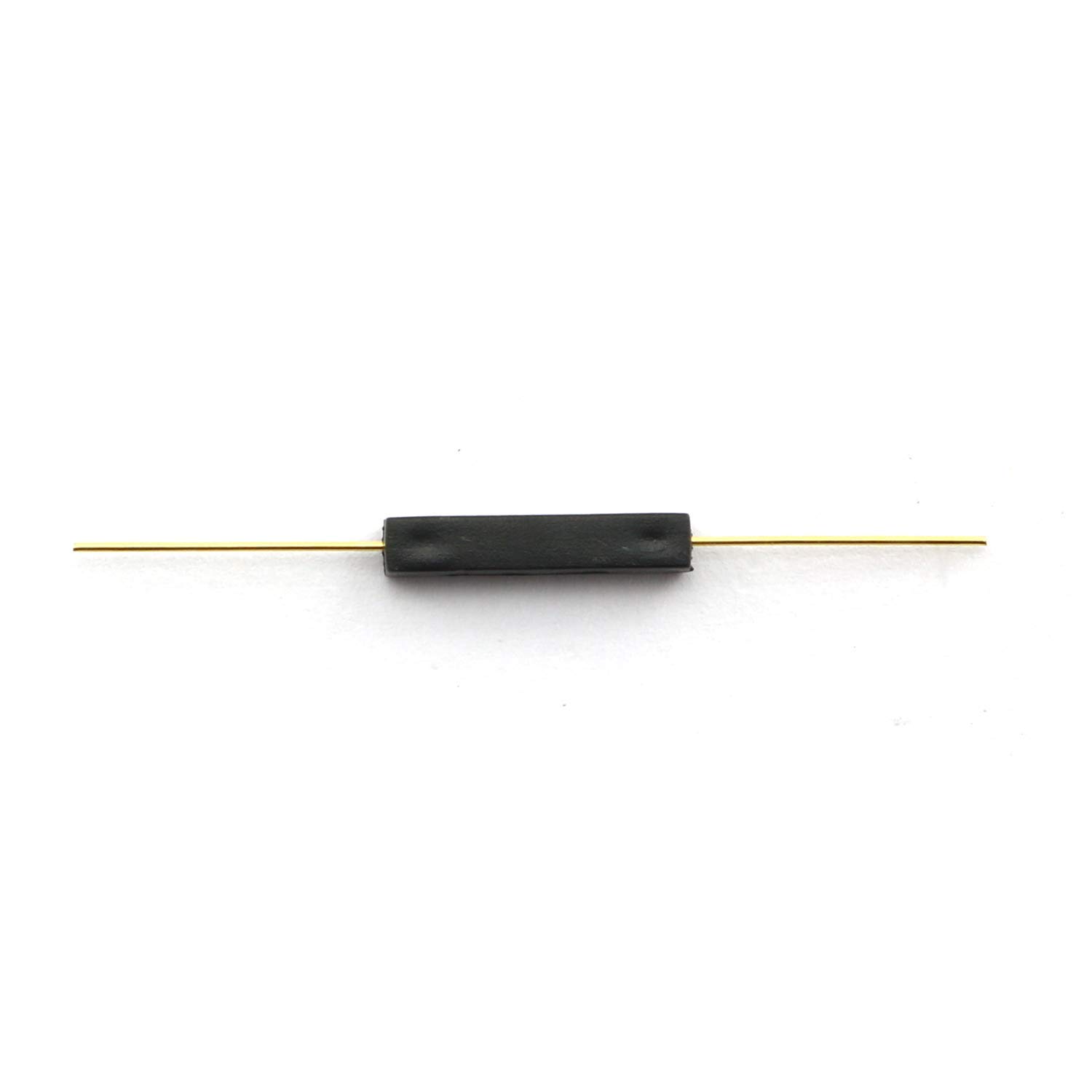

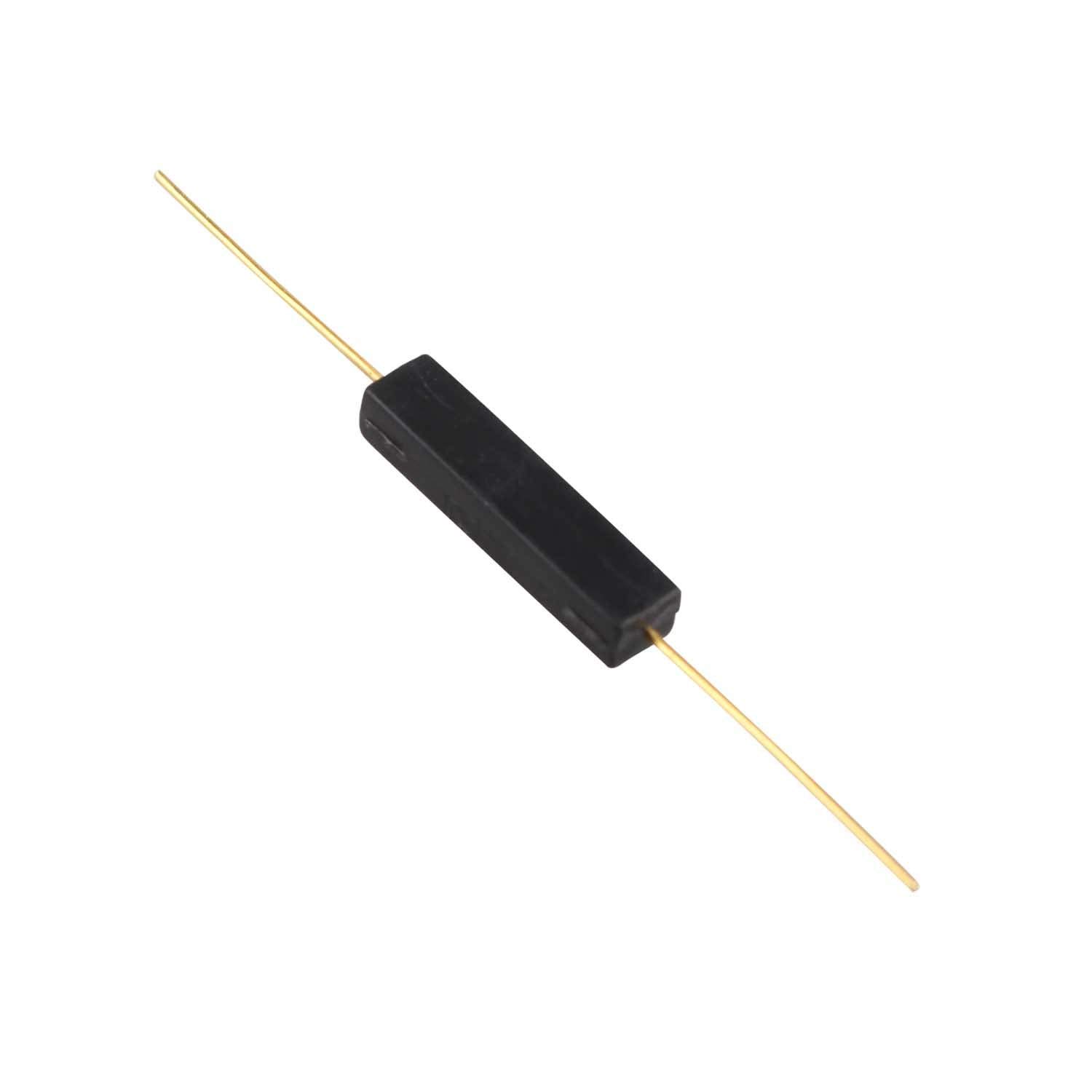

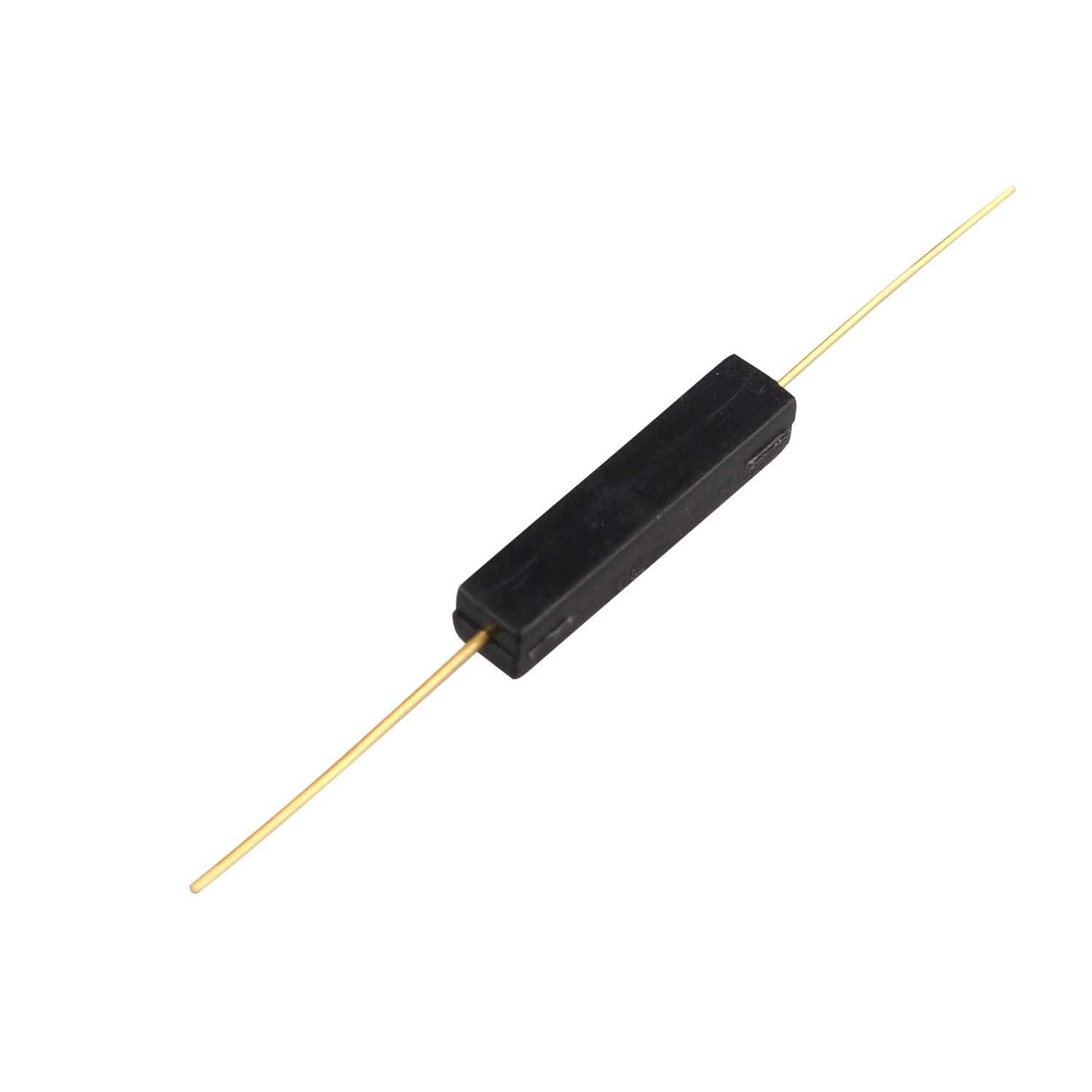

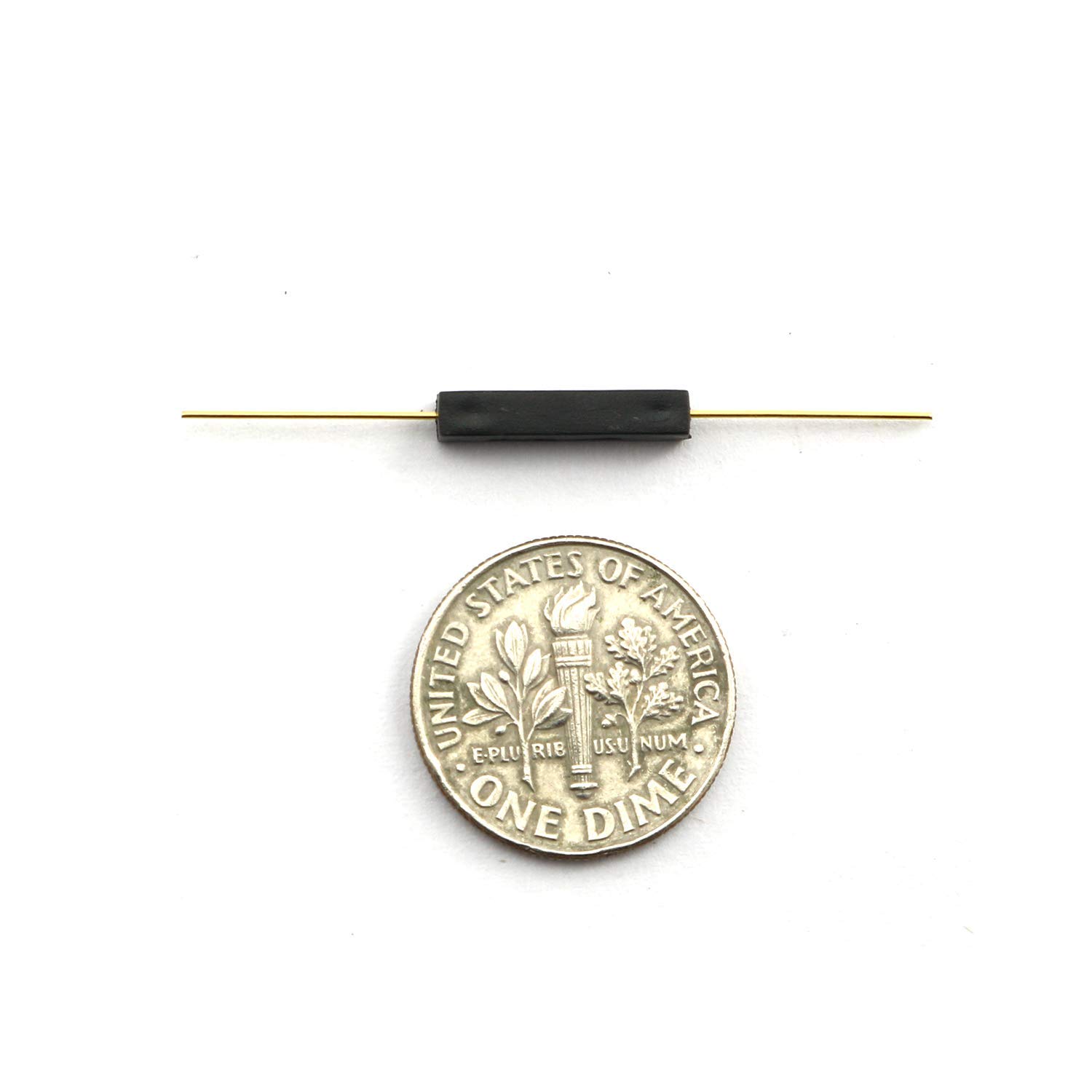

GTIWUNG Reed Switch GPS-14A 14mm Plastic Normally Open Magnetic Control Switch, Reed Contact Normally Open (N/O) Magnetic Induction Switch (2.5mm*14mm)

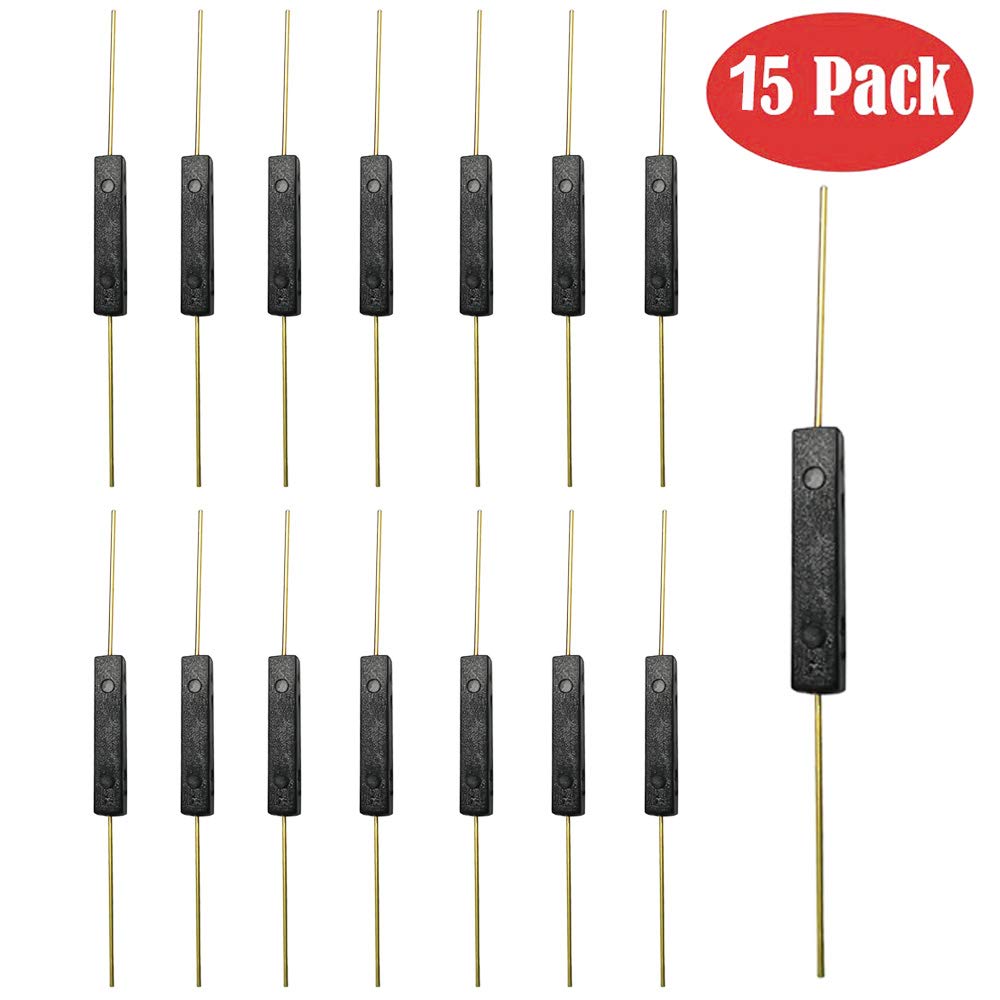

Specifications: Product Name: Reed Switch Material : Plastic, Metal Color : Gold Tone, Black Tube Size (Approx.) : 14 x 2.5mm/ 0.55" x 0.1" (L*D) Lead Terminal Size(Each Side) : 14 x 0.5mm/ 0.55" x 0.02"(L*D) Total Length (Approx.) : 42mm/ 1.65" Maximum Power: 10W Maximum switching voltage: 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100mOhm Minimum insulation resistance: 1000000000Ohm Action time: 1.0ms Bounce time: 0.6ms Release Time: 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load): 5 X1000000 times (5VDC, 10mA) Operating temperature：-10 - 85℃ Package Included: 15 X Reed Switch GTIWUNG Operation Goal: To provide customers with quality products and services is our commitment. To meet customer needs is our unremitting pursuit. After Sales Service: Customer satisfaction is our eternal pursuit, If anytime product breakage or unsatisfied, please feel free to contact us and we will offer you a replacement or full refund. Feedback and Review Warmly Welcome: Your Feedback and Review are our greatest motivation to provide quality products. We sincerely look forward to your comments and suggestions.
