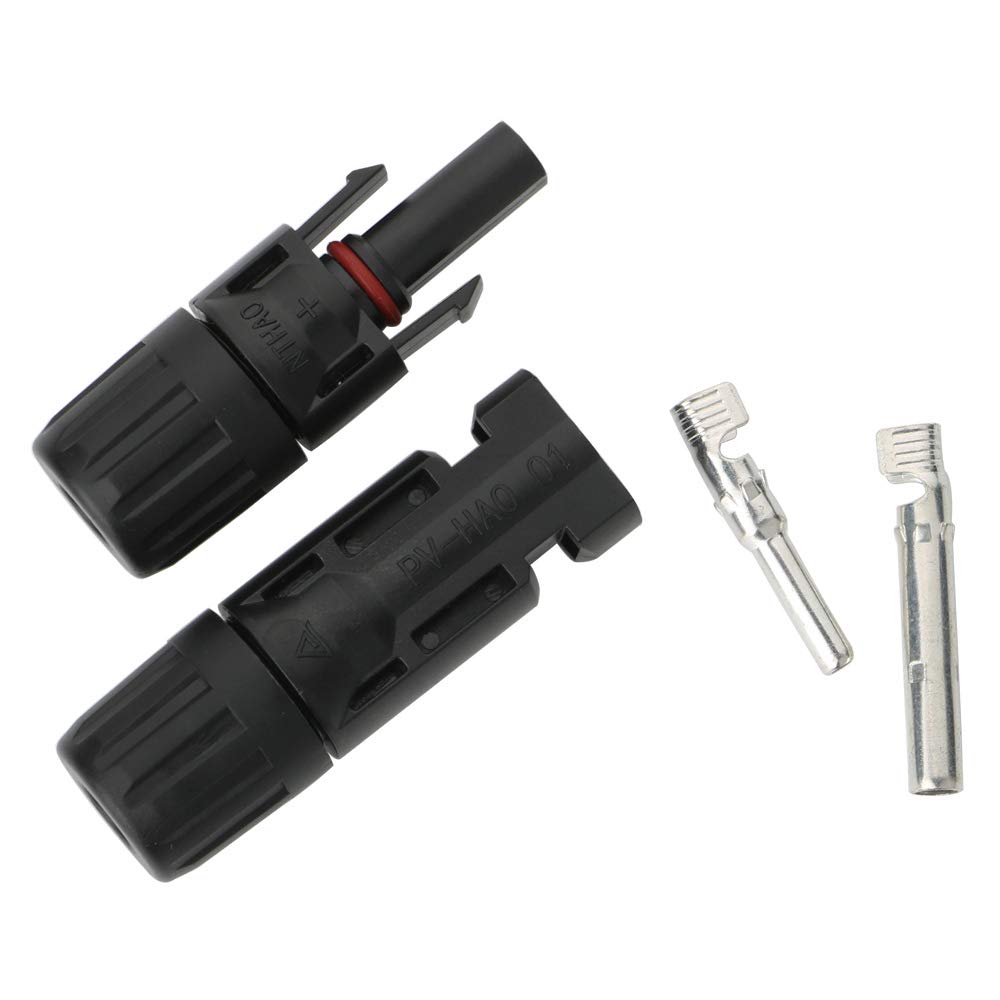

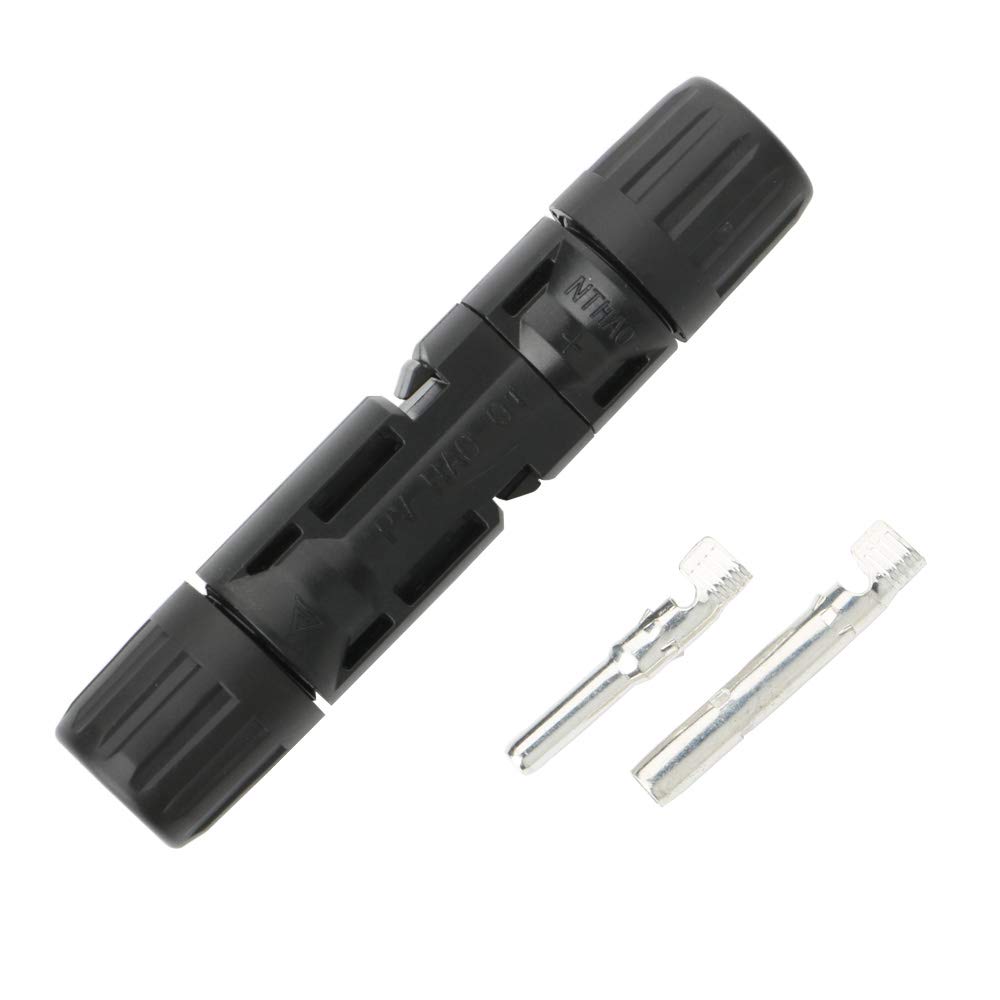

GTIWUNG 6 Pairs Solar Cable Connector, Male/Female Solar Panel Cable Connectors, Double Seal Rings Waterproof PV Connector, Solar Photovoltaic Connector, Black

• ★High Quality: Good materials make sure the transmission in the stable situation. Note: One wrench is included in the old product package, and 2 wrenches are included in the new package.
• ★Good Compatibility: Compatible with PV cables with different insulation diameters (2,5mm2--6mm2).
• ★Easy to Install: Installation is easy however a crimping tool or crimping pliers are recommended for tight fitting.
• ★Excellent Water Resistance: Waterproof and dust-proof, can be used outdoors in any weather conditions.
• ★Professional: Specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.

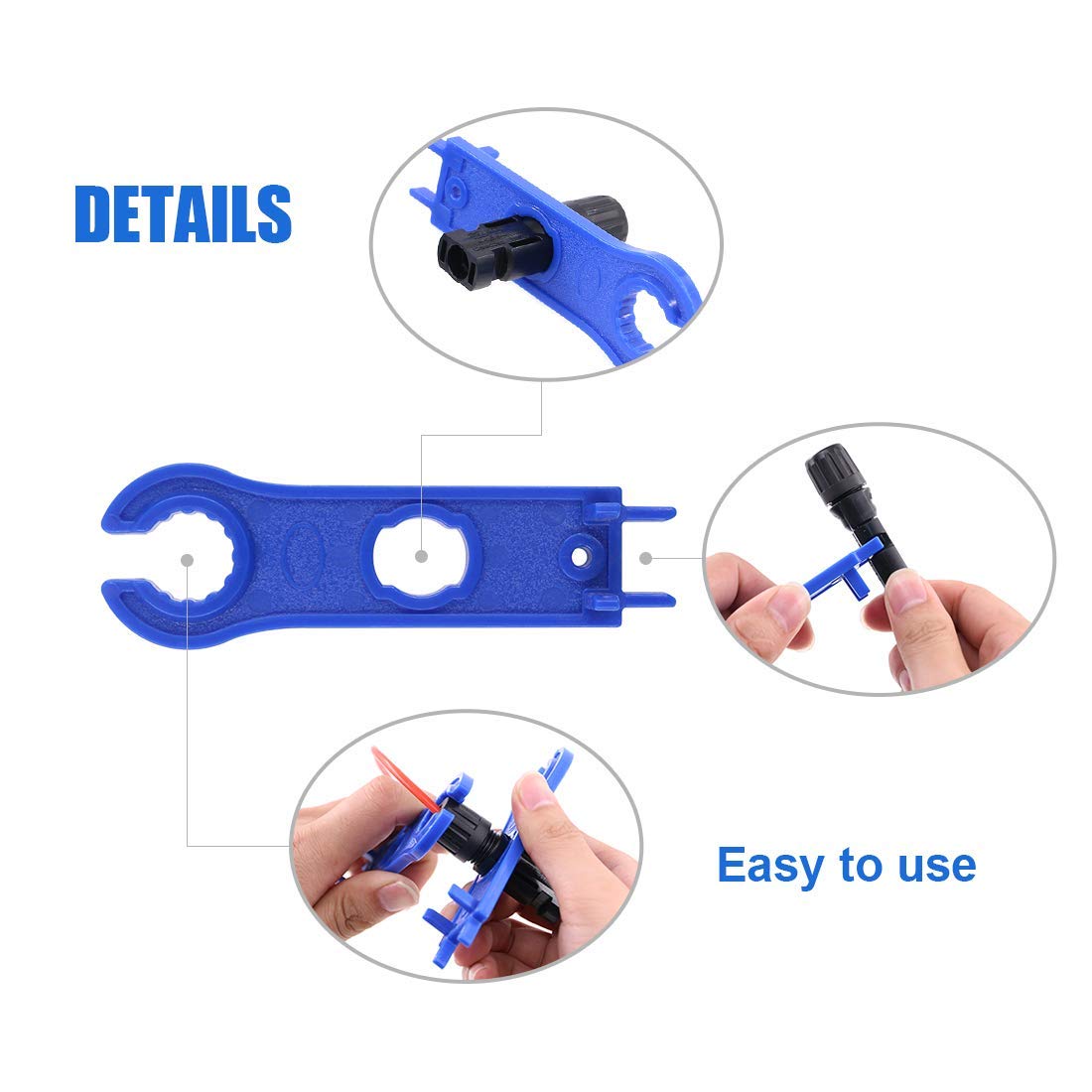

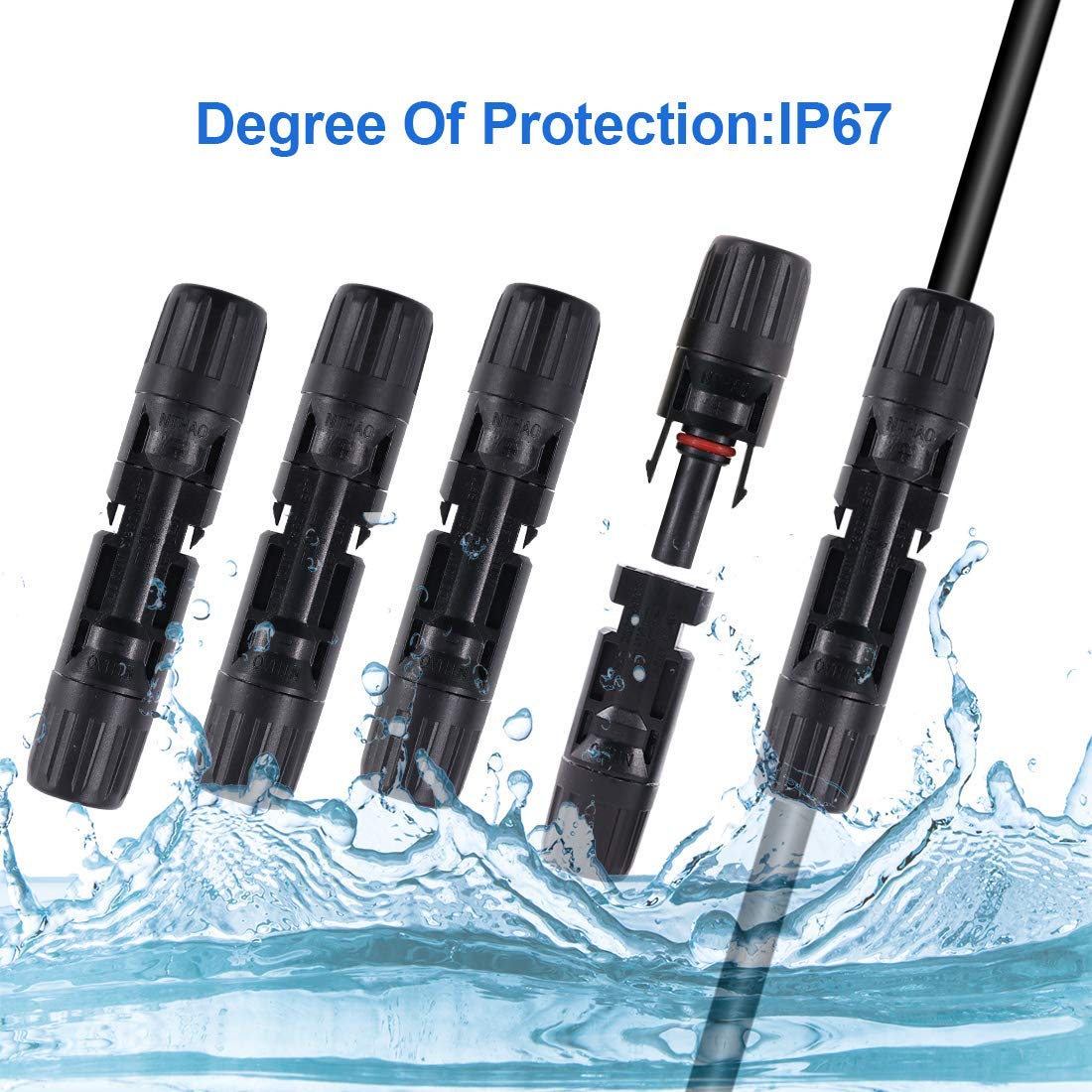

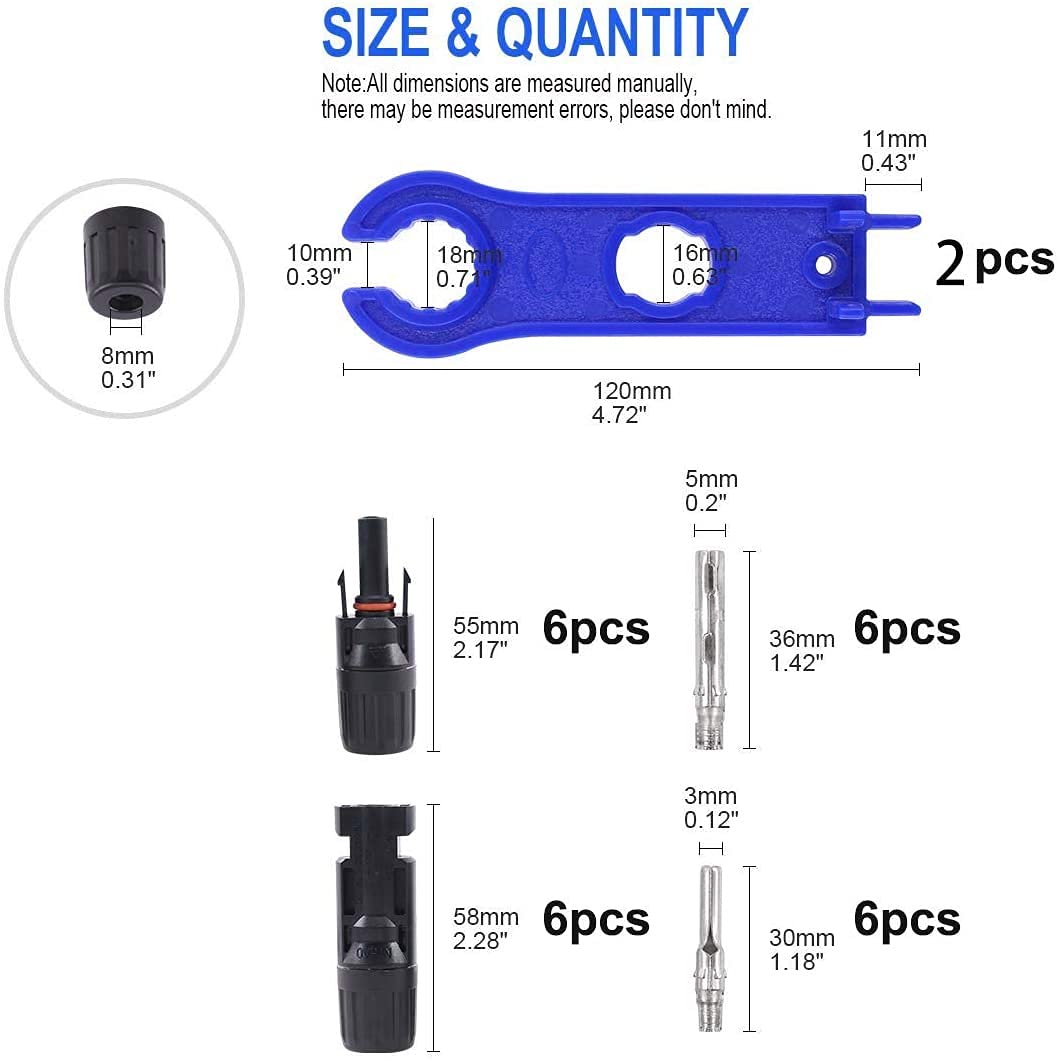

Features: ✪These connectors fit any cable with 2.5mm2, 4.0mm2 and 6.0mm2 cross section. ✪6 pairs of solar cable cable connectors which fit all solar panels and most other panels. ✪Completely waterproof so can be used outdoors in any weather conditions. ✪Stable self-locking system which is easy to lock and open. ✪Corrosion-resistant connectors for long-term usage. Specifications: Rated voltage: 1000V Rated current: 30A (4.0mm2, 6mm2) Test voltage: 6000V (50Hz) Degree of protection: IP67 Flammability rating: UL94-V0 Connector conductor material: Copper tin plating Operating temperature range: -40 ~ +90 ° Safe Class: 2 Suitable Cable:2.5mm2/4mm2/6mm2(AWG 14/12/10) Connector contact resistance: ≤5mΩ Insertion force ≤50N Withdraw force ≥50N Package Include: 6 x male solar panel cable connector 6 x female solar panel cable connector 1 x wrench
