GTIWUNG 560PCS 2.5mm Pitch JST-SM 2/3/4/5 Pin Male and Female Plug Housing and Male/Female Pin Header Crimp Terminal Connector Assortment Kit

• ★ Product Name: JST SM connector assortment kit. Pin Pitch: 2.5mm.
• ★ High Quality Material: Durable plastic and metal, tin plating, internal pure copper to increase the conductivity.
• ★ Easy to Use: Just put the crimps in the tool and press them, make the crimp the insulation are all the way toward the wire.
• ★ Widely Application: widely used for speakers, monitors, household appliances, LED lighting, copiers, FAX machines, medical equipment, computers, electronic toys, batteries, circuit boards.

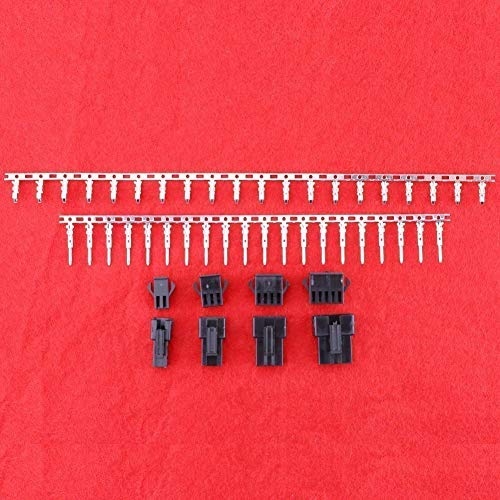

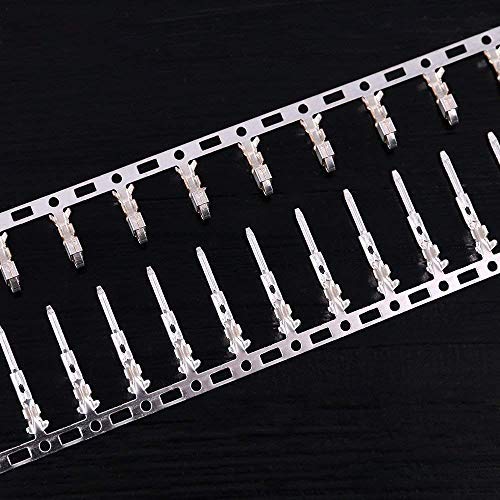

• ★ Package Content: 80Pcs x Male Plug Housing (2/3/4/5Pin x 20Pcs), 80Pcs x Female Plug Housing (2/3/4/5Pin x 20Pcs); 200Pcs x Crimp Terminal(Male x 200Pcs, Female x 200Pcs ).

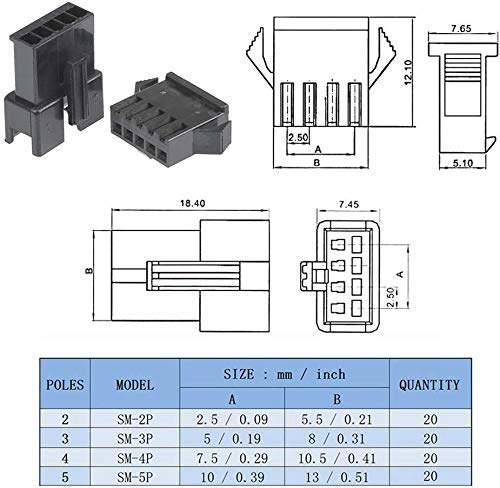

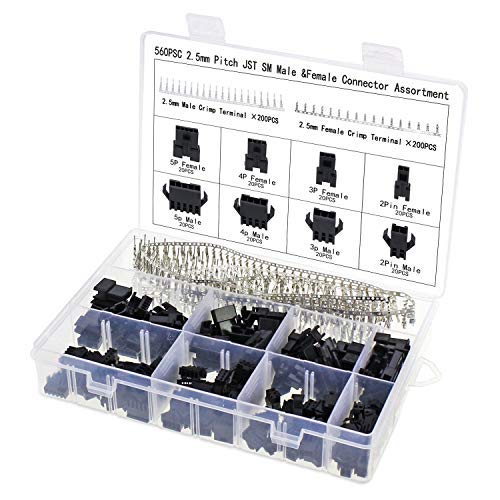

Features: ✪ Pitch 2.5mm 2 3 4 5 pin JST SM connector male and female connector housing adapter matching kit. ✪ This set is organized by size in a clear storage case for quick access and protection. Specifications: Pin Pitch: 2.5 mm Rated Current: 3A AC, DC (AWG #24) Rated voltage: 250 V AC, DC Temperature range: -25°C to 85°C (including temperature increase when applying electric current) Contact resistance: initial value/10 m Ohm max. After environmental testing/20 m Ohm max. Insulation Resistance: 1000M Ohm min Withstand voltage: 800 V AC/minute. Application: - Speakers, Monitors - Appliances, LED lighting - Copiers, Fax Machines - Medical equipment - Computers, Electronic Toys - Batteries, PCB Package details: 20 x 20 x 2 pin male connector housing. 20 x 3 pin male connector housing. 20 x 4 pin male connector housing. 20 x 5 pin male connector housing. 20 x 2 pin female connector housing. 20 x 3 pin female connector housing. 20 x 4 pin female connector housing. 20 x 5 pin female connector housing. 200 x male crimp terminals. 200 x female crimp terminals.
