Timer, Soft Starter with Delay, Star Delta, Motor Starter with Relay, for Industrial, Commercial, Home, Office Applications

• Widely Applications -- This GRT8-ST delay time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.

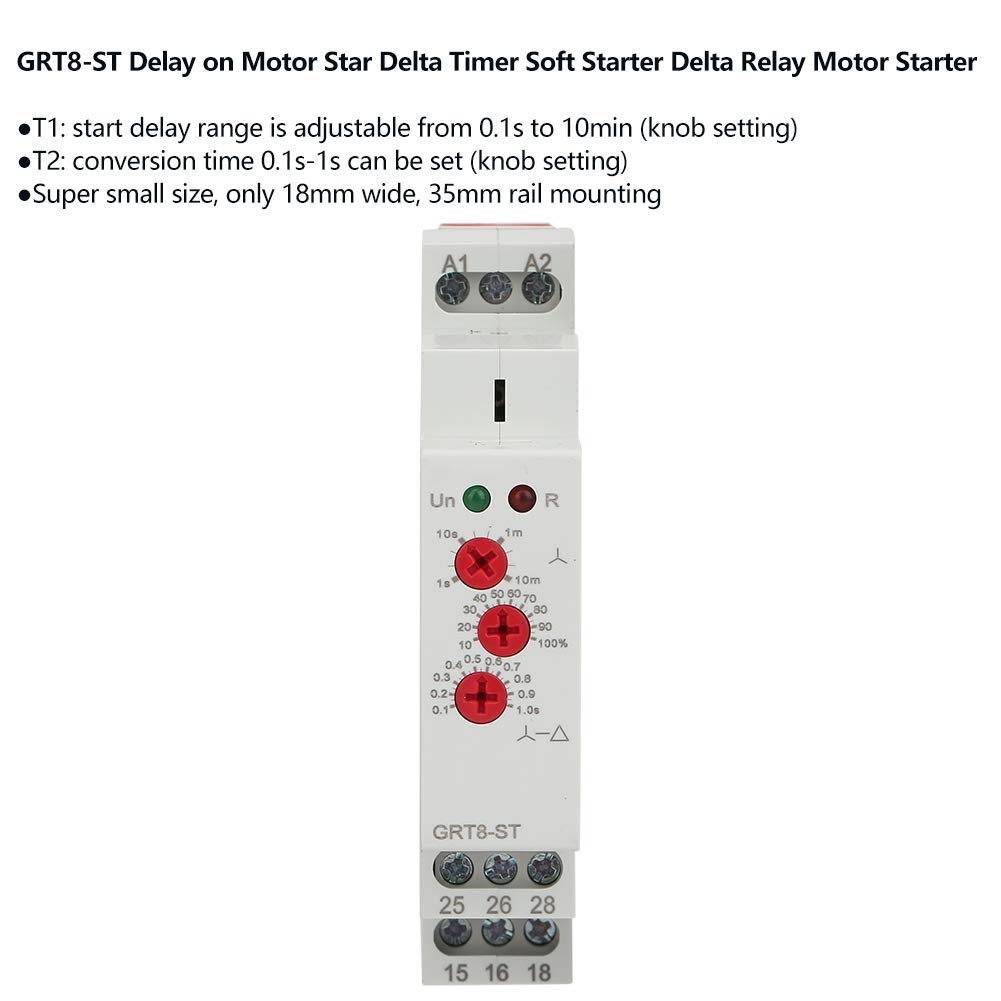

• Super Function -- T1 can start delay time range 0.1s-10min can be set (knob setting); T2 can convert time 0.1s-1s can be set.
• Important Note -- 01-- A230 type; 02-- AC380V,AC400V, AC415V type; 03-- AC/DC12V~240V type; With AC/DC 12~240V wide working voltage specification optional. Please confirm the type you want before purchase!

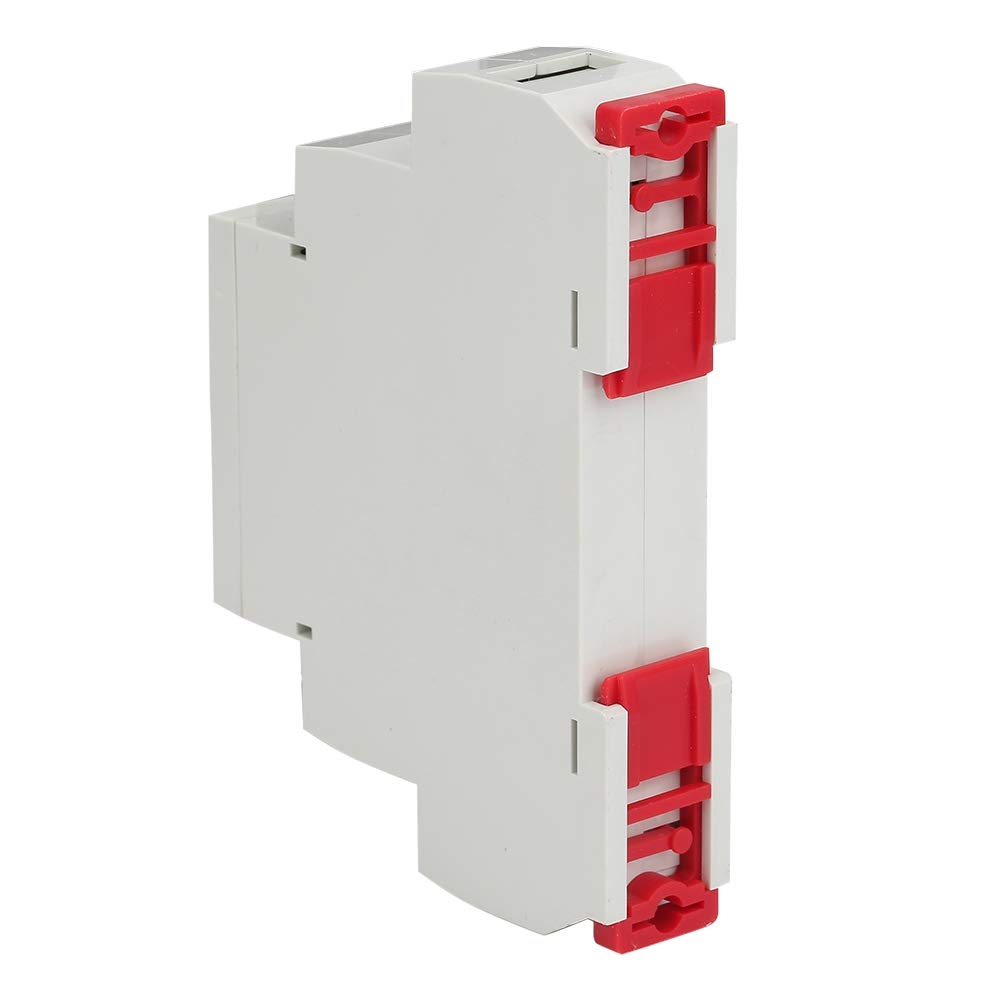

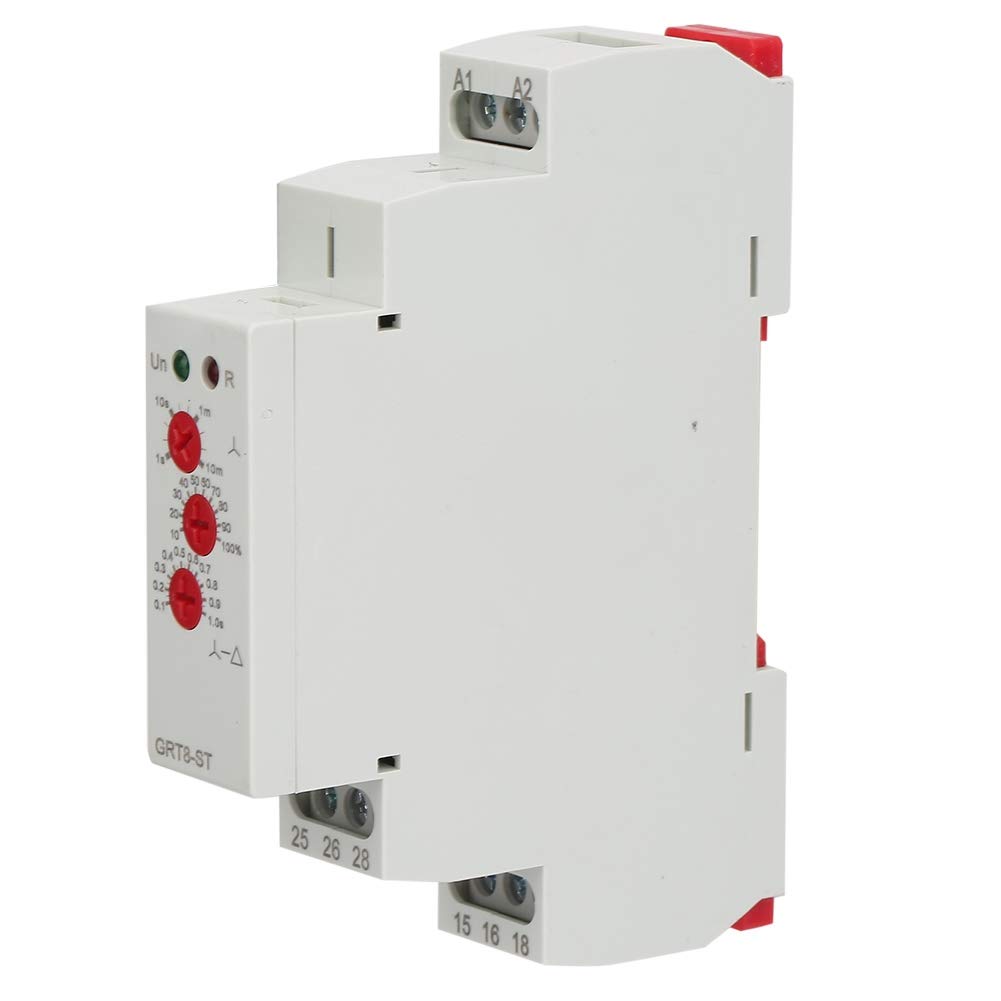

• Compact Design -- This GRT8-ST Delay ON Time Relay is super small, only 18mm width, 35mm rail mounting, very practical Star Delta Timer Relay.
• Built-in LED indicators -- Relay working status is indicated by LED indicators, you can easily to operate.

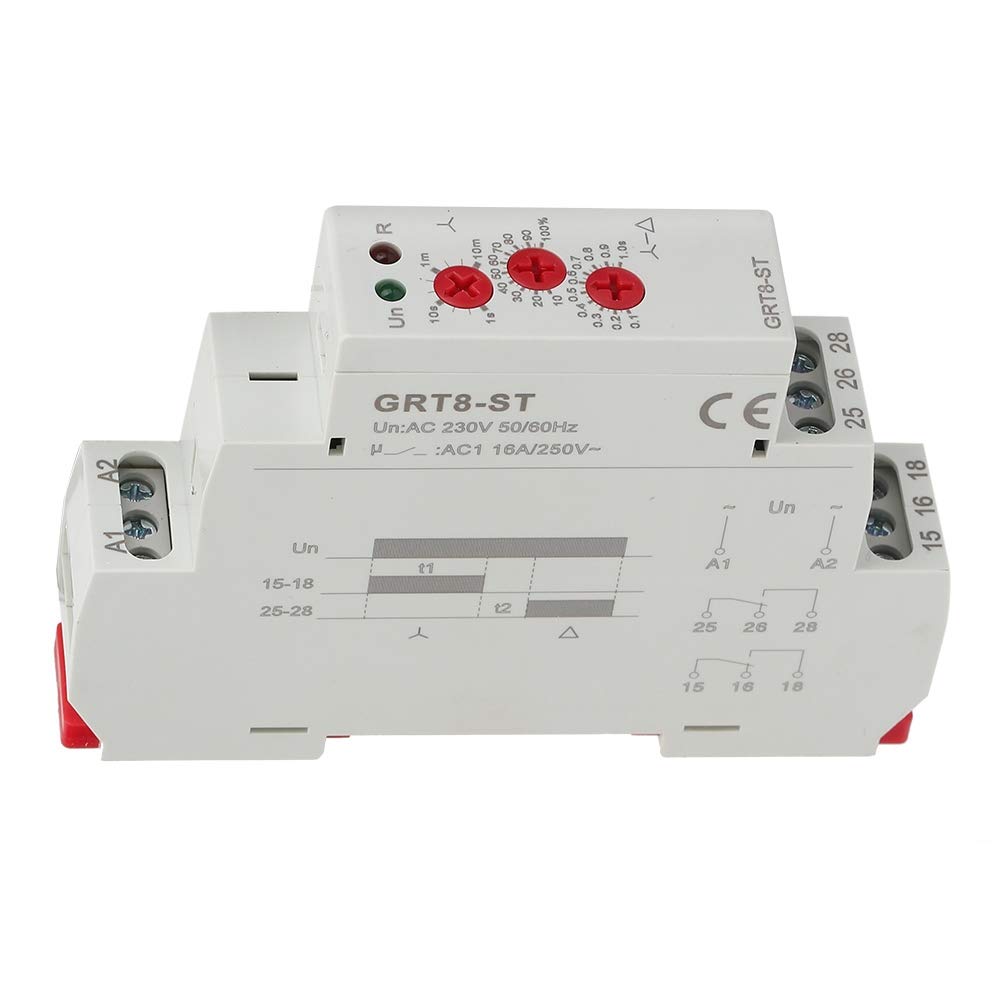

GRT8-ST Delay on Motor Star Delta Timer Soft Starter Delta Relay Motor Starter Specifications: Type: AC/DC12V~240V, AC380V,AC400V, AC415V, A230(Optional) Power terminal A1-A2 Rated control power supply voltage: AC/DC 12-240v (50/60hz) Power consumption :AC 0.7-3VA/DC 0.5-1.7W Power supply allowable fluctuation range: -15%; + 10% Power indicator: green LED Starting delay: 0.1s-10min; conversion delay: 0.1s-1s Setting mode: knob Setting accuracy: 5% Repeat accuracy: 0.2% Temperature fluctuation error: 0.05%℃,at=20℃ Output: two sets of conversion contacts 16A/AC250VAC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1 x 10000000 Long-life electrical resistance (load) :1000000 Reset time: 200ms maximum Working environment temperature: - 20℃~ 55℃ Storage and transportation environment temperature: - 35℃~ 75℃ Installation: 35mm rail mounting Protection level: Ip20 Installation location: any Installation altitude: 2000 meters Pollution level: 2 Wiring capacity: 1x2.5mm2or 2x 1.5mm2 Dimensions: 90*18*64mm/3.5*0.7*2.5in Conforming to the standard: GB14048.5.IEC/EN 60255-1 Weight: Approx.96g/3.4oz Package Included: 1 x Star Delta Timer Soft starter
