GRT8-M2 Multifunctional Delay Time Relay, AC/DC 12V-240V Multifunctional Delay Time Relay with 10 Functions 35mm DIN Rail Mount AC0.09-3VA/DC0.05-1.7W

• ♧ 【Functions】 This is a multi-function time relay, the delay time can be set through the panel knob. And With 10 kinds of delay functions, including delay on, delay off, cycle delay, etc.

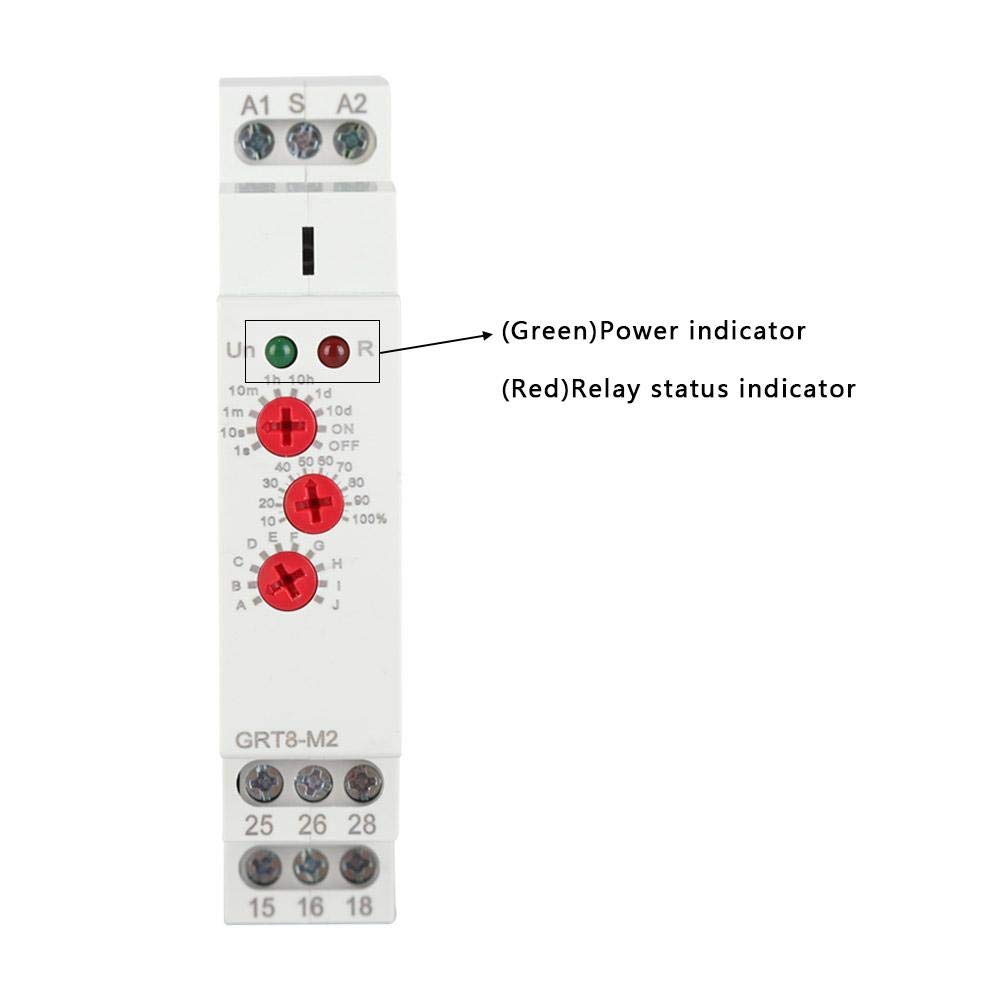

• ♧ 【Delay Setting】 Ultra-wide delay setting range of 0.1s-10days. And the working status of the relay is indicated by the LED indicator.
• ♧ 【Application】 This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.

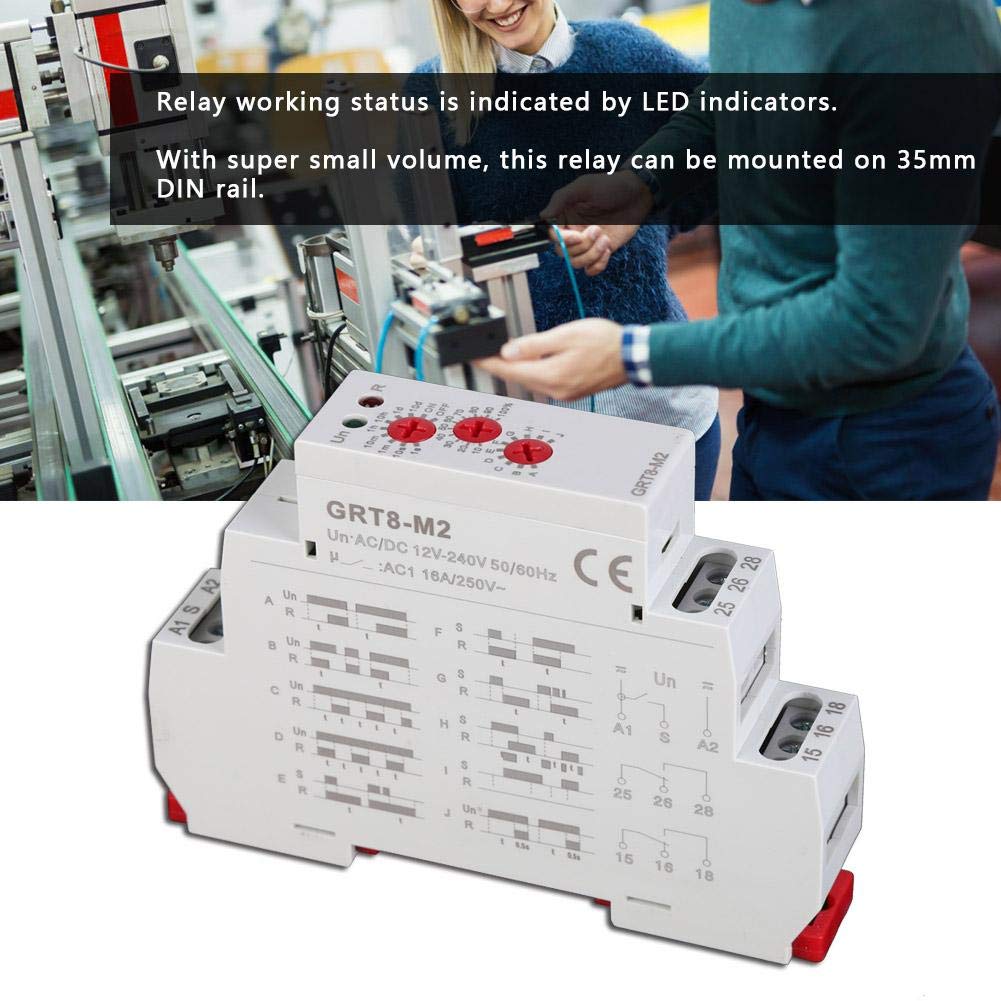

• ♧ 【Small Volume】 The time delay relay has super small volume, which can be installed on a 35mm DIN rail, with high accuracy and low power consumption.
• ♧ 【Service】 If you are not satisfied with the product, please feel to contact us, we will provide you with quality after-sales service

Features: 1. This is a multifunctional time relay and time delay can be set by panel knob. 2. With 10 kinds of delay functions including delay on, delay off, cycle delal and so on. 3. Super wide time delay setting range of 0.1s - 10days. 4. Relay working status is indicated by LED indicators. 5. With super small volume, this relay can be mounted on 35mm DIN rail. 6. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more. Specification: Rated power supply voltage: AC/DC 12V-240V(50-60Hz) Power terminal: A1-A2 Power consumption: AC0.09-3VA/DC0.05-1.7W Setting method: knob Setting accuracy: 10% Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/℃, at = 20℃ Output contact: 2 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: Red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 95g/3.3oz Package list: 1 * Multifunctional Delay Time Relay
