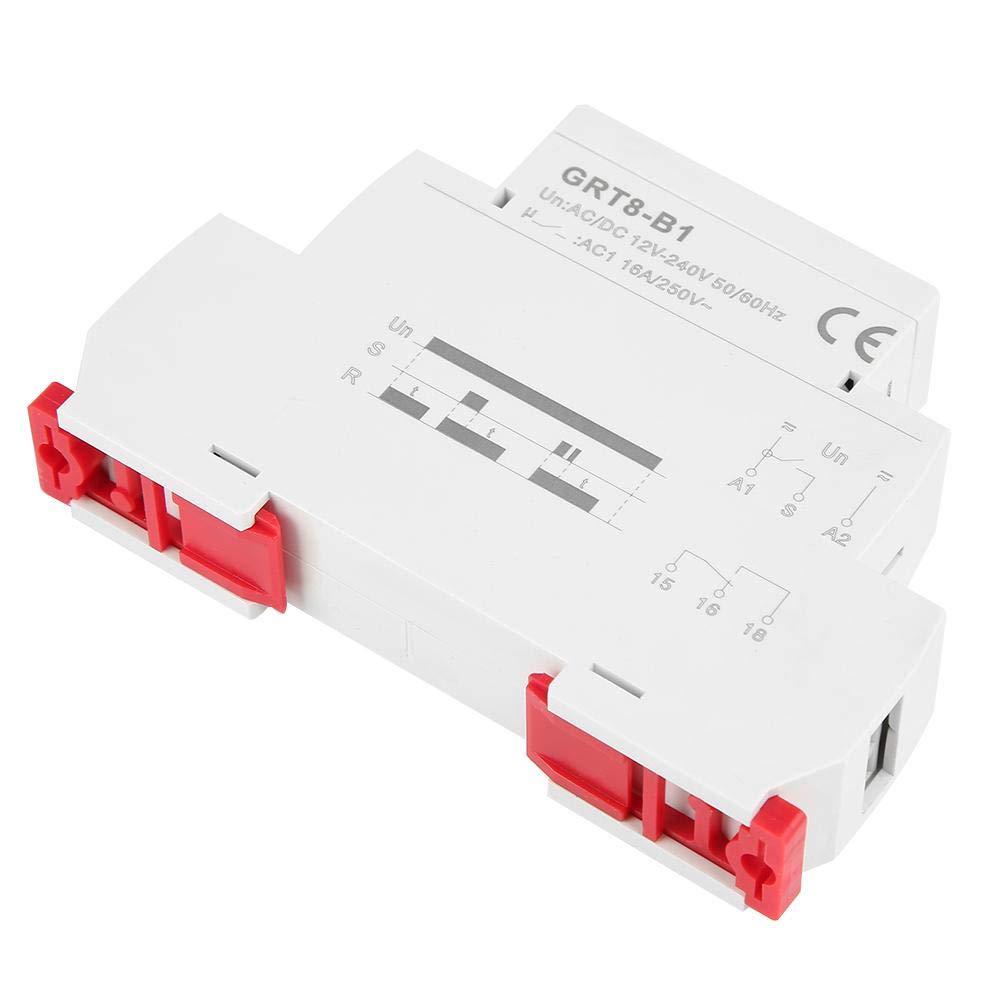

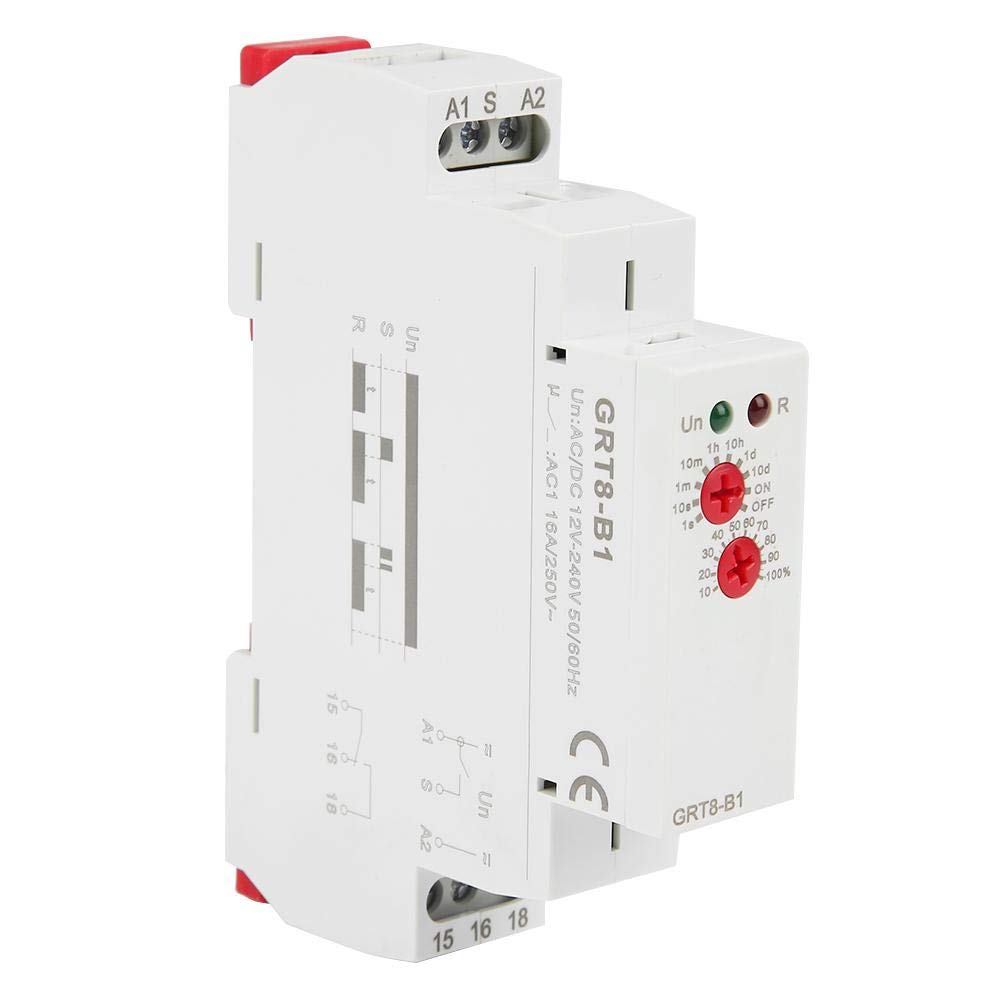

GRT8-B1 Off Timer Relay, AC/DC 12V-240V Mini Power Off Delay Time Relay DIN Rail Mount, 0.1s - 10 Days Super Wide Time Delay Range
About this item

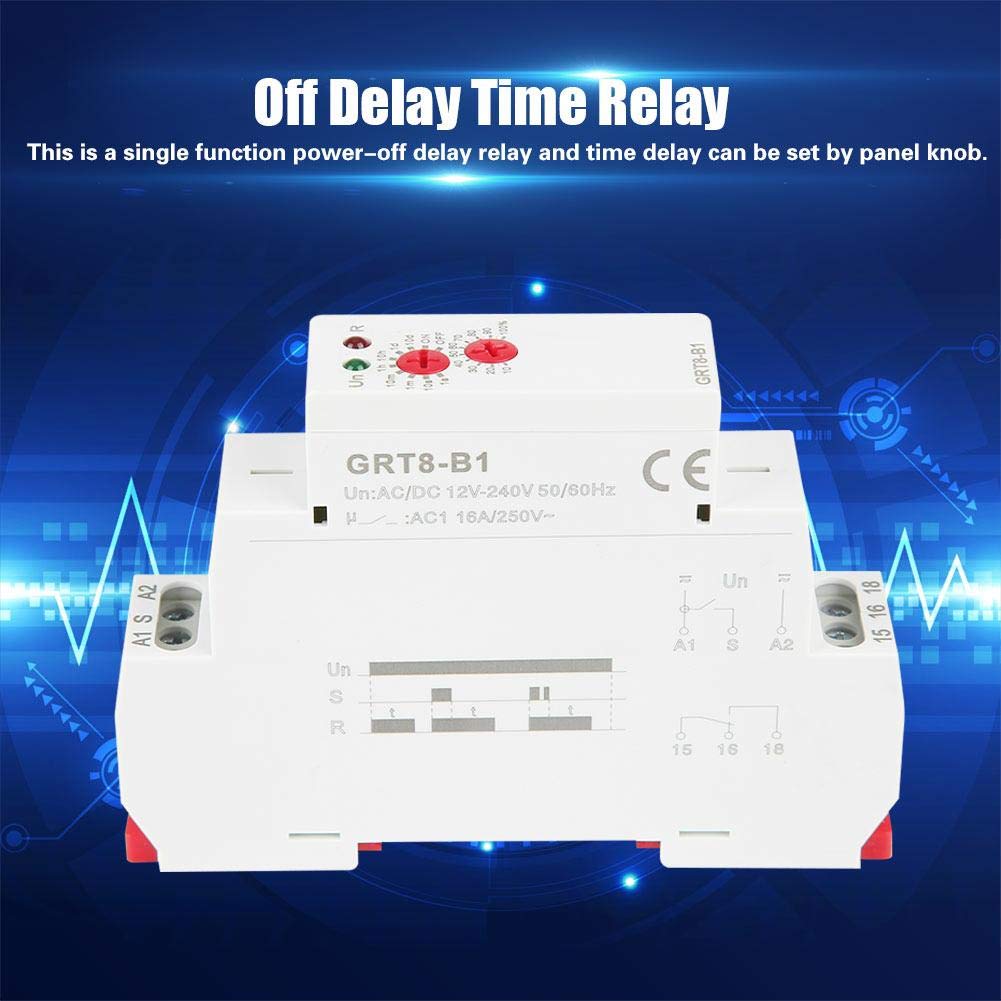

- 【Main Function】-This is a single function power-off delay relay and time delay can be set by panel knob.
- 【Ultra-wide delay range】- Super wide time delay setting range of 0.1s - 10days.

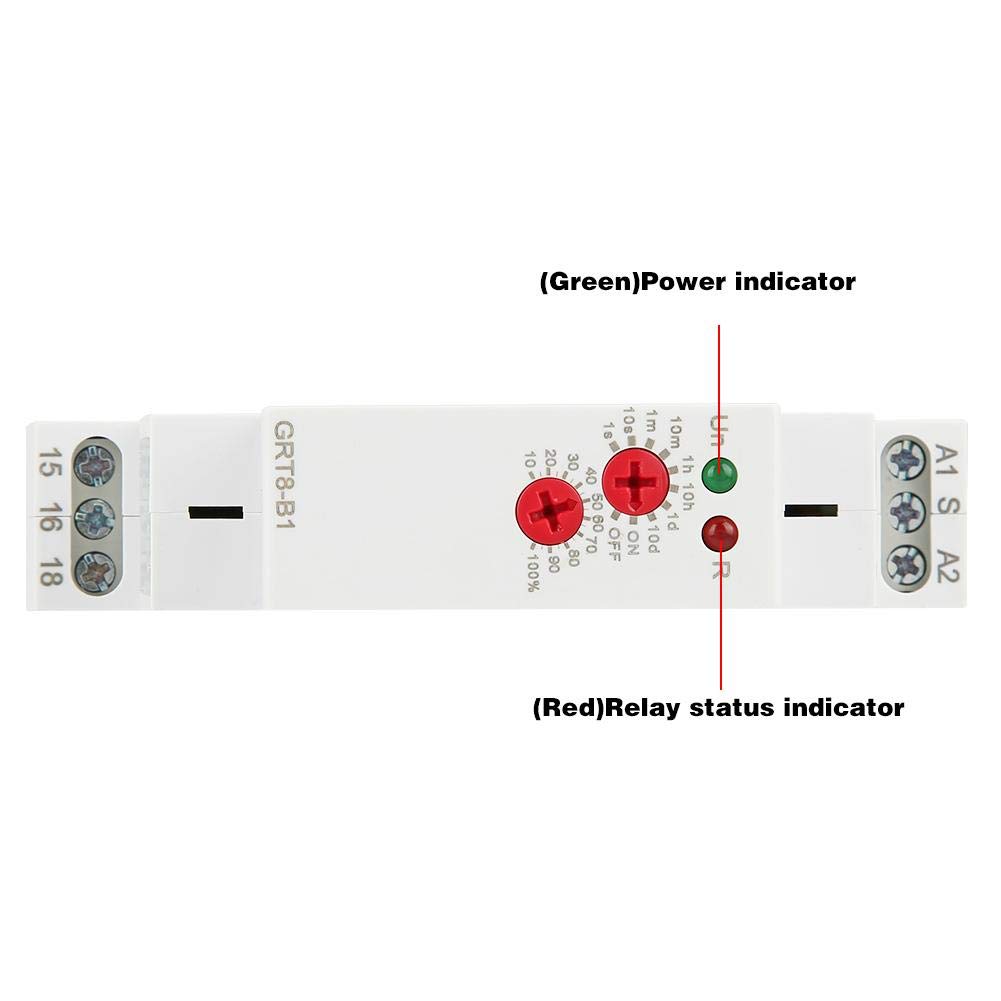

- 【Voltage】- With AC/DC 12V-240V working voltage.【LED indicators】- Relay working status is indicated by LED indicators.

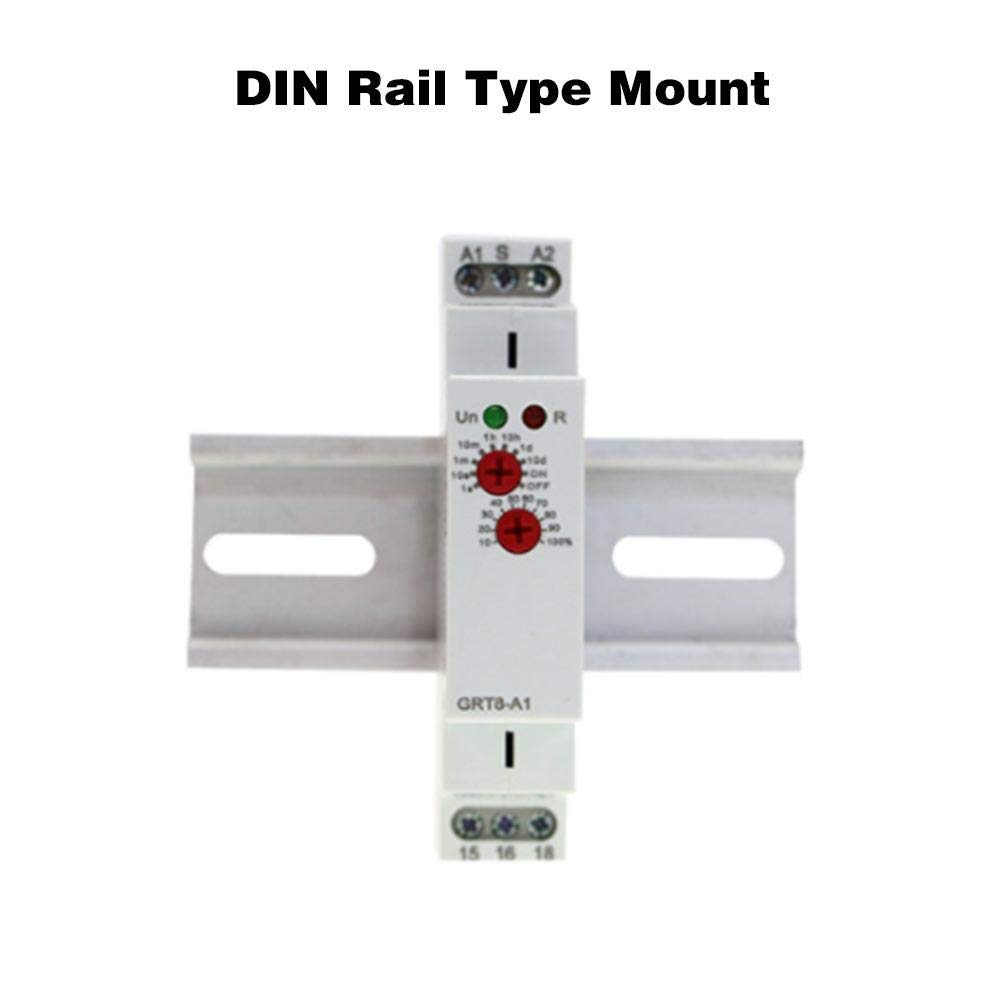

- 【Small Size】- With super small volume, this relay can be mounted on 35mm DIN rail.
- 【Application 】- This delay time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
Product description
Specification: Function: Delay OFF Rated power supply voltage: AC/DC 12-240V (50-60Hz) Power terminal: A1-A2 Power consumption: AC 0.09-3VA/DC 0.05-1.7W Setting method: knob Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Setting accuracy: 10% Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20~55 Mounting method: 35mm DIN rail Mounting altitude: 2000m Weight: Approx. 74g/2.6oz Package list: 1 * Off Delay Time Relay
