GRT8-A1 Delay Timer Switch, AC/DC 12V~240V Mini Power On Delay Time Relay DIN Rail 35mm Cycle Delay Timer Relay Switch for Industrial Control

• Rated supply voltage: AC / DC 12-240V (50-60Hz); Power Terminal: A1-A2; Setting method: button; Power indicator: green LED; Delay range: 0.1s-10 days, normally open, normally closed
• Output contact: 1 x SPDT, 16A / AC1, 250VAC / 24VDC; Minimum switching power: 500mW; Indication of the output relay: red indicator; Reset time: 200 ms max .; Mounting method: 35mm DIN rail

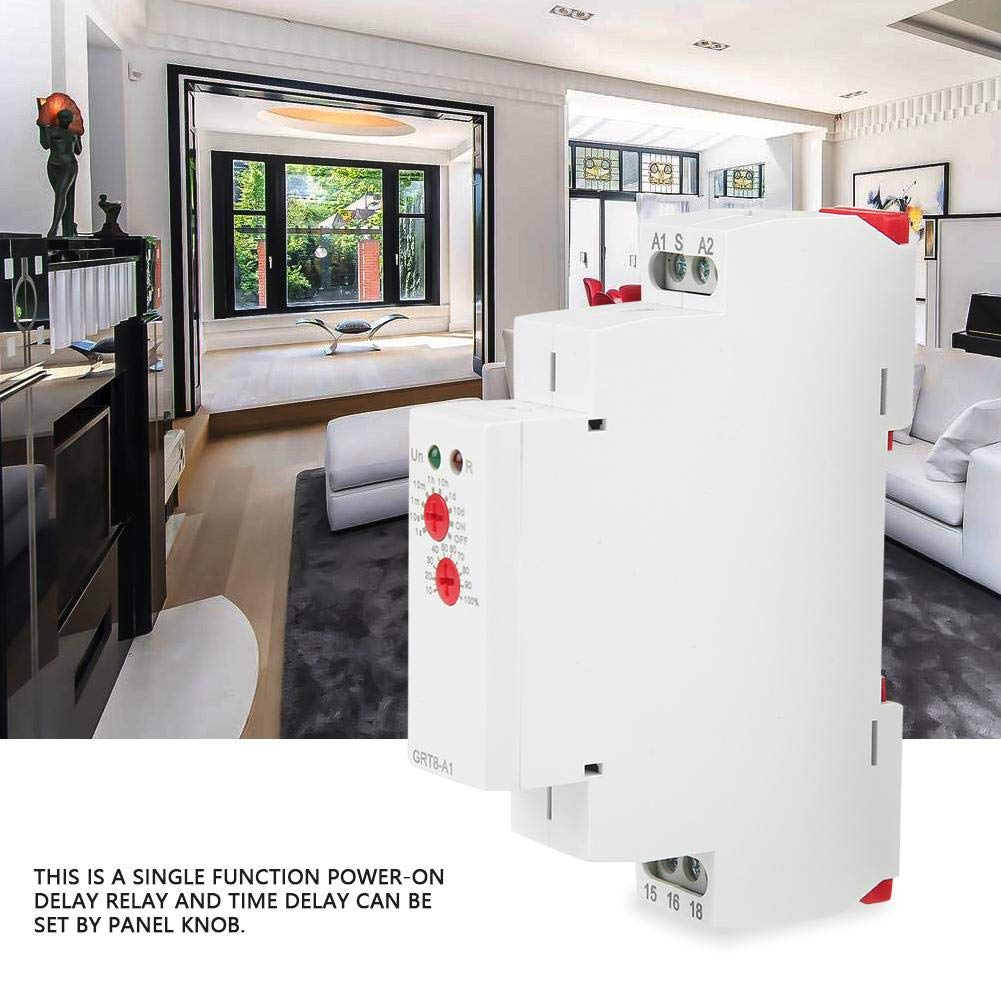

• This is a single-function power-on delay relay and the delay can be set using the panel button.
• Very wide delay range, 0.1 s to 10 days (10 types of settings). Working voltage AC / DC 12V-240V.

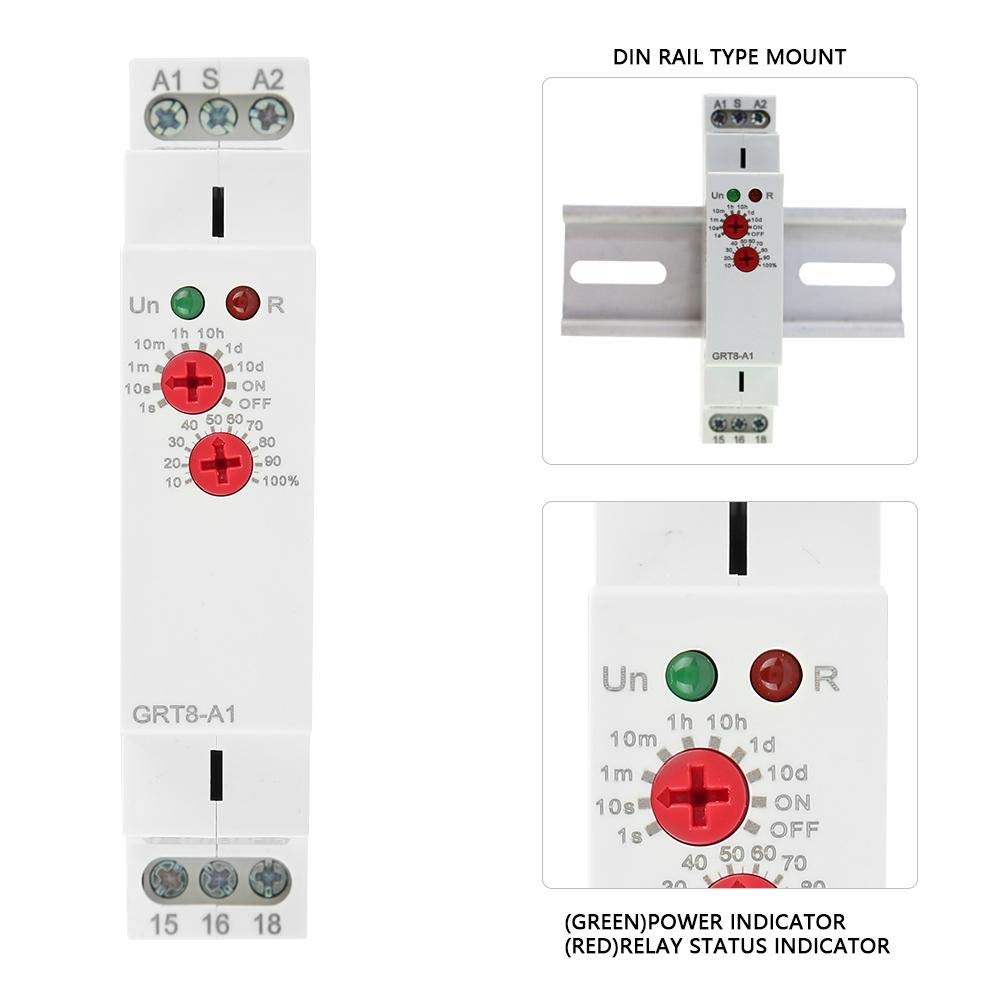

• The operating state of the relay is indicated by LEDs. With a very small volume, this relay can be mounted on a 35 mm DIN rail.

Features: 1. This is a single function power-on delay relay and time delay can be set by panel knob. 2. Super wide time delay range, 0.1s - 10days (10 kinds of settings). 3. AC/DC 12V-240V working voltage. 4. Relay working status is indicated by LED indicators. 5. With super small volume, this relay can be mounted on 35mm DIN rail. Specification: Function: Delay ON Rated power supply voltage: AC/DC 12-240V (50-60Hz) Power terminal: A1-A2 Power consumption: AC 0.09-3VA/DC 0.05-1.7W Setting method: knob Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Setting accuracy: 10% Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 75g/2.6oz Package list: 1 * On Delay Time Relay
