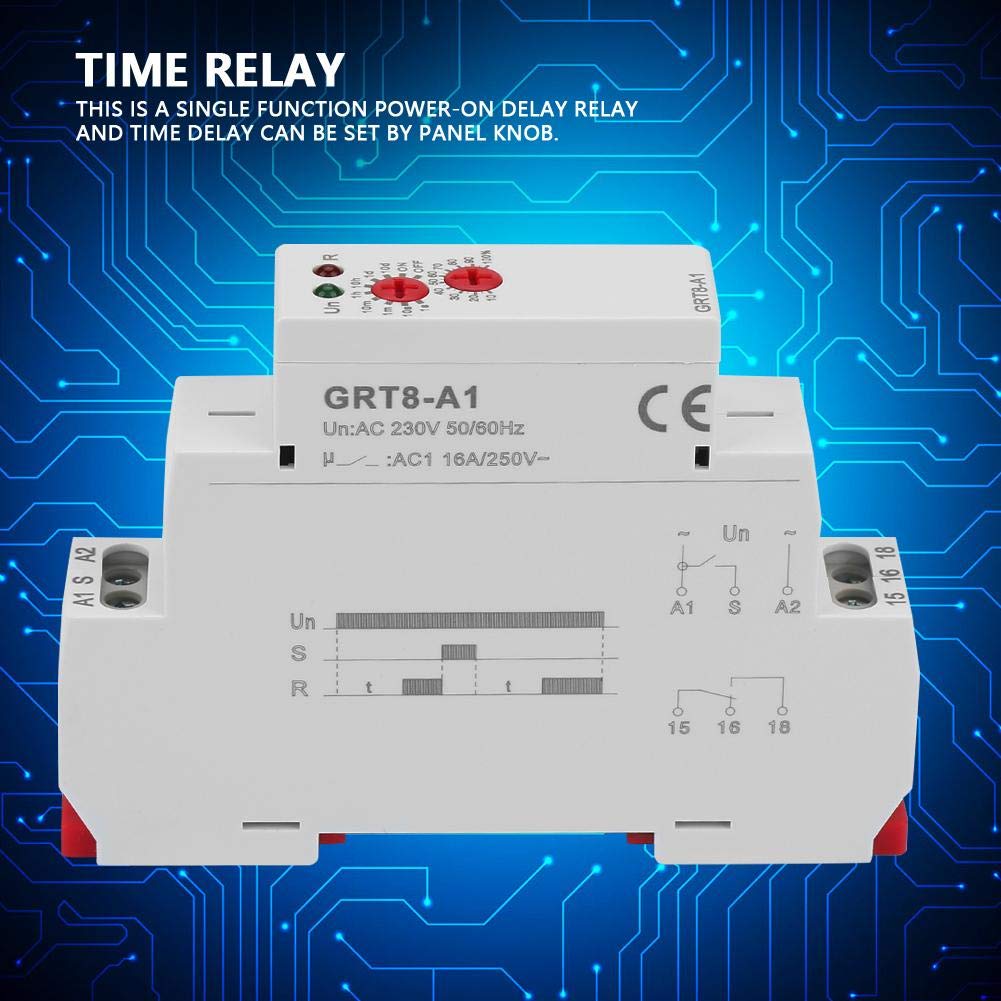

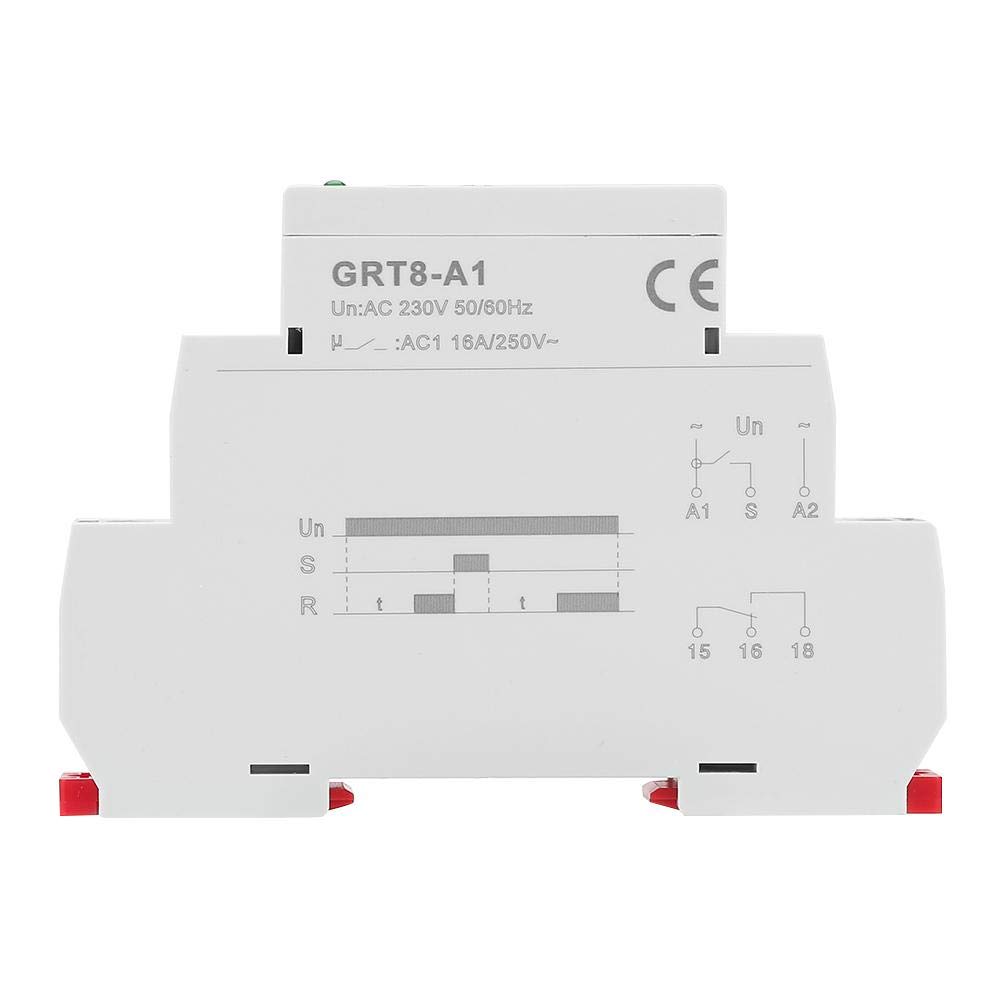

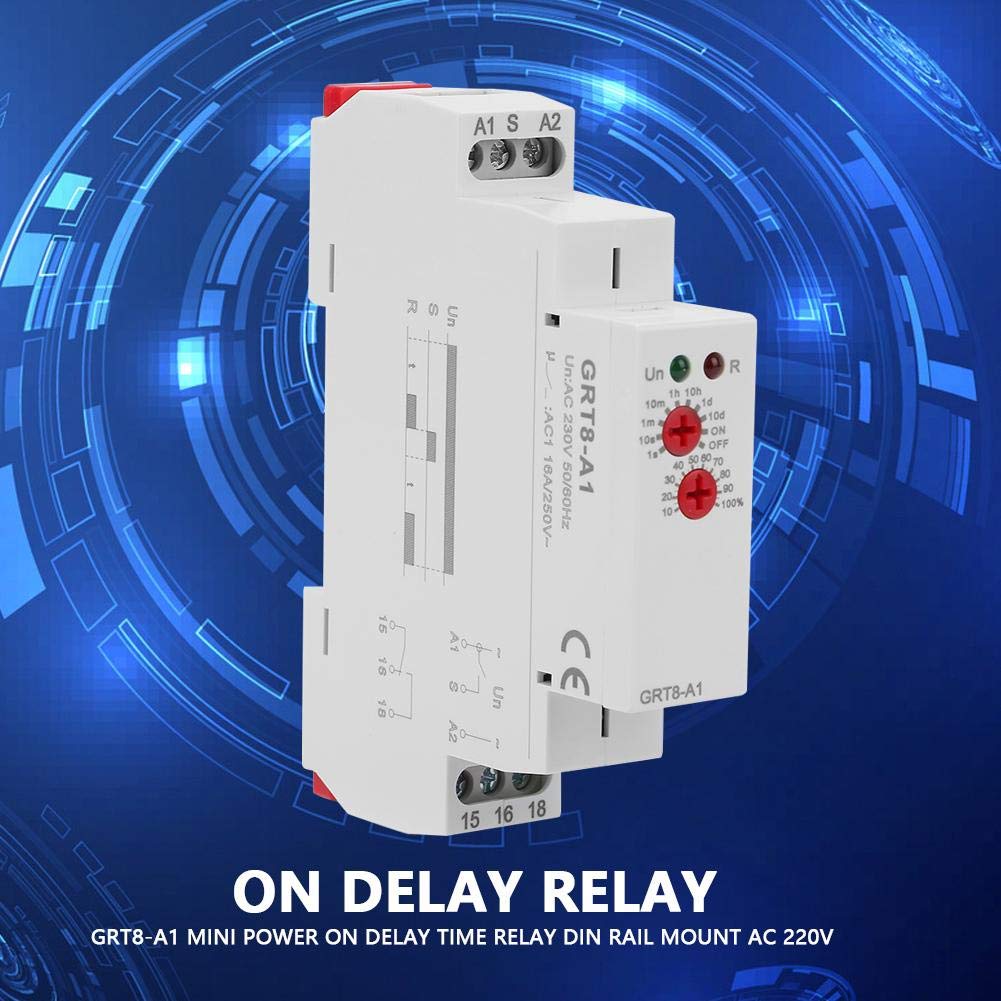

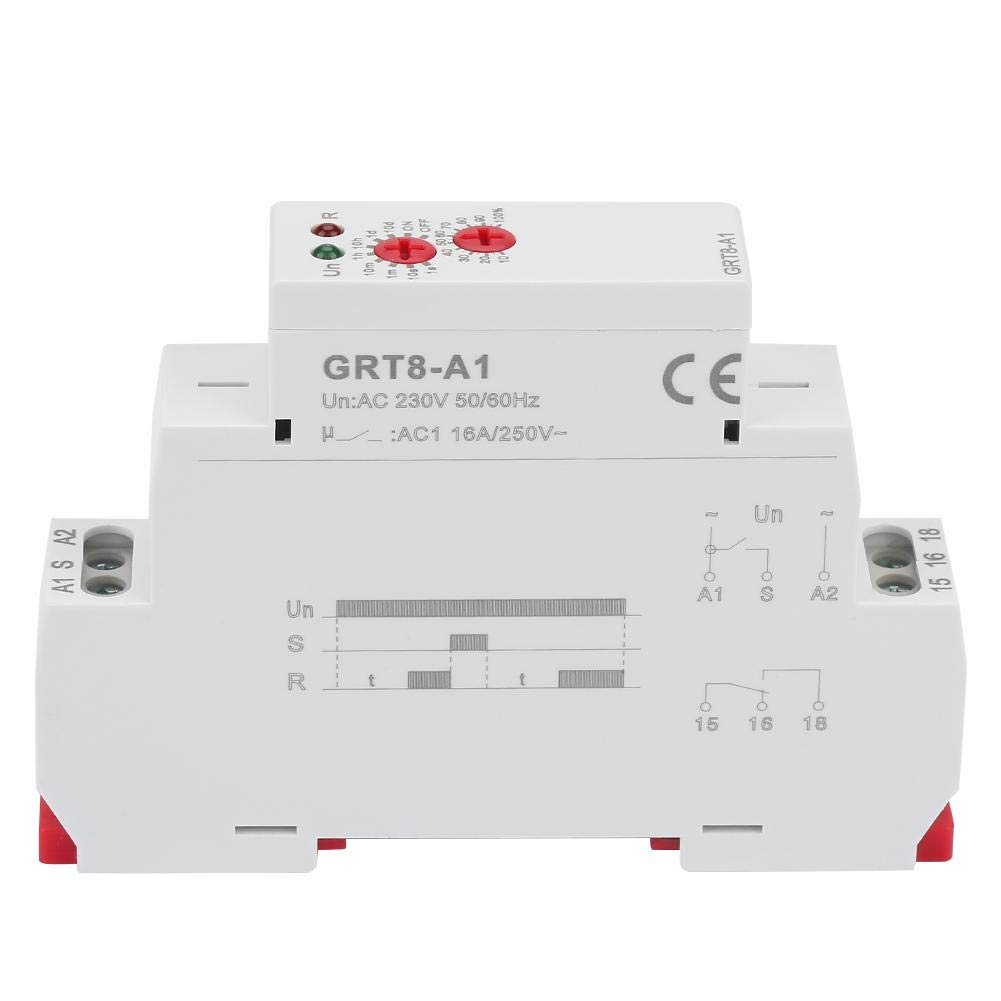

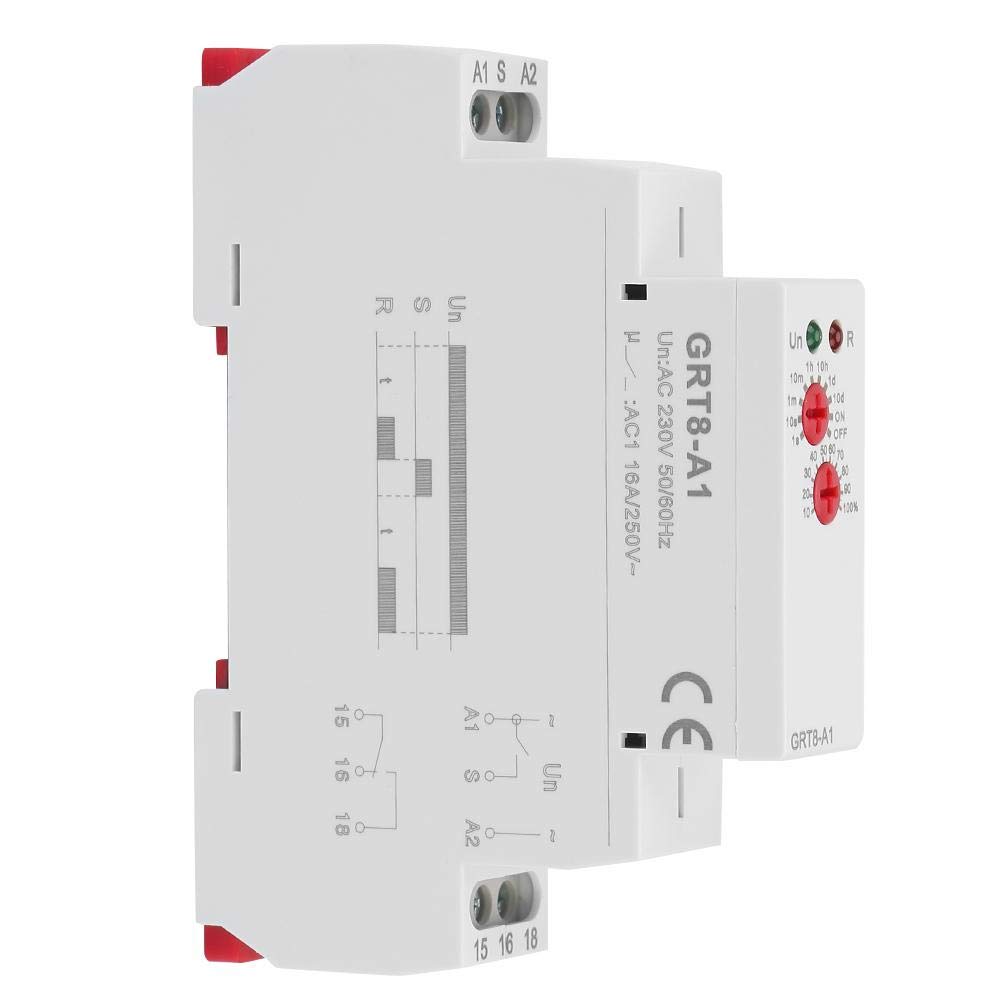

GRT8-A1 Delay Timer Switch, AC 220V Mini Power On Delay Time Relay DIN Rail Mount AC 220V 35mm DIN Rail AC max.6VA/1.3W

• This is a single function power-on delay relay and time delay can be set by panel knob.
• Super wide time delay range, 0.1s - 10days (10 kinds of settings).
• Stable performance, long service life.

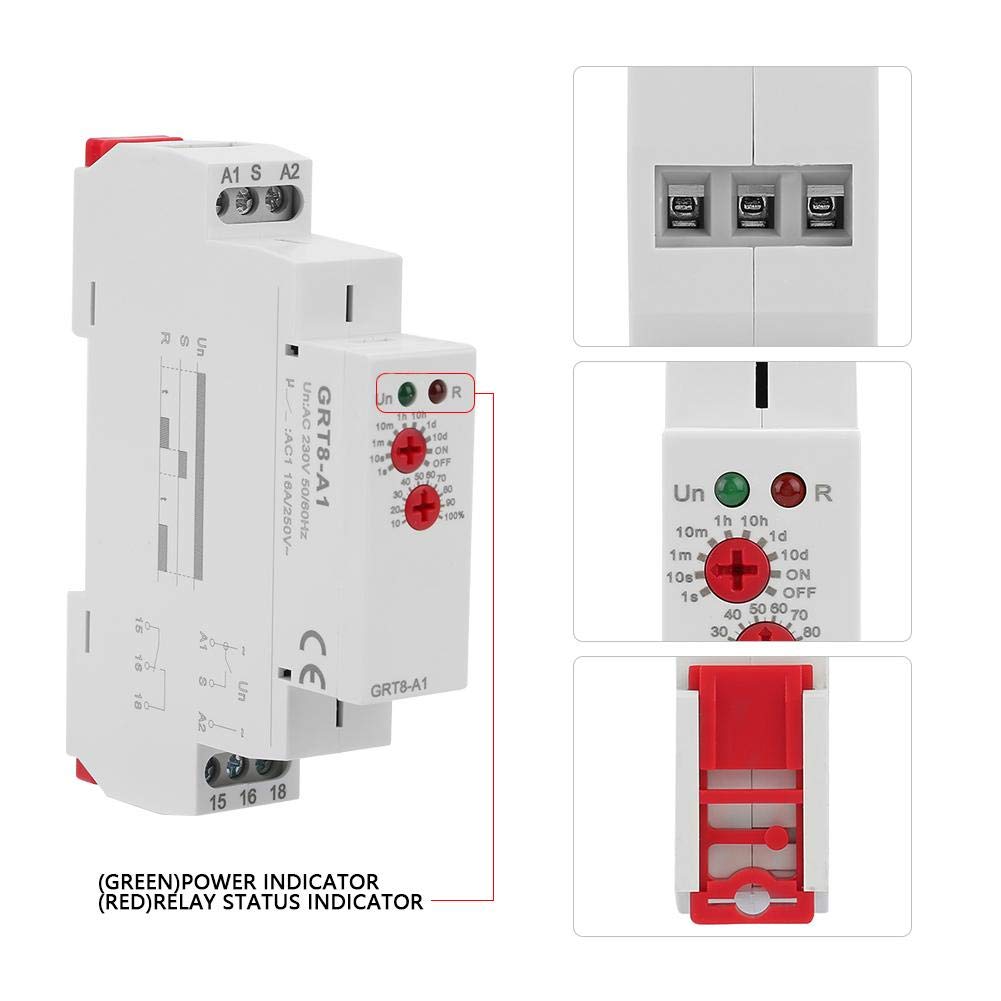

• Relay working status is indicated by LED indicators.

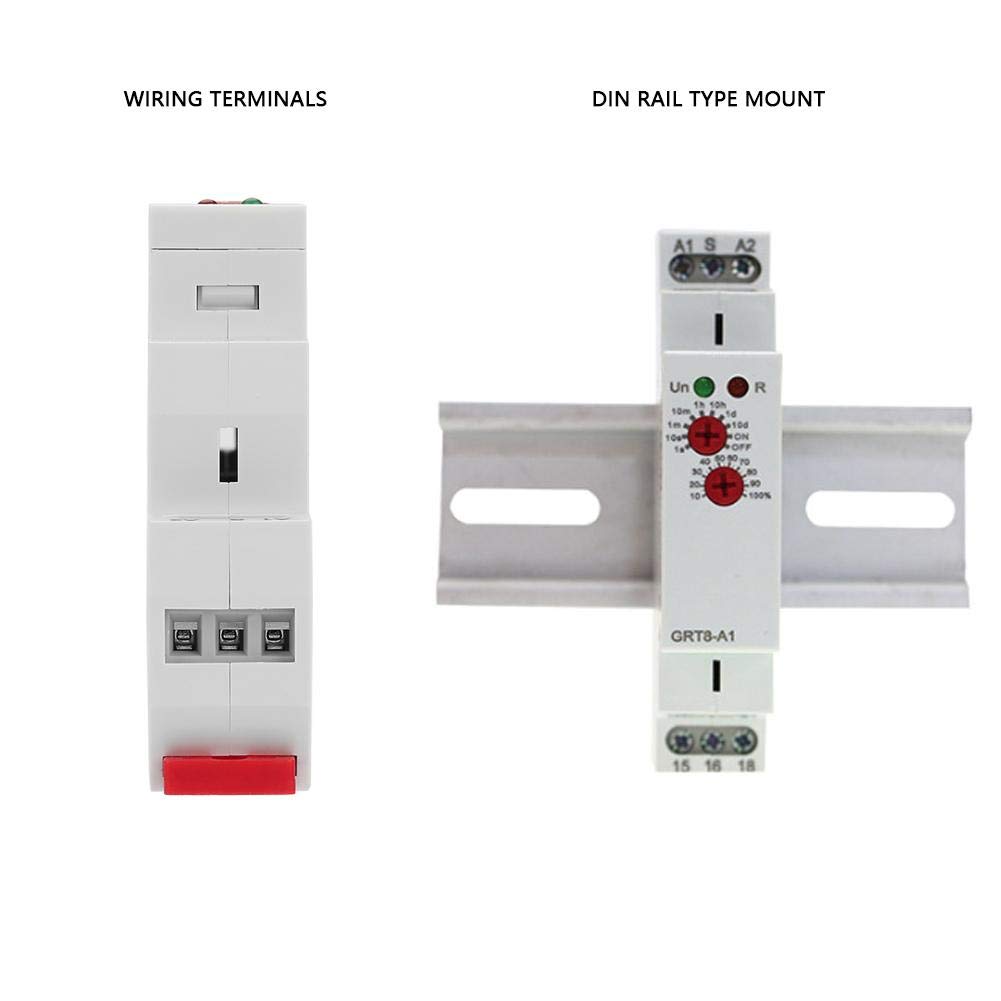

• With small volume, this relay can be mounted on 35mm DIN rail.

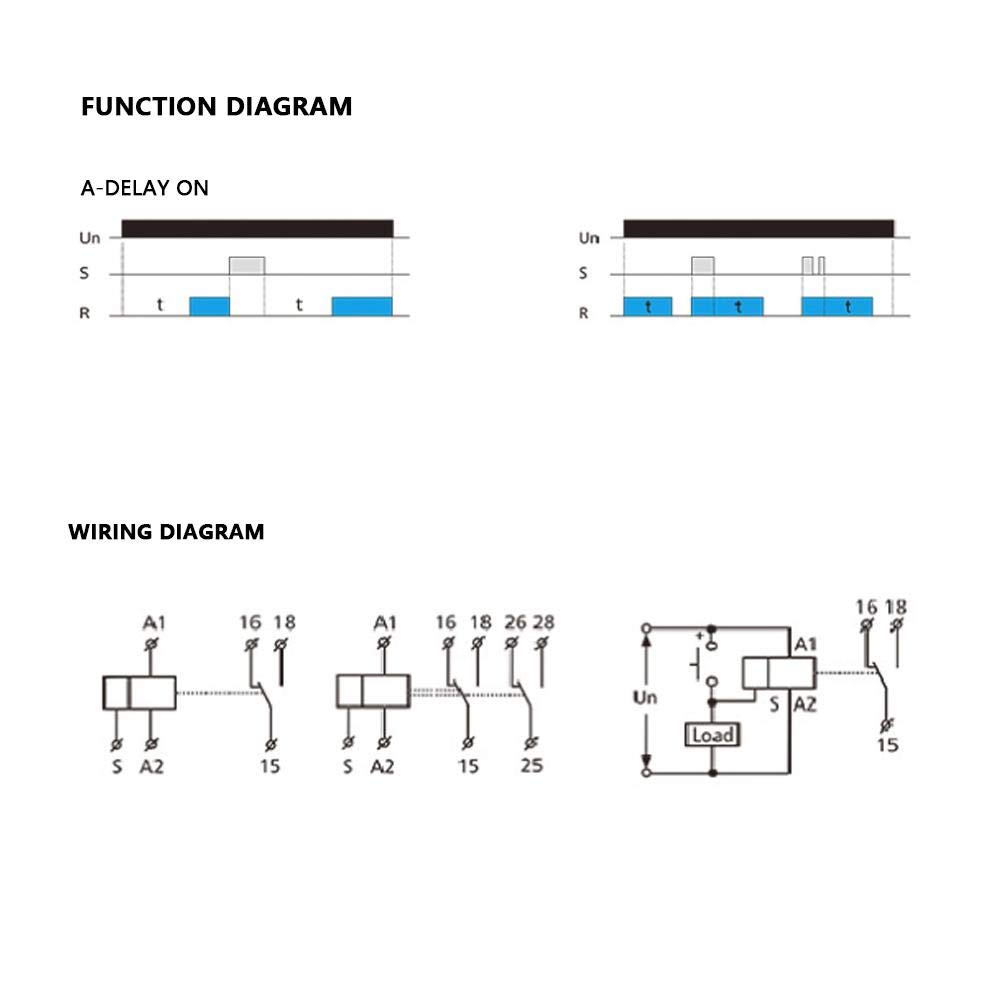

Features: 1. This is a single function power-on delay relay and time delay can be set by panel knob. 2. Super wide time delay range, 0.1s - 10days (10 kinds of settings). 3. Stable performance, long service life. 4. Relay working status is indicated by LED indicators. 5. With small volume, this relay can be mounted on 35mm DIN rail. Specification: Model: GRT8-A1 Function: Delay ON Rated power supply voltage: AC 220V (50-60Hz) Power terminal: A1-A2 Power consumption: AC max.6VA/1.3W Setting method: knob Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Setting accuracy: 10% Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 74g/2.6oz Package List: 1 * On Delay Time Relay
