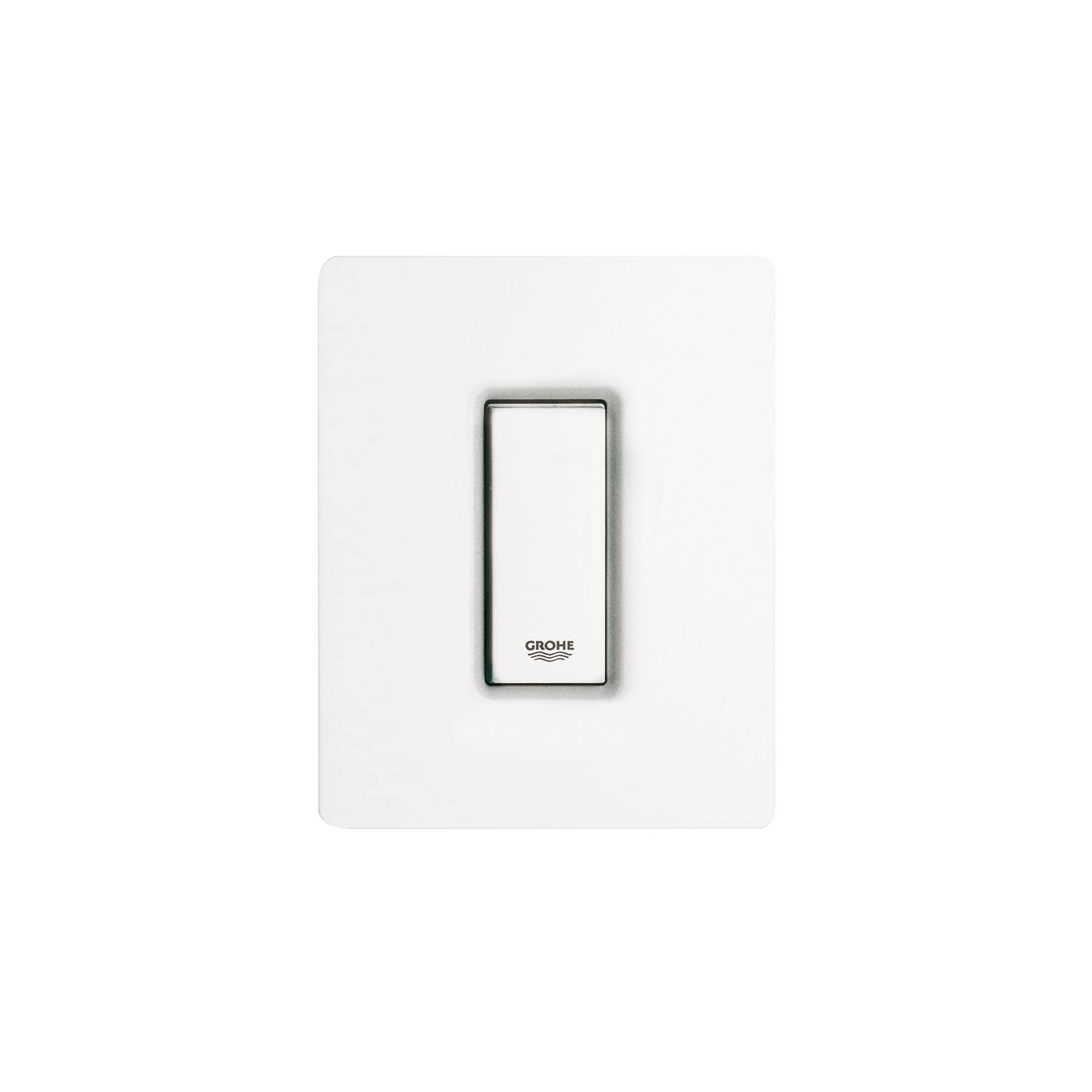

GROHE Skate Cosmopolitan Actuation Plate Alpine White 38784SH0

• Fresh and modern wind for your bathroom
• Slim handles and narrow, cylindrical shapes in different designs and diameters are the basis of the collection, which can be combined with a wide range of interior styles
• Timeless top design

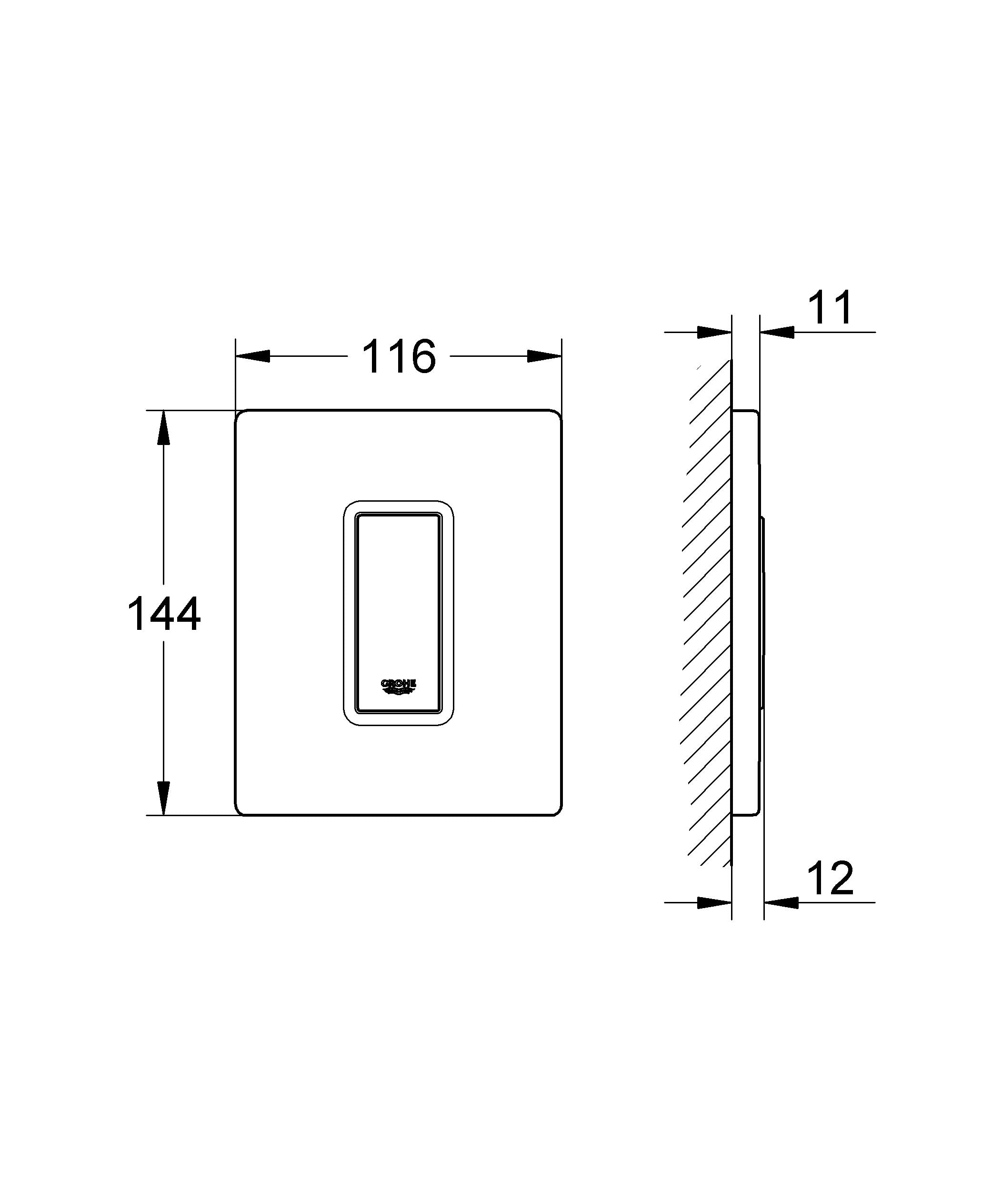

Product main features manual activation for urinal compatible with Rapido U or Rapido UMB 116 x 144 mm mechanical functional cartridge flow pressure min 0.5 bar operating pressure max 6 bar 1.0 - 6.0 adjustable low noise (group II according to German noise specification) Technical Product Information Technical Product Information Dimensional Drawing Care Instructions CAD Data 2D DWG-Data 2D DXF-Data 3D DXF-Data Select Product Version: Version 3: 2012 - now Version 3: 2012 - now Version 2: 2010 - 2012 Version 1: 2008 - 2010 Complete spare parts list (PDF download) Pos.-nr. Prod. description Spare part-nr. Selected spare parts list (PDF download) 1 Top plate with push button 42377SH0 2 Screw 6636200M 3 Frame 66845000 4 Cartridge 42354000 4.1 Replacement kit for seal 4271500M 4.2 Rings 4282000M
