GROHE 37338000 Rapido U

• Roughing-in set for urinal
• For manual actuation or Tectron
• Infra-red electronic 6 V or 230 V
• Flow pressure 0.5 bar
• Operating pressure max 10 bar
• Installation box with gasket

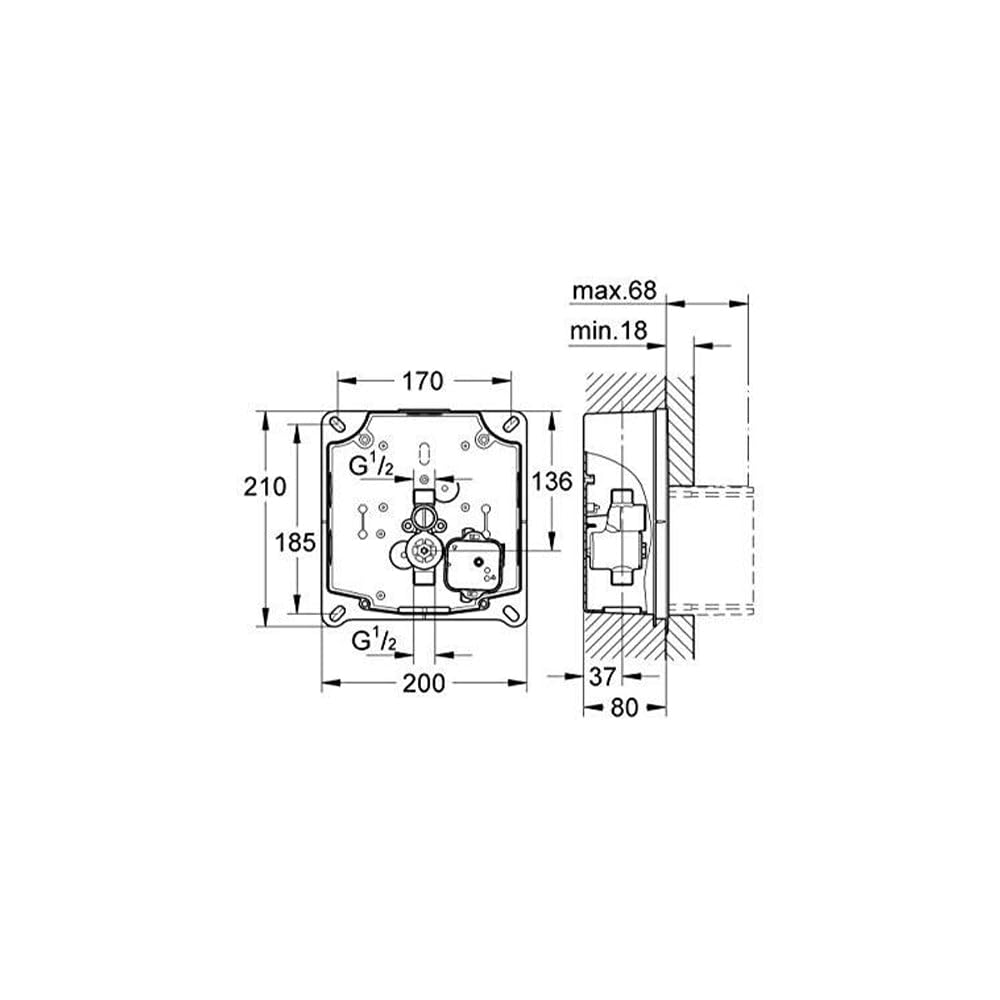

• fixing points for dry cladding and masonry-in Shortable inspection shaft incl. protection during construction phase for sets for final installation with dimensions 116 x 144 mm
• This product comes with a 5 Year manufacturers warranty

Product Description Grohe Rapido U is our universal concealed body for the installation of urinals. With a depth of only 80 mm, Rapido U can be used with a choice of manual or electronic actuation plates. Electronic actuation plates feature the latest energy-efficient technology for reduced power consumption. They can be either battery or mains (230V) operated, while the standardization of the plate sizes means that it is now possible to upgrade from manual to electronic at a later date. Water group with stop valve. Flow pressure min 0.5 bar. Operating pressure max 10 bar flush aid. Functional unit checked ex factory. Water supply connections 1/2 inch outer threat Connecting box for mains supply 230v. Installation box with gasket fixing points for dry cladding and masonry-in. Shortable inspection shaft incl. protection during construction phase for sets for final installation with dimensions 116mm x 144mm. Box Contains 1x Rapido U
