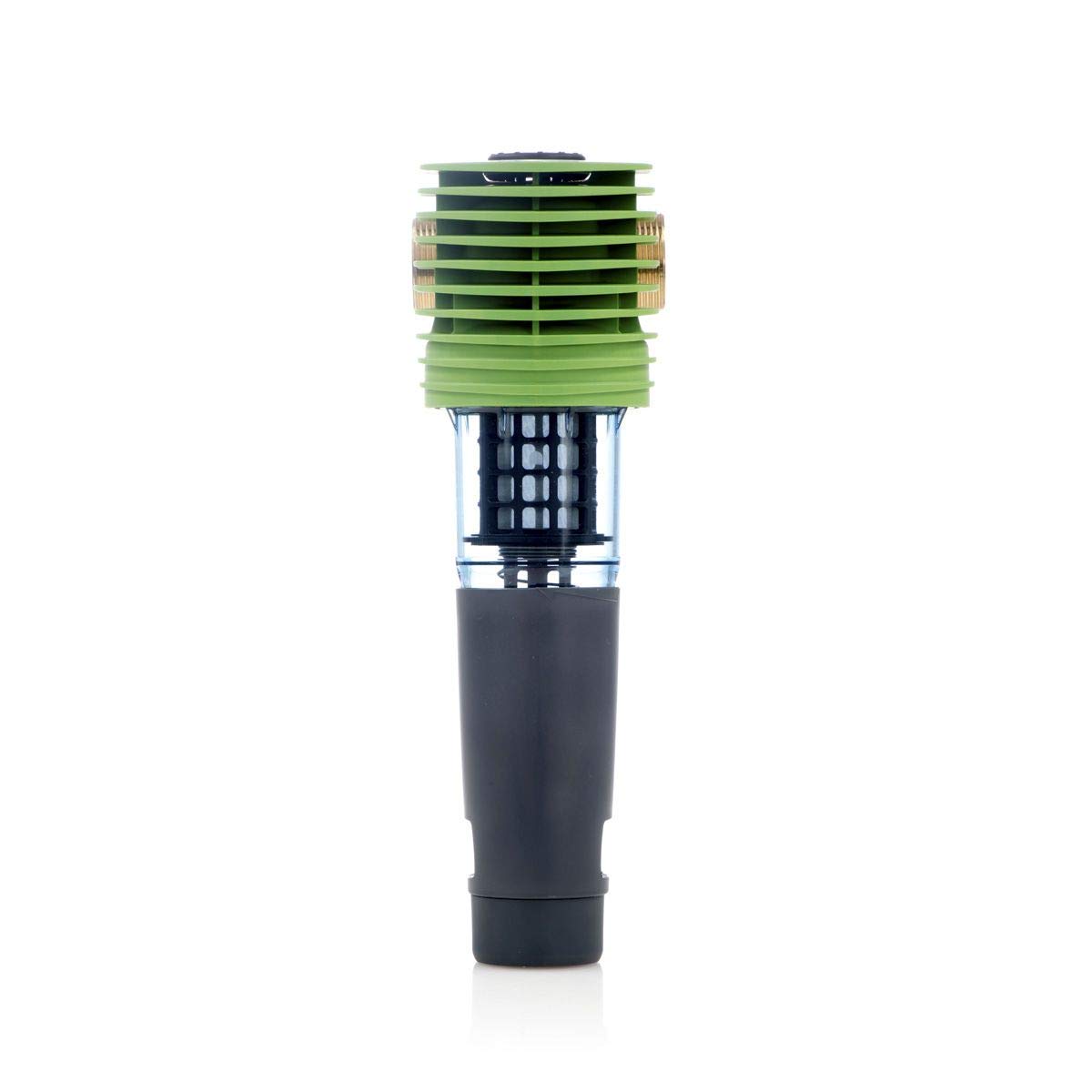

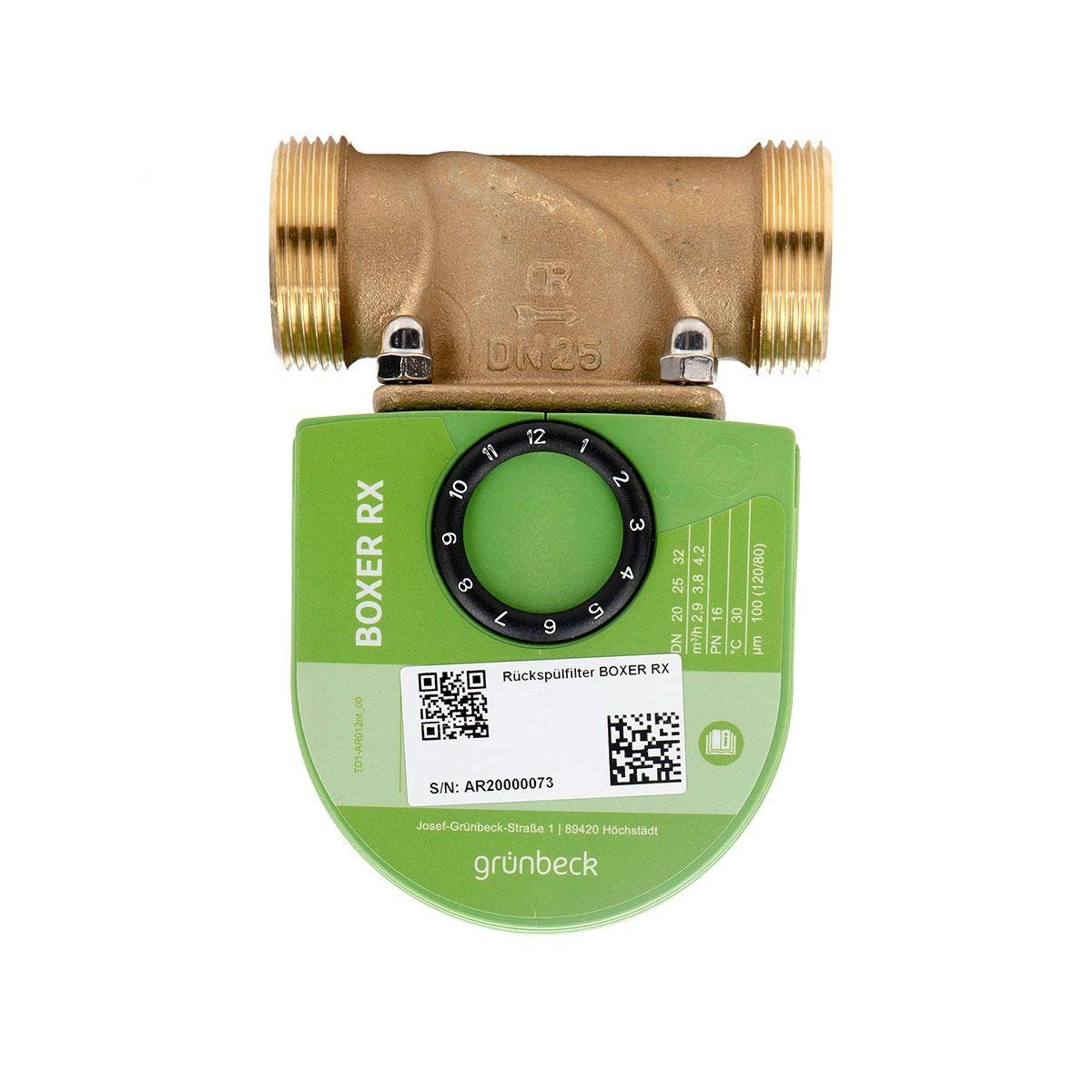

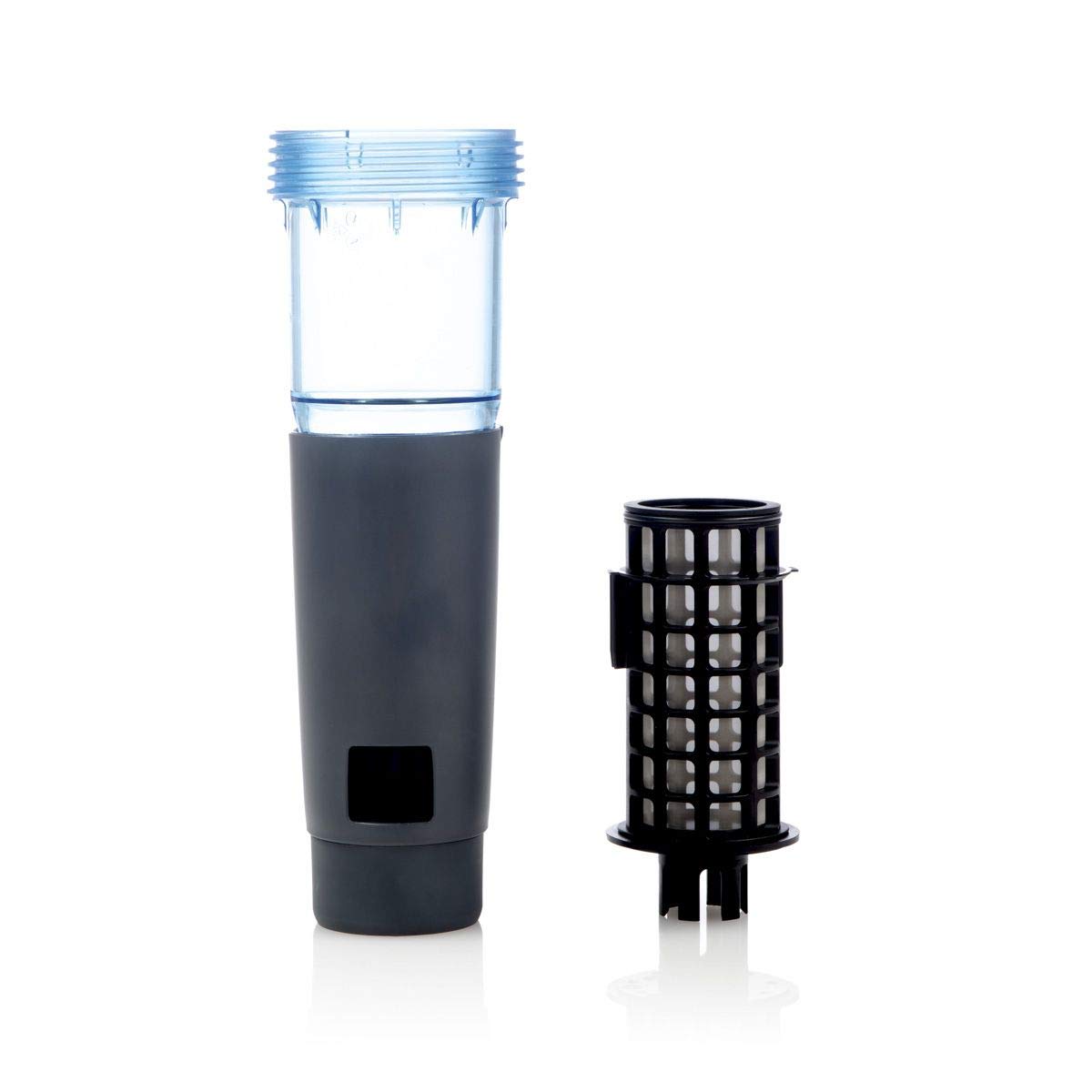

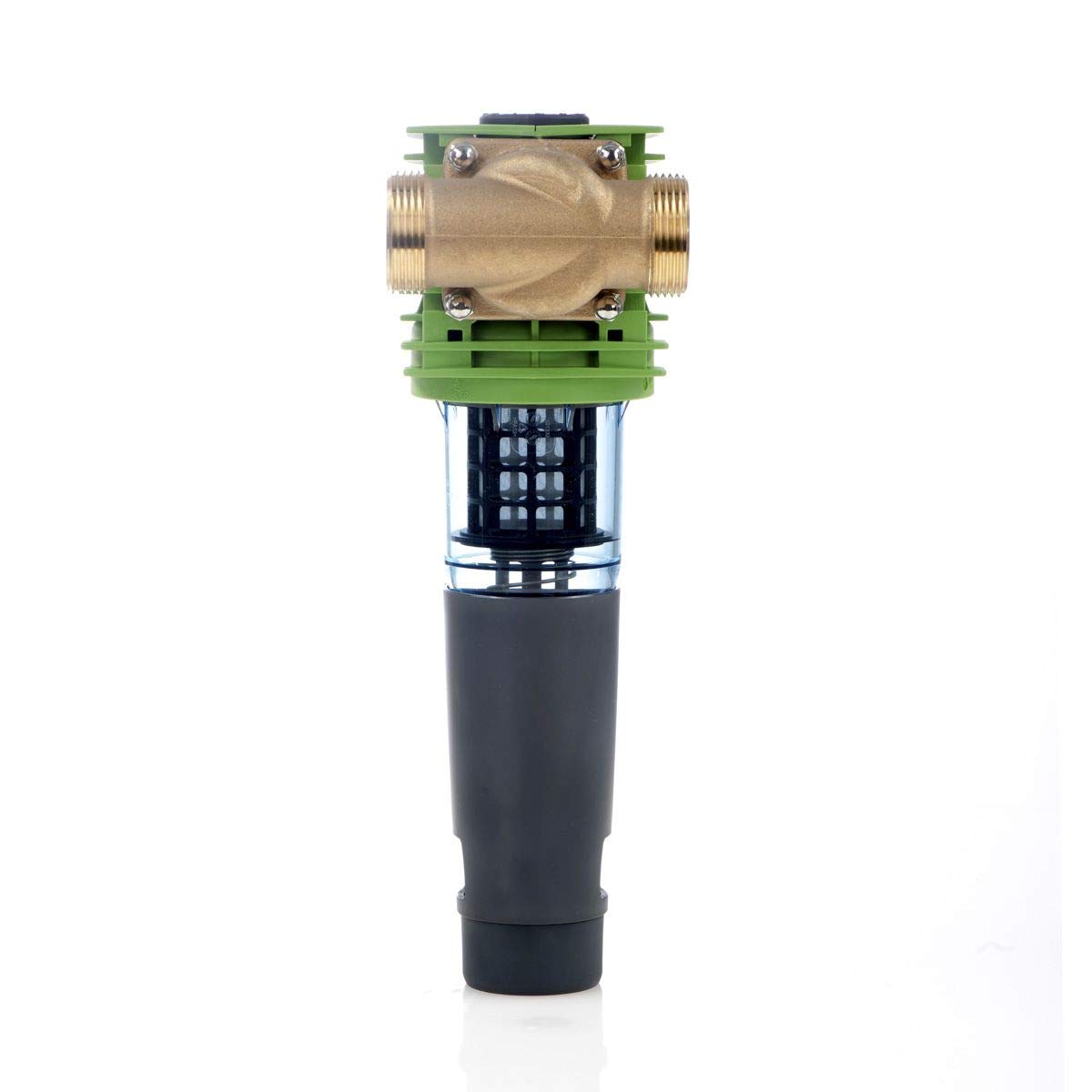

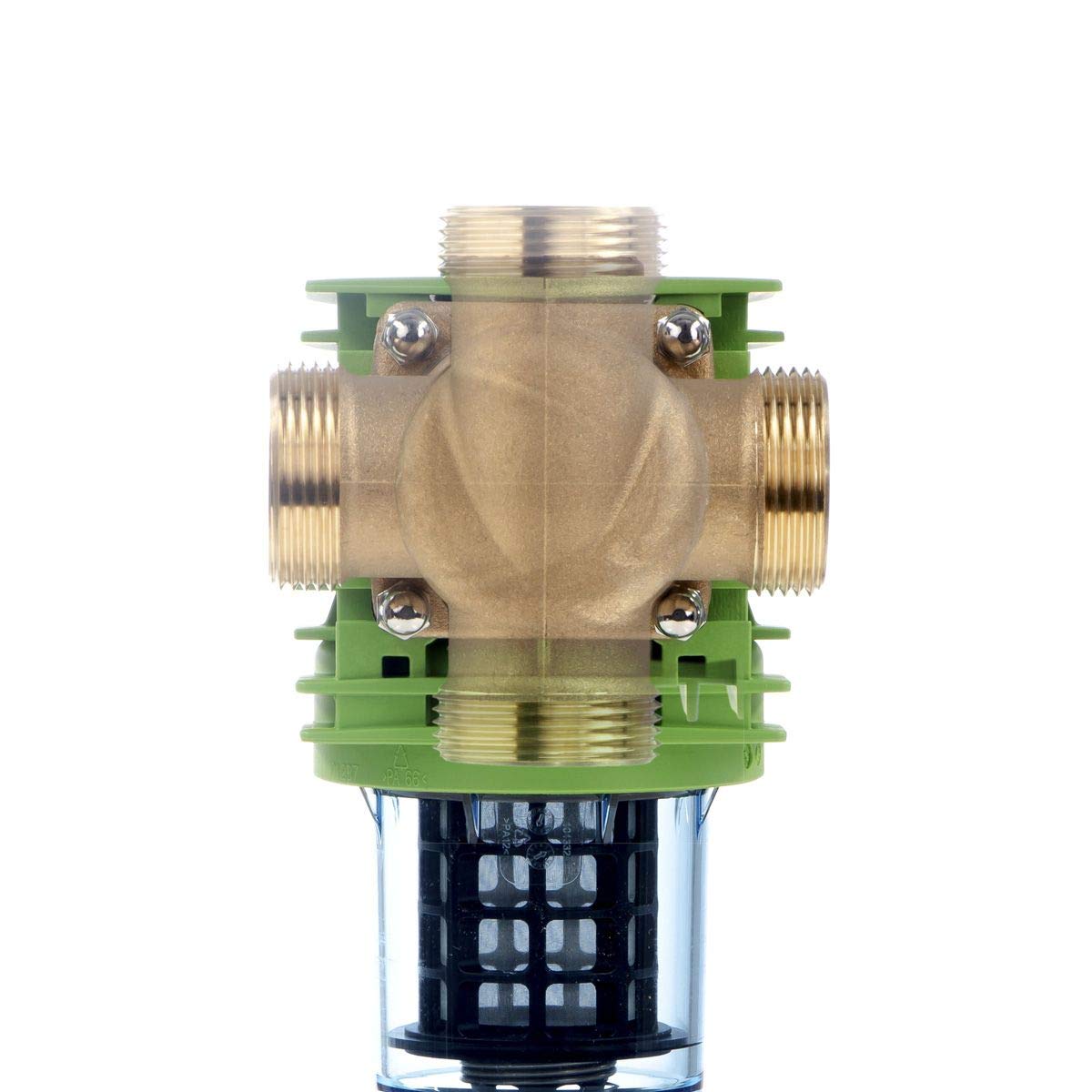

Grünbeck 101515 Backwash Filter Boxer RX DN 25 (1 Inch) for Filtration of Drinking Water, Including Accessories, Multicoloured

• The Boxer RX backwash filters are designed for filtration of drinking water.
• They protect water pipes and the connected water-bearing system parts from malfunctions and corrosion damage caused by undissolved impurities, such as rust particles, etc.
• The filters can be used in the pressure and vacuum area. The adjustment of the reprint on the removal side only works when used in the pressure area.
• The filters are designed according to the specifications of DIN EN 13443-1 and DIN 19628 and are intended for installation in the drinking water installation according to DIN EN 806-2 (installation directly after the water meter system).

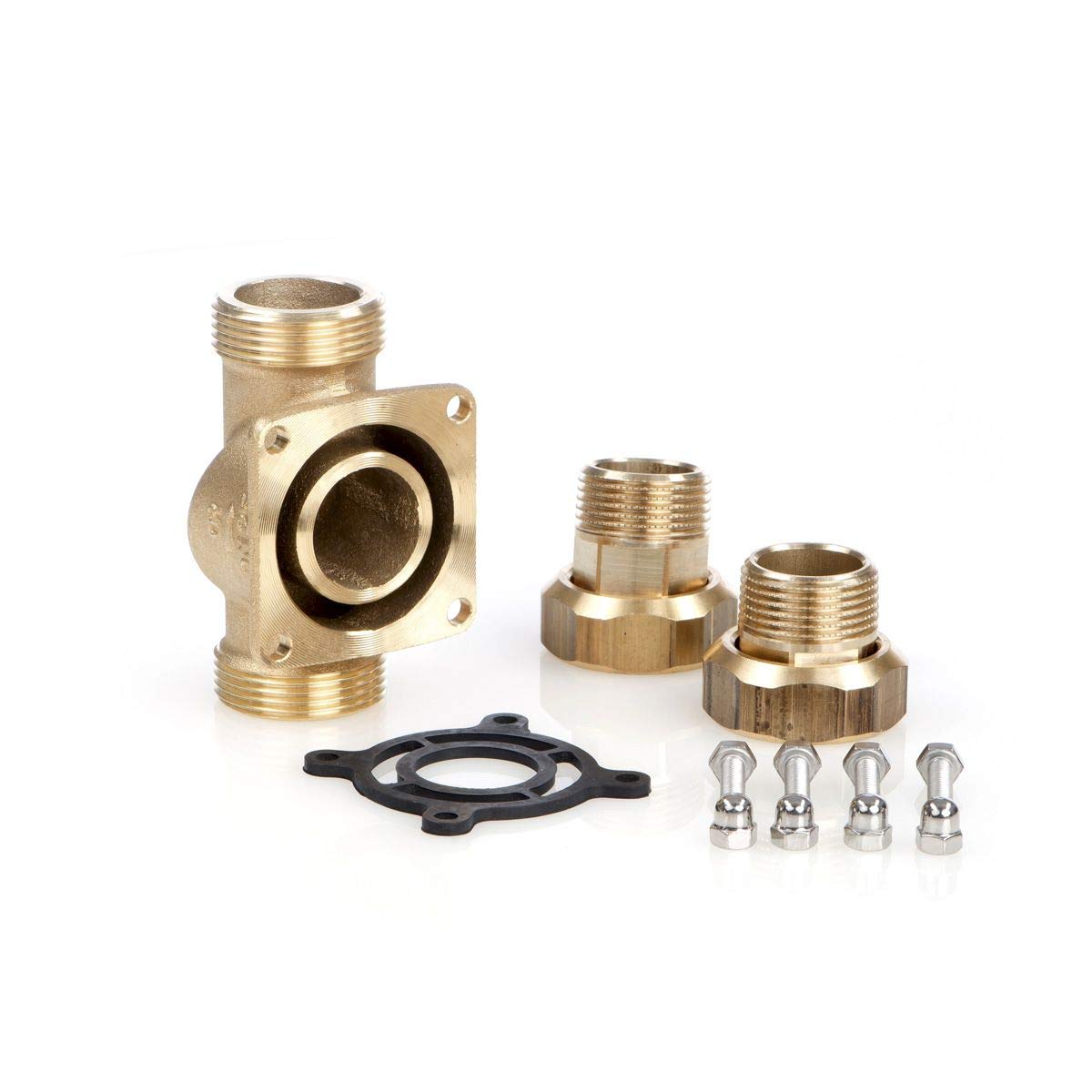

• Box contents: backwash filter with connection flange, water meter fitting, gaskets, operating instructions (English language not guaranteed).

Description Boxer RX Backwash Filter - 101515 Purpose The Boxer RX backwash filters are designed for filtration of drinking water. The filters can be used in the pressure/vacuum range. The adjustment of the reprint on the removal side only works when used in the printing area. The filters are not suitable for circulation water treated with chemicals. They are not suitable for oils, greases, solvents, soaps and other lubricating media and also not for separating water-soluble substances. They protect the water pipes and the connected water-carrying system parts from malfunctions and corrosion damage caused by undissolved impurities (particles), such as rust particles, sand, etc. Technical details: Connection nominal width: DN 25. Connection size: 1 inch. Installation length with/without screw connection: 182/100 mm. Depth to centre connection: 120 mm. Total height: 310 mm. Empty weight: 1.9 kg. Box contents: Backwash filter with connection flange. Water meter screw connection. gaskets Operating instructions (English language not guaranteed). Grünbeck water filter... … A small company for the distribution of water treatment products became a large manufacturing and research company. In the group of companies, a total of 900 people do their best every day and together generate around 150 million euros. In all these years, the core values have always remained the same: responsibility for future generations and a corporate culture in which constructive cooperation plays an essential role.
