Tosuny GRM8-02 Electronic Impulse Relay AC/DC 12-240V Latching Relay Memory Relay with LED Indicators, 35mm DIN Rail Mount

• ★ 【Multi-point control】 This pulse relay can achieve multi-point control by pulse commands.

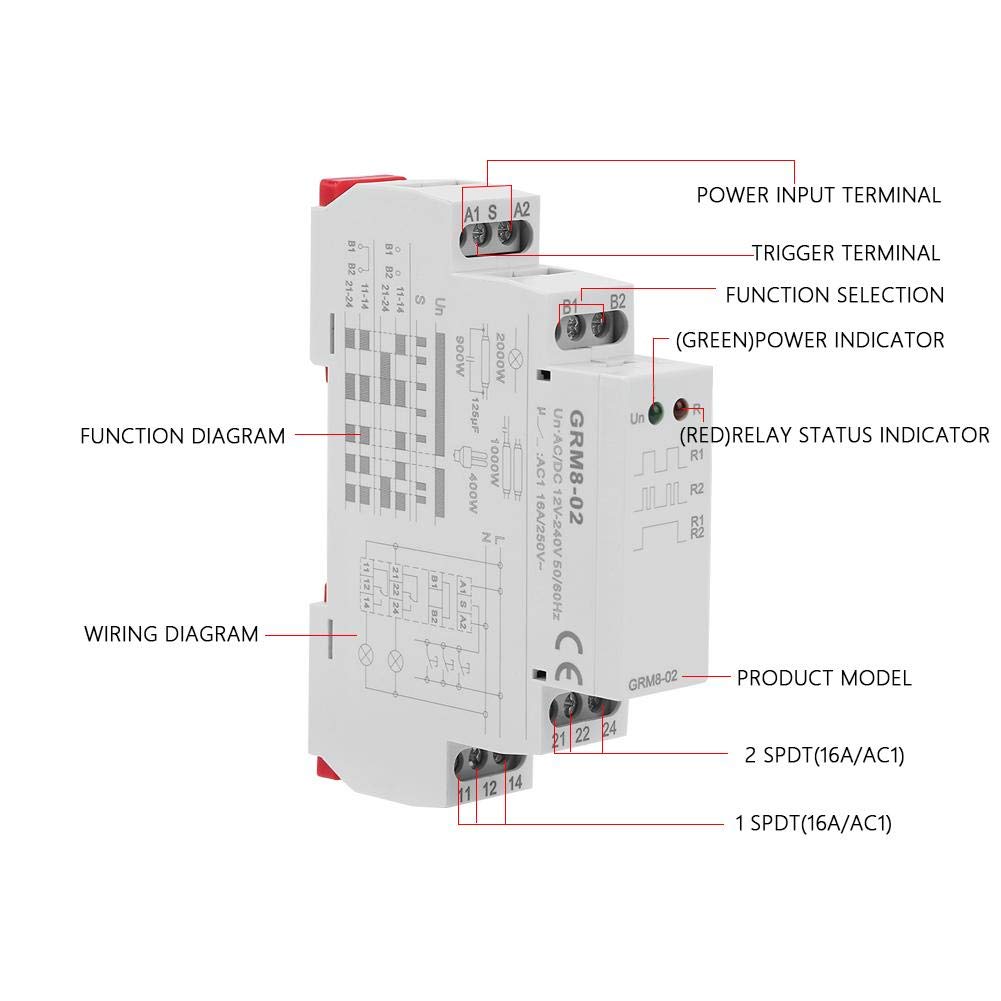

• ★ 【LED display design】 The operating status of the relay is indicated by LED indicators.

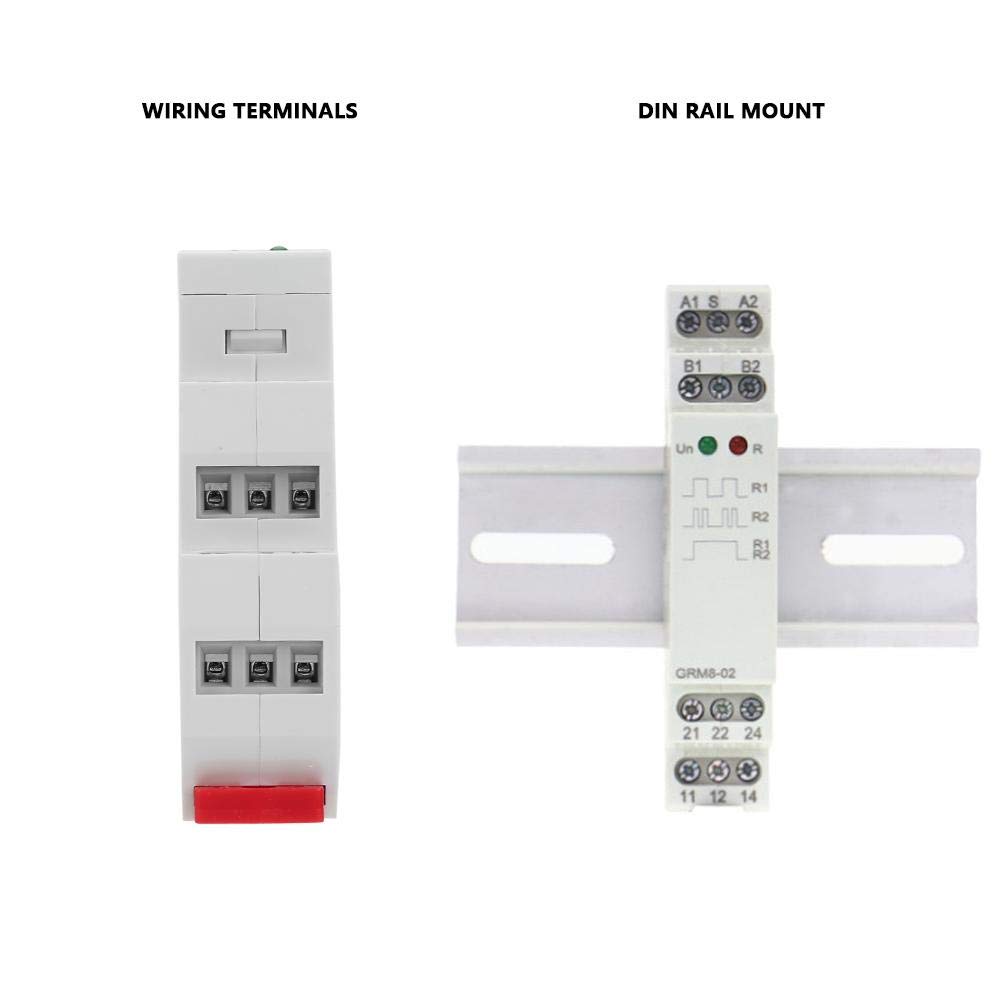

• ★ 【Easy to Use】 With small volume, only 18mm wide and 35mm DIN rail mount, Simple structure, easy to wire and assemble.
• ★ 【Stable Performance】 The electronic pulse relay has stable performance, long life, and can be used for a long time.
• ★ 【100% Quality Assurance】 - It is our ultimate goal to keep you satisfied. 【NOTE】 Please contact us if you have any problems or questions about our products. We will get back to you within 12 hours.

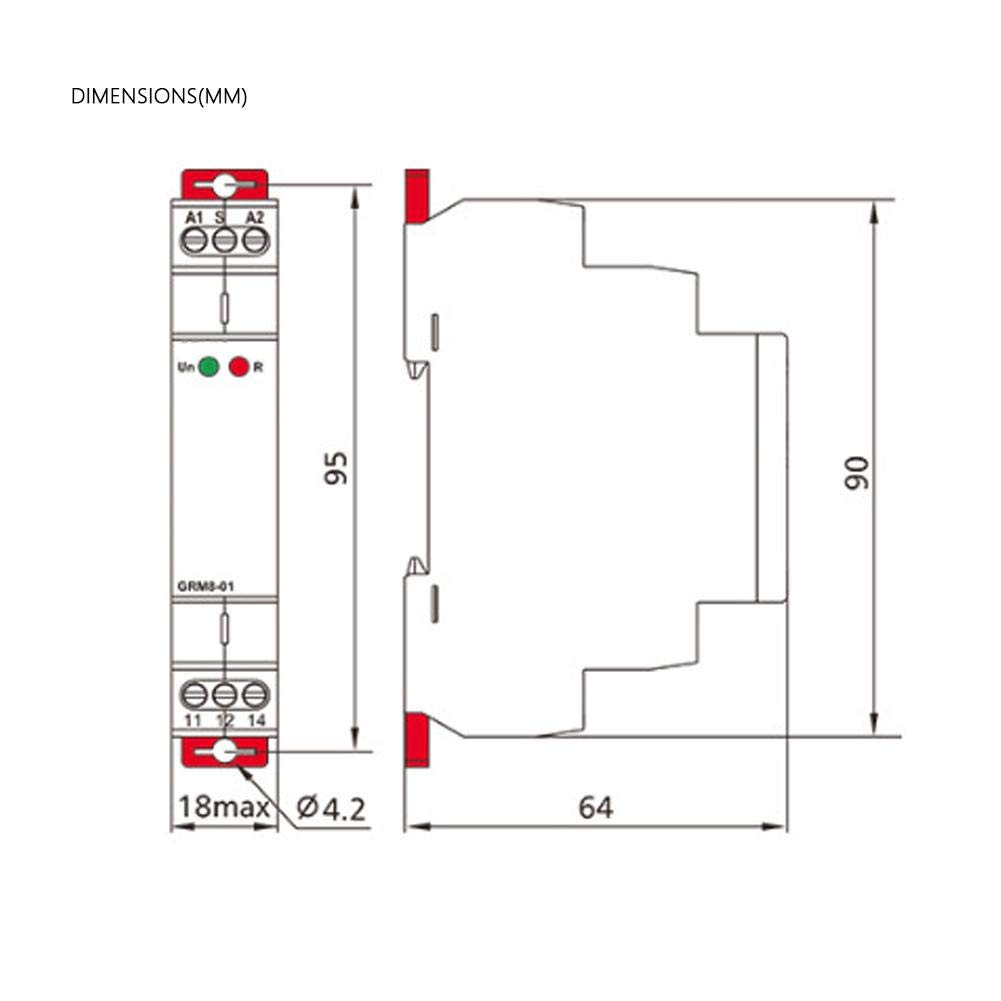

Specification: Model: GRM8-02 Power terminal: A1-A2 Rated power supply voltage: AC/DC 12-240V(50-60Hz) Power consumption: AC 0.09-3VA/DC 0.05-1.7W Supply voltage tolerance: -15%; +10% Power indicator: Green LED Control terminal: A1-S Control width: Min. 25mm Output contact: 2 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: Max 200ms Working temperature: -20~55 Mounting method: 35mm DIN rail Mounting altitude: 2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Weight: Approx. 97g/3.4oz Package List: 1 * Electronic Impulse Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
