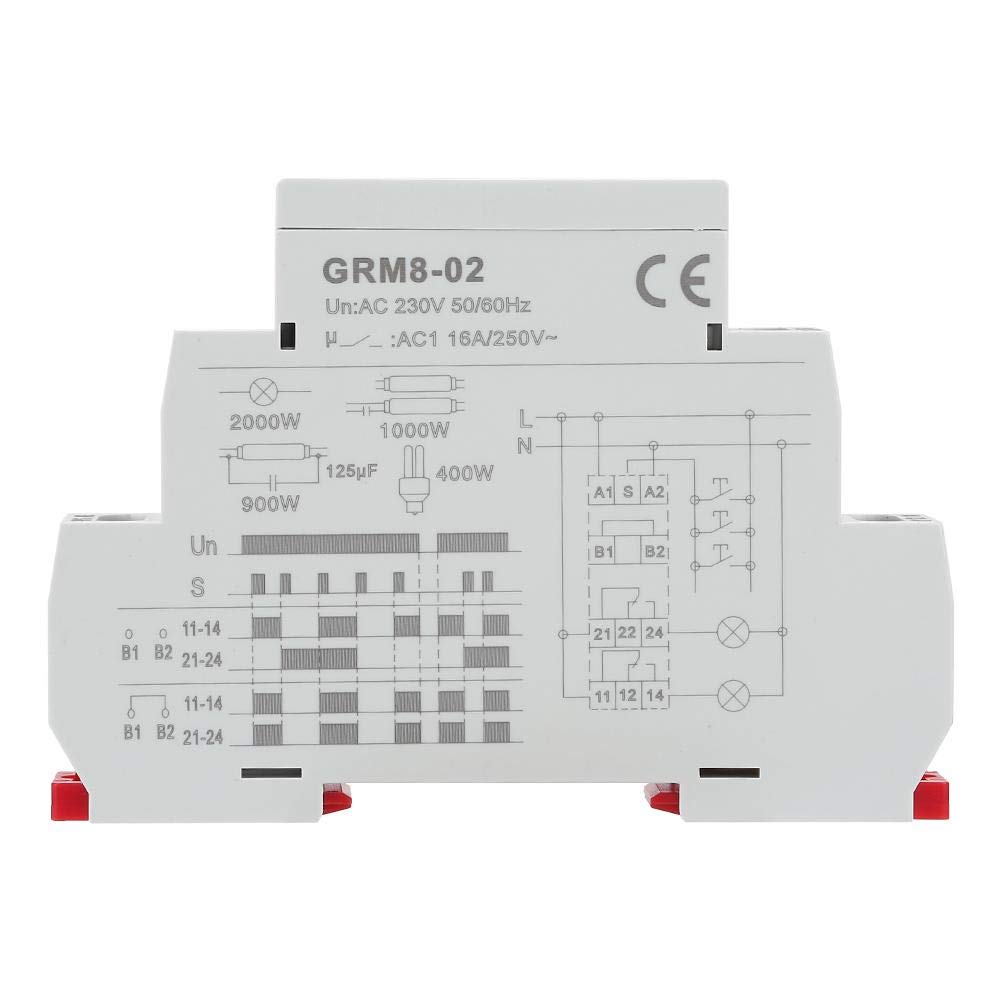

GRM8-02 Electronic Impulse Relay, AC 230V Electronic Impulse Relay Latching Relay Memory Relay Relay with LED Indicator 35mm DIN Rail

• This impulse relay can achieve multi point control by impulse commands.
• Relay working status is indicated by LED indicators.

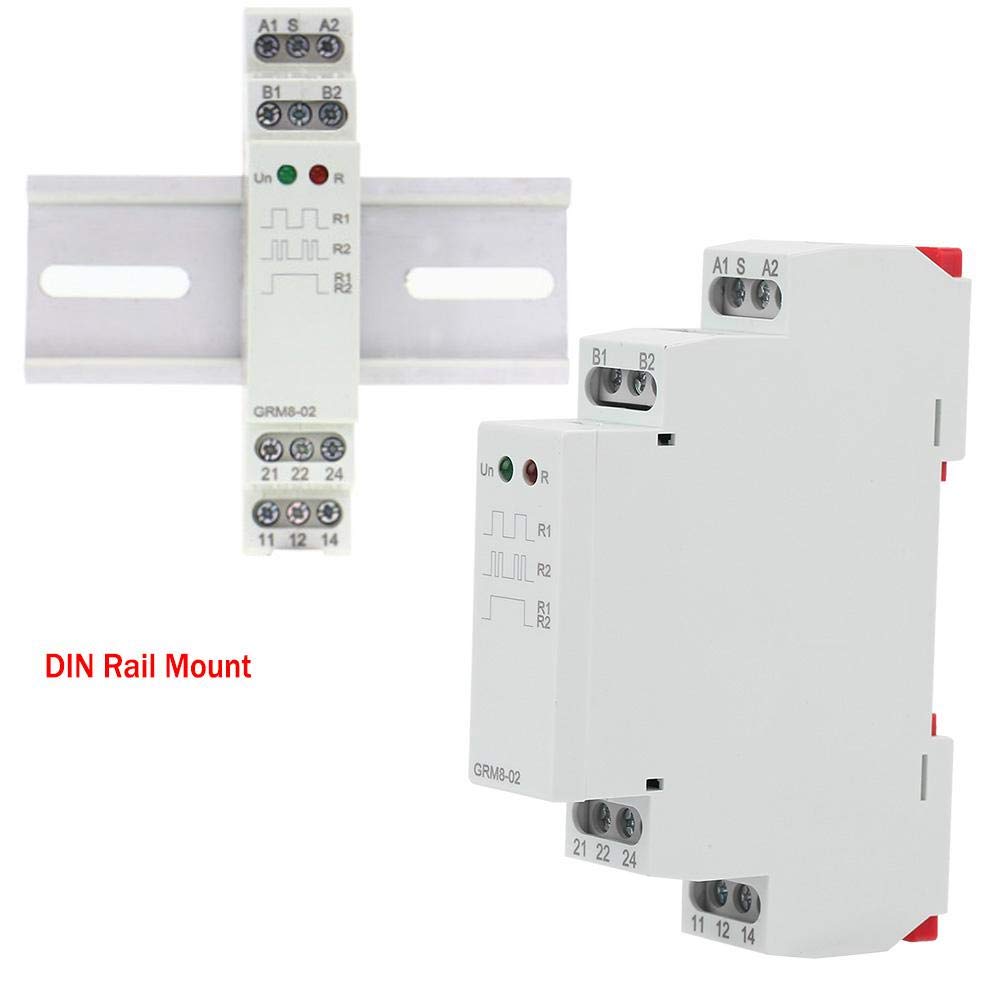

• With small volume, only 18mm width, 35mm DIN rail mount.
• Simple structure, easy to wire and mount.
• Stable performance, long service life.

Features: 1. This impulse relay can achieve multi point control by impulse commands. 2. Relay working status is indicated by LED indicators. 3. With small volume, only 18mm width, 35mm DIN rail mount. 4. Simple structure, easy to wire and mount. 5. Stable performance, long service life. Specification: Model: GRM8-02 Power terminal: A1-A2 Rated power supply voltage: AC 230V(50-60Hz) Power consumption: AC max12VA/1.9W Supply voltage tolerance: -15%; +10% Power indicator: Green LED Control terminal: A1-S Max. connection number of neon lamp: 75pcs(0.68mA/230VAC) Control signal width: Min. 25mm Output contact: 2 x SPDT, 16A/AC1, 250VAC/24VDC Minimum switching power: 500mW Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Weight: Approx. 96g/3.4oz Package List: 1 * Electronic Impulse Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
