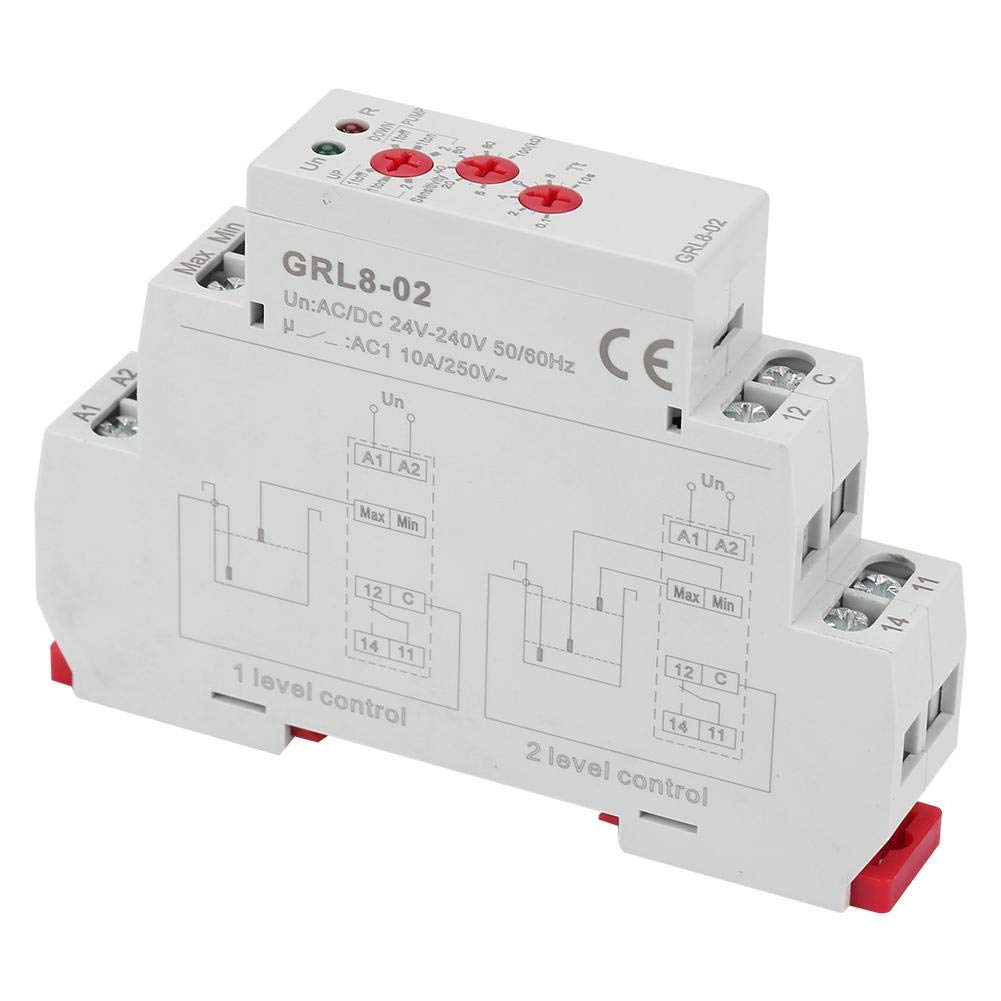

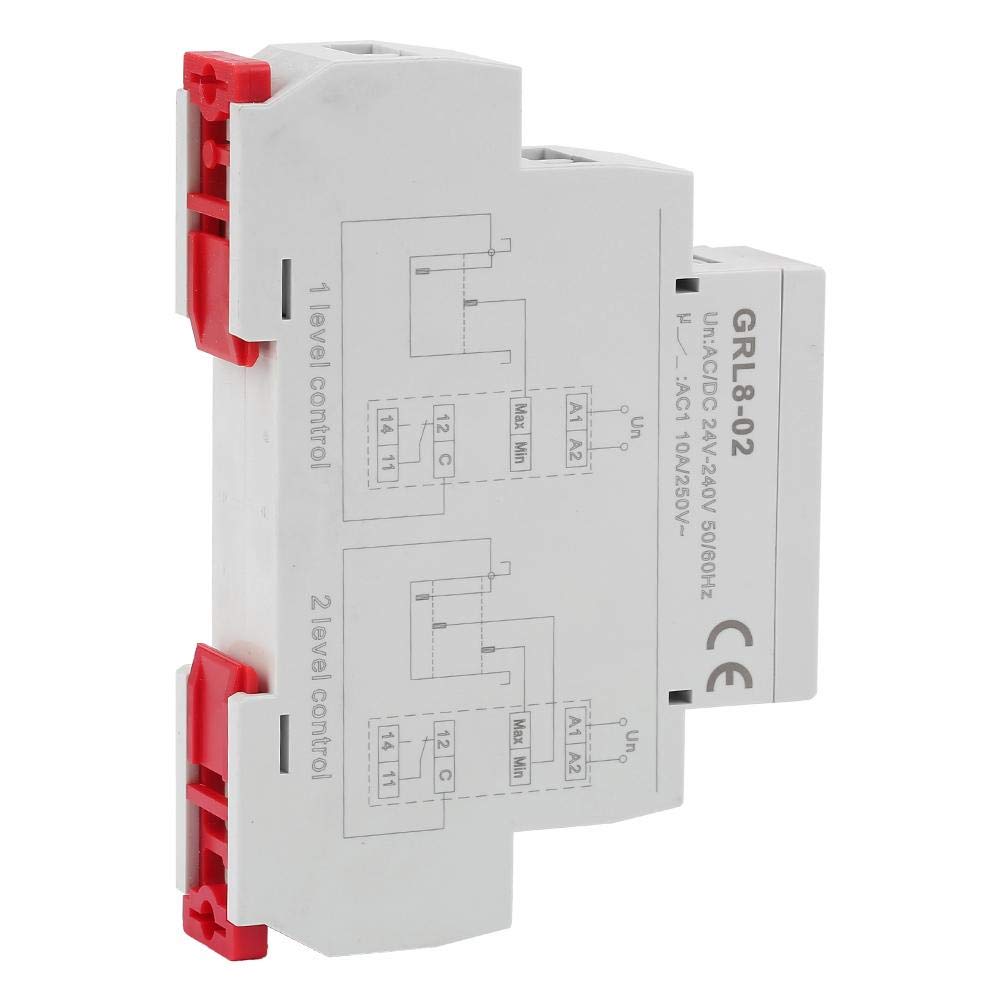

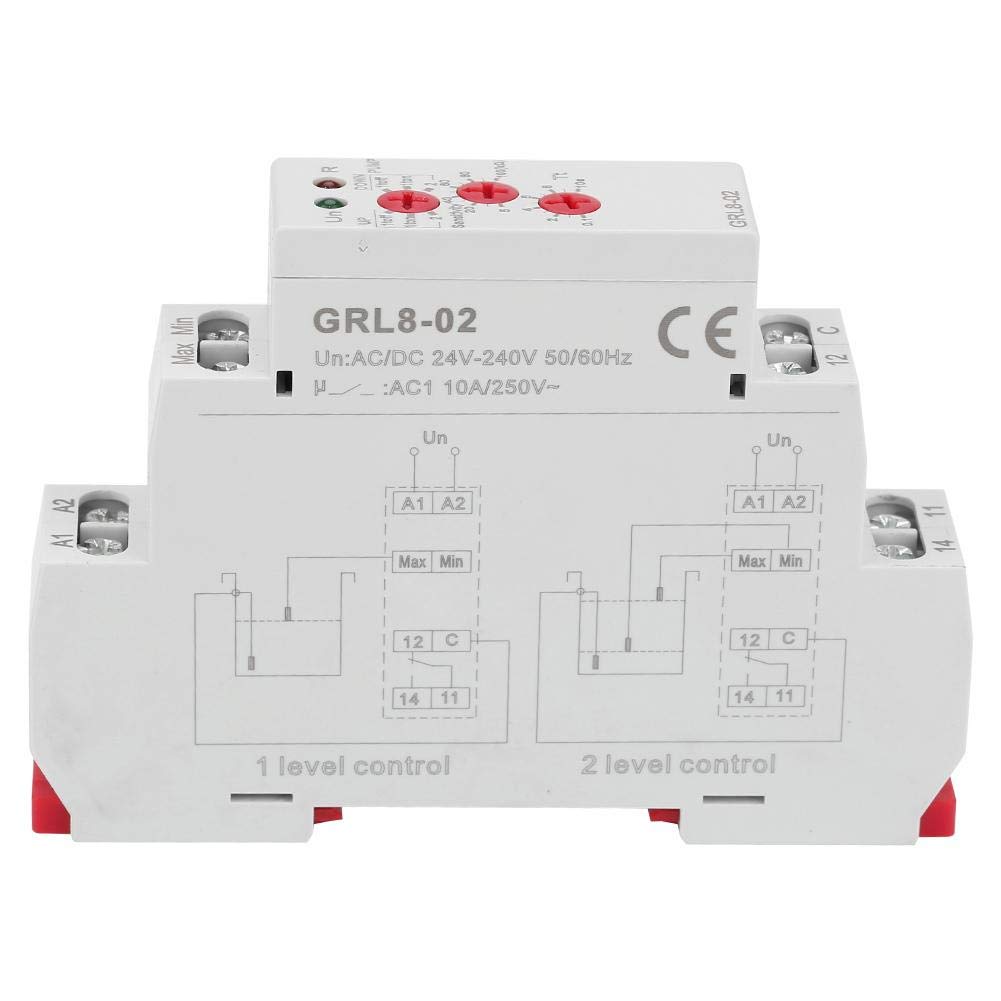

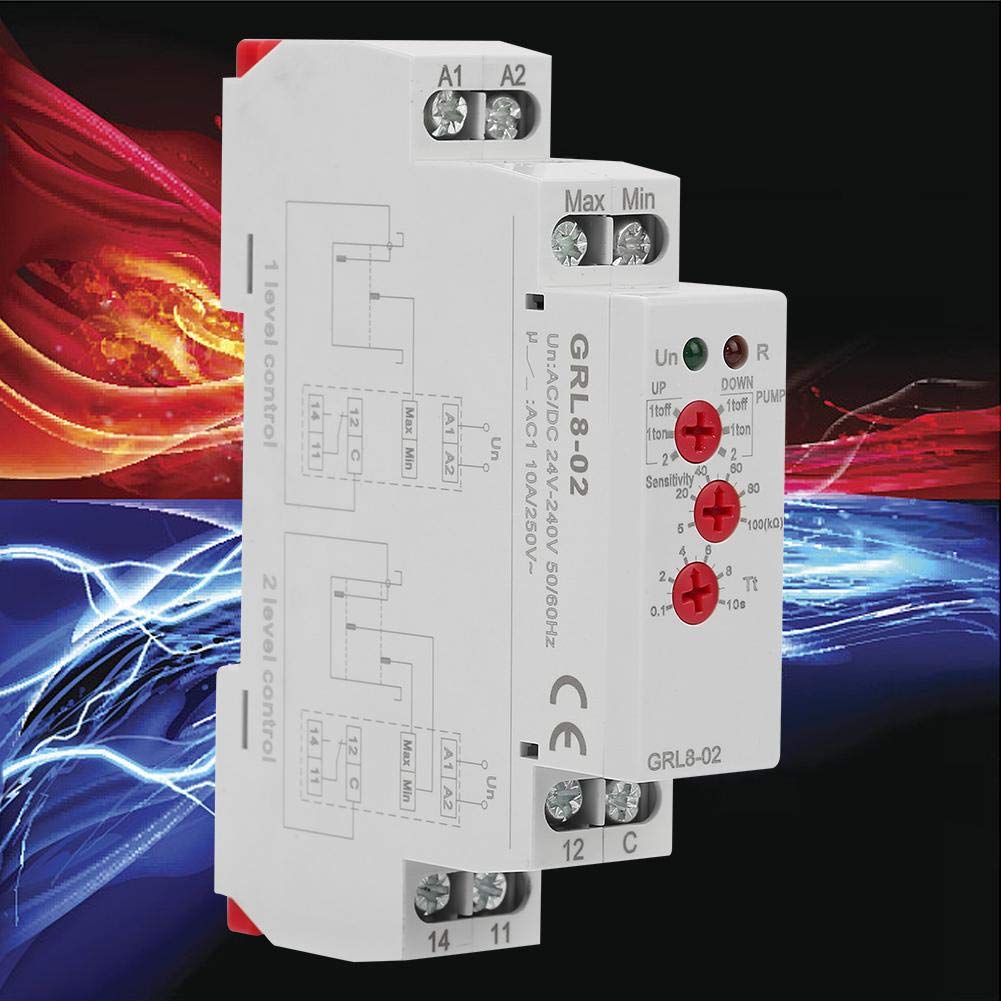

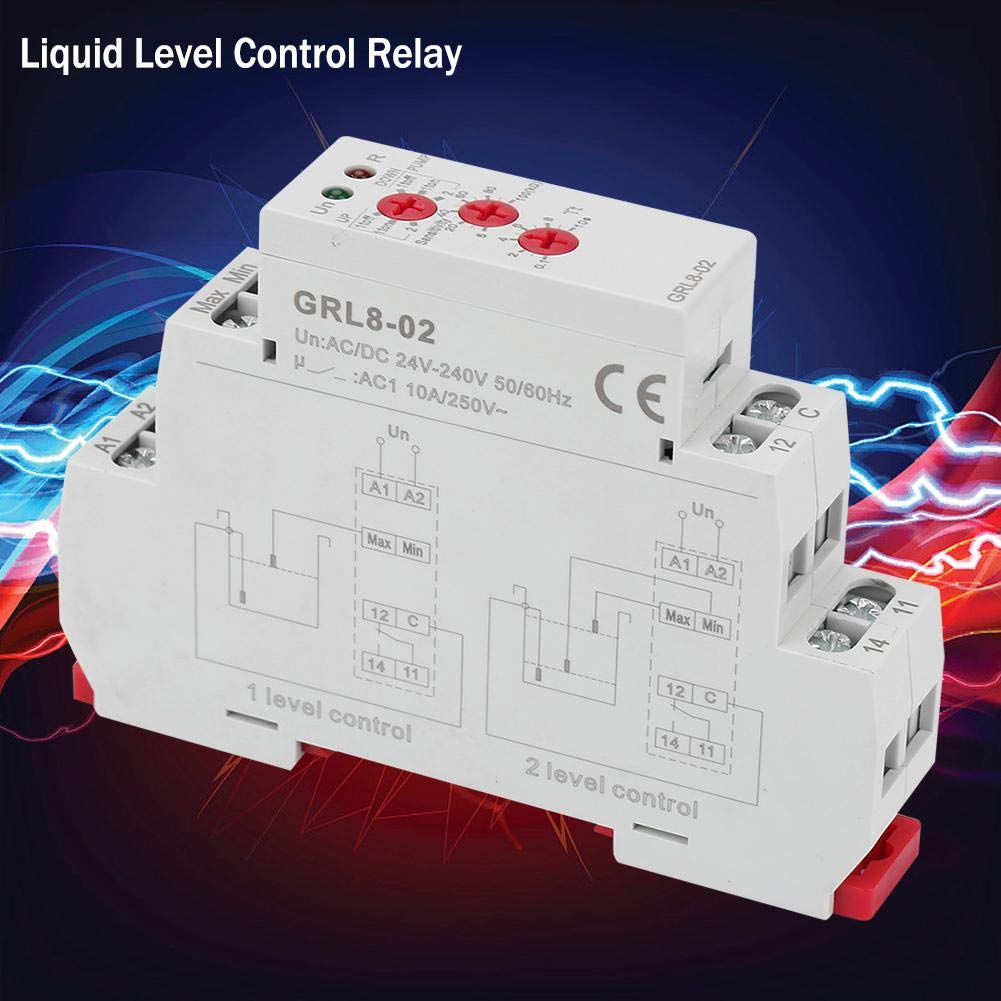

GRL8-02 Liquid Level Control Relay, 10A AC/DC 24V-240V Liquid Level Control Relay Water Level Controller 35mm DIN Rail

• [Multi-mode] The relay can be configured in the way of the drain and the way of the administrator of the time.
• [Applicable] The relay is designed to monitor the level of liquid in pools, wells, water towers, reservoirs, tanks, etc.
• [Configurable] Sensitivity adjustable by means of a command (5-100kΩ). Adjustable time of action delay (0.1-10S).

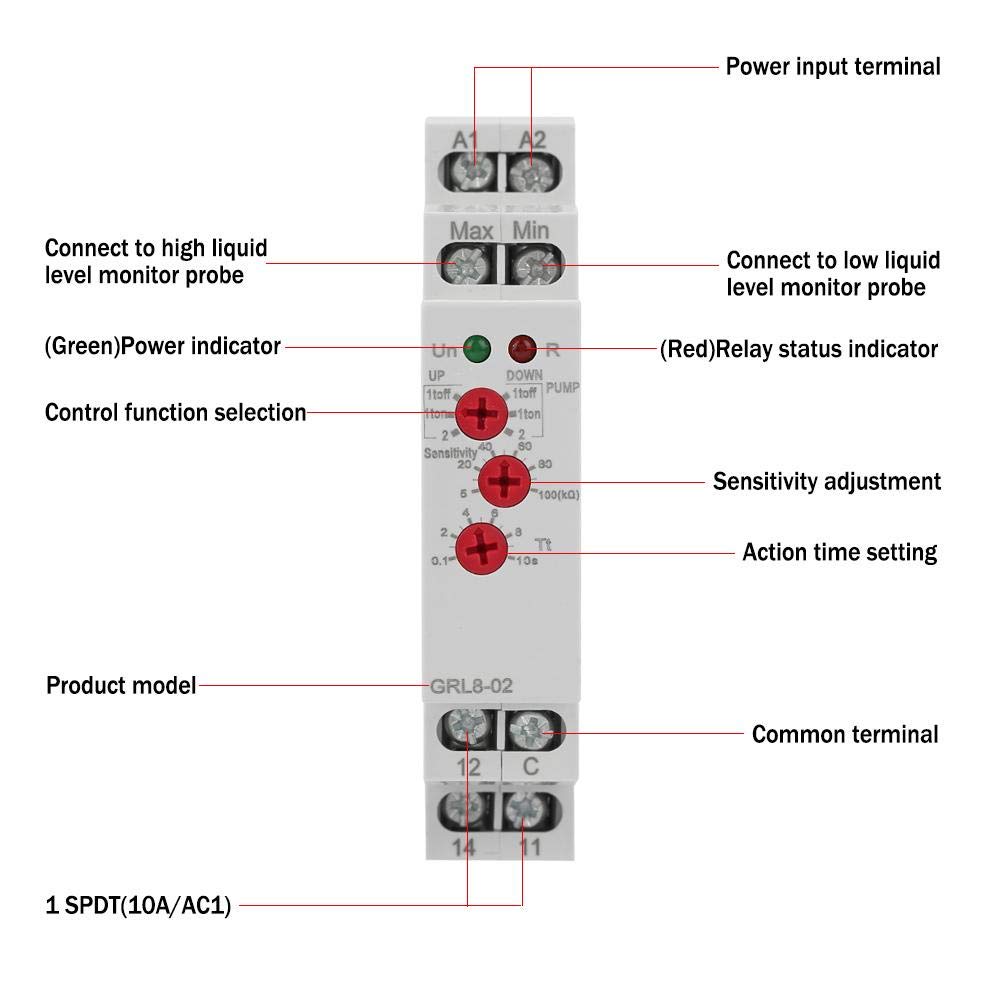

• [LED Indicator] The status of the relay if it indicates by LED: Power indicator: green LED, Output indication: red LED.
• [Quality Guarantee] The quality of our products is Guaranteed and can be used without hesitation. It is held any questions during use, do not hesitate to contact us.

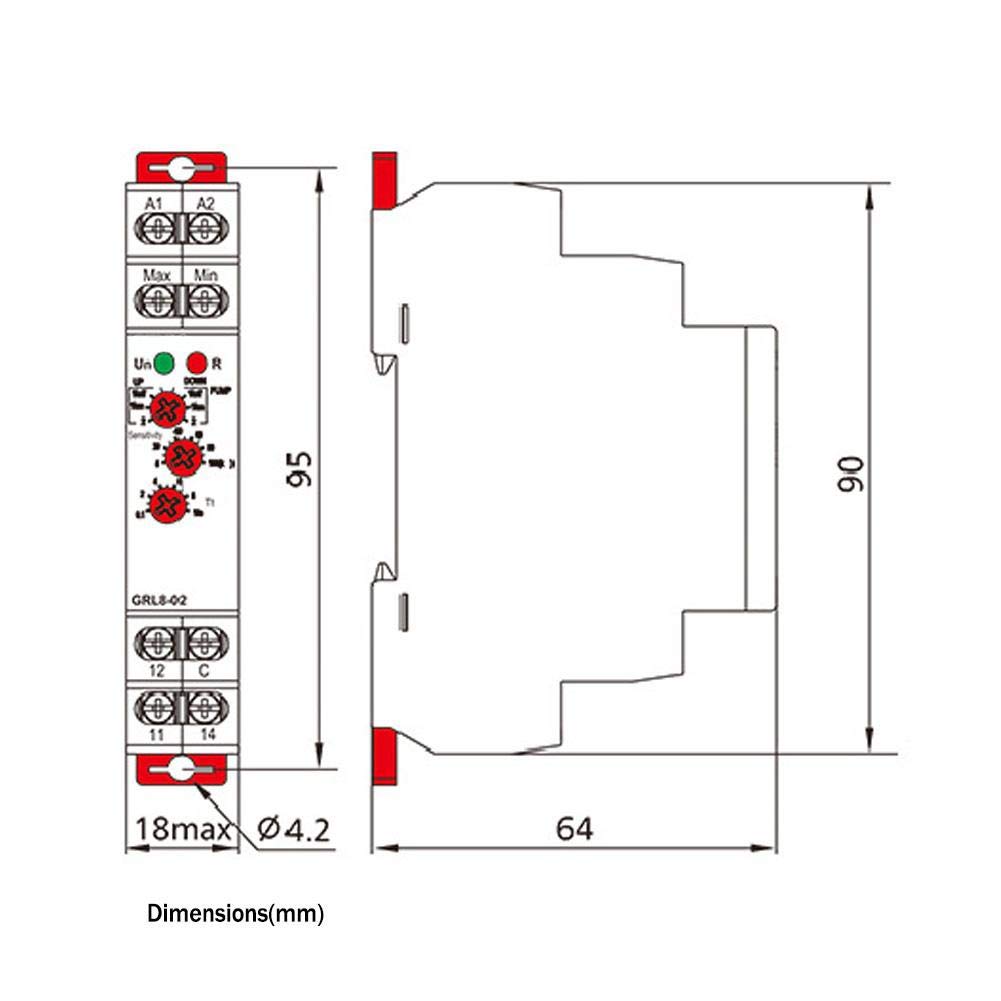

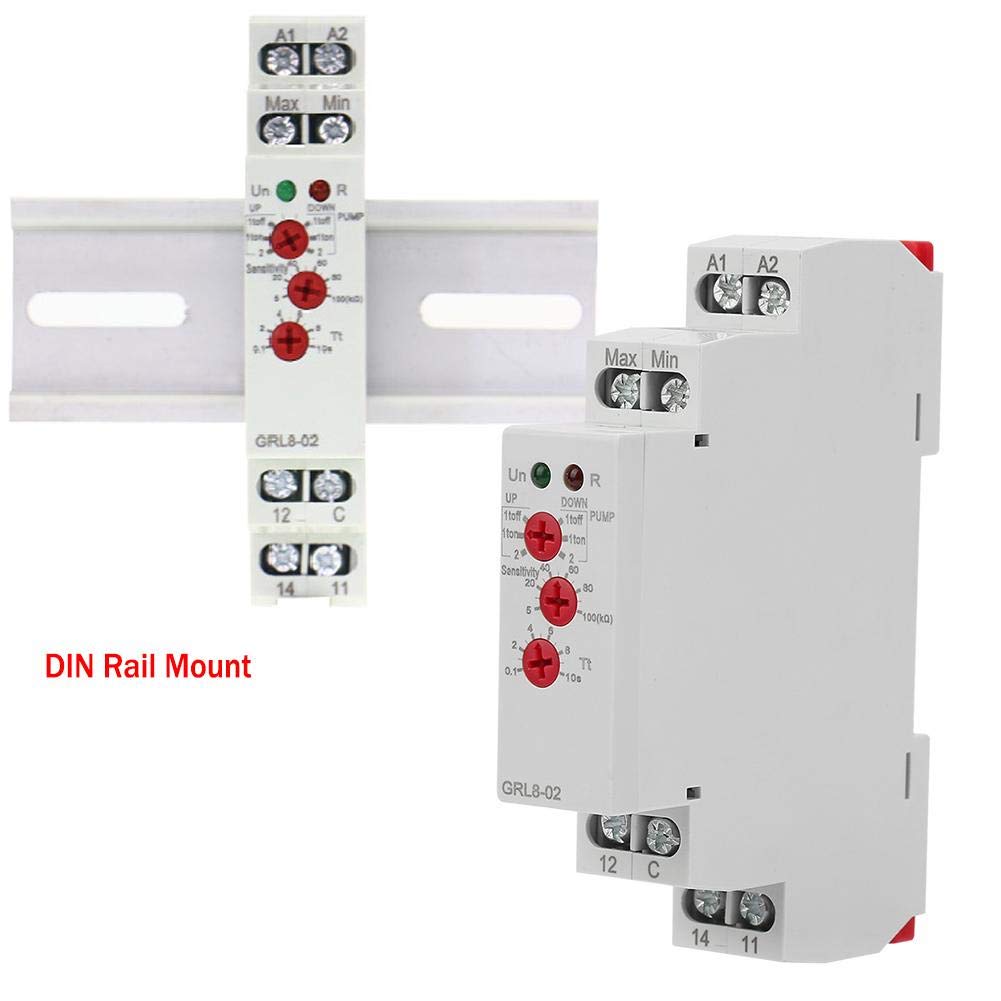

Specification: Model: GRL8-02 Function: 2 or 1 level control mode Power terminal: A1-A2 Rated power supply voltage: AC/DC 24-240V(50-60Hz) Power consumption: Max. 2VA Sensitivity adjustment range: 5-100kΩ Supply voltage tolerance: -15%; +10% Voltage in electrodes: Max. AC 5V Current in electrodes: Max. 0.1mA Response time: Max. 400ms Electrode cable allows distributed capacitance (maximum): 800nF-100nF Electrode cable length: ≤100m Action delay time: 0.1s-10s (adjustable) Setting accuracy: 10% Output contact parameters: 1 x SPDT, 10A/AC1, 250VAC/24VDC Minimum switching power: 500mW Power indicator: Green LED Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Weight: Approx. 82g/2.9oz Package List: 1 * Liquid Level Control Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
