Grey Tile Vent Universal Ventilator with Multi Spigot Connections

• Suitable for most popular interlocking and plain tile roofs with a pitch over 17.5 degrees
• Supplied with a 150mm-100mm adapter connection to use with 100mm, 125mm or 150mm ducting
• Easy installation and interlocking with adjacent slates or tiles
• Suitable for all man-made or industrial tile roofs
• Easy installation and interlocking with adjacent slates or tiles

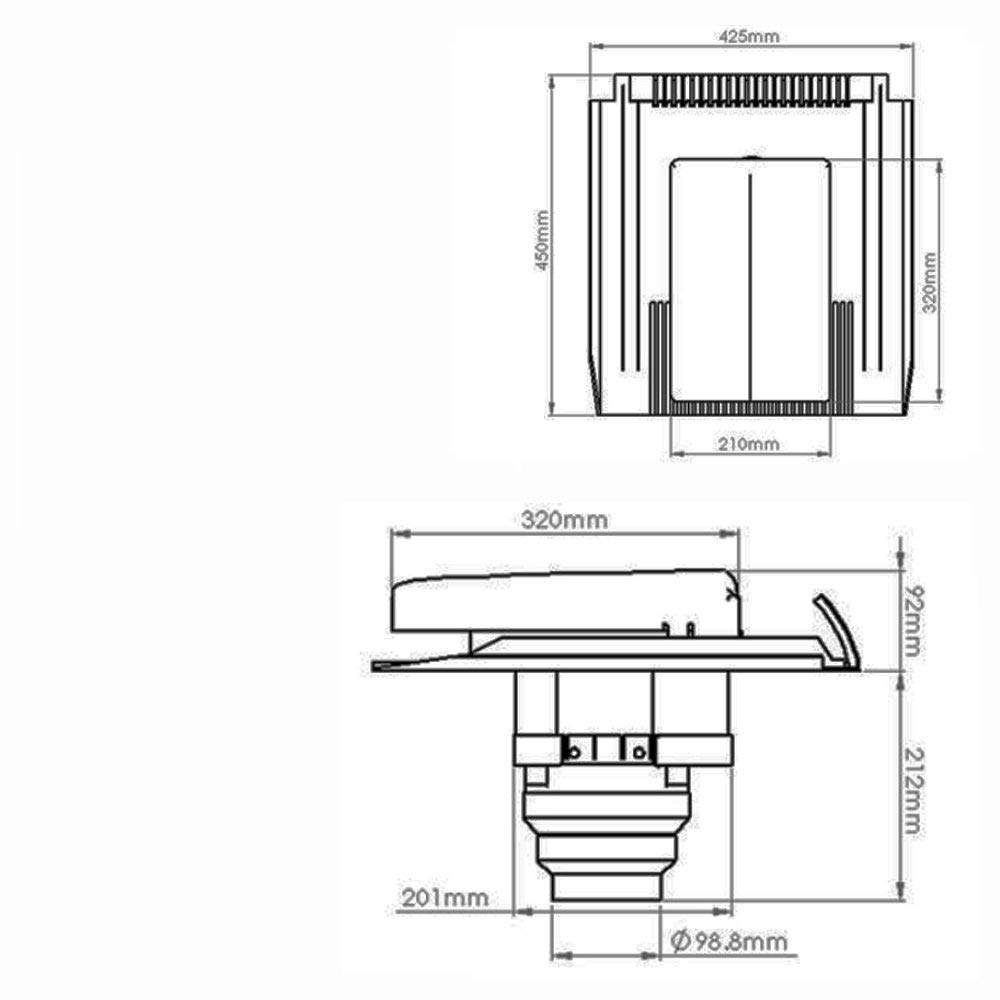

UNIVERSAL TILE VENT ROOF VENTILATOR - GREYPlease Note: NOT Suitable for the following profiles: Redland Delta Cambrian Saxon Richmond Anchor Centurion Slate; Marley Monatch; Clay Pantiles; Landmark Slates.Large free area of 20 000mm2 for high flow system performanceLow profile design makes it unobstructed on the roof lineEasy installation and interlocking with adjacent slates or tilesBlends with man-made/natural slates and tilesPerfect solution for Heat Recovery Systems to ensure maximum efficiencyThe Tile Ventilator range offers a high free area to maintain a low ventilation system pressure. This allows greater flexibility when selecting your heat recovery system. Easy installation and fixing save time and effort. Supplied complete with a 150mm-100mm ducting adapter for quick fit connection within the roof space onto your ducting set up.The range of roof covering and tile ventilators are designed to fit seamlessly into the roof profile and blend with the chosen covering.SUITABLE FORAll man-made or industrial tile roofsRoofs with a pitch over 17.5°DIMENSIONSLength: 445mmWidth: 440mmDepth: 91mmWeight: 19kgPERFORMANCEVent Spacing:5 000mm2/m install at 4m centres10 000mm2/m install at 2m centres25 000mm2/m install at 800mm centresAIRFOW PERFORMANCE15 (l/s) = 3 pascals30 (l/s) = 11 pascals60 (l/s) = 43 pascals
