Greluma USB Converter,Industrial USB to RS485 Converter with CH340 Chip Compatible with Windows XP/WIN7/WIN8/WIN10/Vista/Linux/Mac OS X

• Industrial Communication Module:Our product adopt an industrial USB to RS485 communication module.Two-way communication half-duplex serial port.Industrial CH340 chip,automatically identify and control the direction of data transmission without any handshake signals(such as RTS, DTR, etc).Mode transition can be achieved without jumper settings,ensuring compliance with existing communication software and interface hardware.
• Working voltage:DC 5V.
• Communication distance:1312 yards(max at 9600 bits/s).
• Supported operating systems:XP/WIN7/WIN8/WIN10/VISTA/LINUX/Mac OS X.
• Wide range of applications:It is widely used in data acquisition,signal conversion,repair of devices,product development.

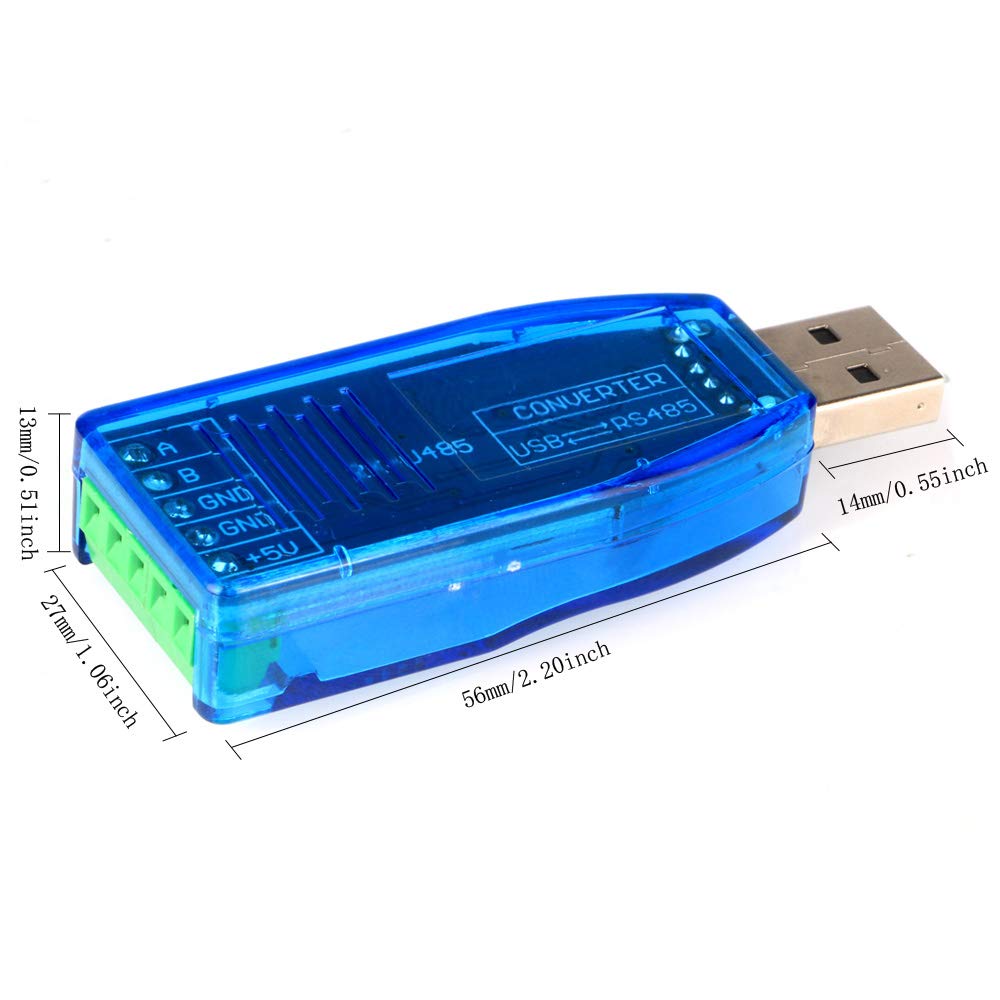

Parameters Working voltage: DC 5 V. Communication distance: 1312 yards (max at 9600 bps). baud rate: 115200 bps (max.). Working temperature: -40°C ~ 80°C. Working humidity: 0% ~ 95% RF. Module size: 2.76" x 1.06" x 0.51". Use steps ◆ Download the CH340 driver software and serial communication software. ◆ Install the CH340 driver. ◆ Connect the module to the PC and check the "device manager" of the PC. It shows CH340. If the computer does not recognize the module, you must uninstall the driver software and then reinstall or replace the computer or change the USB port. ◆ Open the serial communication software to use the transmitter data. Automatically identify and control the direction of data transmission, without any handshake signals (such as RTS, DTR, etc.) without the need for jumper settings to achieve mode conversion to ensure compliance with existing communication software and interface hardware. Product Name usb to rs485 converter industrial usb to rs485 converter usb to rs485 adapter usb to rs485
