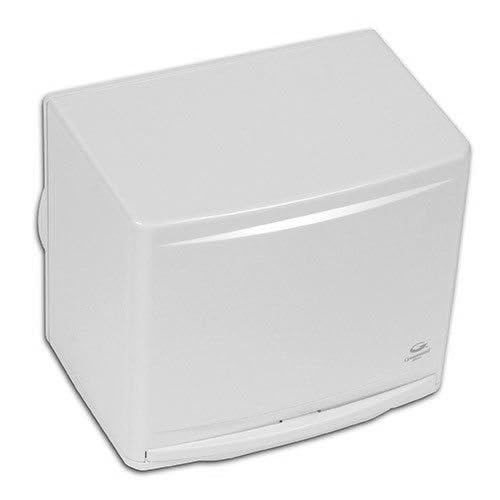

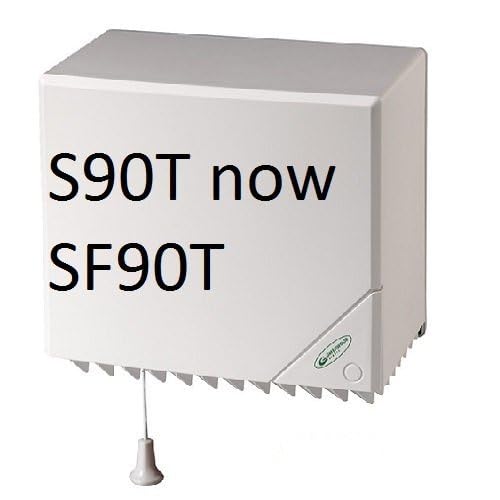

Greenwood Airvac S90T Centrifugal Extractor Fan with Timer (Replacement model SF90T)

• Powerful Centrifugal Extract Fan. 21 litres per second (75m3 per hr) extraction rate
• Over Run Timer. keeps fan running for time after light switched off
• Back Draught Shutter. Integral filter easily removed for washing.
• Dimensions: 187mm wide x 142mm high x 142mm deep. 100mm exhaust.

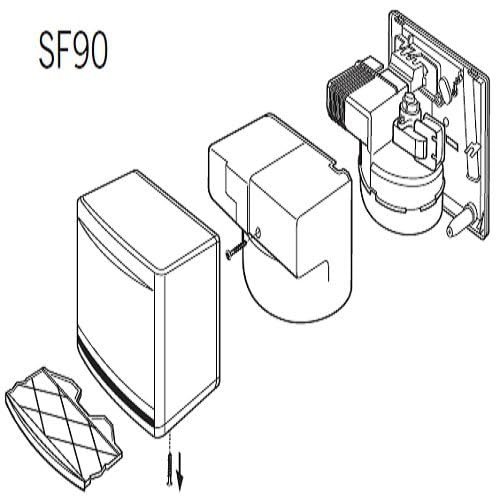

Greenwood Airvac SF90T Extractor Fan The Greenwood Airvac SF90T is a single speed centrifugal surface mounted fan stylishly designed in satin white ABS plastic with a PVC exhaust seal. It will blend discreetly into any decor or environment and meet even the most stringent customer specifications. It is all fitted with its own integral filter, is operated by a pullcord and is fitted with a timer that is adjustable up to thirty minutes.. Features and Benefits The SF90T is a single speed100mm surface mounted centrifugal fan The unit is suitable for wall, ceiling and panel installation Variable timer adjustable up to 30 minutes Integral anti-backdraught damper and pullcord insulating link as standard Clever easy installation as the backplate can be fully installed before fan and motor assembly are fixed Modern, stylish front fascia design Integral filter which is easily removed for cleaning Specification Model Operation IP Voltage Performance to Sound Pressure Normal Slow Normal Slow cu m/hour litres/second cu m/hour litres/second dB(A) dB(A) SF90T Single speed with timer to 30 mins 44 230 75 21 - - 41 - Dimensions " }
