greenandco® gc-200MCM Digital Master Dimmer Switch for LED and Halogen 1-200W, can be Extended with up to 4 Dimming Control Modules, Boost Function, White

• AREA OF USE: Suitable for 230V halogen lamps, incandescent lamps and dimmable LED lamps from 1-200VA, as well as dimmable electronic transformers. Not suitable for fluorescent lamps, motors, fans and toroidal transformers. Please note that the installation must be carried out by a qualified electrician.
• FEATURES: adjustable dimming range, adjustable boost function (ensures that all lamps restart when switched on again, even when dimmed to a very low level), can be expanded with up to 4 control units to regulate the brightness from different locations, overheating, overload and short circuit protection

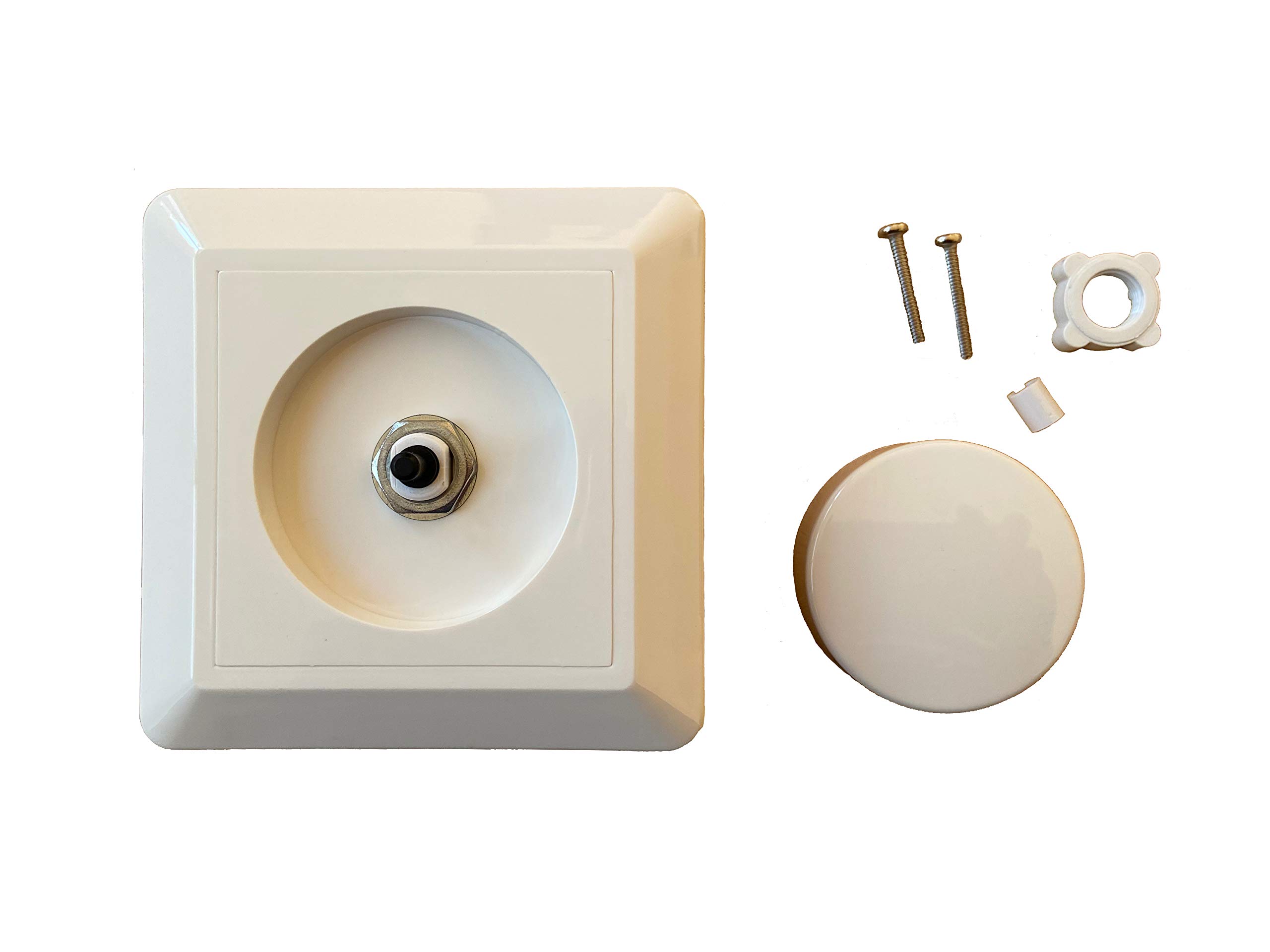

• SCOPE OF DELIVERY: Dimmer with two-part cover and rotary knob (rotation axis 4mm), with adapter for rotary knobs with 6mm rotation axis (the dimmer is therefore compatible with practically all systems, such as Busch-Jaeger, Kopp, Jung, Gira,...), 2 fastening screws for flush-mounted boxes, 2 fastening claws, understandable German instructions for use
• PRODUCT SAFETY: The safety of our products is very important to us. greenandco products meet all relevant national and European standards and are tested by independent institutes such as TÜV. We can send you the certificates and test reports on request.
• Guarantor: greenandco.de GmbH, Sollner Str. 13, 82049 Pullach.

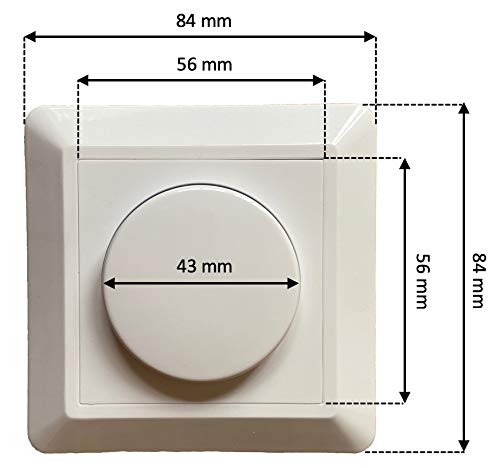

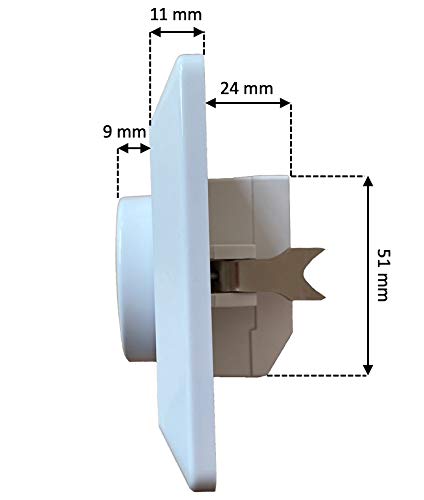

With this dimmer you can adjust the brightness of dimmable LEDs and conventional lamps such as halogen from 100% down to 0%. The dimmer is specially designed for LED lamps and works with a minimum load of 1 watt. Conventional dimmers usually do not work with LED lamps due to the significantly higher minimum load. The digital master dimmer can be expanded with up to 4 additional control units. It also offers a user friendly setting of the dimming range, as well as a programmable boost function that ensures that all connected LED lamps start at the same time, even if the preset brightness is very low. Area of application Suitable for 230V halogen lamps, incandescent lamps and dimmable LED lamps from 1 200VA, as well as dimmable electronic transformers. Not suitable for fluorescent lamps, motors, fans and toroidal transformers. Function Press to switch on and off, turn to dim. Can be expanded with up to 4 additional control units (gc 200MCS) Technical data Input voltage: 230 V AC, 50 Hz Output power: 1 to 200 VA (LED) Dimmer type: trailing edge Protection class: IP20 (for indoor use only) Further product details Dimensions: 84 x 84 x 45 mm (L x W x H), insert 56 x 56 mm, installation depth 24 mm, shaft diameter 4 mm (including adapter for 6 mm), rotary knob diameter 44 mm Weight: 89 g Design: flush mounted Fastening: with fastening screws or clamp fastening Color: pure white Scope of delivery greenandco gc 200MCM Digital Master LED Dimmer Two part cover with rotary knob Adapter for rotary knobs with 6 mm rotary axis (the dimmer is therefore compatible with practically all systems) 2 fastening screws for flush mounted boxes Clear German operating instructions
