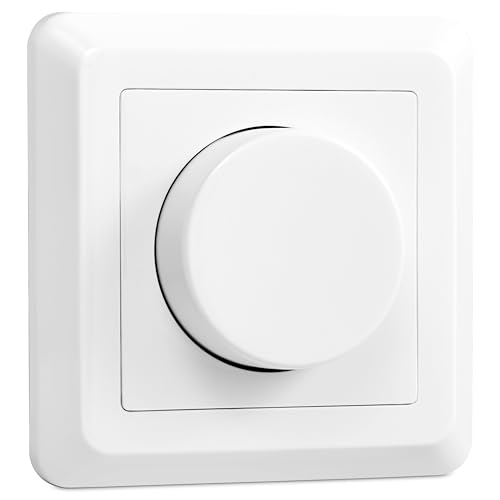

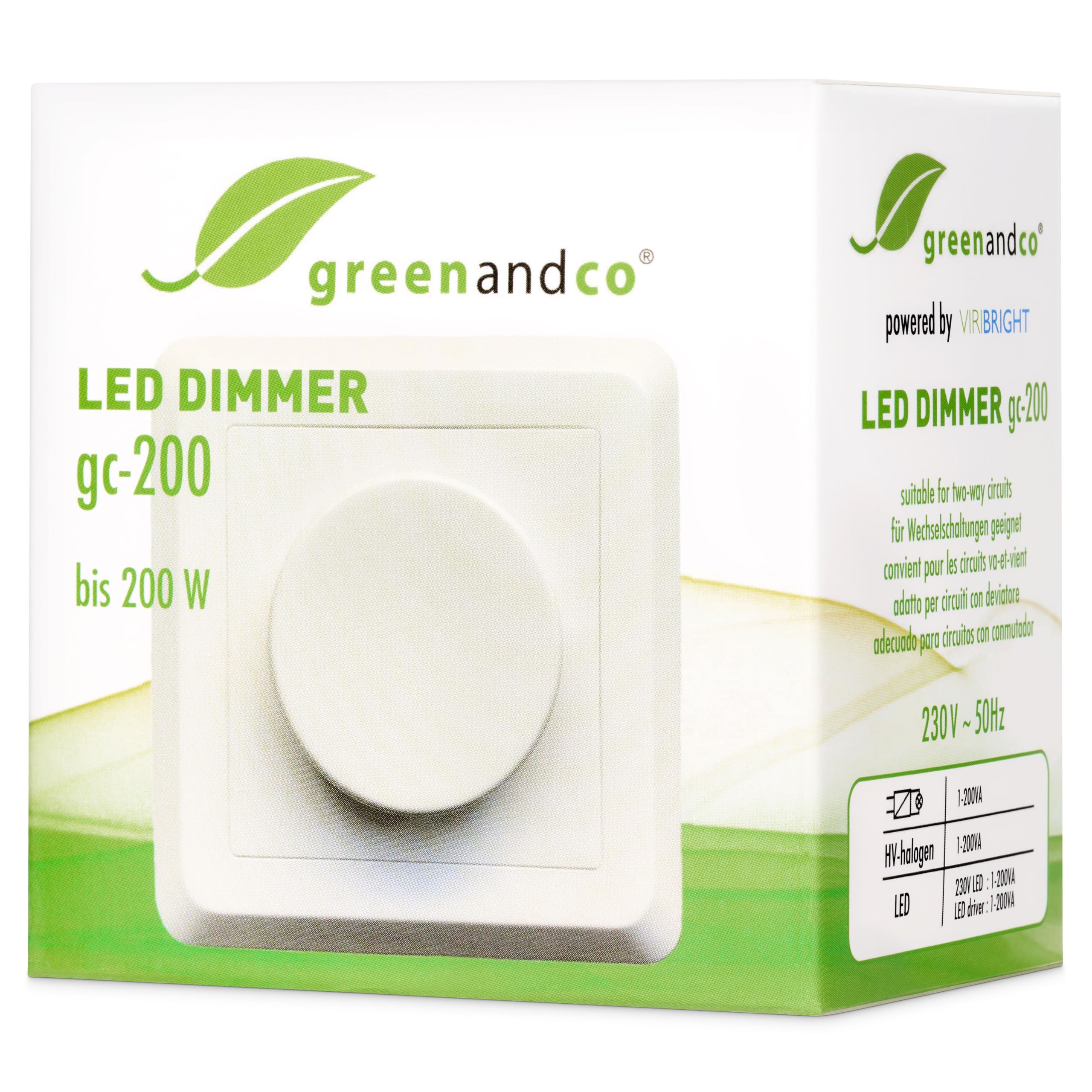

greenandco® gc-200 Flush-Mounted 2-Way LED Dimmer Switch 1-200 W, Also Works with Halogen and Incandescent Bulbs, White

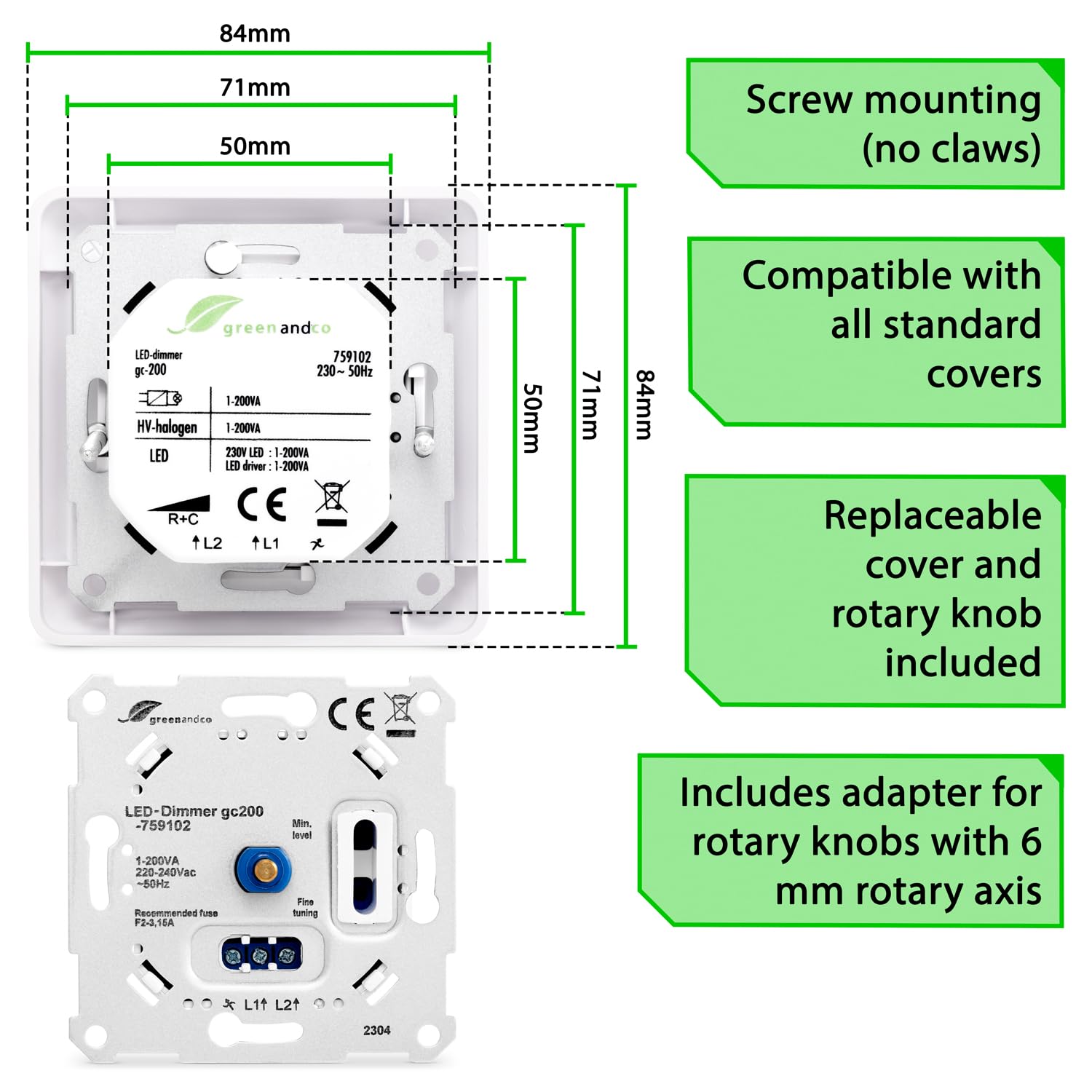

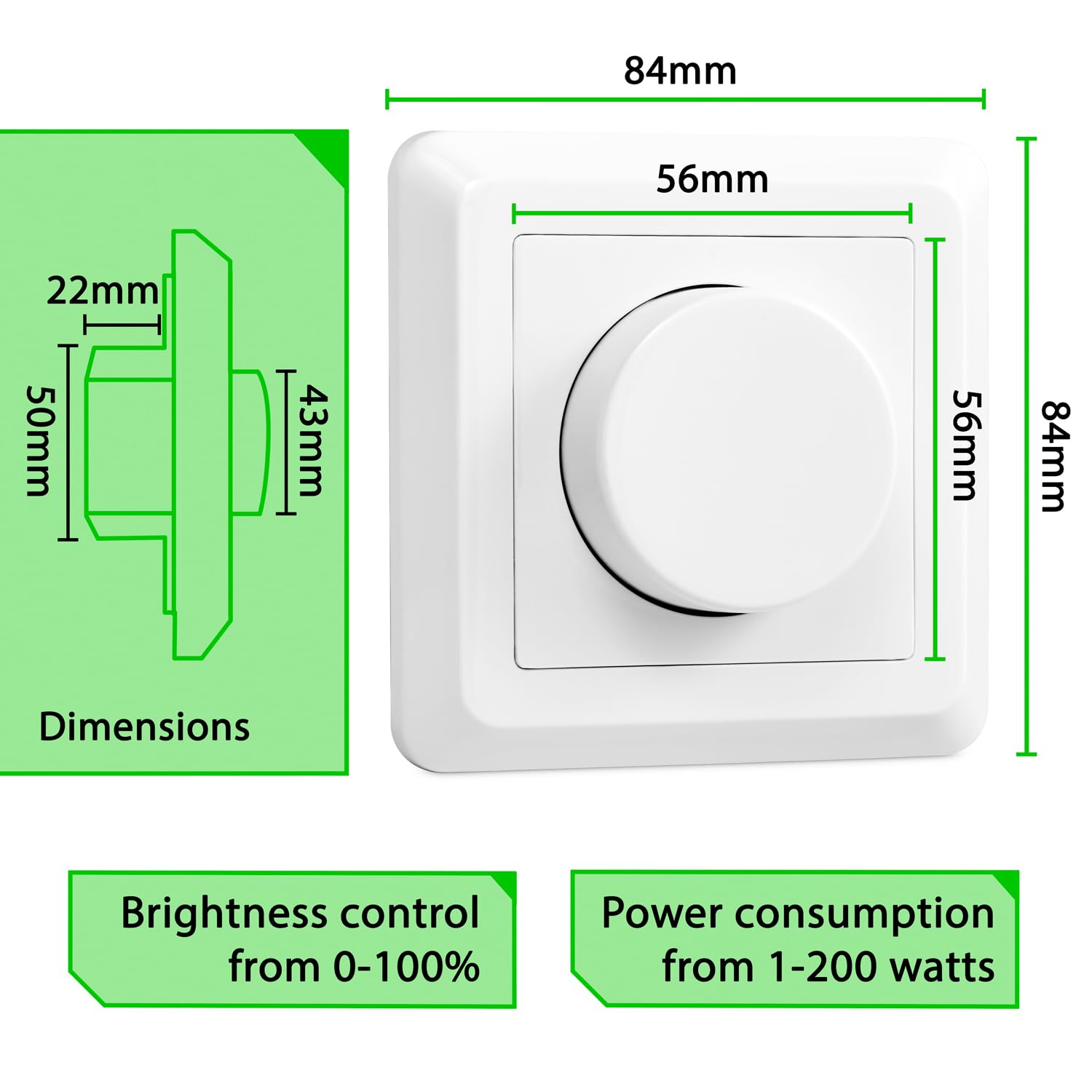

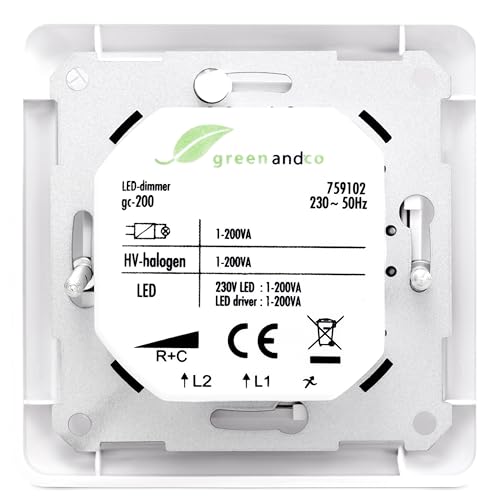

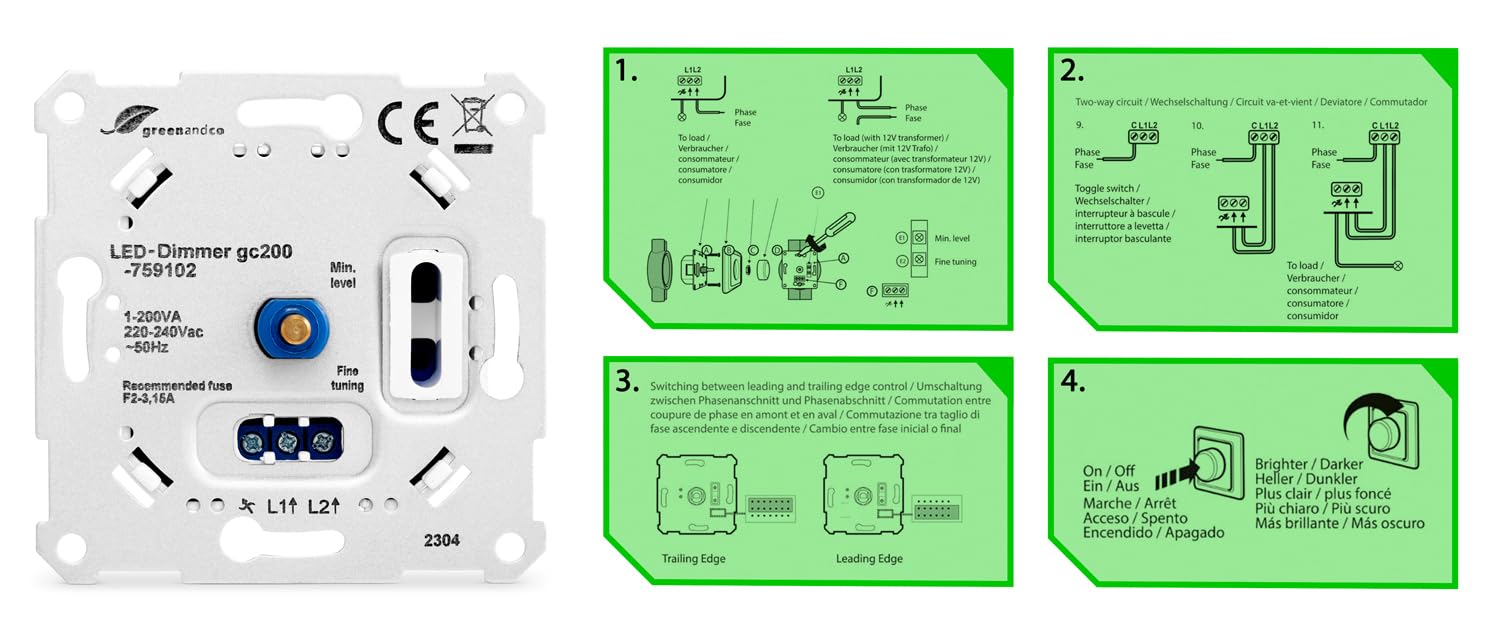

With this dimmer you can adjust the brightness of dimmable LEDs and also conventional lamps such as halogen from 100% down to 0%. The dimmer is specially designed for LED lamps and works with a minimum load of 1 watt. Conventional dimmers usually do not work with LED lamps due to the significantly higher minimum load. The dimmer is also suitable for alternating switches. Area of application Suitable for 230V halogen lamps, incandescent lamps and dimmable LED lamps from 1 200VA, as well as dimmable electronic transformers. Not suitable for fluorescent lamps, motors, fans and toroidal transformers. Function Press to switch on and off, turn to dim. Suitable for two way circuits Two adjustment screws for adjusting the minimum brightness and to avoid flickering Technical data Input voltage: 230 V AC, 50 Hz Output power: 1 to 200 VA (LED) Configuration: Trailing edge phase control (factory setting), can be switched to leading edge phase control Protection class: IP20 (for indoor use only) Temperature range: 20°C to 60°C Further product details Dimensions: 84 x 84 x 45 mm (L x W x H), insert 56 x 56 mm, installation depth 22 mm, shaft diameter 4 mm (incl. adapter for 6 mm), rotary knob diameter 43 mm Weight: 105 g Design: flush mounted Fastening: with fastening screws, no clamp fastening Color: pure white Scope of delivery greenandco gc 200 flush mounted LED dimmer Two part cover with rotary knob Adapter for rotary knobs with 6mm rotary axis (the dimmer is therefore compatible with practically all systems) 2 fastening screws for flush mounted boxes (no clamp fastening) Clear German instructions for use
