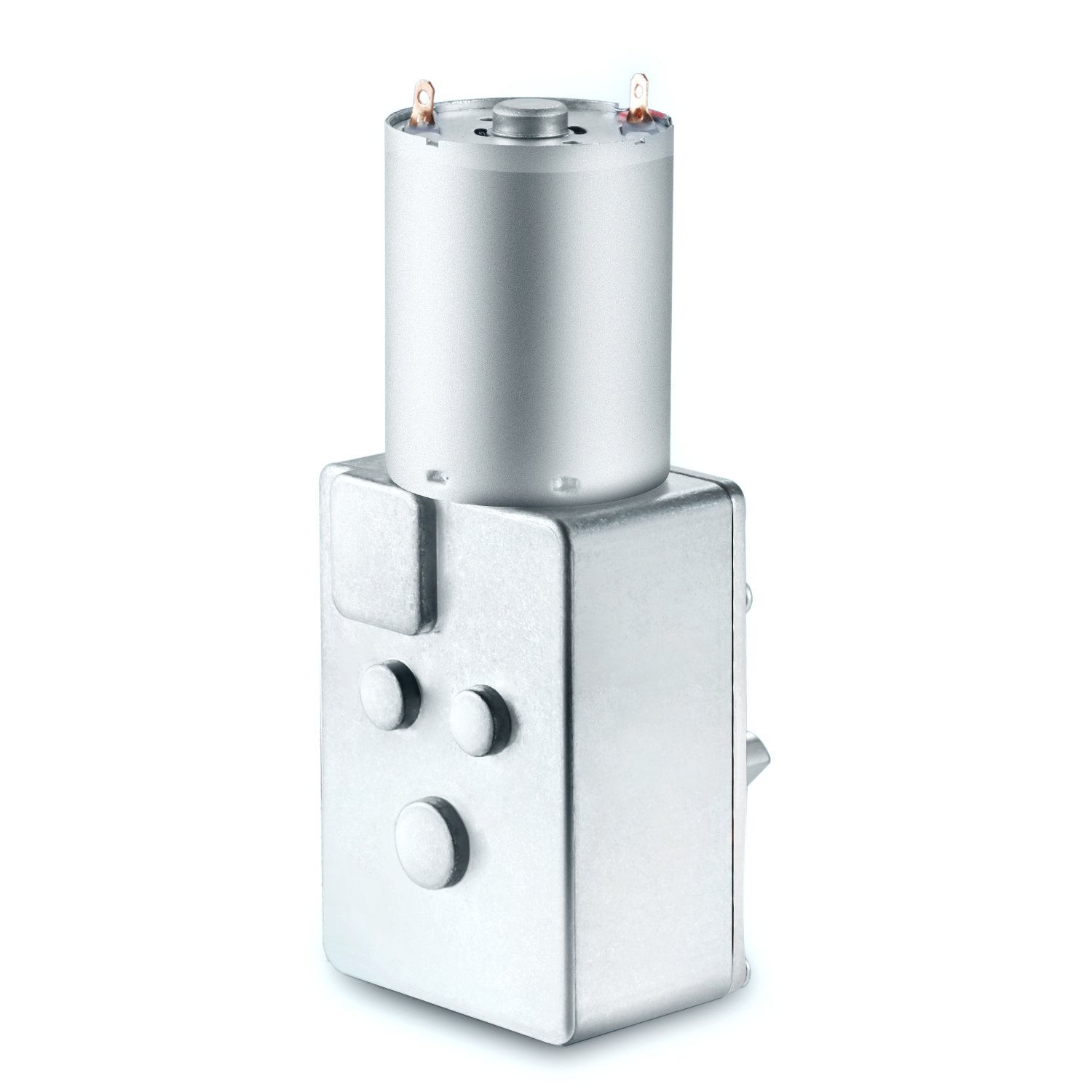

Greartisan DC 12V 100RPM Turbo Worm Geared Motor High Torque Turbine Worm Gear Box Reduction Motor 6mm Shaft JSX40-370

• 【ALL-METAL GEARS】: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the turbo worm gear box motor body.

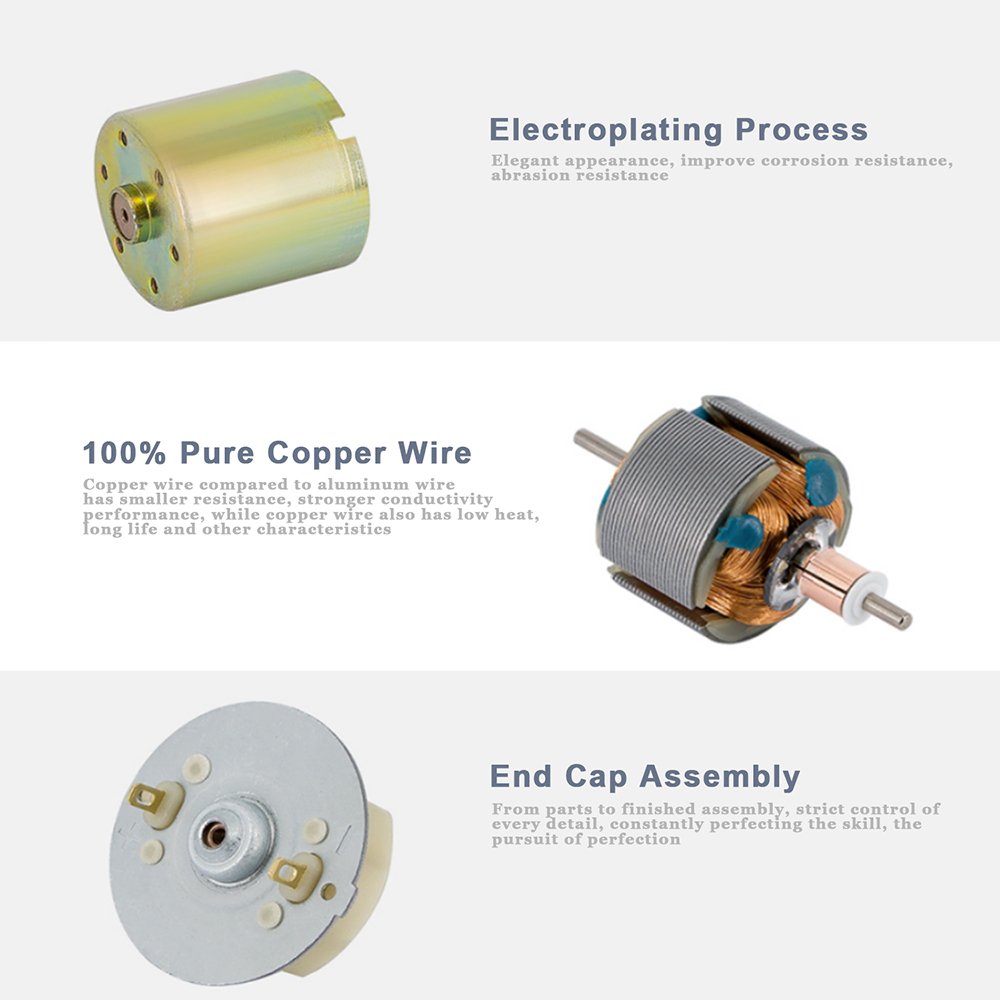

• 【PURE COPPER WIRE CORE ROTOR】: With precision winding technology, the turbo worm geared motor power instant increased by 30%.
• 【D SHAPED OUTPUT SHAFT】: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the turbo worm gear motor are improved, extremely durable.
• 【GEAR DC MOTOR with MICRO-TURBINE WORM】: You can change the wiring-connection to change motor rotation. Low noise and high torque.
• 【RELIABLE GURANTEE】: Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm, please feel free to contact us!

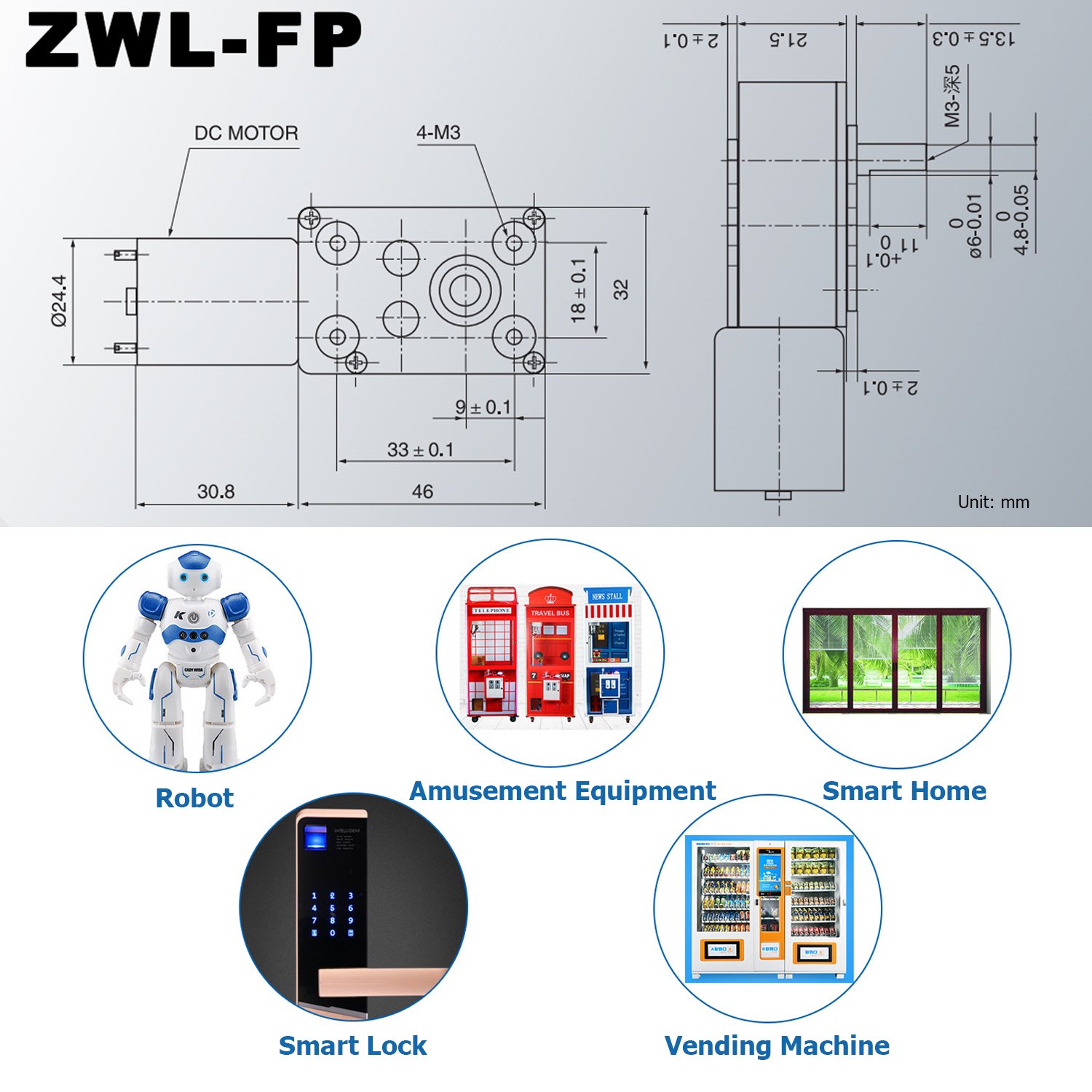

You can change the motor wiring positive and negative, and change the direction of rotation of the motor, so they have 2 characteristics: -- Turbine worm gear motor with self-locking, that is, in the absence of electricity in the case of the motor, the output shaft is fixed; -- The direction of the output shaft of the gearbox is perpendicular to the motor shaft, and the direction of the output shaft of the whole motor body is relatively short to the ordinary deceleration motor, and the utility model is widely adapted to occasions where the installation dimension is required. Specifications: Model: JSX69-370 Material: Metal Rated Voltage: 12V Speed: 100RPM D Shaped Box Shaft Size: 6 x 14mm( 0.24" x 0.55")(D*L) Female Thread Diameter: 2.5mm(0.1") Motor Body Size: 30.8 x 24.4mm(1.21" x 0.96")(L*Max.D) Gear Box Size: 46 x 32 x 25mm(1.81" x 1.26" x 0.98")(L*W*T) Main Body Size: 76.8 x 32 x 25mm(3.02" x 1.26" x 0.98") (L*W*H) Motor Pins Numbe: 2 Net Weight: 142g Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting. This section is suitable for small motor configuration high speed ratio, the installation space is limited occasions, large torque output. Packages: - 1 x DC Geared Motor
