Grass Tiomos 110° furniture hinge with damping (3 hole patterns to choose from). Pot Hinge (Drilling Distance 48 mm, 6067 S).

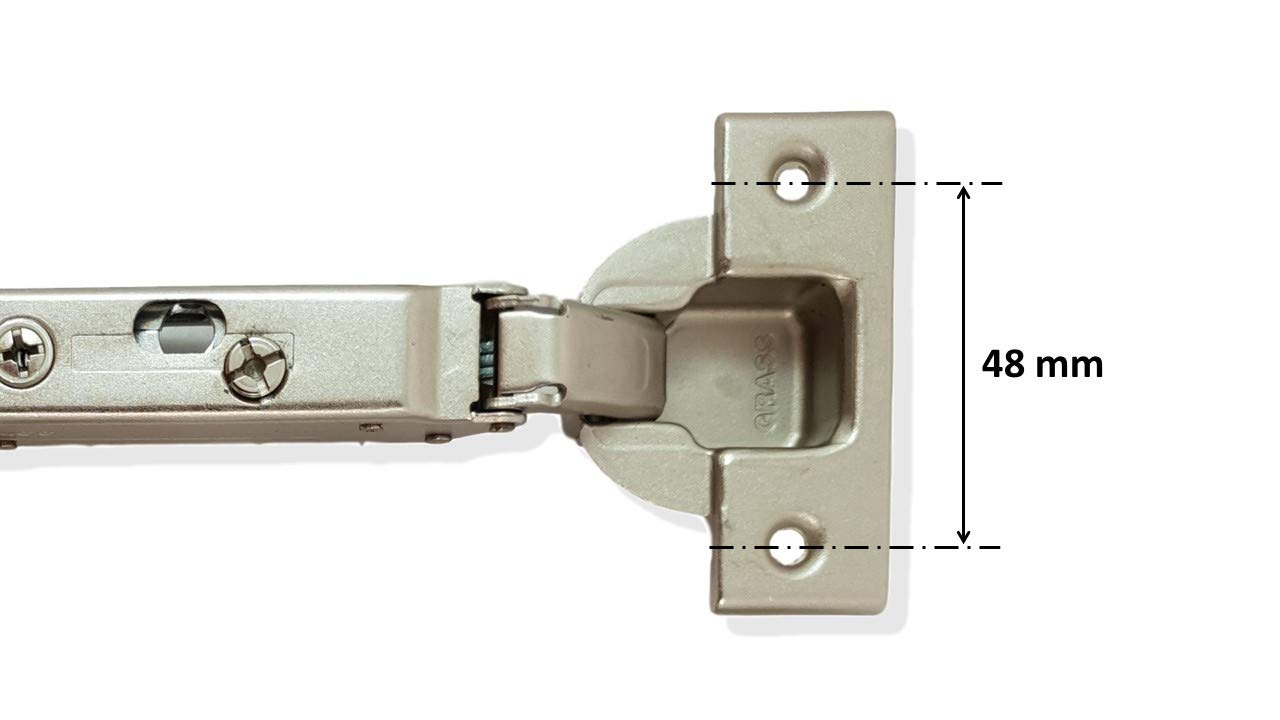

• To replace an existing hinge, please measure the distance between the holes (see photo) and choose the right hinge. There are 3 versions of drilling distance: 42 mm (6065 G), 45 mm (6064 B) and 48 mm (6067 S).
• The hinge system has 4 adjustment options: Cushion adjustment, depth adjustment, height adjustment and an adjustable shock absorber integrated into the hinge arm.
• Height adjustment: ±2 mm, side adjustment: ±2 mm, depth adjustment: +3/-2 mm.
• Click-on: tool-free installation of the door on the body. 110° opening angle. Corner stop (overlay).
• Contents of delivery: 1 x damping hinge. Made by Grass in Germany, high brand quality from Umaxo.

The Grass Tiomos 6067 S hinge from UMAXO is a high quality choice for replacing existing hinges. With three drilling models available (42mm, 45mm and 48mm), this hinge fits most standard sizes. Offers a four-way adjustment system: seat adjustment, depth, height and adjustable damping built into the hinge arm. Height adjustment is ±2mm, side adjustment ±2mm, and depth adjustment is +3/-2mm. Includes the Click-On function for tool-free mounting of the door on the body, with an opening angle of 110° and overlapping corner stop. Made from alloy steel and surface mounted, this hinge is sturdy and durable. The package includes a shock absorbing hinge, made in Germany by Grass, a high-quality brand of UMAXO.
