GPS Active Antenna, Active Antenna Ceramic Patch Internal Module Navigation Connector with Cable 28dB High Gain Signals Received Antenna

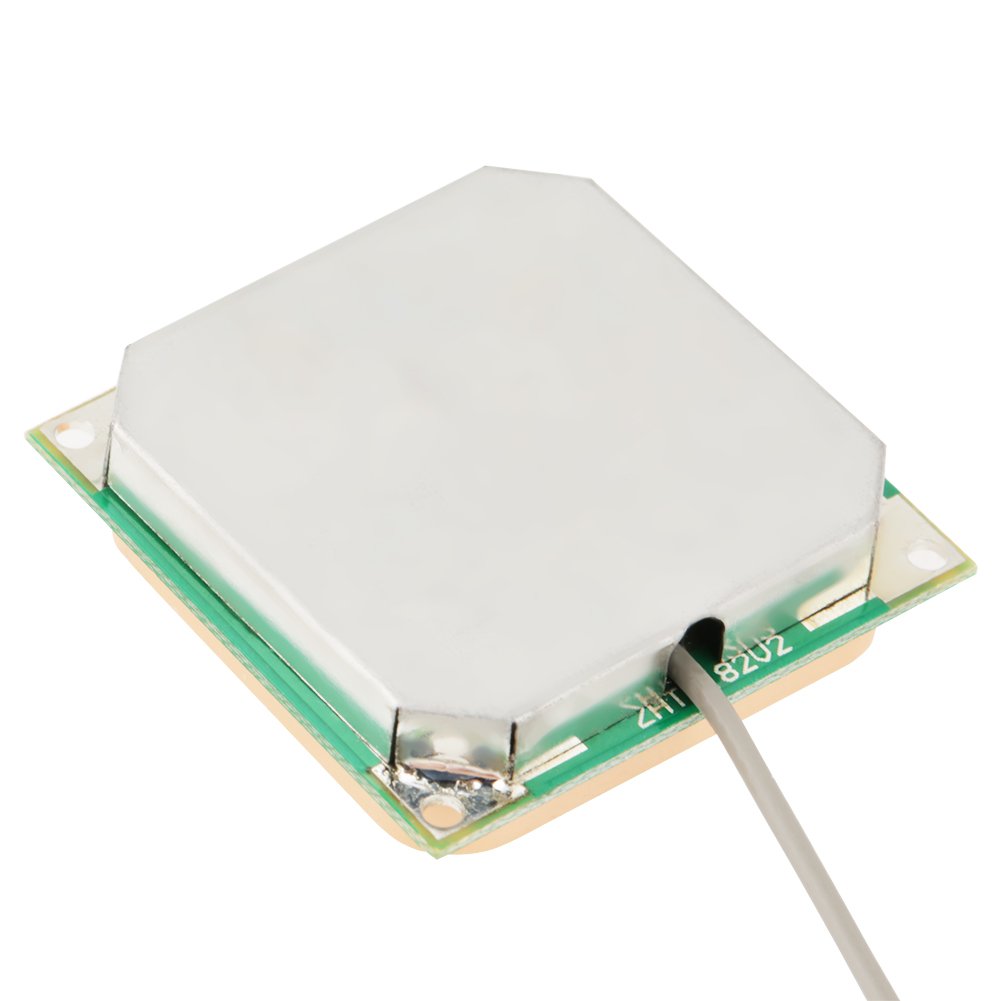

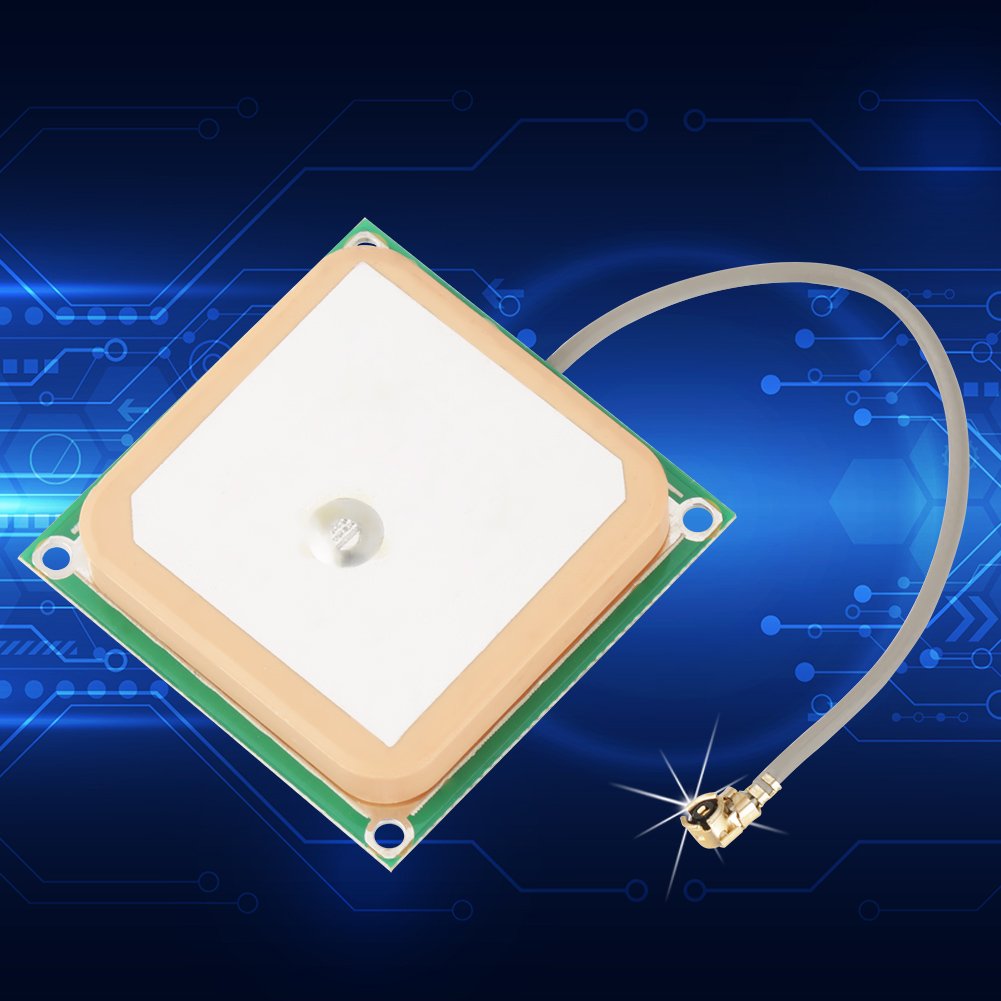

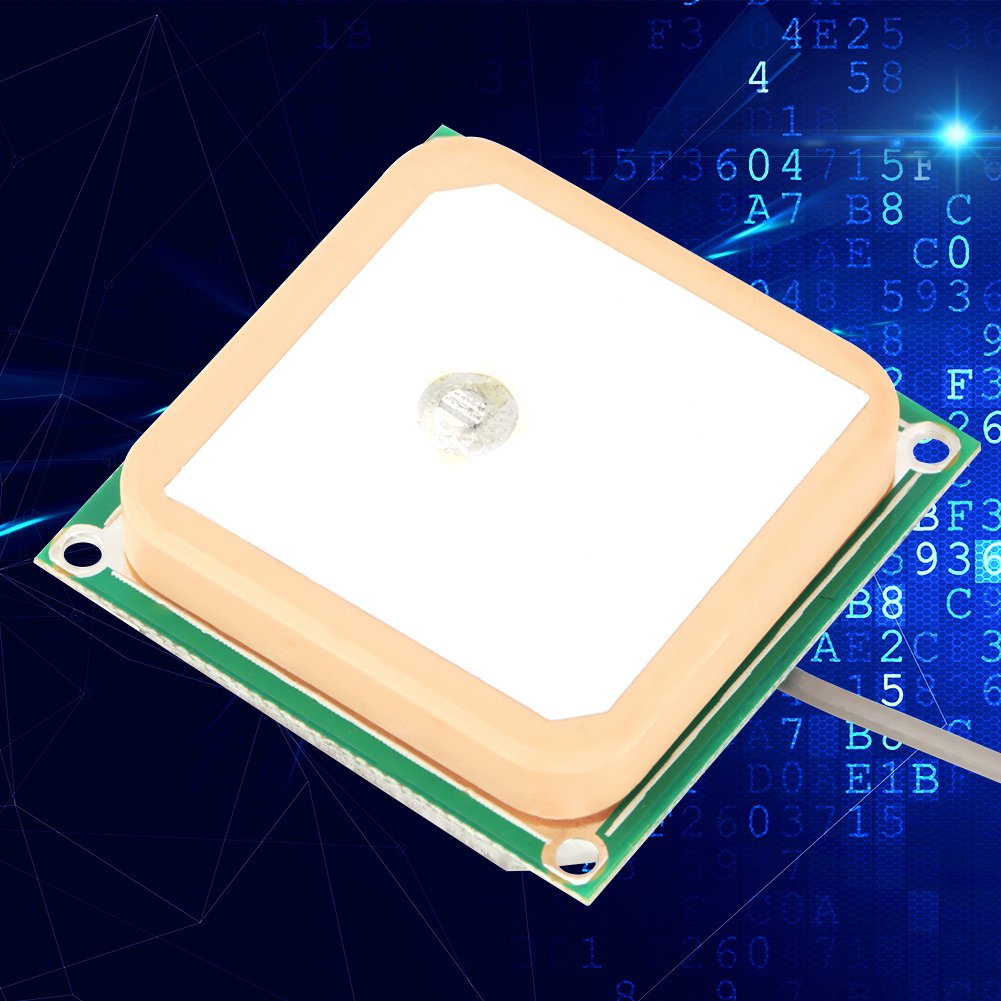

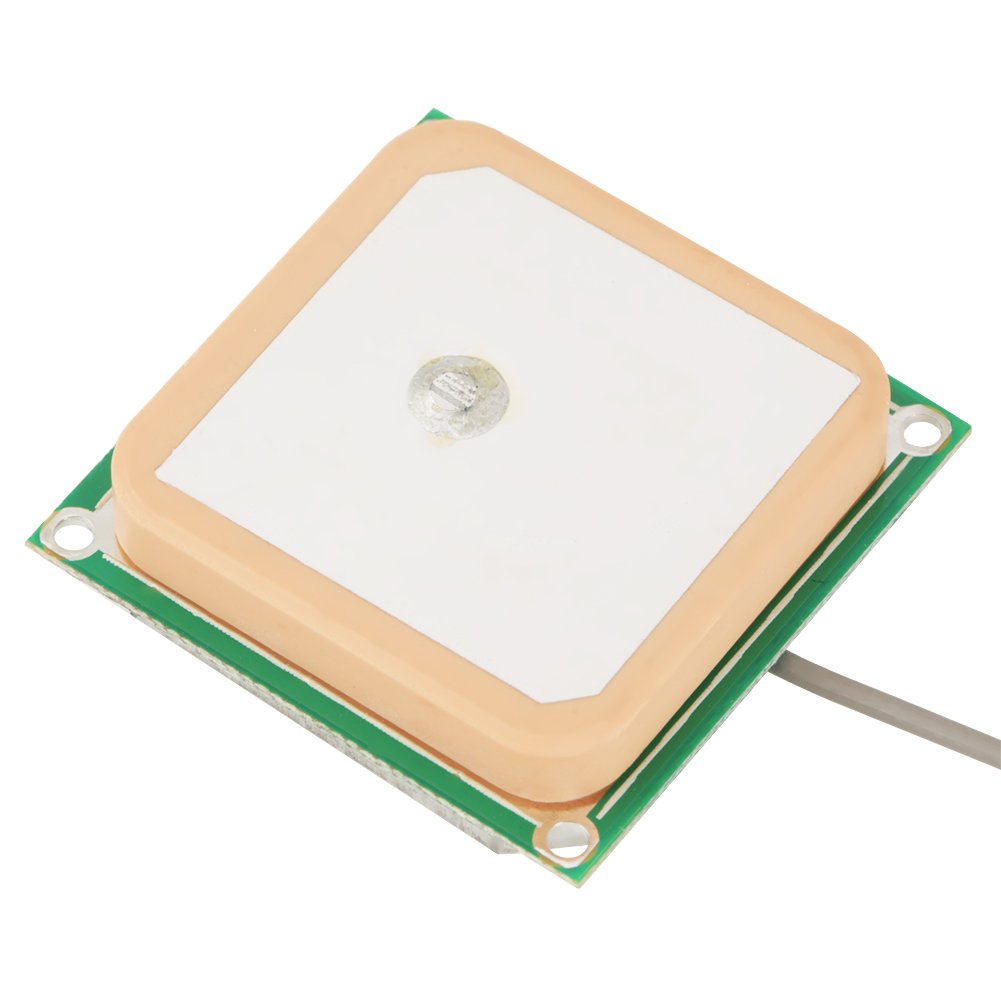

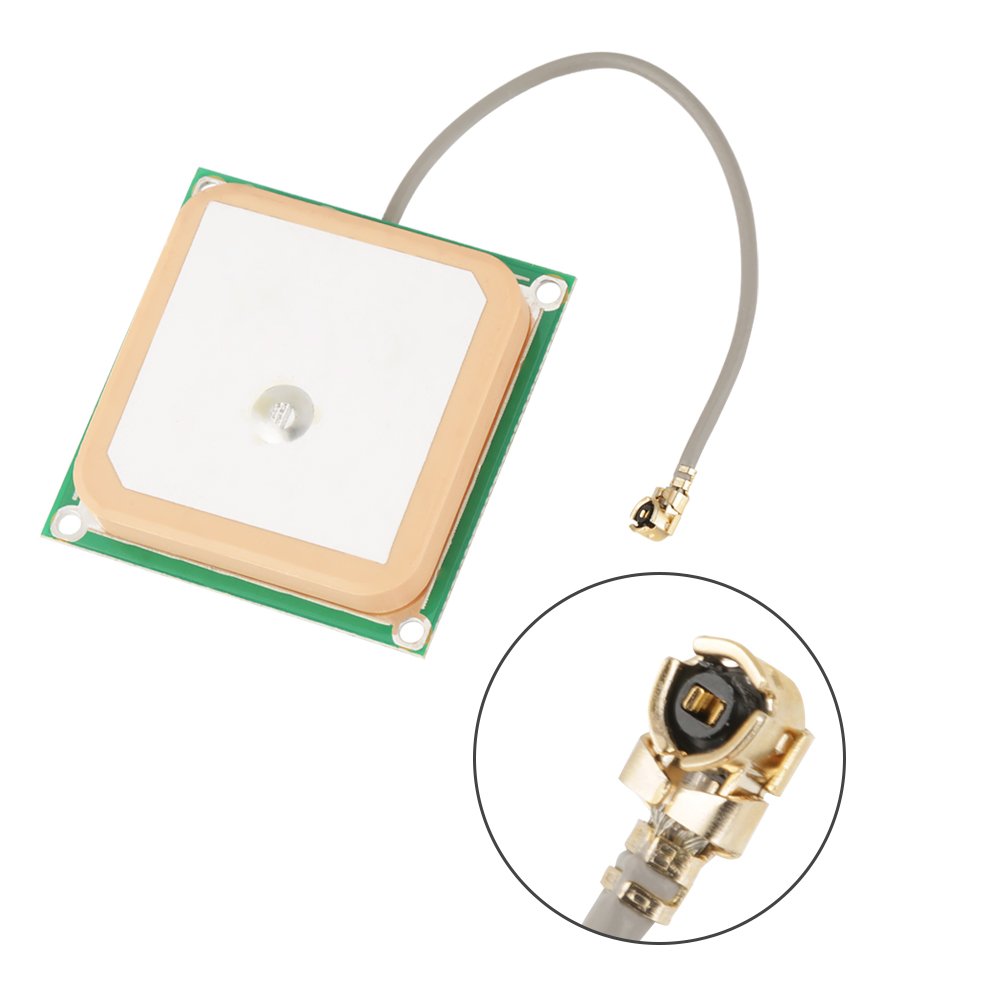

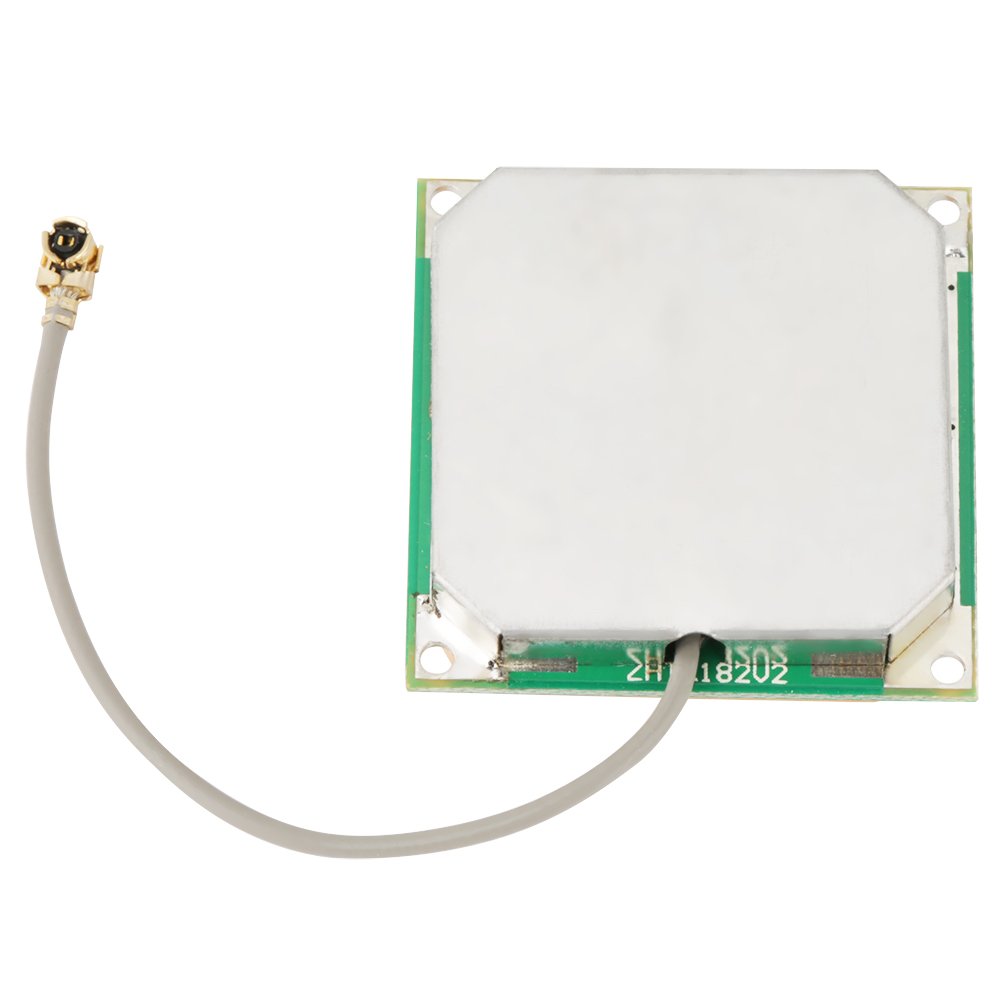

• [Antenna Module] 100% Brand new and high quality. Module with ceramic active antenna and 5cm long cable.
• [Built-in Design] Built in two stage low noise amplifier and filter design.
• [High Gain] This GPS active antenna features high gain of 28dB, GPS active antenna SMA plug, central frequency is 1575MHZ.
• [GPS Signal] GPS satellite signals can be received. DC current is 10mA, low power consumption.
• [After-sales Service] We offer you 24-hour service, we care about the feelings of each customer. If this product does not meet or exceed your expectations, please contact us and we will resolve the issue immediately.

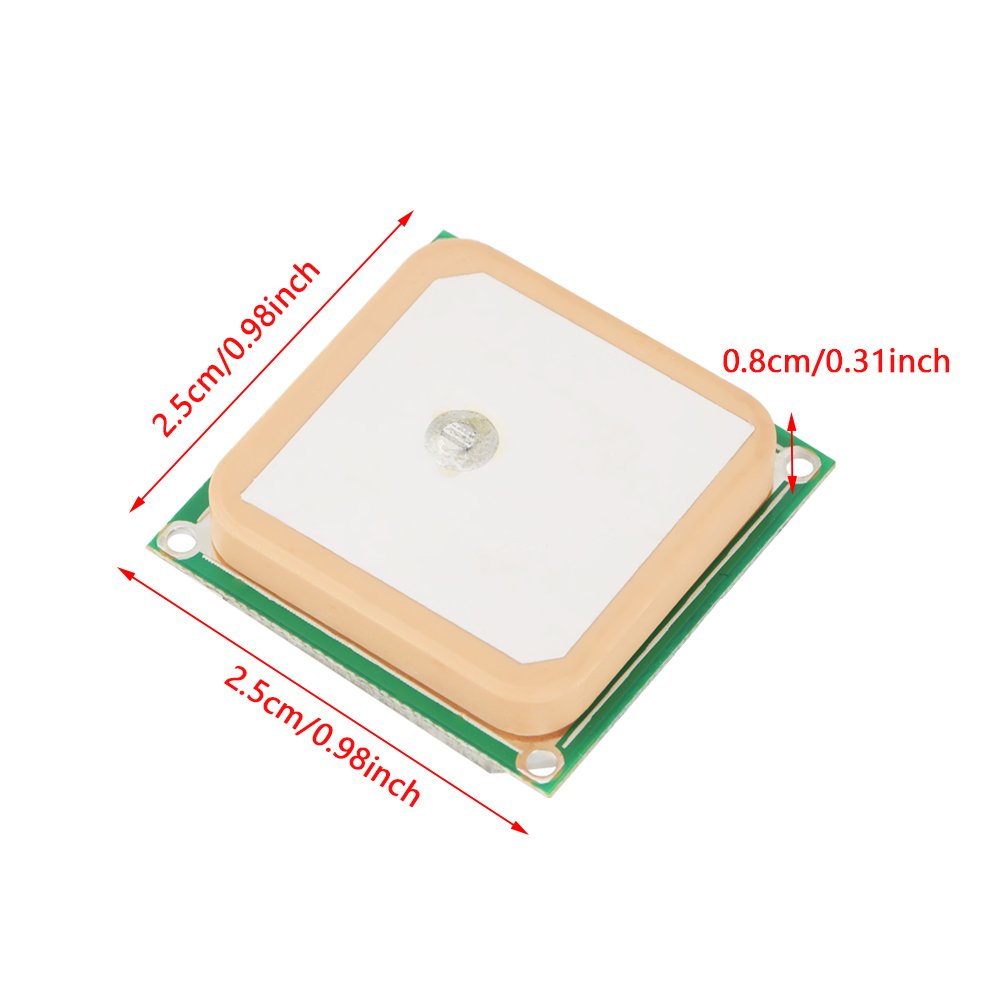

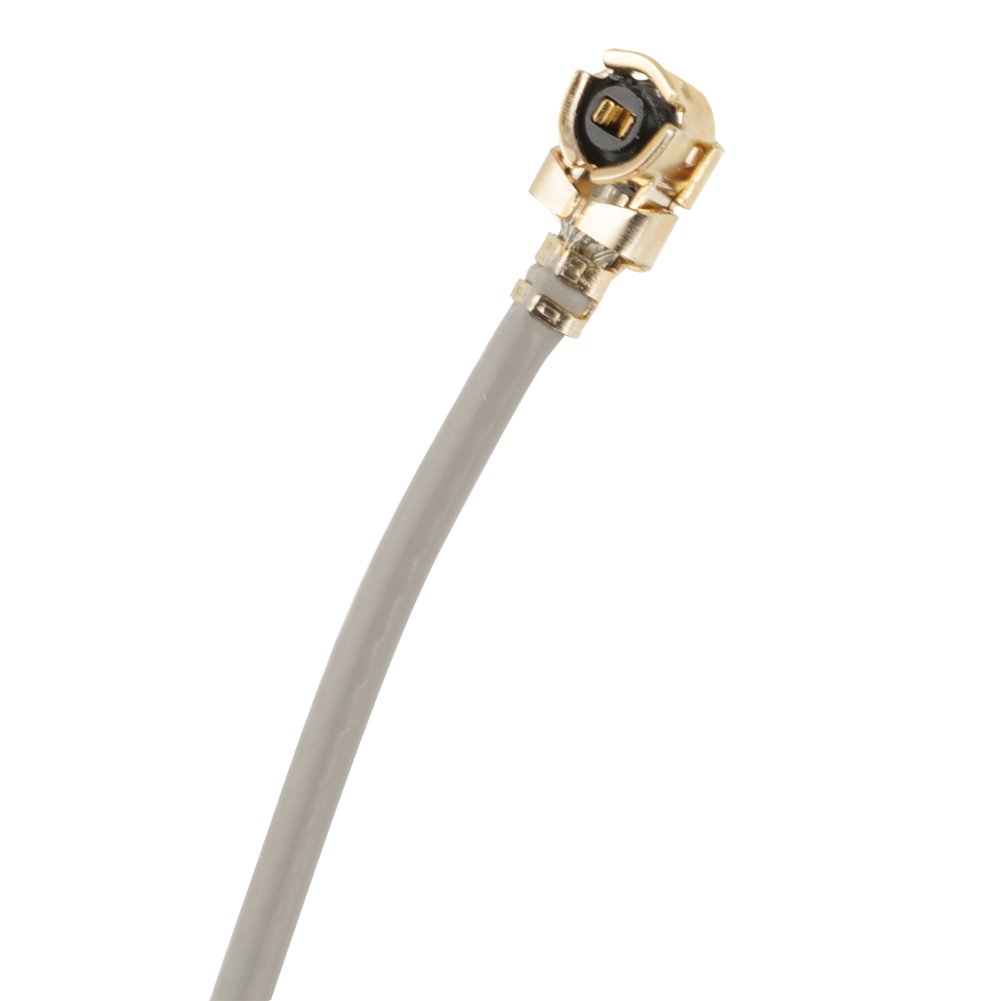

Description Specifications: Central frequency 1575MHZ VSWR 2:1 Bandwidth ±30 MHz Impedance 50Ω maximal gain ＞3dBic Based on 7x7cm Gain margin ＞-4dBic at -90°＜0＜+90° Antenna polarization RHCP Amplifier/filter Amplifier gain 32dB Noise factor 1.5dB Attenuation of filter band 7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz Output VSWR ＜2.0 DC voltage 3V---5V Power consumption 10mA Connector type IPEX Size 25*25*8mm / 0.98*0.98*0.31in Weight 13g Cable length 5cm Working temperature -40℃~+85℃ Waterproof test pass Humidity 95%~100%RH Package included: 1 x Antenna with cable
