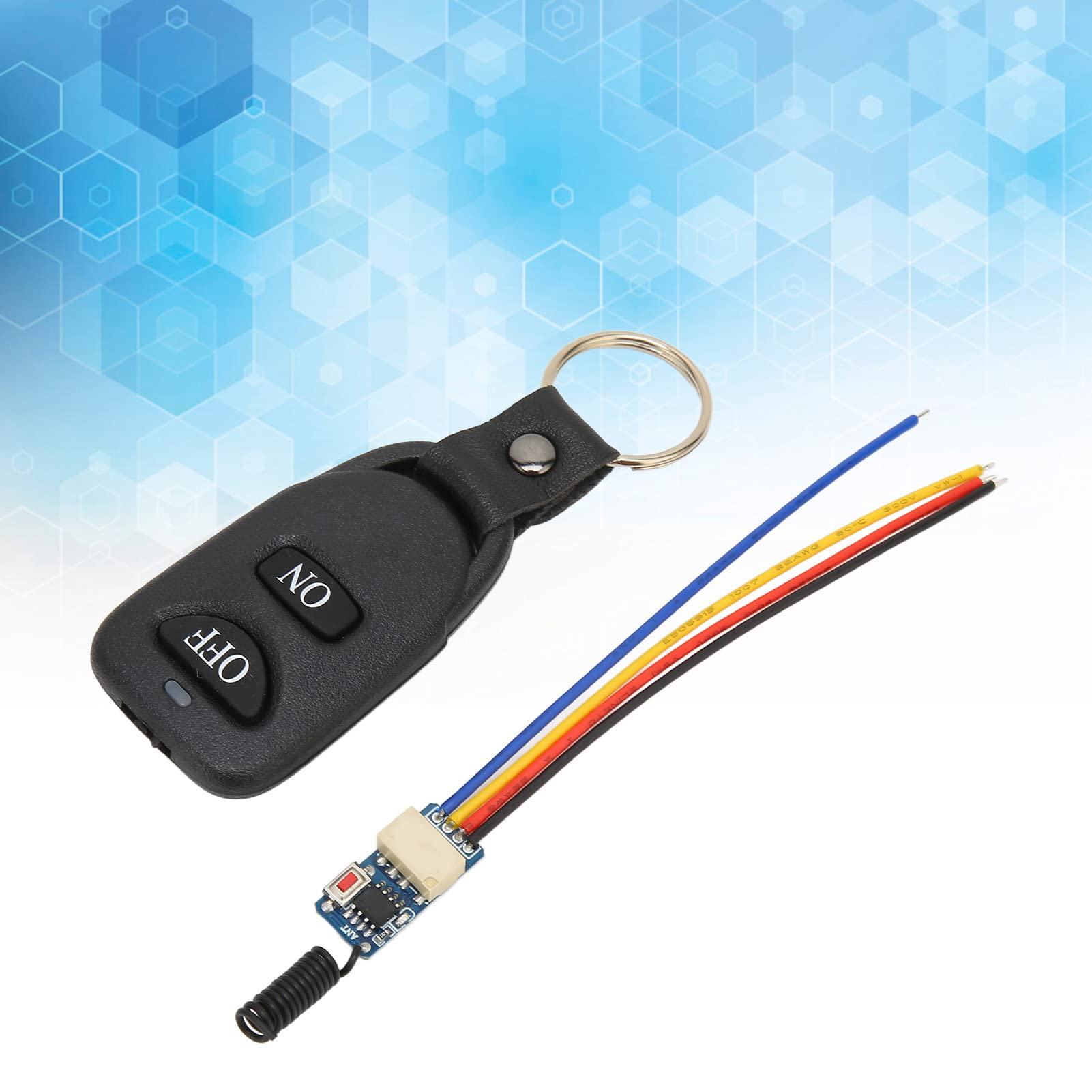

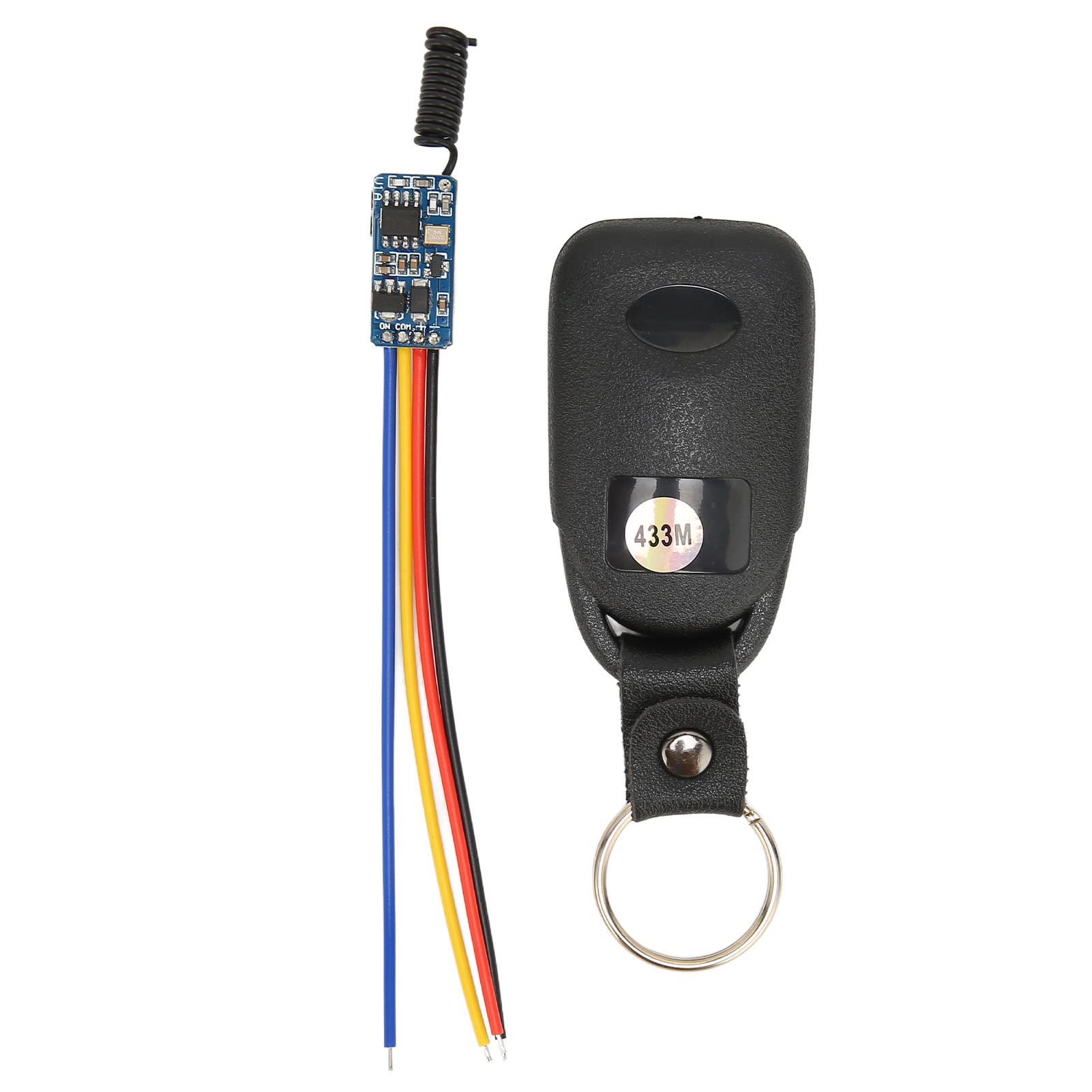

Goshyda Wireless Remote Switch, DC 5V‑24V 3A Mini Relay Wireless Remote Control Switch, Multifunction Remote Relay Latching Switch, Use for Electric Doors, Cars, Lights

• WIDE APPLICATION: The remote control relay switch is suitable for burglar alarm, remote control electric doors and signal control, industrial control, lifting equipment, etc.
• PRACTICAL AND CONVENIENT: Remote control switch module relay contact independent output, very suitable for direct control of all kinds of load.
• ADVANCED TECHNOLOGY: The relay wireless switch using learning codes wireless coding technology (space to codes), no direction, switch interference.

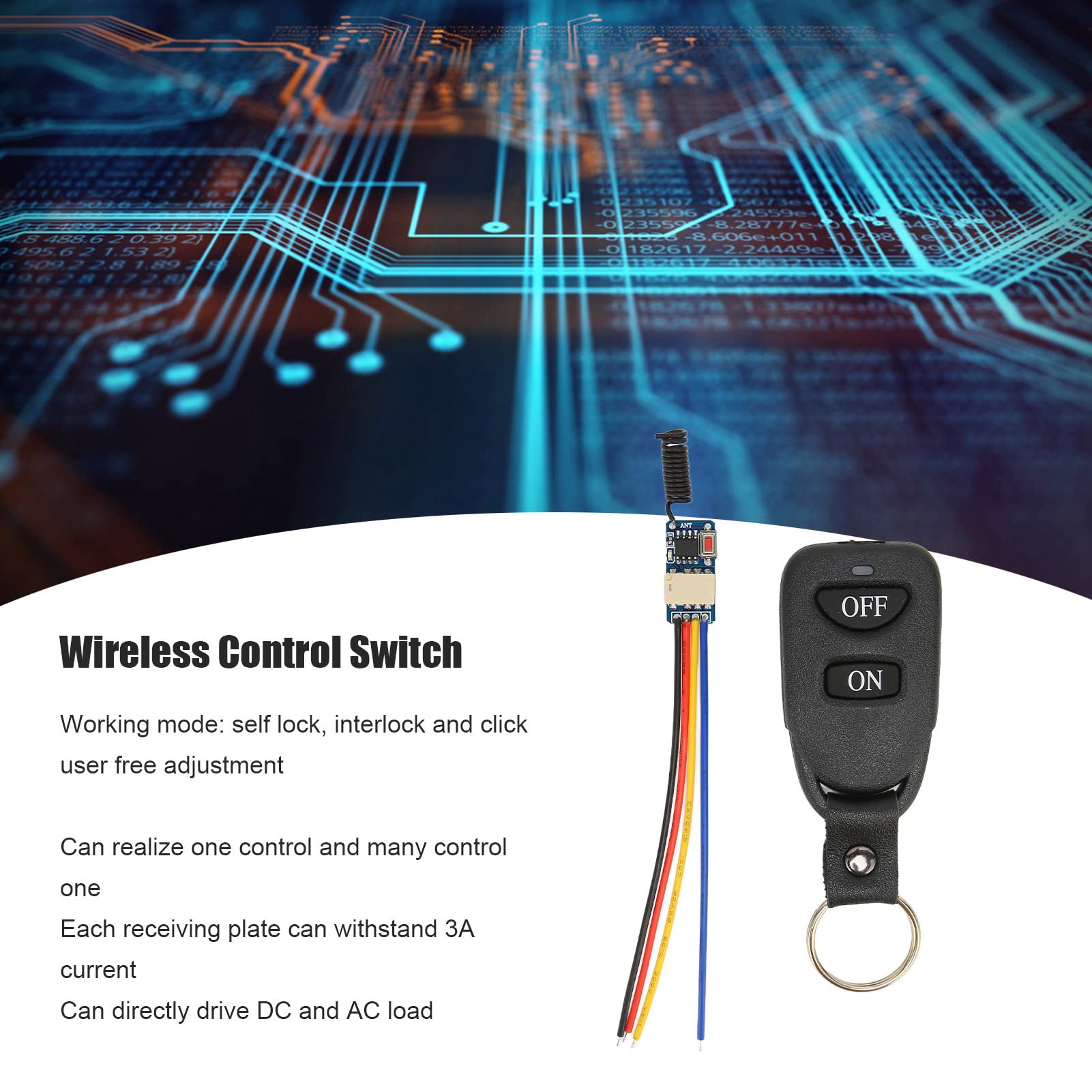

• WORKING MODE: Self lock, interlock and point user free adjustment, can realize one control and many control one. 5V‑24V learning codes remote control switch.

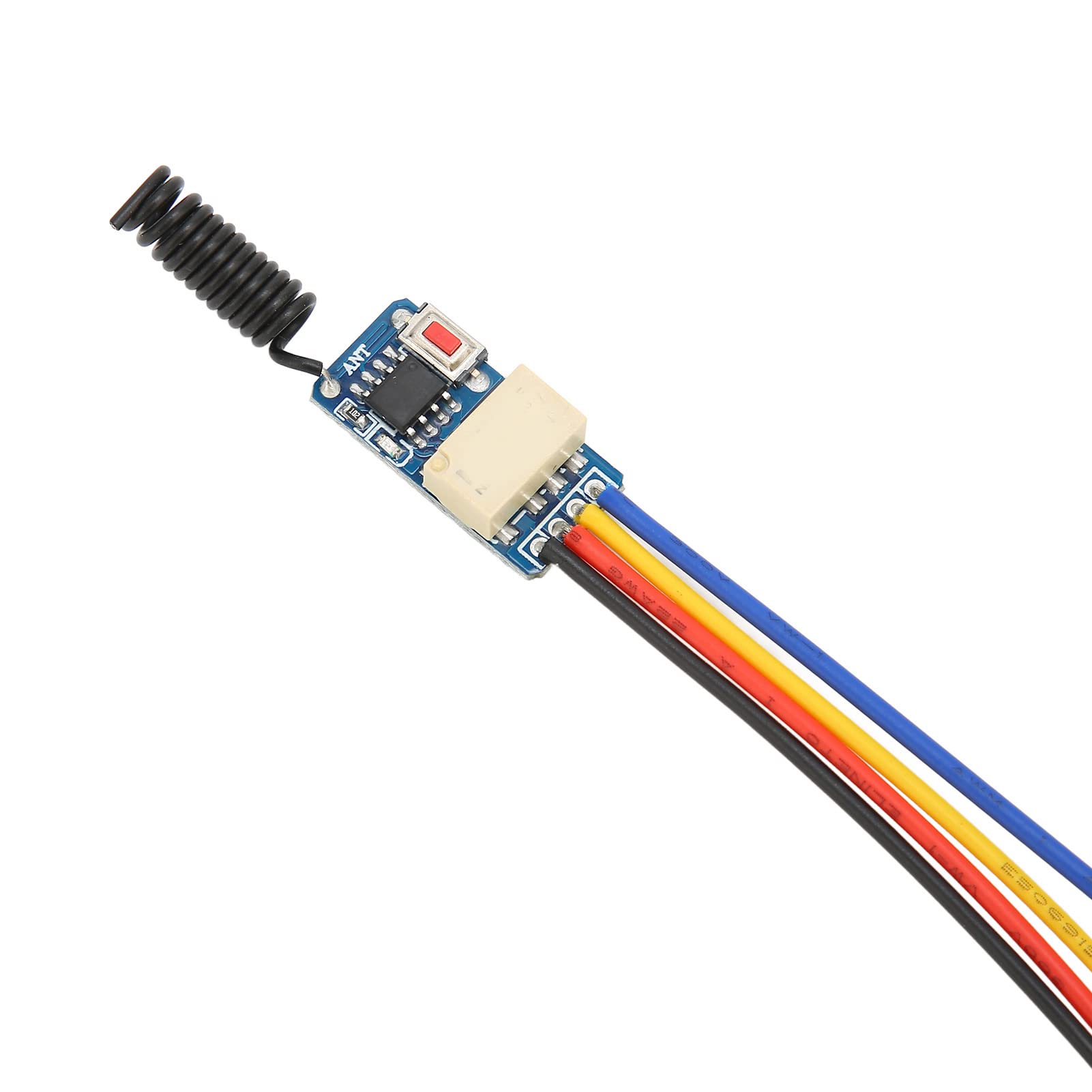

• 3A CURRENT: Receiving plate can withstand 3A current in each circuit, can directly drive DC and AC load, each relay has a set of normally open (normally closed) contacts.

How to Use: Learning remote control and clear codes: Learning: press the learning button and the receiver LED light will turn on. Press the remote control and the LED light will blink once again. Then the remote control will blink once again and the LED light will go off. How to adjust the working mode: Interlock: Hold down the learning button until the LED lights flash, interlock working mode. Click: press and hold the study button until the LED lights flash twice, click the working mode. Self‑lock: Hold down the study button until the LED blinks three times, and then self‑lock the working mode. 5 seconds delay: Hold down the study button until the LED lights flash four times, delay 5 seconds working mode. Delay for 30 seconds: hold down the study button until the LED lights flash for five times, and delay for 30 seconds. 60 seconds delay: press and hold the study button until the LED light flashes for six times, and the delay is 60 seconds. Clear codes: press and hold the study button until the LED blinks seven times and no longer blinks. Specification: Item Type: Remote Control Relay Switch Material: ABS + PCB Working Voltage: 5V-24V Standby Current: 0.3mA Maximum Load: 3A The Input Voltage Equals The Output Voltage Remote Control Parameters: Launch Range: 10-50m/32.8-164.0ft Remote Control Built in Button Battery: 2 x CR2016(75mAh) Package List: 1 x Relay Switch1 x Remote Control
