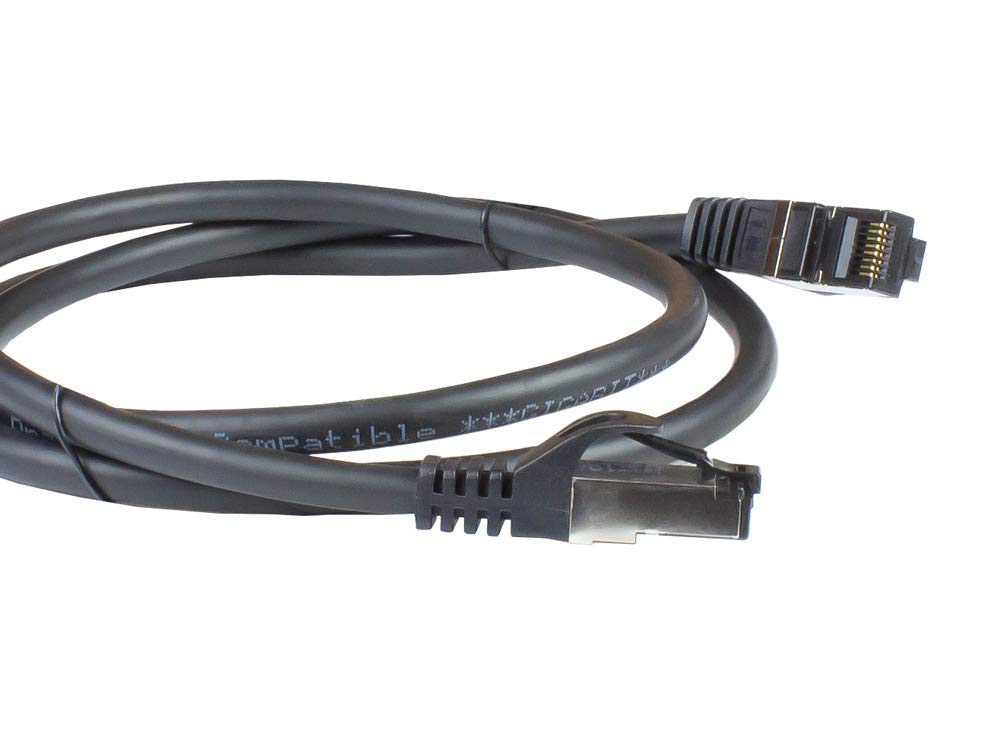

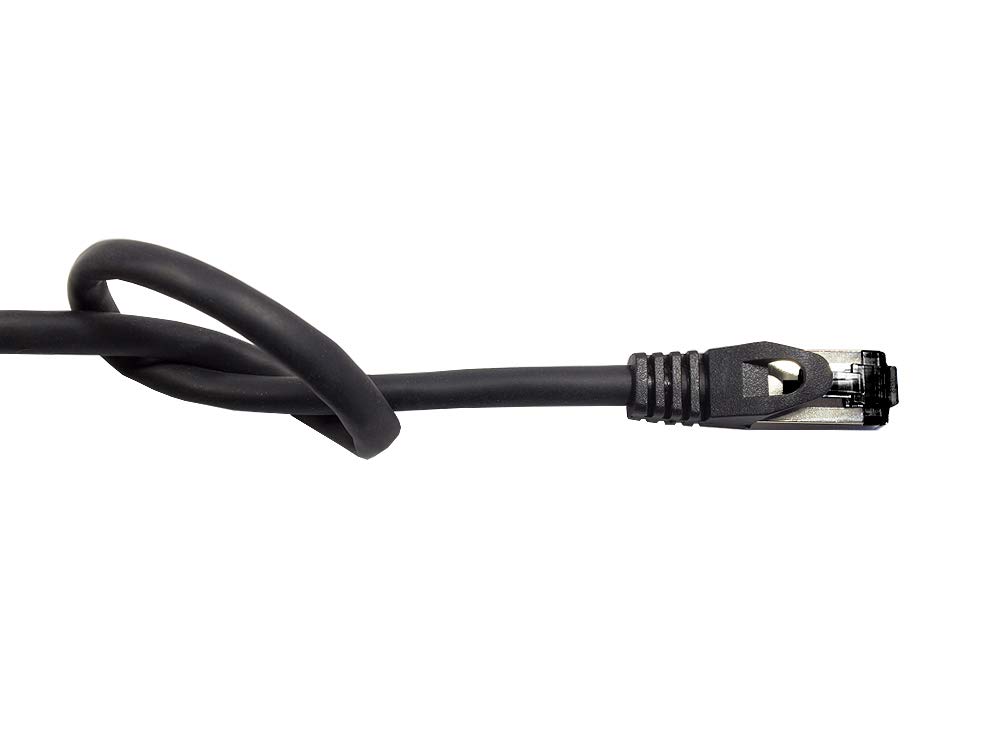

Good Connections® SmartFLEX Cat.6A Industrial (PUR) - 10 m - Highly Flexible 10-GIGABIT - Copper Conductor/CU - Oil and UV Resistant - Drag Chain Suitable - S/FTP, PiMF - Halogen-Free (LSZH) - Black

• Highly flexible industrial patch cable with SmartFLEX technology - Durability: up to a million bending cycles

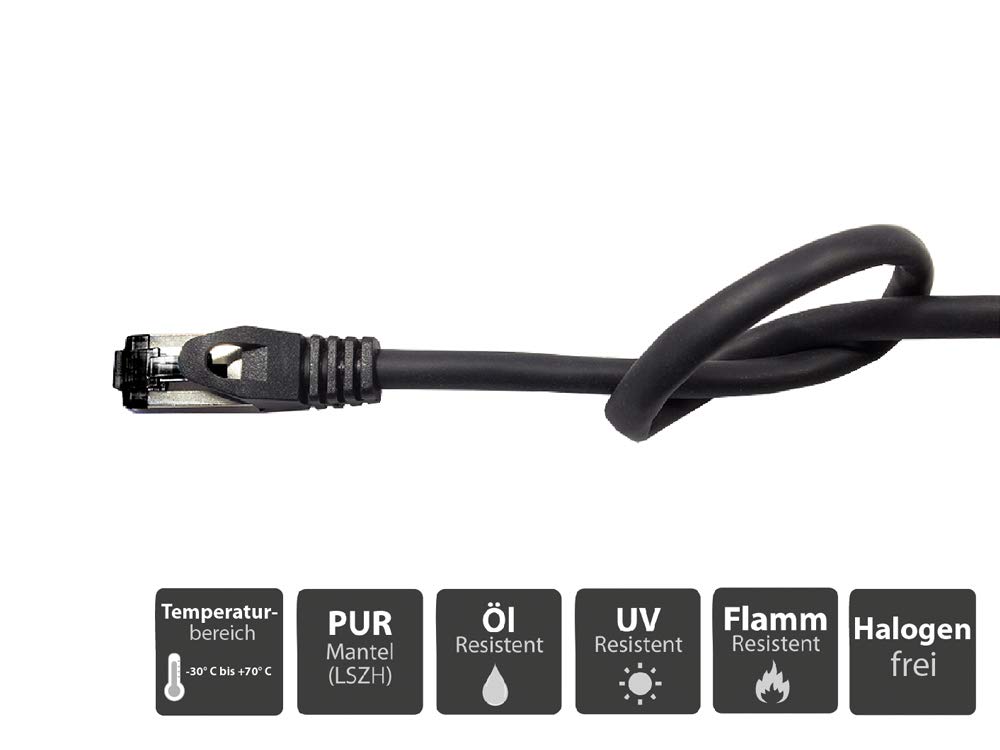

• Abrasion-resistant and durable PUR cable sheath/drag chain suitable, UV and oil resistant - ideal for industrial use
• CAT6A cable - backwards compatible with CAT6 / CAT5e and older versions - 500 MHz max. Bandwidth! - 10 GB
• Quality: 10 GIGABIT-capable Cat.6A network cable with conductor made of pure copper / OFC / CU
• S/FTP shielding (PiMF) for interference-free and consistently high signal transmission. Halogen-free pure sheath LSZH

INDUSTRIE (PUR) Cat. 6A SmartFLEX patch cable. - Highly flexible industrial patch cable with SmartFLEX technology - Durability: Up to one million bending cycles* - Abrasion-resistant and durable PUR cable sheath. - Drag chain suitable and oil resistant – ideal for industrial use. The highly flexible, UV and flame-resistant as well as halogen-free SmartFLEX Cat. Good Connections® 6A Industrial Patch Cable with effective snap-in protection (RNS®) is up to 10 gigabit capable, making it suitable for all network connections. SmartFLEX technology Thanks to the SmartFLEX technology, these patch cables are highly flexible compared to conventional, rather rigid LSZH and PVC cables. The special composition of the halogen-free PUR cable jacket allows very low bending radii and thus facilitates the installation or laying of cables in the network or in industry. In addition to greater flexibility, the SmartFLEX Series cables are also characterized by their mechanical resilience and long durability compared to standard cables, especially in applications where the cable moves (e.g. in industrial applications or movable brackets). High-quality cable construction. The conductor of this patch cable is made of 99.99% oxygen-free copper (CU). This high-quality cable construction allows optimal signal transmission and higher break resistance of the cable. For perfect signal transmission, the RJ45 connectors are shielded and equipped with 50 µ gold-plated copper contacts. LSZH coat for added safety Compared to PVC cables, the low smoke zero halogen (LSZH) cable sheath causes very low toxic smoke gases and low smoke generation in case of fire. This makes the cables ideal for laying indoors - in public areas they are regulated. Technical specification: - Cat. 6A patch cable, backwards compatible with Cat. 6 and Cat. 5E - Suitable for 10/100/1000/10000 Base-T Ethernet networks (10 Gigabit capable) - Max. Bandwidth: 500 MHz - Shielded RJ45 plugs (8P8C) on both sides with latch protection (RNS®) - Plug with 50 µ gold-plated contacts - Length print on connector nozzle. - Assignment 1:1 according to EIA/TIA-568B. - S/FTP cable (shielding foil + braid). - PiMF (pairs of wires in metal foil). - Inner conductor: AWG 26/7. - Conductor material and contacts made of 99.9% oxygen-free copper (CU). - PoE (Power over Ethernet) suitable. - Cable sheath material: PUR (LSZH) - Outer sheath diameter: 6.2 mm +/- 0.2 mm. - Min. Bending radius (dynamic): 59 mm. - Min. Bending radius (static): 32 mm. - Operating temperature: -30°C to +70°C. - Drag chain suitable. - Flame retardant according to IEC 60332-1. - Halogen-free according to IEC 60754-2. - Low smoke according to IEC 61034. Note: This patch cable is not waterproof and not suitable for underground installation. * One million bending cycles at 7.5x OD (outer diameter)
