Good Connections Network Connector - Cat. 6A / 500 MHz / 10 Gigabit Capable - Tool-/Field-Assembled RJ45 Connector for Installation and Patch Cable - STP Shielded - Metal

• Shielded (STP) Zinc Die-Cast Housing, Phosphor Bronze Alloy Contacts, Gold Plated, Power over Ethernet Suitable (PoE, PoE plus, UPoE)
• Suitable for solid conductors (installation cable) AWG 26/1 to AWG 22/1 and stranded conductor (patch cable) AWG 27/7 to AWG 22/7
• Suitable cable diameters: 6mm - 9.5mm and adjustable strain relief
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

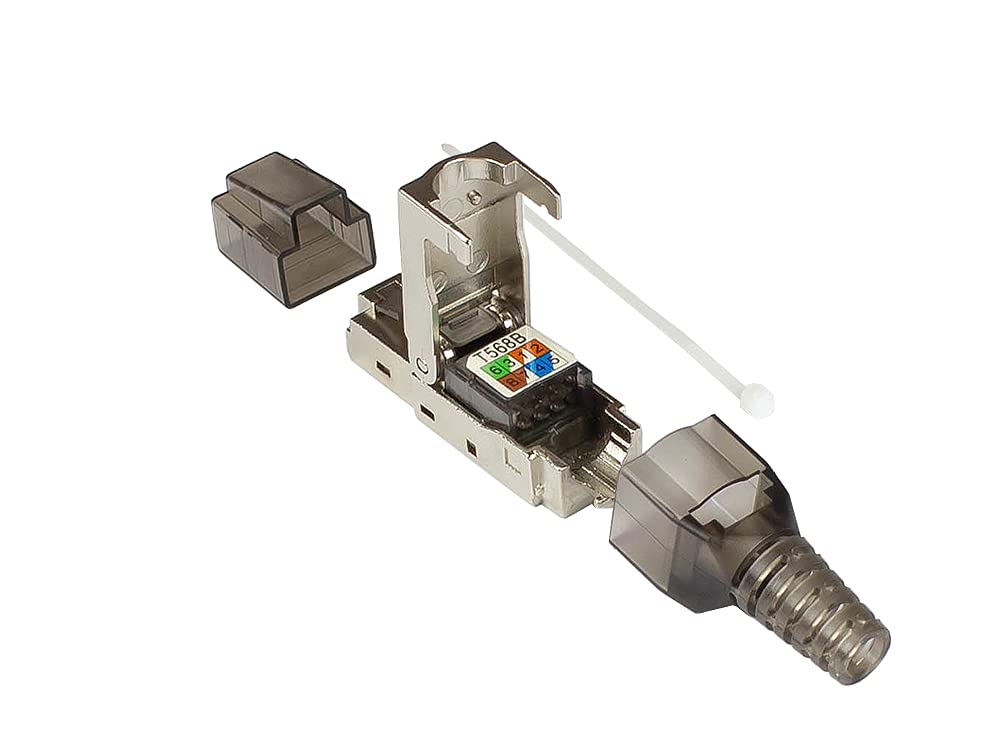

RJ45 plug cat. 6A, tool-free / field mountable, STP shielded, metal. The field mountable cat. 6A RJ45 network connector is suitable for tool-free and quick installation on network cables and is up to 10 gigabit capable. The RJ45 connector can be easily and safely mounted with the threading aid and is suitable for cable diameters from 6 mm to 9.5 mm. For higher tensile strength and safety, the RJ45 connector is equipped with strain relief. Technical specifications: - Tool-free / field mountable RJ45 connector. - Cat. 6A specification, 500 MHz. - Contacts: Phosphor Bronze Alloy, Gold Plated - Shielded (STP) die-cast zinc housing. - Suitable for solid conductors (installation cable) AWG 26/1 to AWG 22/1. - Wire diameter solid conductor: from 0.40 mm to 0.76 mm. - Suitable for stranded conductors (patch cable) AWG 27/7 to AWG 22/7. - Wire diameter stranded conductor from 0.46 mm to 0.76 mm. - Suitable cable diameter: 6 mm - 9.5 mm. - Adjustable strain relief. - Power over Ethernet suitable (PoE, PoE plus, UPoE). - Operating temperature: -25°C to +68°C. Box contents: - 1 x shielded RJ45 plug. - 1 x threading aid. - 1 x dust cap. - 1 x strain relief. - 1 x assembly instructions
