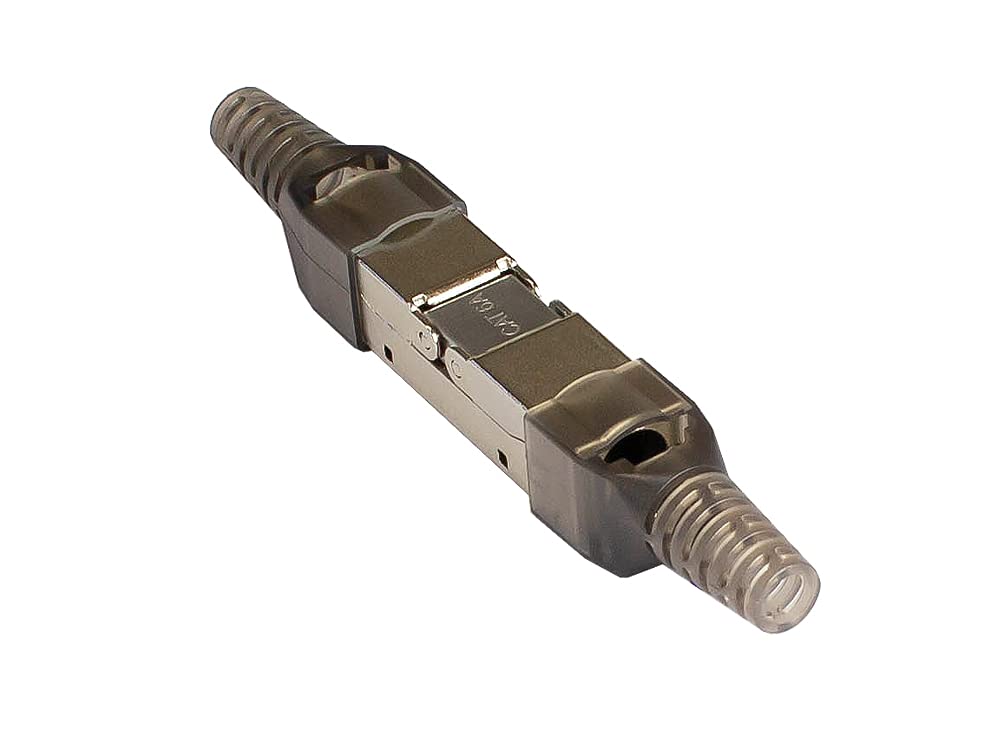

Good Connections Network Connector - Cat. 6A / 500 MHz / 10 Gigabit Capable - Tool-/Field-Assembled Cable Connector for Installation and Patch Cables - STP Shielded - Metal

• Tool-free / field assembly RJ45 cable connector with cat. 6A specification, 500 MHz - 10 Gigabit capable
• Shielded (STP) metal housing with zinc alloy, contacts: phosphor bronze alloy, gold plated, power over Ethernet suitable (PoE, PoE plus, UPoE)
• Suitable for solid conductors (installation cable) AWG 26/1 to AWG 22/1 and stranded conductors (patch cable) AWG 27/7 to AWG 22/7
• Suitable cable diameter: 6mm - 9mm and adjustable strain relief
• Box contents: 1x shielded RJ45 cable connector, 2x threading aid, 2x strain relief, 2x cable ties, 1x assembly instructions (English language not guaranteed)

Cable connector cat. 6A, tool-free / field mountable, LSA, STP shielded, metal. The field mountable cat. 6A RJ45 cable connector is suitable for tool-free and quick connection of two network cables and is up to 10 gigabit capable. For higher tensile strength and safety, the RJ45 connector is equipped with adjustable strain reliefs on both sides. Technical specifications: - Tool-free / field mountable RJ45 cable connector. - Cat. 6A specification, 500 MHz. - Contacts: Phosphor Bronze Alloy - Shielded (STP) metal housing with zinc alloy. - Suitable for solid conductors (installation cable) AWG 26/1 to AWG 22/1. - Suitable for stranded conductors (patch cable) AWG 27/7 to AWG 22/7. - Suitable cable diameter: 6 mm - 9 mm. - Adjustable strain relief. - Power over Ethernet suitable (PoE, PoE plus, UPoE). - Operating temperature: -25°C to +68°C. Box contents: - 1 x shielded RJ45 cable connector. - 2 x threading aid. - 2 x strain relief. - 2 x cable ties. - 1 x assembly instructions
