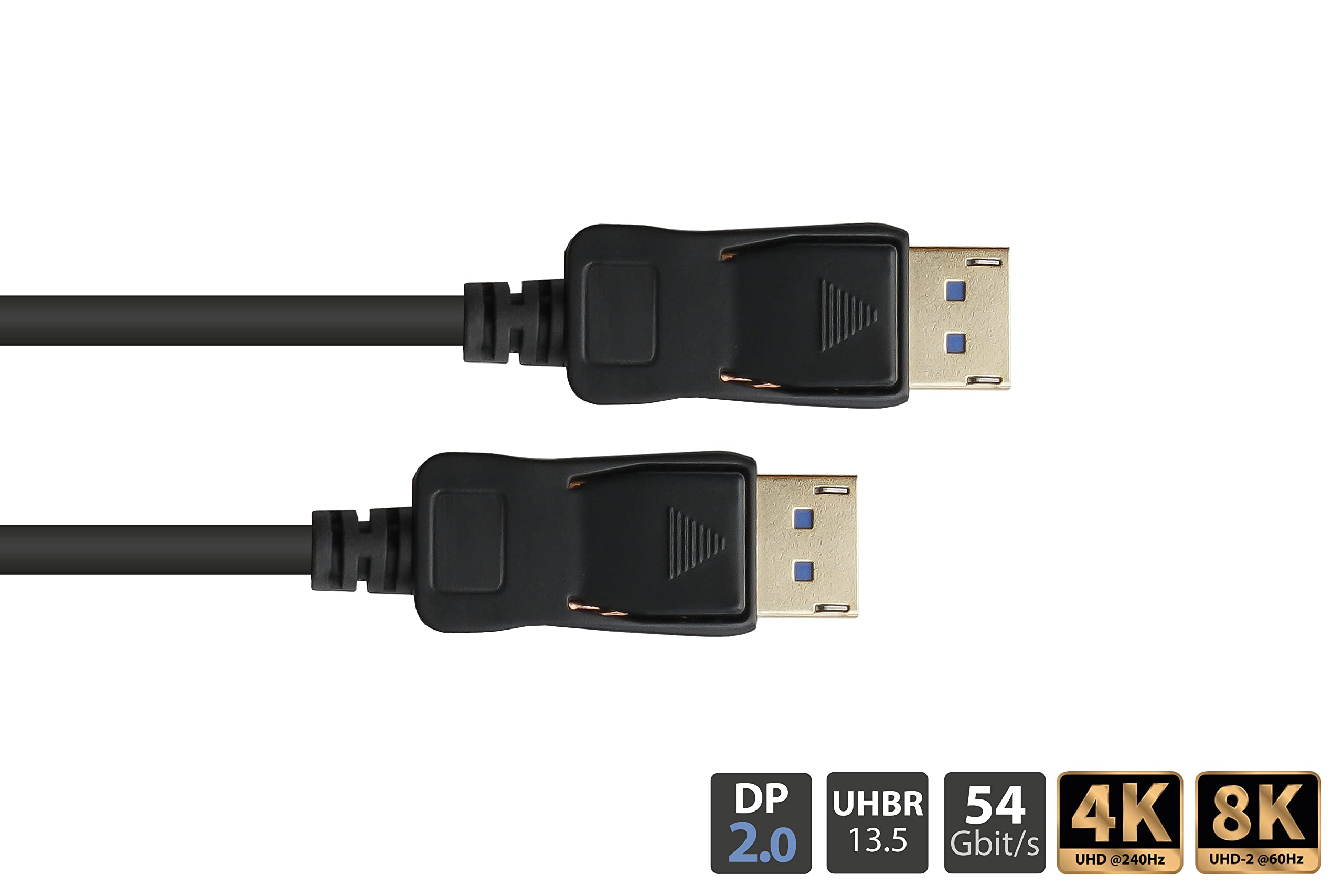

Good Connections DisplayPort 2.0 Cable - 1.5 m - 54 Gbit/s, UHBR 13.5-4K @240Hz / 8K @60Hz - Copper Conductor - Black

• DisplayPort 2.0 resolutions up to 8K / UHD-2 @ 60Hz and 4K @ 240Hz - ideal for demanding gaming and multimedia applications
• Bandwidth up to 54 Gbps - UHBR 13.5 - 13.5 Gbps per lane, supports DSC 1.2a, multi-stream transport (MST) and FEC
• Safety: a locking protection (lock) attached to the connectors prevents accidental loosening of the plug from the socket

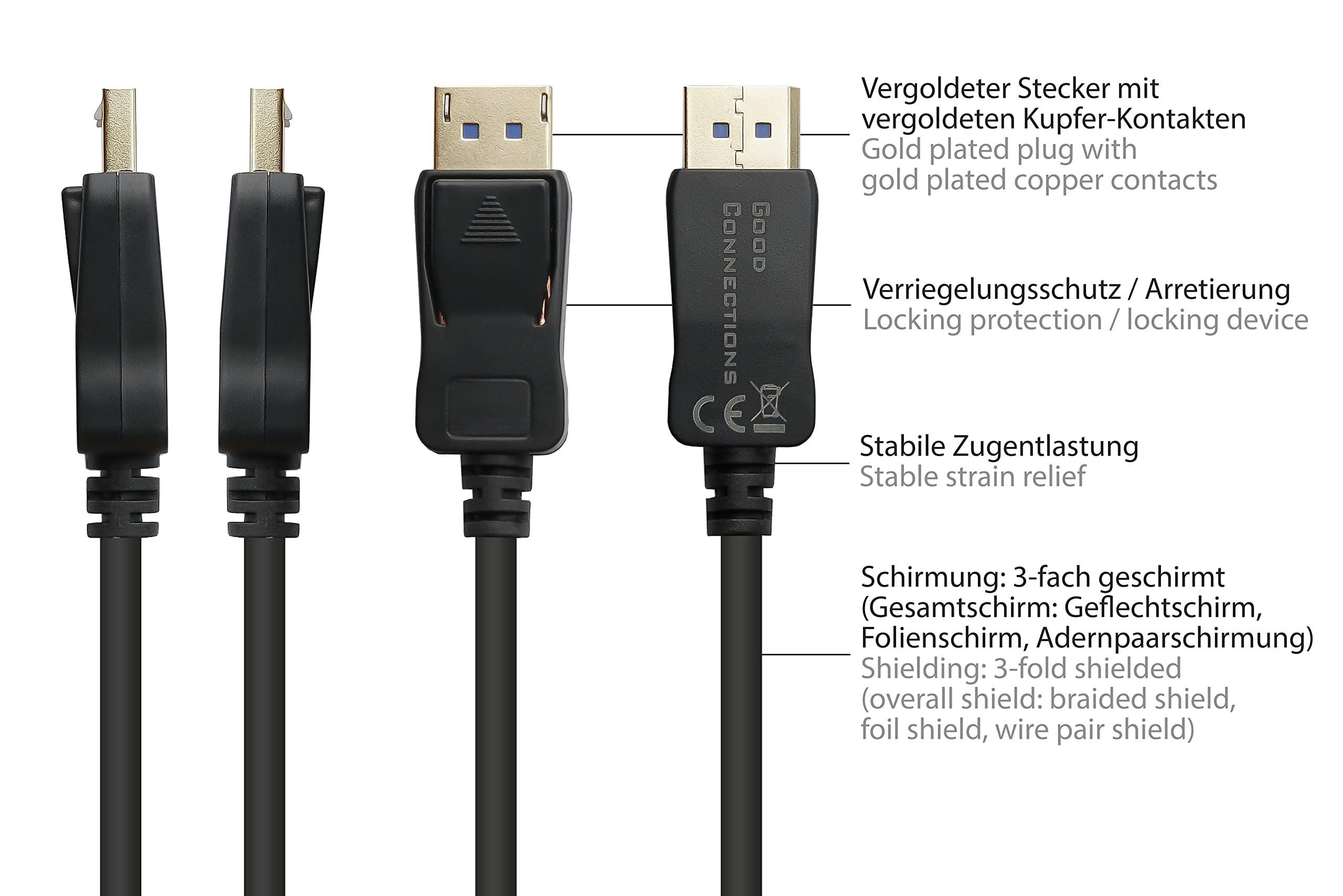

• High quality: high-quality copper conductor, gold-plated contacts and high-quality triple shielding (braided shield, foil shield, wire pair shield)
• Length: 1.5 m - black

The DisplayPort 2.0 cable from Good Connections guarantees consistently high signal transmission up to 8K/UHD-2, as well as data rates up to 54 Gbps. Thanks to a high-quality cable construction with triple cable shielding and connectors with copper contacts and locking protection (locking), this DisplayPort 2.0 cable is suitable even for demanding gaming and multimedia applications. DisplayPort 2.0 - resolutions up to 8K / UHD-2 @60Hz and 4K / UHD @240Hz. This high-quality DisplayPort cable supports with a bandwidth of max. 52.22 Gbps (via UHBR 13.5) resolutions up to 8K / UHD-2 @60Hz and 4K / UHD @240Hz (colour sampling 4:4:4 / RGB). In addition, 32 audio channels are supported at a sample rate/sampling rate of 1,536 kHz. Thus, all well-known audio formats can be processed, for example, the room sound formats Dolby Atmos, DTS:X and Auro 3D. Display Stream Compression (DSC) 1.2a and Forward Error Correction (FEC) DSC technology is a visually lossless compression process, which uses very high resolutions and compresses the streamed video data. Thus, DisplayPort 2.0 (UHBR 13.5) is able to play 8K / UHD-2 @144Hz with colour sampling 4:4:4 / RGB (DSC enabled). The FEC ensures error-free transmission of compressed DSC data. High-quality materials and triple shielding The shielded plugs with gold-plated contacts guarantee an optimal connection. The locking protection attached to the connectors prevents the plugs from accidentally slipping out. The conductors of the cable are made of copper (CU). In combination with the high-quality triple shielding, this allows lossless signal transmission and higher breaking strength of the cable. Selection of supported and tested resolutions: - 3840*2160 @120Hz - 4:4:4 colour, 12 bit. - 3840*2160 @60Hz - 4:4:4 colour, 12 bit. Technical specification: - DisplayPort 2.0 support, backwards compatible. - Supports 8K / UHD-2 at a frequency of 60 Hz (colour sampling 4:4:4 / RGB). - Supports 8K / UHD-2 at a frequency of 120 Hz (colour sampling 4:2:0 or DSC). - Supports 4K / UHD at a frequency of 240 Hz (colour sampling 4:4:4 / RGB). - Transmission of audio and video signals. - Supports colour samplings in 4:4:4, 4:2:2 and 4:2:0 formats. - Supports Display Stream Compression 1.2a (DSC), HDR10, HDCP 1.4 and HDCP 2.3 - Data rate: max. 52.22 Gbps (UHBR 13.5-Link per Lane - 54 Gbps) - DisplayPort connector on both sides with locking protection. - Pin 20 is not occupied. - Conductor cross section: AWG30/1. - Shielding: triple shielded (total shield: braided shield, foil shield, wire pair shielding). Note: Please note that higher color samplings reduce refresh rate. The maximum resolution may vary depending on the hardware connected and depending on the system used.
