gohantee LPG Safety Control Valve Kit, Low Pressure Propane Flame Failure Safety Control Valve 5/8”-18UNF (3/8" Flare Inlet & Outlet) with Thermocouple Knob Switch Kit for Propane Fire Pit, Fireplace

• 【High Quality】Fire pit gas control valve kit are made of brass and zinc alloy and are rugged and durable.

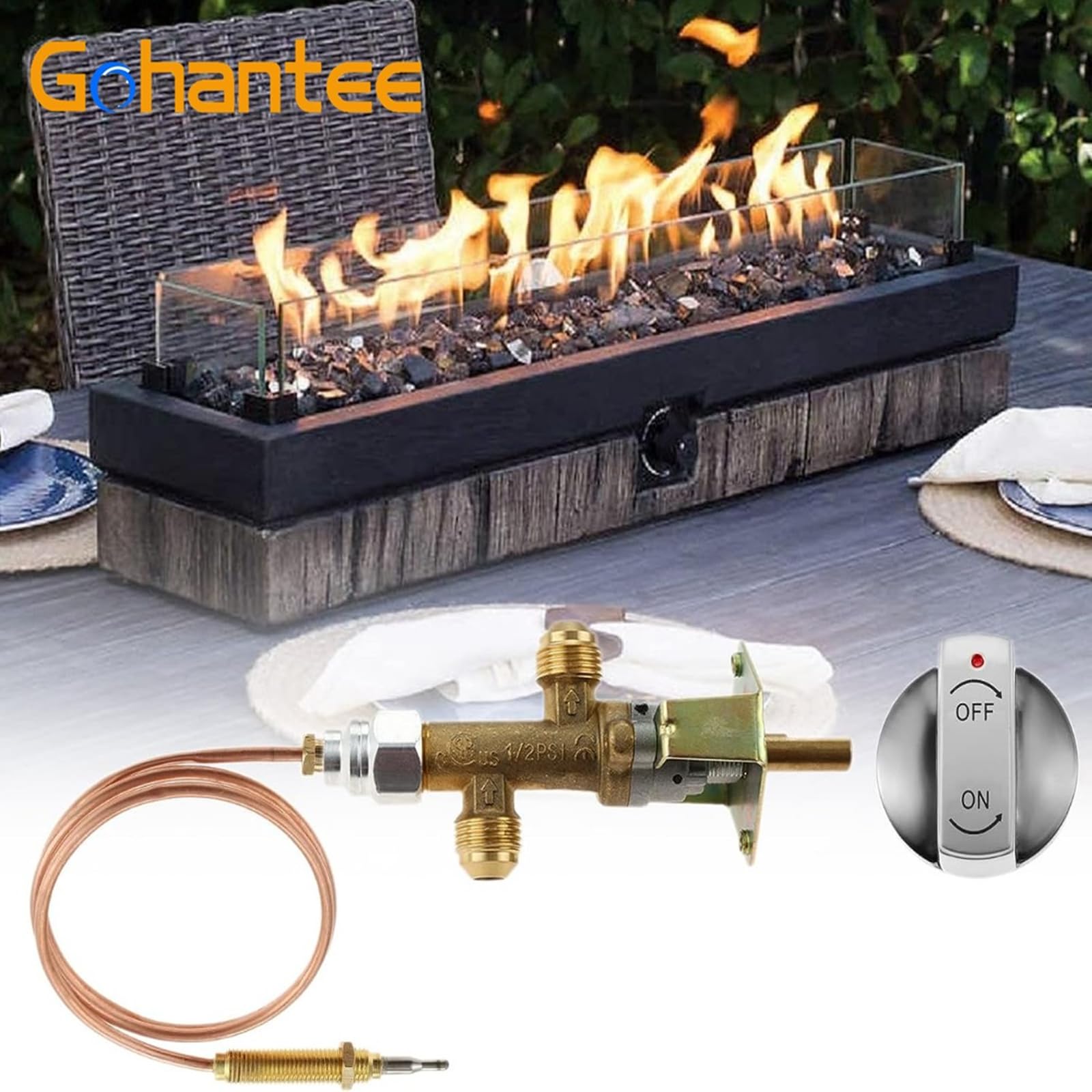

• 【Widely Used】Fire pit gas control valve set is suitable for low pressure burners below 50,000 BTU and below 65 mbar (1/2 psi) operating pressure only. Widely used in gas grille, heaters, fire pits, fireplaces (if the connection is the same).

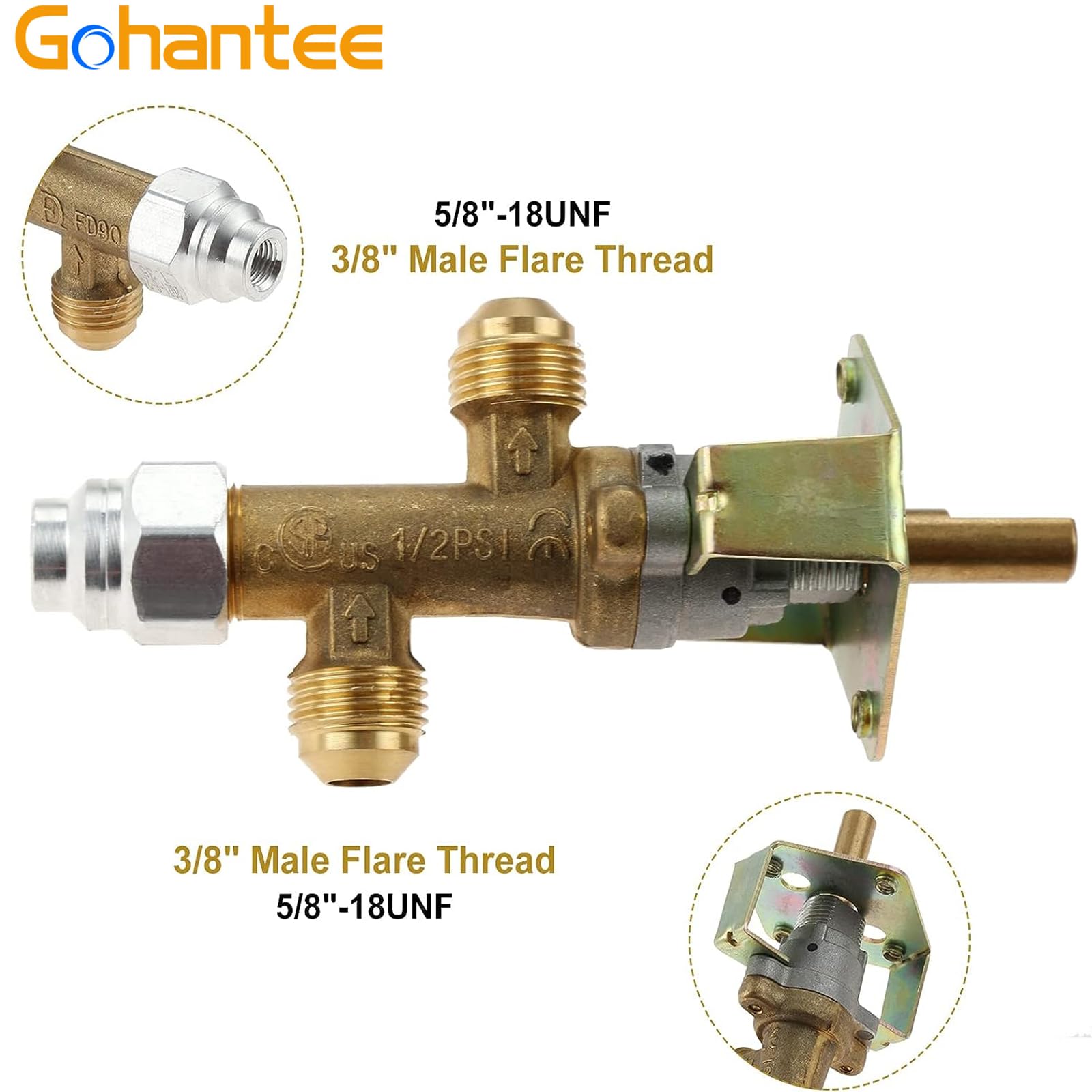

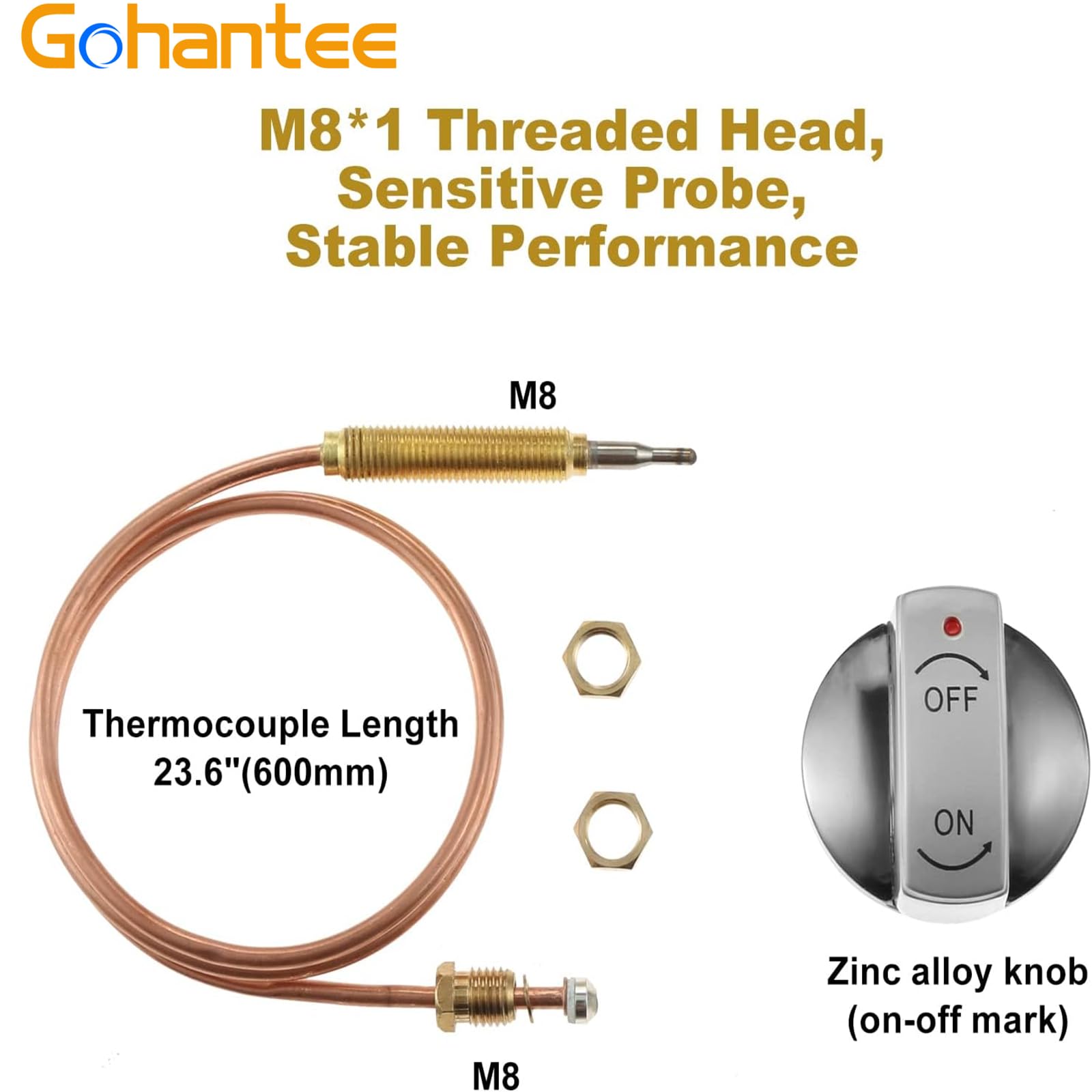

• 【Demension】Flame failure valve with flare male thread 5/8’’-18UNF; thermocouple length 600 mm/23.62 inches; M8*1 threaded head; valve "D" insert 6.0-6.1 mm.

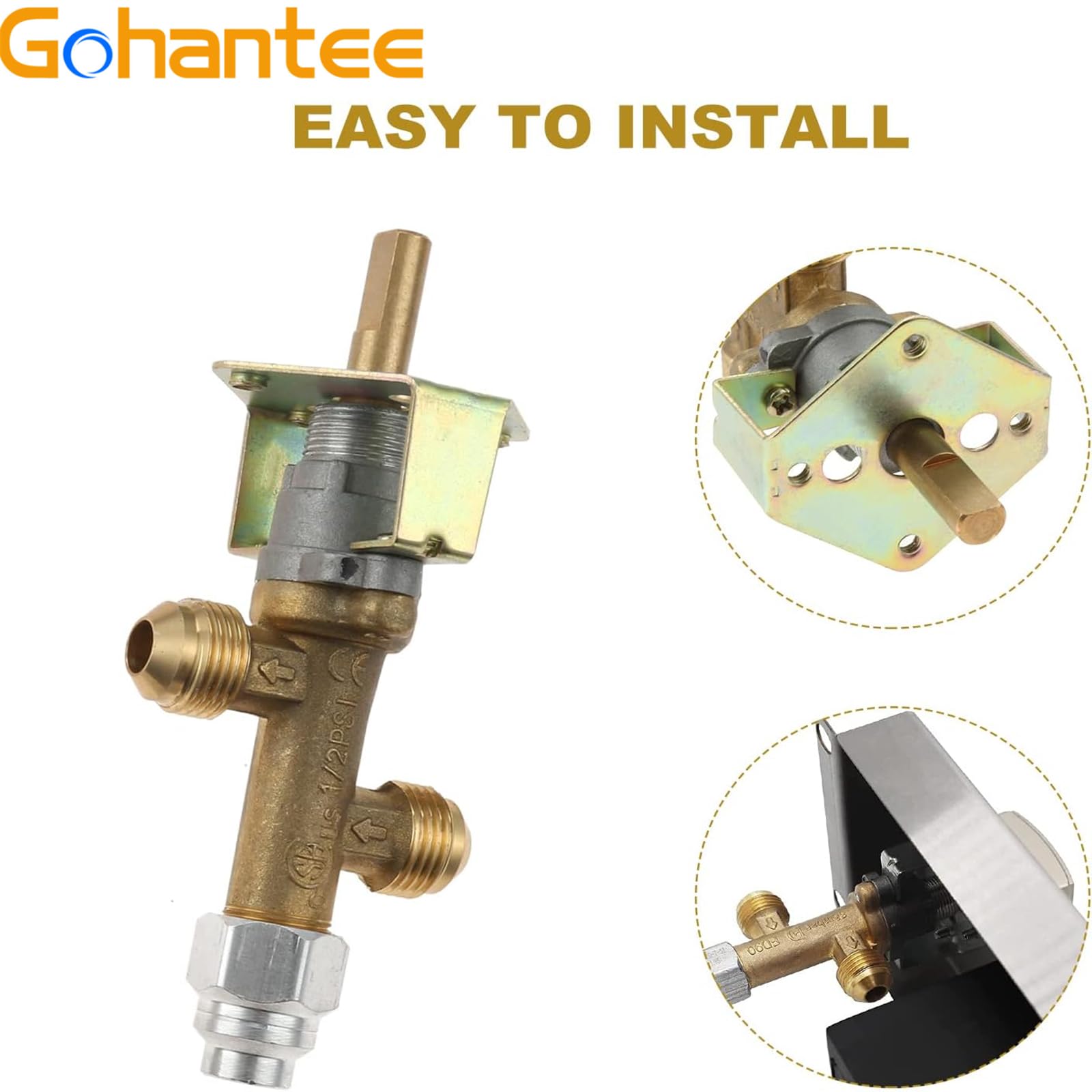

• 【Easy to Install】The low-pressure pit flame failure safety control valve kit is easy to install. The control valve is installed vertically at the opening of the equipment, and the valve is fixed to the grille plate or pit plate by screws through four threaded holes, and the thermocouple nut M8 is tightly fixed on the valve end. The knob is glued on to finish the installation.

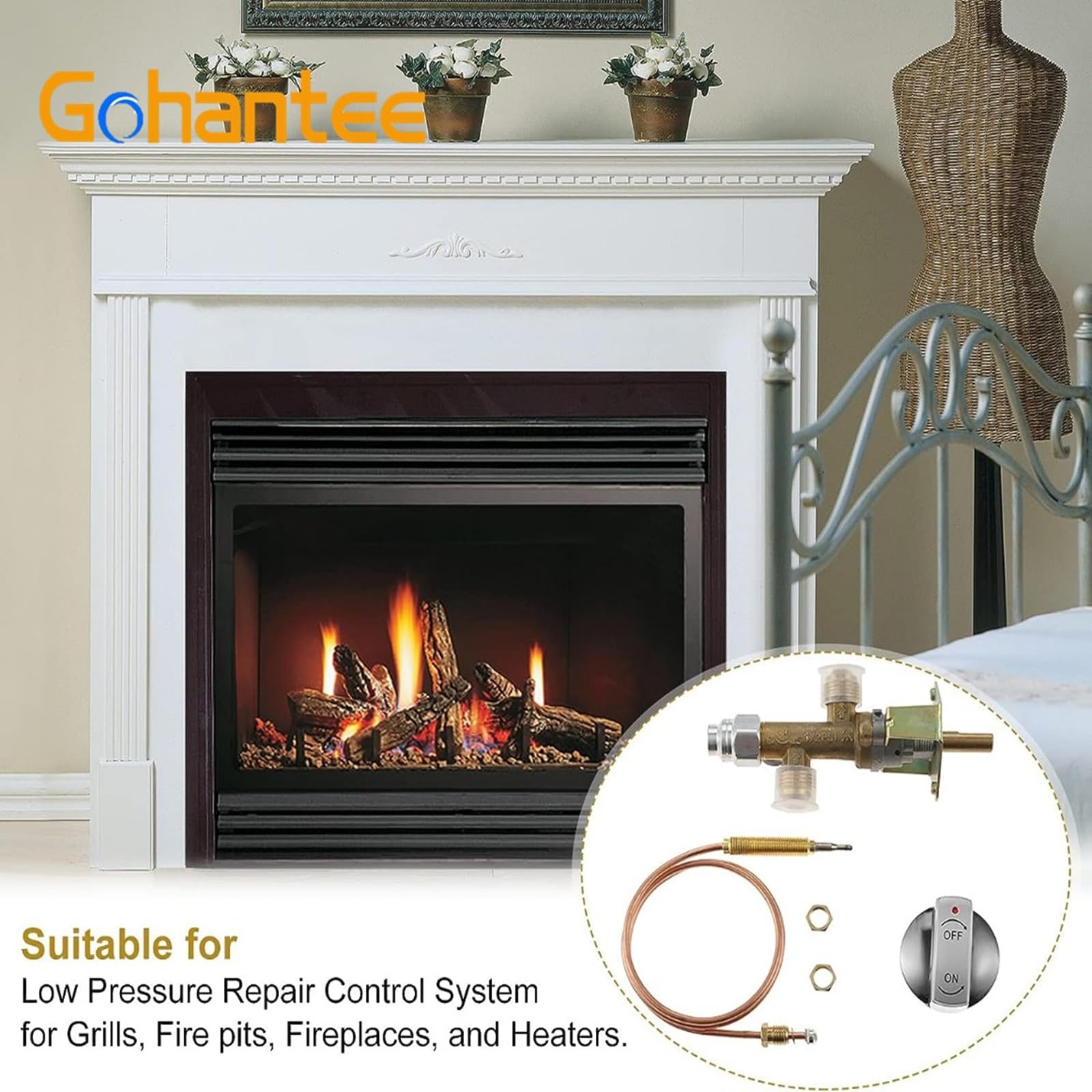

• 【Application】Suitable for all kinds of low pressure heaters, BBQ stove and ovens. To meet your needs, please check the dimensions before purchasing. If you encounter quality problems, please contact us to solve for you.

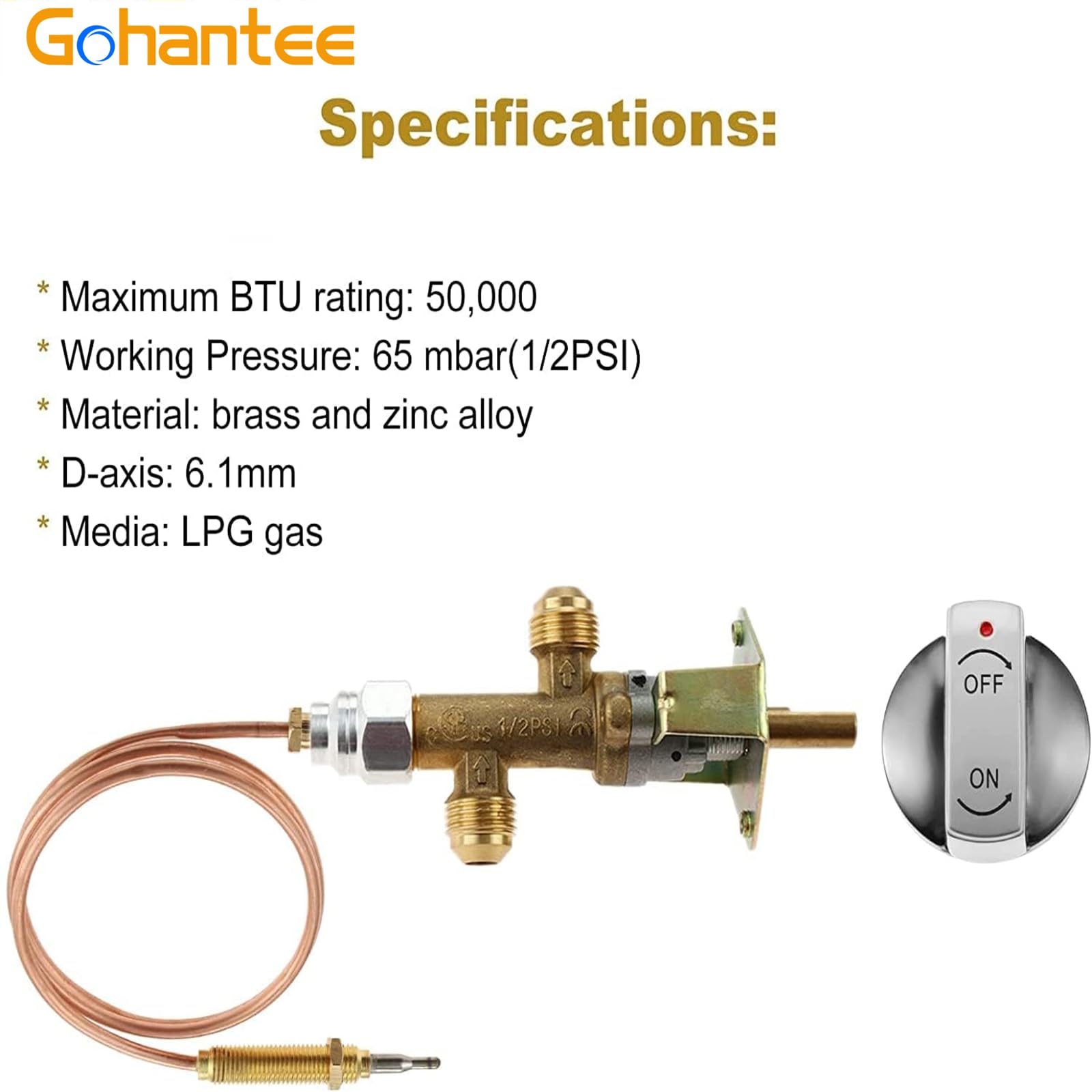

Description: The universal gas fire pit control valve kit is suitable for all kinds of low pressure heaters. Used for gas fireplace, fire pit, grill, BBQ stove, oven, catering cooker, patio heaters etc. Specification: Thermocouple total length: 600mm Head thread size: M8*1 Import and export thread size: 3/8" (5/8"-18UNF) flare male thread Maximum BTU rating: 50,000 Working Pressure: 65 mbar(1/2PSI) Material: brass and zinc alloy D-axis: 6.1mm Media: LPG gas Package included: 1 X 1/2 PSI brass propane gas control valve assembly 1 X A zinc alloy knob 1 X 600 mm/23.62 inch length thermocouple Operation Instruction: 1. Fix the valve on a plate or board of your grill or fire pit by the head screw and flange. 2. Connect your inlet and outlet hose on inlet and outlet side. (fix it tightly enough in case of gas leakage). 3. Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy). 4. Connect thermocouple and end thread well. 5. Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough. 6. Release your hand and it work properly If when you release hand, gas valve shut off again, please check Notes: Please check if the product size matches your original equipment before purchase. Please make sure the parts are installed in accurate position when installing Make sure the thermocouple is well connected to the dump switch or valve. Loosen the knob and the gas valve is closed again. Check that your thermocouple is always heating on the flame. Turn on the gas and push the valve for 5-10 seconds until the thermocouple probe is heated.
