Ganter Normelemente Telescopic rails with partial extension - GN 1400-300-A-1-ZB | length: 300 mm | 1 pair

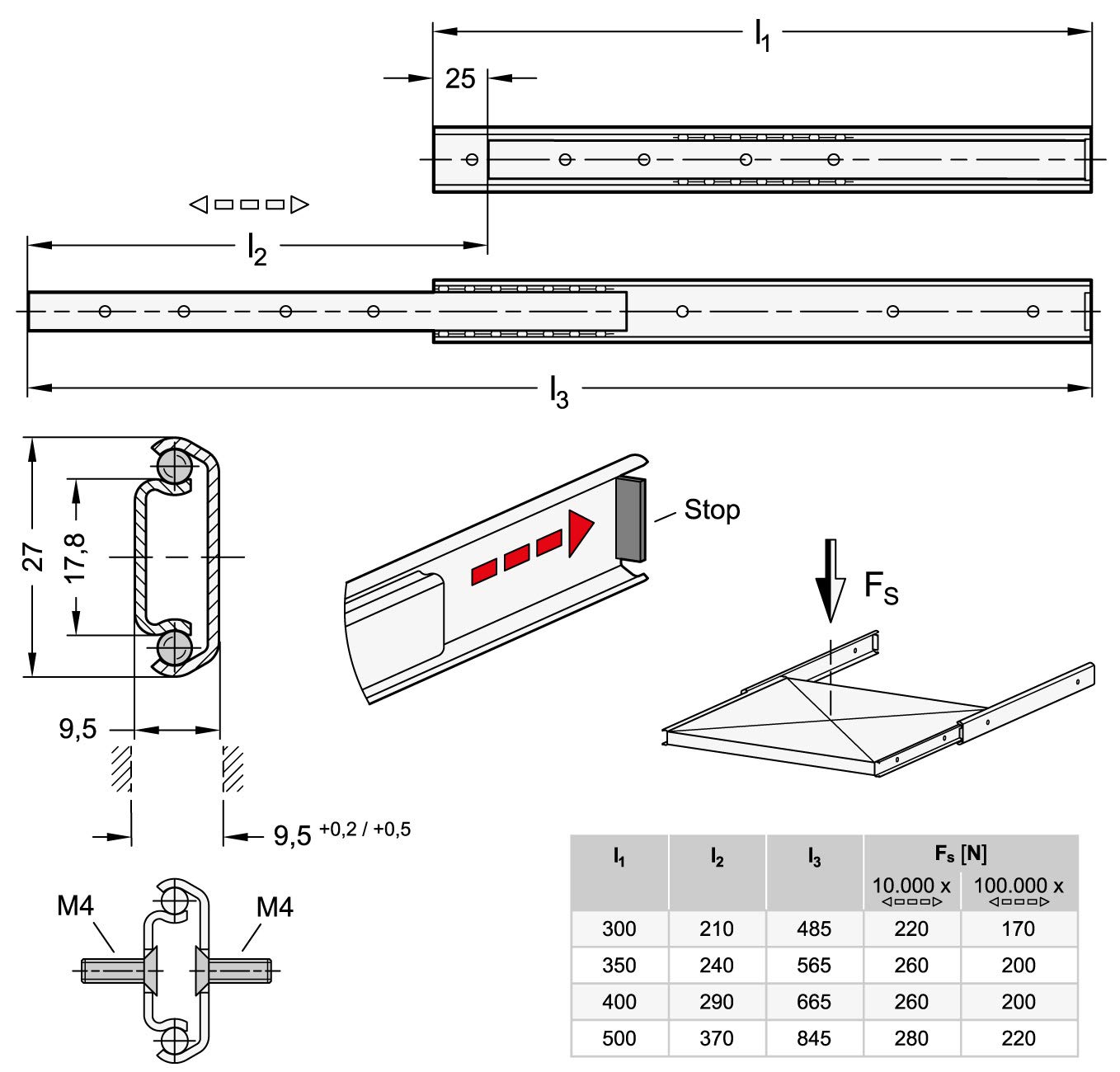

• Length l1: 300 mm; length l2: 210 mm; length l3: 485 mm; height: 27 mm; width: 9.5 mm
• Load capacity Fs per pair at 10. 000 cycles: 220 N; Load capacity Fs per pair at 100 000 cycles: 170 N
• Rail profile: steel, galvanised, blue passivated; operating temperature -20 °C to 100 °C, installation due to mechanics arbitrarily left or right side

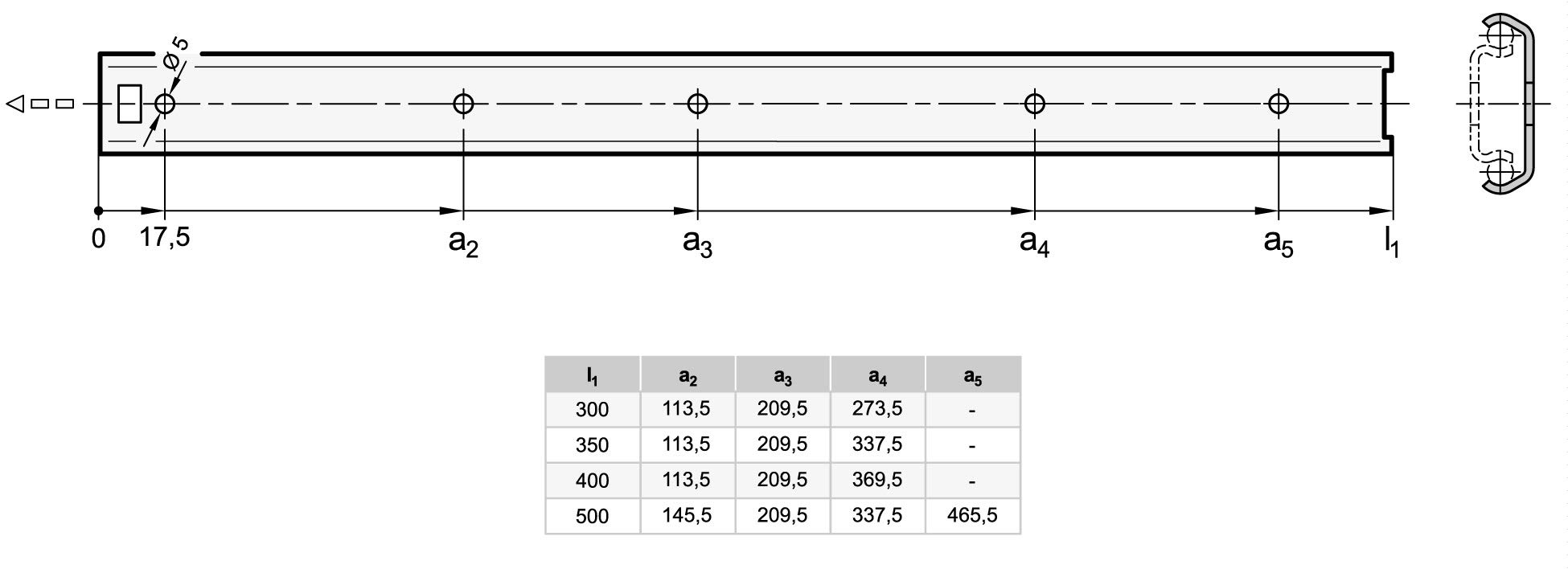

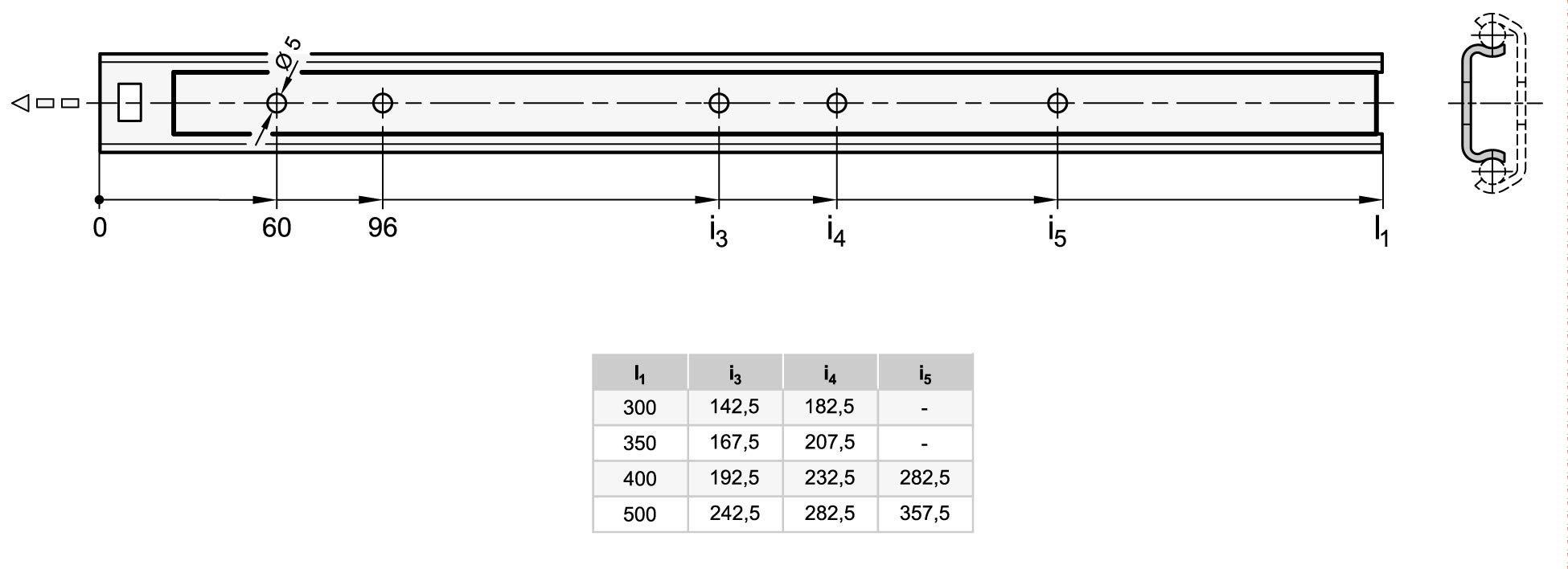

• Hole pattern outer rail: A2, A3, A4, A5; hole pattern inner rail: i3, i4, i5

Product Description Telescopic rails GN 1400 are installed vertically and in pairs. The stroke reaches ≈ 75% of the nominal length l1 (partial extension). In the form A without stop rubber, the end stops are made of steel, which means that unintentional removal or separation of the rail is prevented. If larger static or dynamic loads occur in the extension direction, they should be absorbed by external stop elements. The telescopic rails come in a pair. The installation can be done on the left or right side of the pull-out due to the mechanism. The accessibility of all mounting holes is ensured without additional auxiliary holes. Other production related holes may be available, but only the mounting holes are shown. Safety Warning Always use external stop elements for larger loads. Do not overload the shelves to prevent unintentional removal or separation of the rail.
