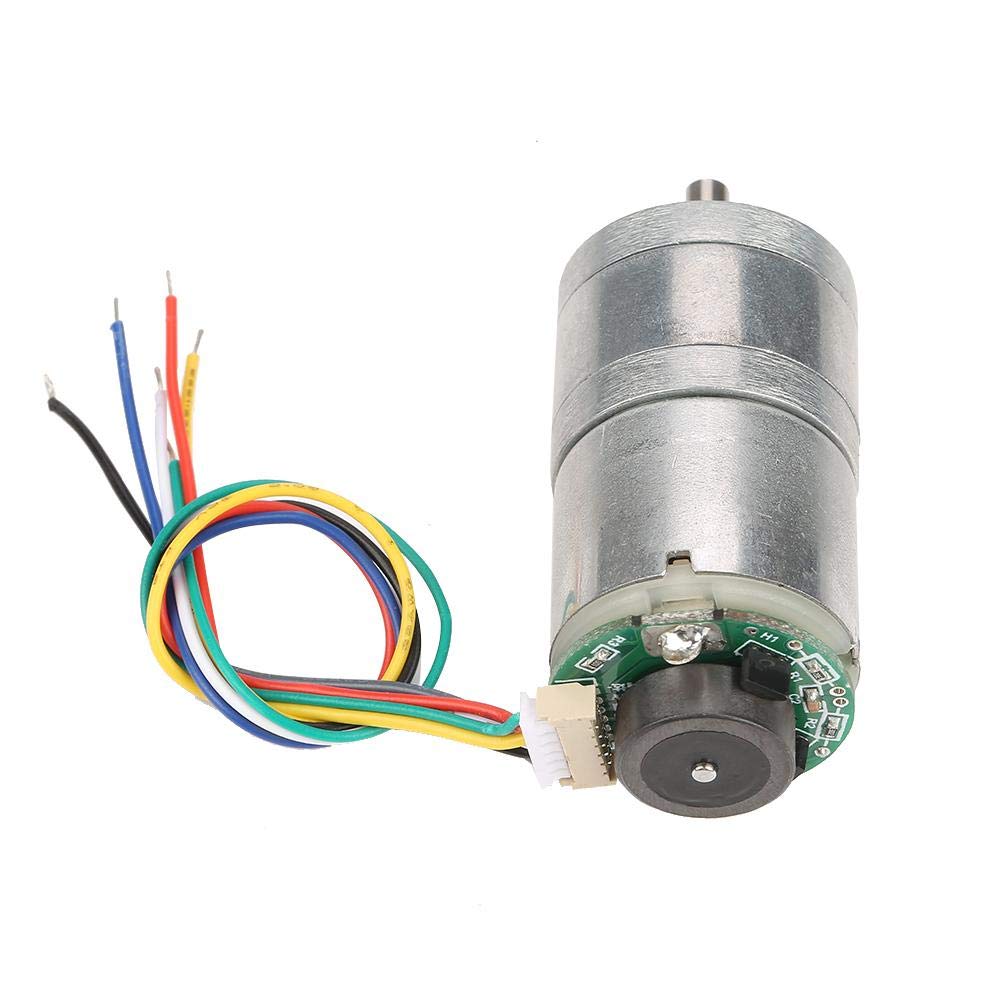

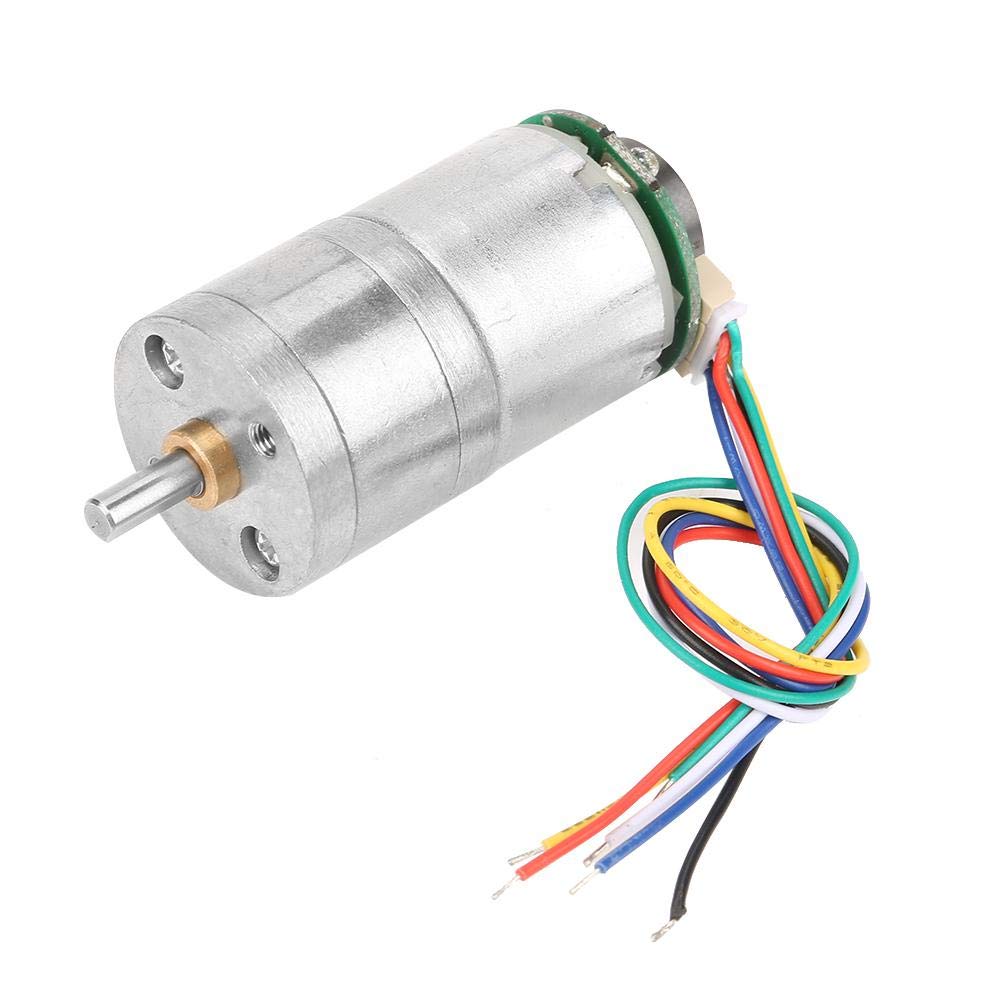

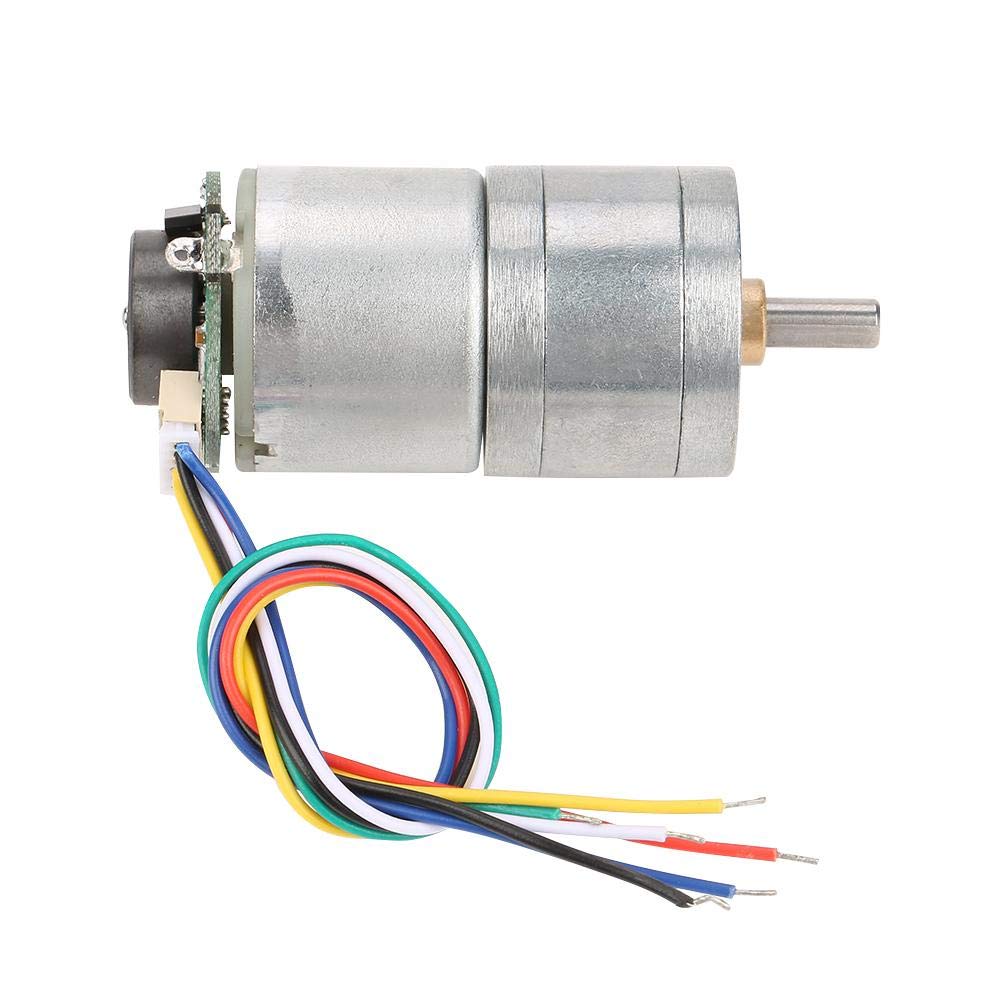

GM25-310 DC Gear Motor, 30 RPM / 70 RPM / 100 RPM / 500 RPM Low Noise 12V Metal Encoder Reduction Motor (DC12V 70RMP)

• 【Low Noise】This DC motor offers great moment of strength, low speed and low noise.
• 【Design】The gear motor is mainly designed to reduce the speed in a series of gears, which in turn creates more moment of strength.
• 【Durable】This motor is adopted with pure copper wire coil, low temperature and low loss.
• 【Long service life】 The motor is made of metal gear, wear-resistant, avoid tooth breakage, so with a long service life.
• 【Fit】 Applications: Perfect for window opener, door opener, mini winch etc.

Features: This DC motor has a wide moment of force, low speed and low noise. The gear motor is primarily designed to reduce the speed in a series of gears, which in turn creates more moment of strength. Applications: Perfect for bottle opener, door opener, mini winches etc. This motor is adopted with pure copper wire spiral, low temperature and low loss. The motor is made of metal gears, wear-resistant, to prevent tooth breakage, so with a long service life. Specification: Material: Metal Model: GM25-310 Product type: dc brush motor Rated voltage: 12 (V) Rated power: 2 (W) Speed: 30/70/100/500RMP (optional) Size: 6 x 2.5 cm / 2.4 x 1 inch Weight: about 73g / 2.6oz Voltage Exchange ratio No loading Load Stable Speed (optional) Current Current Current Moment of force Current Moment of force 12 V 1: 300 30 RPM ≤150 mA 28 RPM ≤ 17 mA 850 g ≤ 2 A 6.4 kg.cm 12 V 1: 150 70 RPM ≤170 mA 65 RPM ≤ 155 23 mA 99 oz² ≤ 2.1 A. 5.8 kg.cm 12V 1:90 100 RPM ≤170mA 91 RPM ≤150mA 550 gr.cm ≤2.1A 4.8 kg.cm 12V 1:18 500 RPM ≤180mA 455 RPM ≤185mA 13.40 oz.cm ≤2 .1A 4.8 kg.cm Thread Method: Green: motor cable Red: Encoder power Yellow: phase encoder output White: B encoder output phase Black: earth encoder cable Blue: motor cable + Package list: 1 x DC Encoder Gear Motor with Cable
