Glarks Arduino Standard PCB Connectors Jumper Assortment Kit JST-XHP 2 3 4 5 6 7 8 9

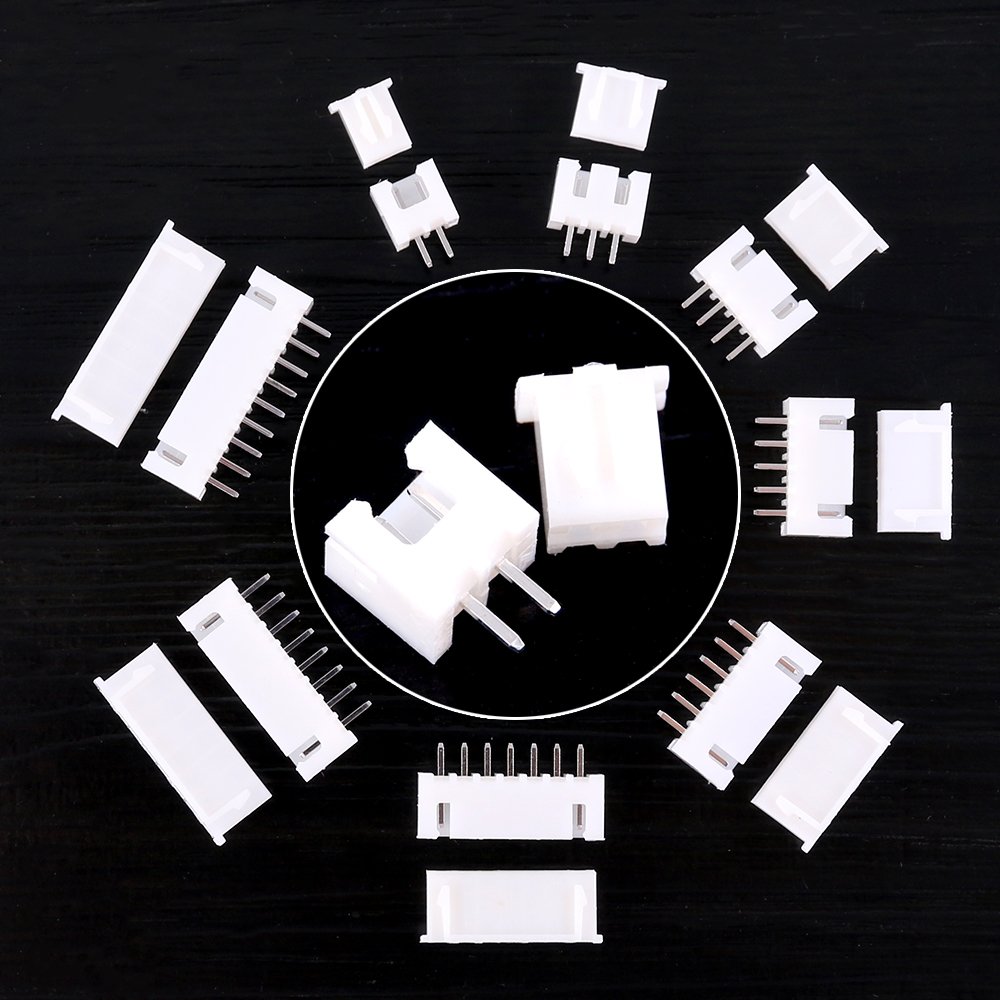

• Product Type: High quality male and female housing and 2.54mm female pin header connector compatible with jst-xhp connector Kit
• Material: Nylon housing, Copper pin header

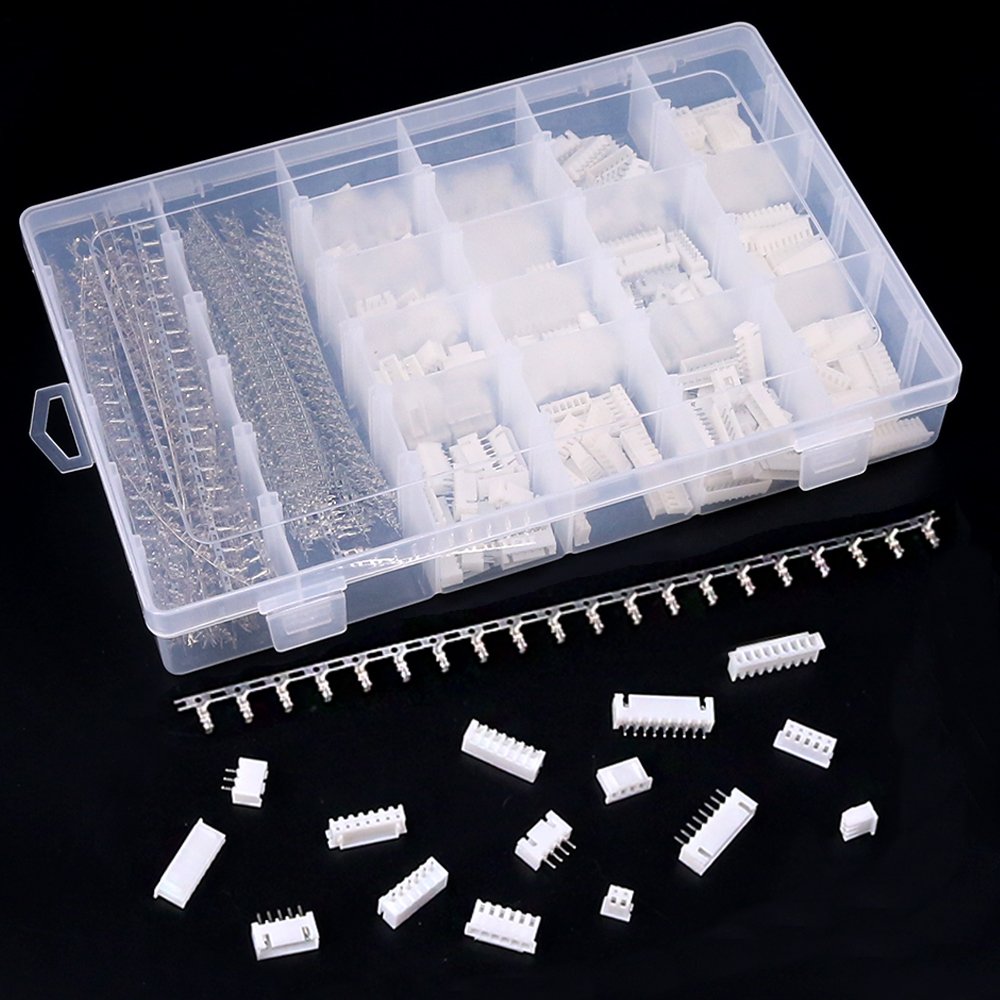

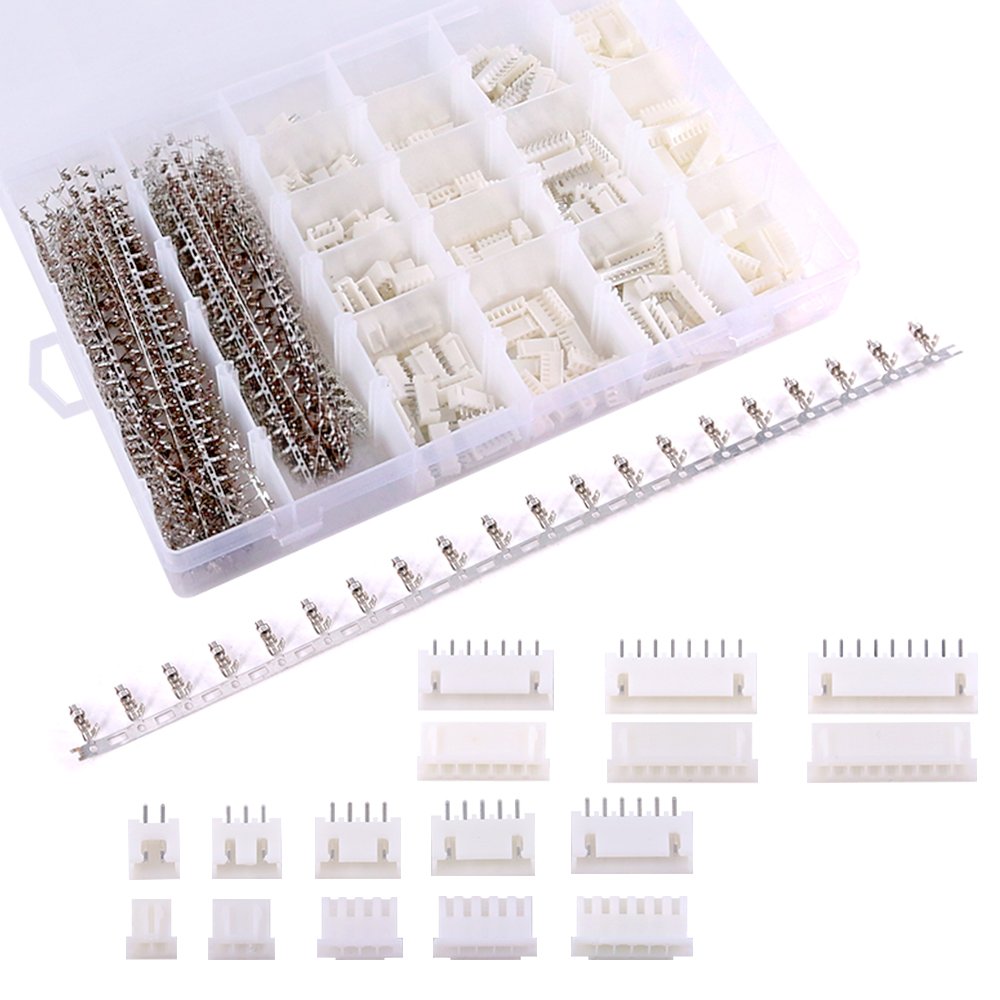

• Package: This set include male and female housing each 20pcs total 320pcs, with 2.54mm female pin header which are 860pcs, stored in a transparent plastic box

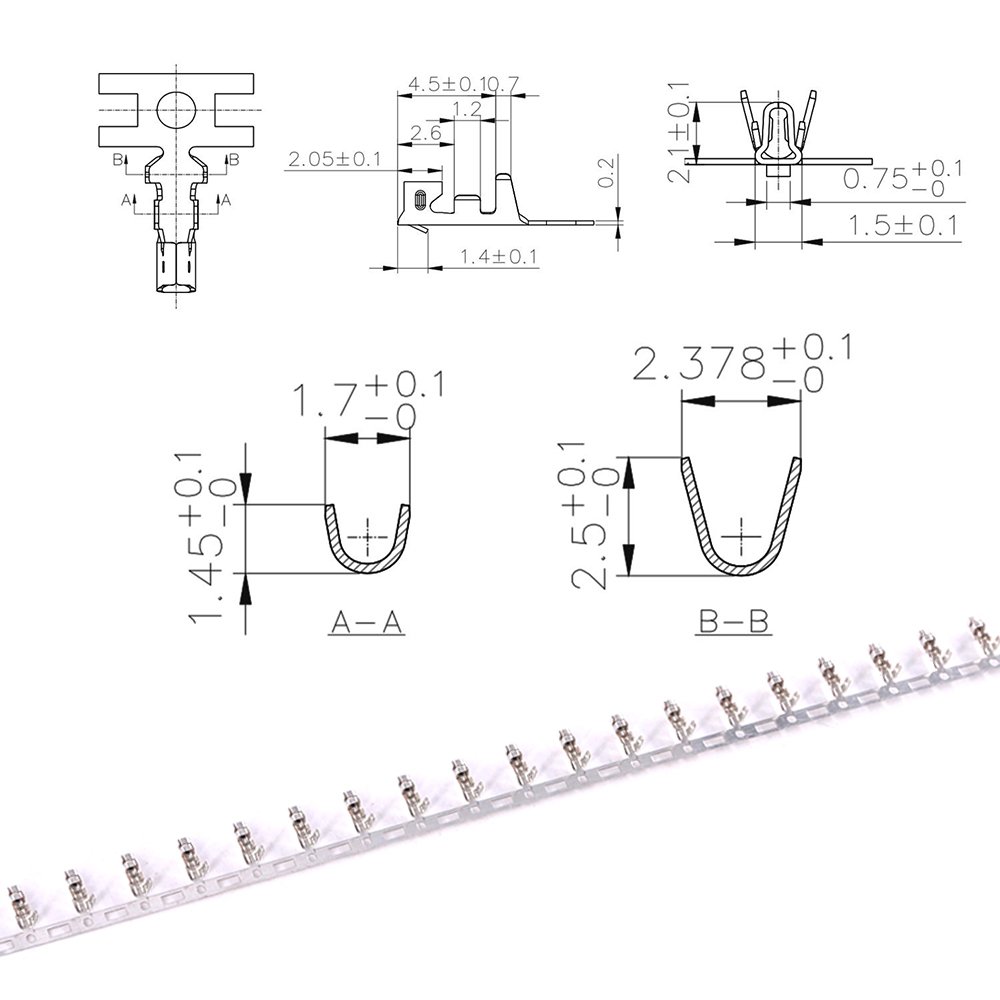

• Feature: This set of connector is easy to install, Just put the crimps in the tool and press them, make the crimp the insulation are all the way toward the wire
• Widely Application: widely used for speakers, monitors, household appliances, LED lighting, copiers, FAX machines, medical equipment, computers, electronic toys, batteries, circuit boards

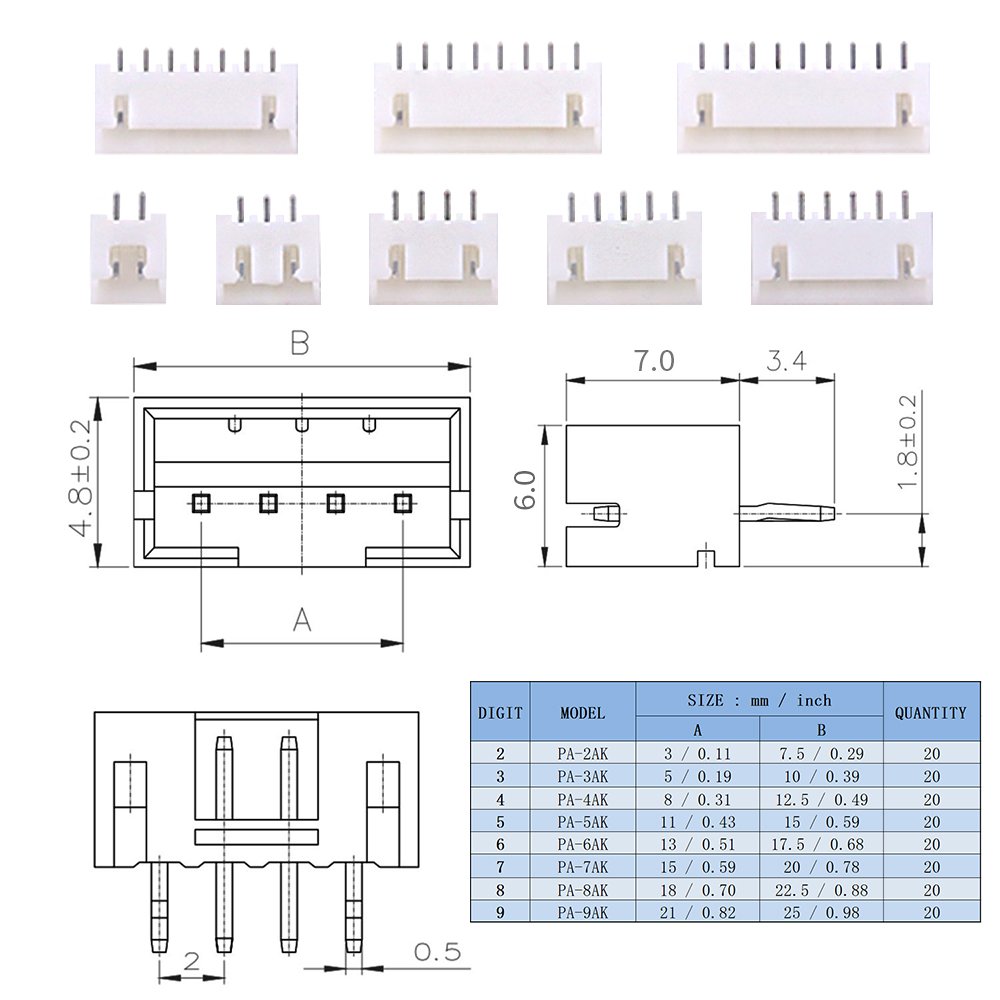

Specifications: -- Pitch: 2.0 mm ((0.079 inch)) -- Current Rating: 2A AC,DC (AWG #24) -- Voltage Rating: 100V AC,DC --Temperature Range: -25 Degree Celsius to 85 Degree Celsius(including temperature rise in applying electrical current) -- Contact Resistance: Initial value/10m Ohm max -- After Environmental Testing/20 m Ohm max -- Insulation Resistance: 1000 M Ohm min -- Withstanding Voltage: 800V AC/minute -- Applicable Wire: AWG#32 to #24 -- Applicable PC Board Thickness: 0.8 mm to 1.6 mm (0.03 inch to 0.06 inch) Application: -- Speakers, Monitors -- Household Appliances, LED Lighting -- Copiers, FAX Machines -- Medical Equipment -- Computers, Electronic Toys -- Batteries, Circuit boards Package Details: JST 2.54mm XHP-2 housing x 20Pcs JST 2.54mm XHP-3 housing x 20Pcs JST 2.54mm XHP-4 housing x 20Pcs JST 2.54mm XHP-5 housing x 20Pcs JST 2.54mm XHP-6 housing x 20Pcs JST 2.54mm XHP-7 housing x 20Pcs JST 2.54mm XHP-8 housing x 20Pcs JST 2.54mm XHP-9 housing x 20Pcs JST 2.54mm B2B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B3B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B4B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B5B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B6B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B7B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B8B-XH-Athrough-hole type shrouded header x 20Pcs JST 2.54mm B9B-XH-Athrough-hole type shrouded header x 20Pcs JST-XH Female Pin Connector 860Pcs(2.54mm) Total Package:1180Pcs
