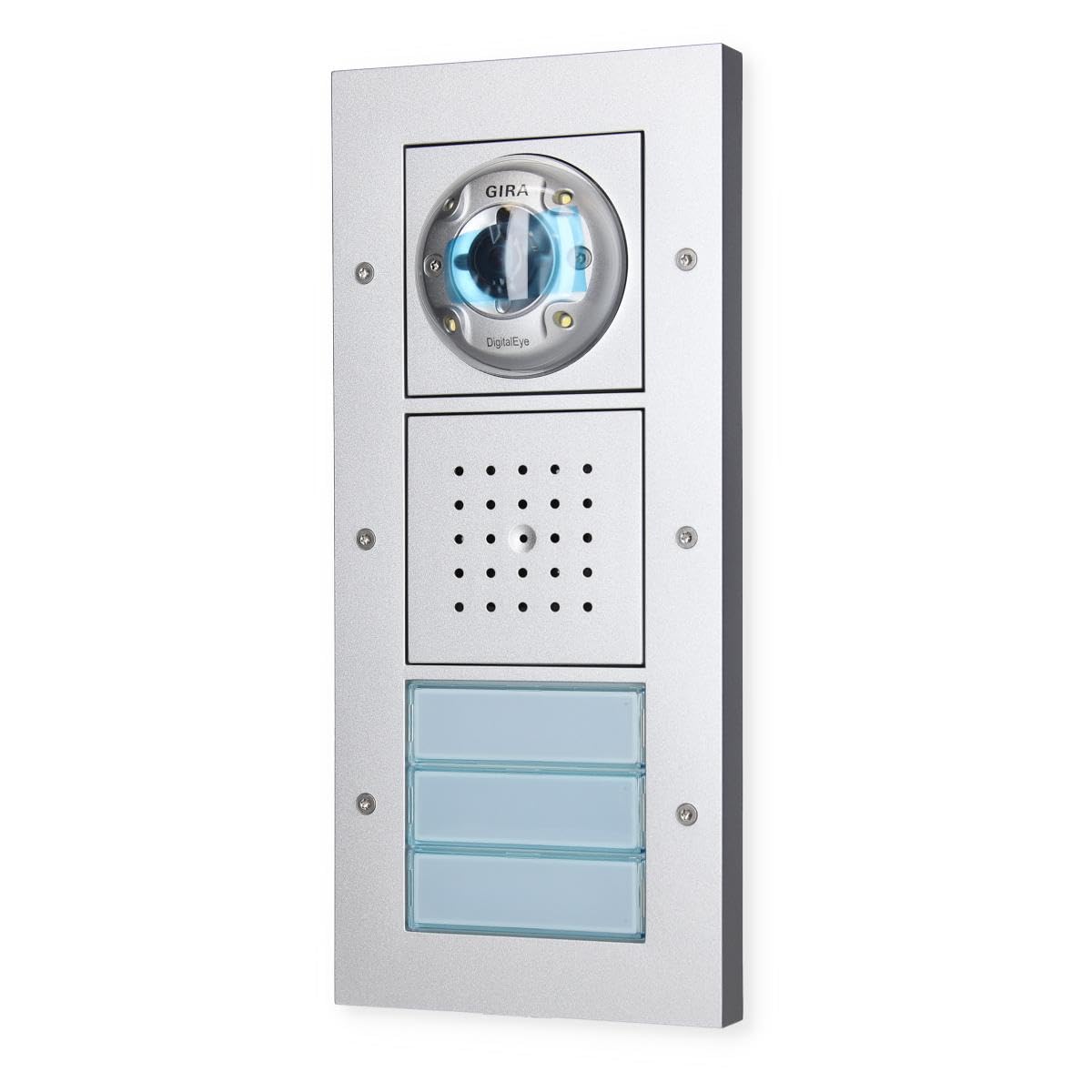

Gira 127065 Video Door Intercom AP 3-Panel Aluminium-Coloured

• Door intercom system
• Intelligent building technology from Gira

Gira 127065Gira door entry videophone, wall-mounted, 3-panel, aluminiumDoor intercom systemDoor entry phone unit with colour camera, door speakers and one-way call button, completely pre-assembled for vertical mounting.The wall-mounted door entry videophone has the following features:Completely pre-assembled surface-mounted door entry phone with TX_44 design, allowing quick, convenient installation.Signal transmission and power supply to the calling partners are protected against polarity reversal and short circuits by means of a 2-wire bus.Aluminium surface-mounted housing is warp-resistant.Cover made of shatter-proof thermoplastic with high UV stability and a scratch-resistant, easy-to-clean surface.Torx screws allow protection from theft.Easy start-up procedure can be done by one person.Weather-proof speakers.High quality electret microphone.Speaker-phone (voice-activated with echo- and background noise suppression).Acoustic acknowledgement signal when call button is pressed.Adjustable voice volume.White LED call button illumination.Splash-proof call button cover made of impact-resistant plastic.Call button nameplate can be replaced without the removing the frame.Professional labelling via the Gira Nameplate Service, at www.beschriftung.gira.de or Gira nameplate software.The colour camera has the following characteristics:Automatic daytime/night-time switching: The camera switches from a defined ambient brightness in daytime mode (colour display) to night-time mode (black and white imaging), and vice versa. Good imaging results are achieved even in poor lighting conditions because of the night-time mode's high sensitivity.LEDs illuminate a uniform close-range field of view in night-time mode.Camera can be pivoted manually by 20º, horizontally and vertically. Combined with the wide-angle lens, this results in a very wide viewing angle.Automatic backlight compensation.Automatic white balance.Automatic gain control (AGC).Integrated camera heating with temperature detection.Splash-proof cover.Camera lens cover made of impact-resistant plastic,easily replaceable when damaged, e.g. due to vandalism.Power supply: 26 Volts DC  2 Volts (bus voltage)Connectors: 2 screw terminals for 2-wire bus2 screw terminals for additional power supplyDimensions: 110 wide x 253 high x 19 mm diameter (without camera)110 wide x 253 high x 40 mm diameter (without camera)Nameplate dimensions: 62 mm wide x 62 mm highImage Sensor: 0.85 cm (3.1") CCDWide-angle lens: 150º apertureVisible detection range: Camera detection angle: 100ºDetectable area (with 20º pivot): 140ºColour system: PALPicture elements: 500 (H) x 582 (V)Horizontal resolution: 380 TVLSwitching thresholdColour to black and white: 1 luxPhotosensitivityin black and white mode: 0.1 luxElectronic shutterShutter speed: up to 1/100,000 secondIR filter: integratedRecommended camera installation height: 1.50 metresTemperature range: -20 ºC to +50 ºCIP rating: IP 44
