Gioven Zana Grobhandt Capo, Mushroom Button, IP66 1Ö1S NC NO/Red/Yellow/Black

• Original Giovenzana coarse hand switch
• PG1M9W01

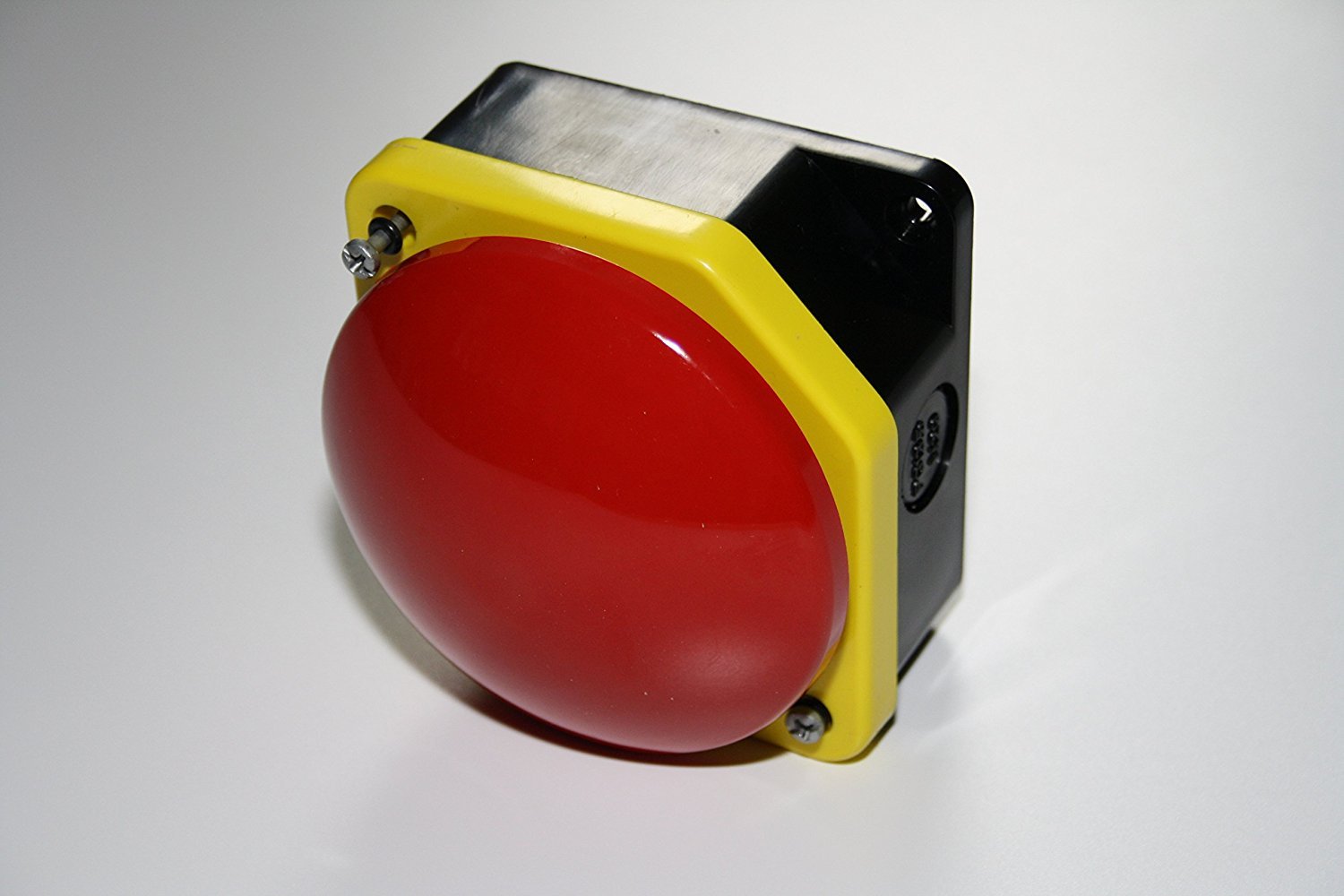

• High-quality and very robust mushroom button
• Includes contact elements NC and NO
• Dealer requests are desired

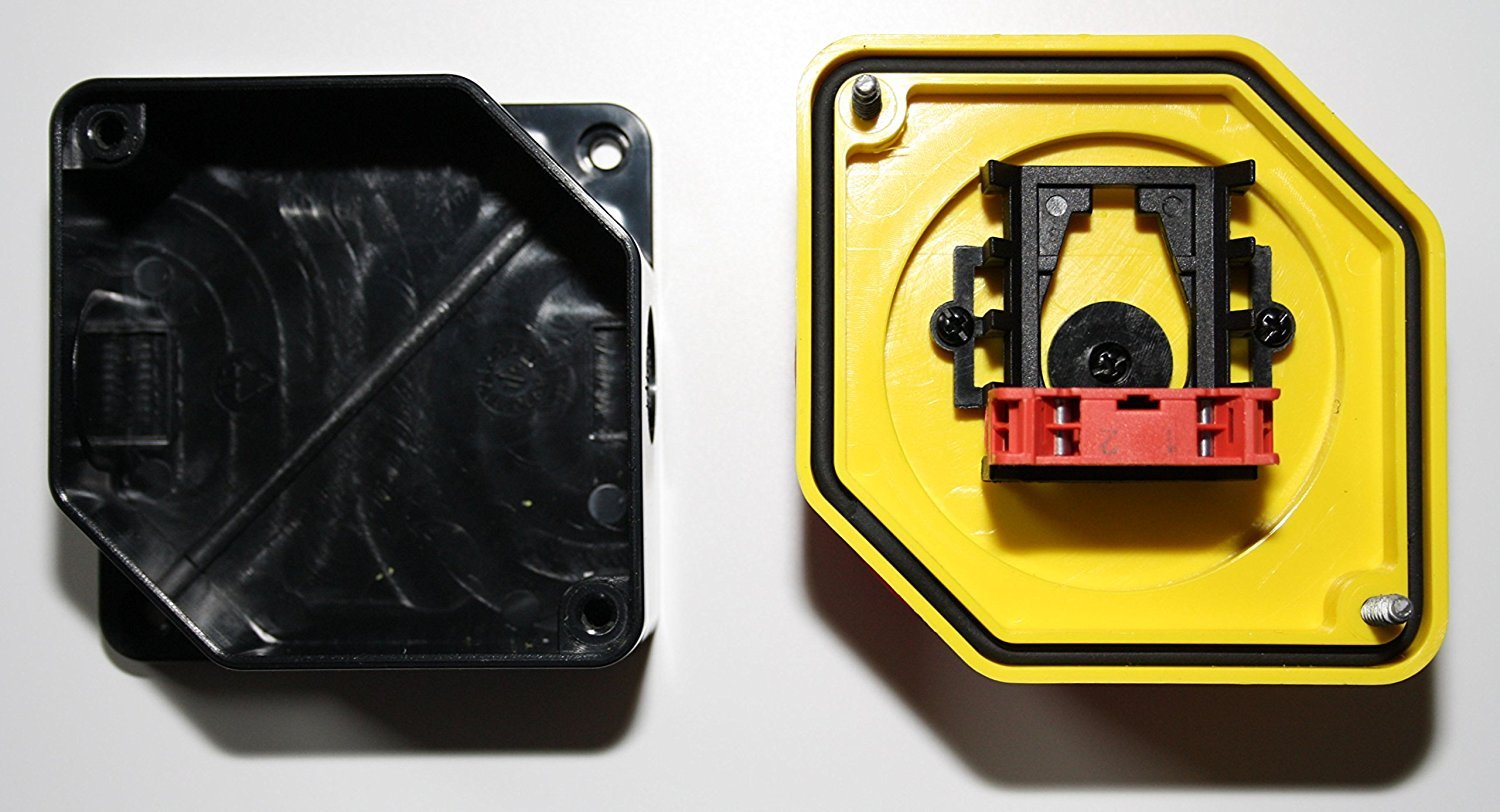

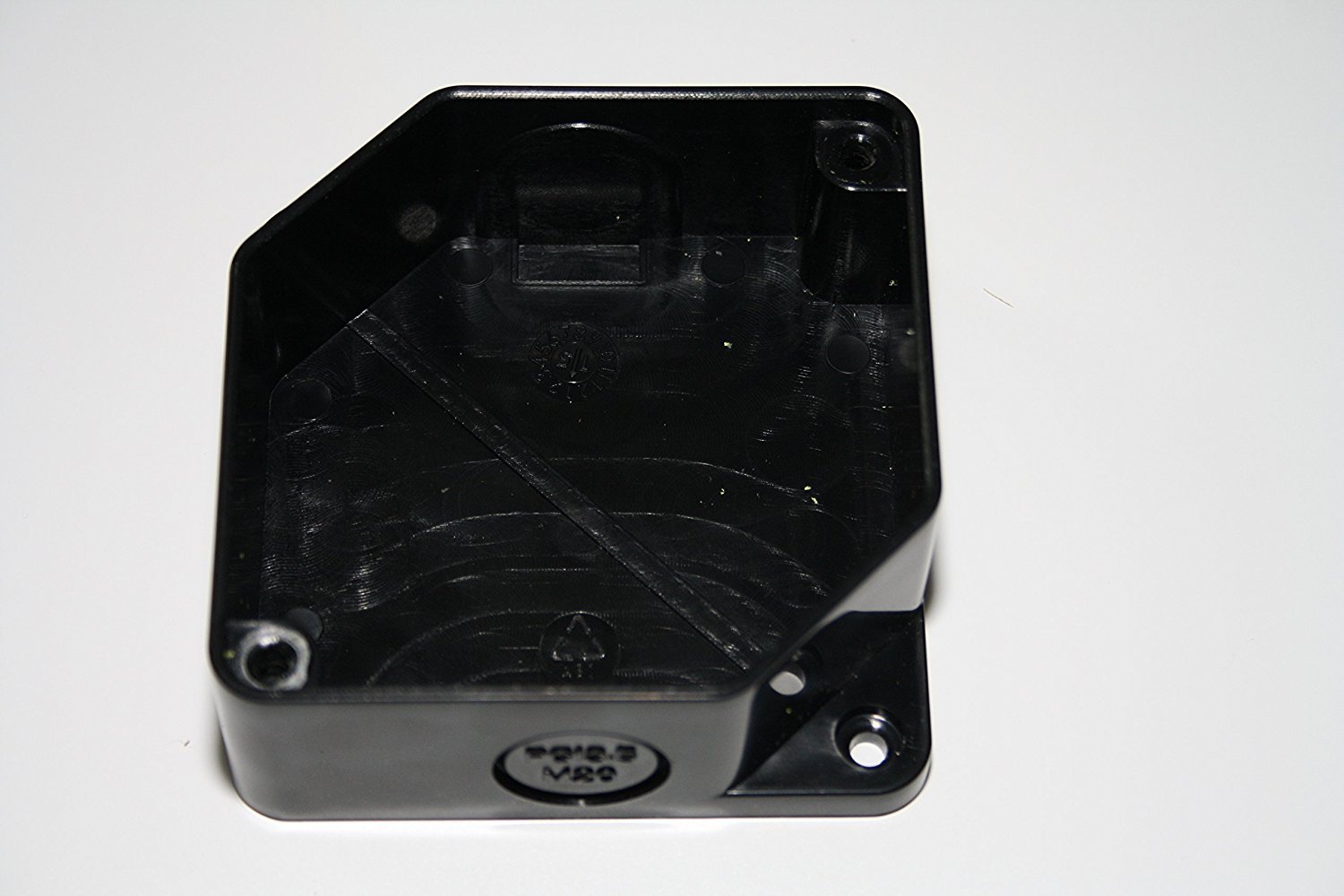

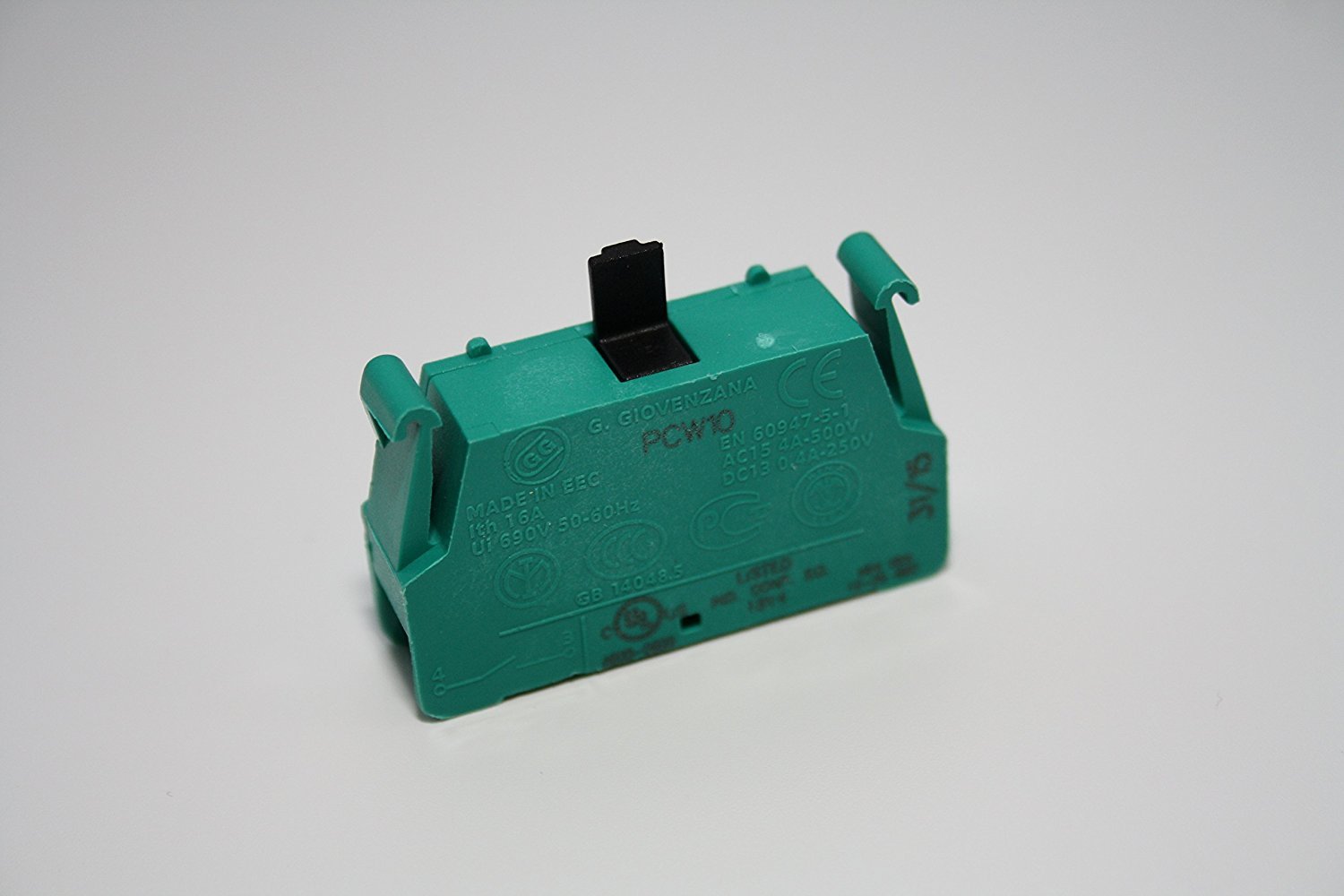

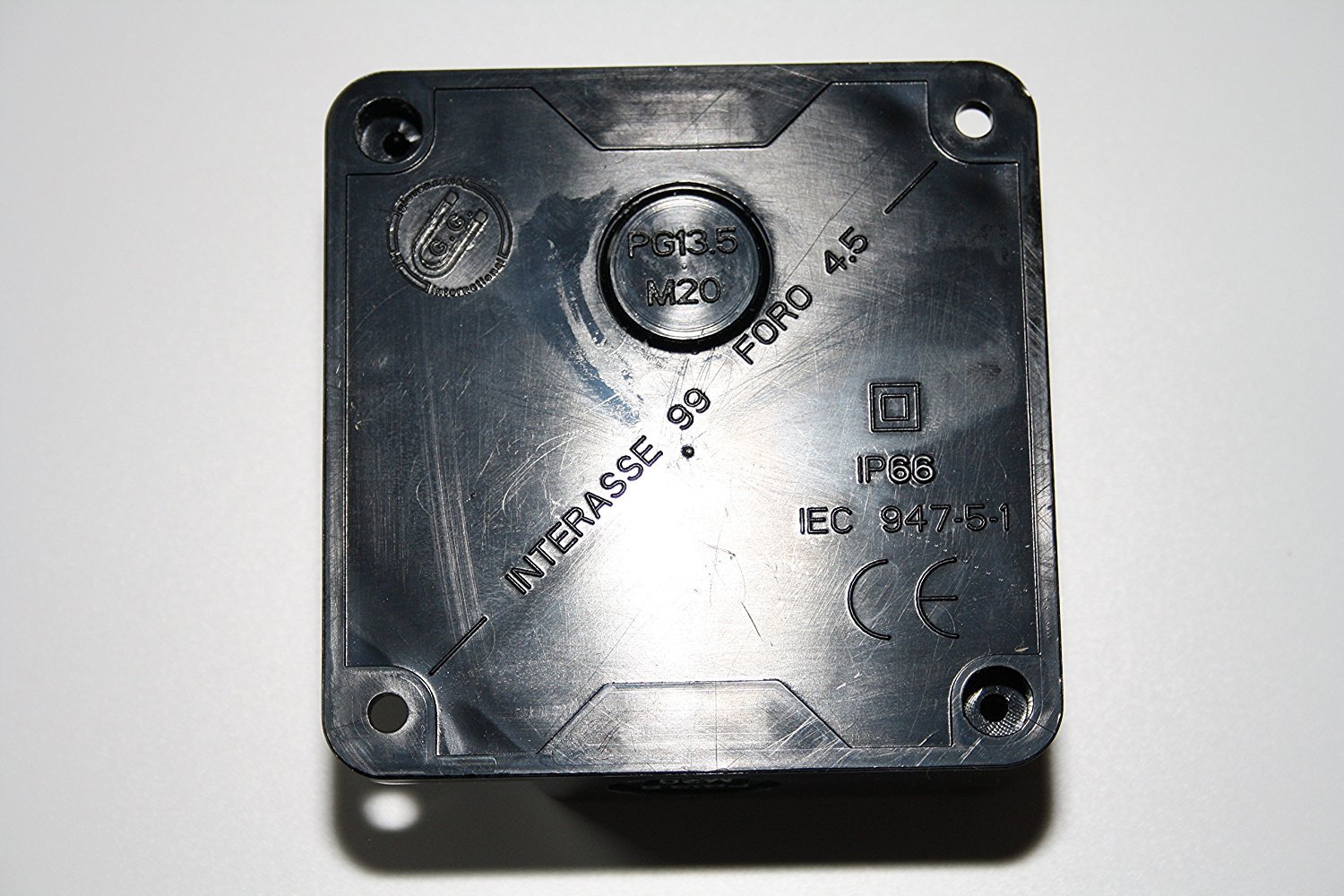

This high-quality coarse hand button is available with a contact element NC and a contact element NO. This allows a varied current flow (on and off). Technical data: Mushroom button red/yellow/black in housing. 230 V / AC 6 A max. Switching current. Protection cl EN 60529. IP66. Temperature resistant from -30 °C to +70 °C (IEC 68 2-3, 2-30) double insulated. Actuator raised touch Contact element NC and NO with cage-clamp technology. The contact element NC is installed, the contact element NO is included A total of 2 opposite side connection options PG13.5 M20 and a connection option in the floor PG13.5 M20 provided. Diameter of the mushroom head: 90 mm. Total height: 70.5 mm, outer dimensions: 90 x 90 mm
